Soft Copper Tubing for Upper Matching Unit Bent over for mounting

Soft Copper Tubing After Riveting

Mounting Flat Should be 1/2" in length and Soft Copper Tubing Main Length should be 42"

Flat area bent into Soft Copper Tubing and ready for 1/8" Hole to be drilled for Aluminum Rivet

Soft Copper Tubing for Upper Matching Unit Bent over for mounting

1/8" Holes drilled for Upper Matching unit

SO-239 Connection Riveted onto the Milford Hanger

5" Wire Soldered and Heat Shrunk onto SO-239 connection

P

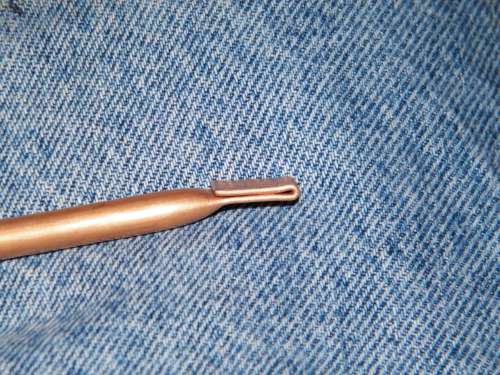

Soft Copper Tubing for Upper Matching Unit Bent over for mounting

Peter Walker
Apr 10, 2011
