Discussion in 'Amateur Radio Modifications' started by Kung Fu Panda, Dec 5, 2020.

  1. Kung Fu Panda

    Kung Fu Panda Member

    Joined:
    Jul 5, 2018
    Messages:
    19
    Likes Received:
    7

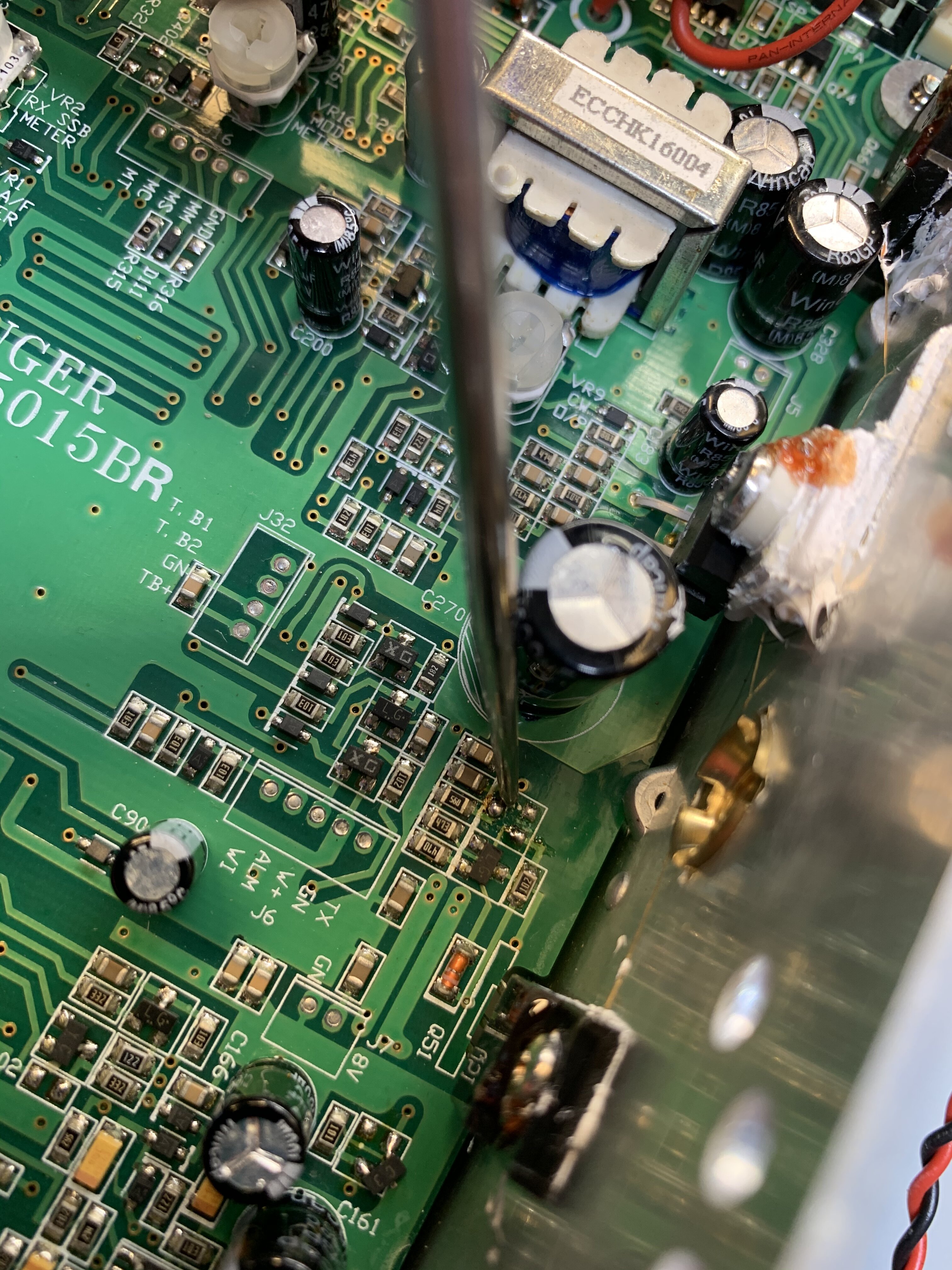

    Can anyone tell me what position this transistor is in Q? I’m not finding it on the schematic thanks. It was laid on its side soldered in.




    Attached Files:


  2. blasphemy000

    blasphemy000 Active Member

    Joined:
    Mar 31, 2017
    Messages:
    98
    Likes Received:
    146
    That appears to be Q50 that is missing. That is part of the voltage regulation circuit for the 8-Volt rail.

  3. Kung Fu Panda

    Kung Fu Panda Member

    Joined:
    Jul 5, 2018
    Messages:
    19
    Likes Received:
    7
    Ok it was laid on its side with the collector not being used. Q50 would be a 2712GR from what I find.

  4. blasphemy000

    blasphemy000 Active Member

    Joined:
    Mar 31, 2017
    Messages:
    98
    Likes Received:
    146
    My apologies, I was wrong with my initial response. The transistor beside it is Q50, the part that is missing in the photo is actually a diode. It is D66 only 2 of the 3 pads are used in the circuit. It still should be soldered flat, I would think. I don't see any reason it would need to be soldered like you describe.

    Eldorado828 likes this.
  5. Kung Fu Panda

    Kung Fu Panda Member

    Joined:
    Jul 5, 2018
    Messages:
    19
    Likes Received:
    7
    D66 is MA28W. Can’t find much on that. Should be able to cross it for something else.

  6. Kung Fu Panda

    Kung Fu Panda Member

    Joined:
    Jul 5, 2018
    Messages:
    19
    Likes Received:
    7

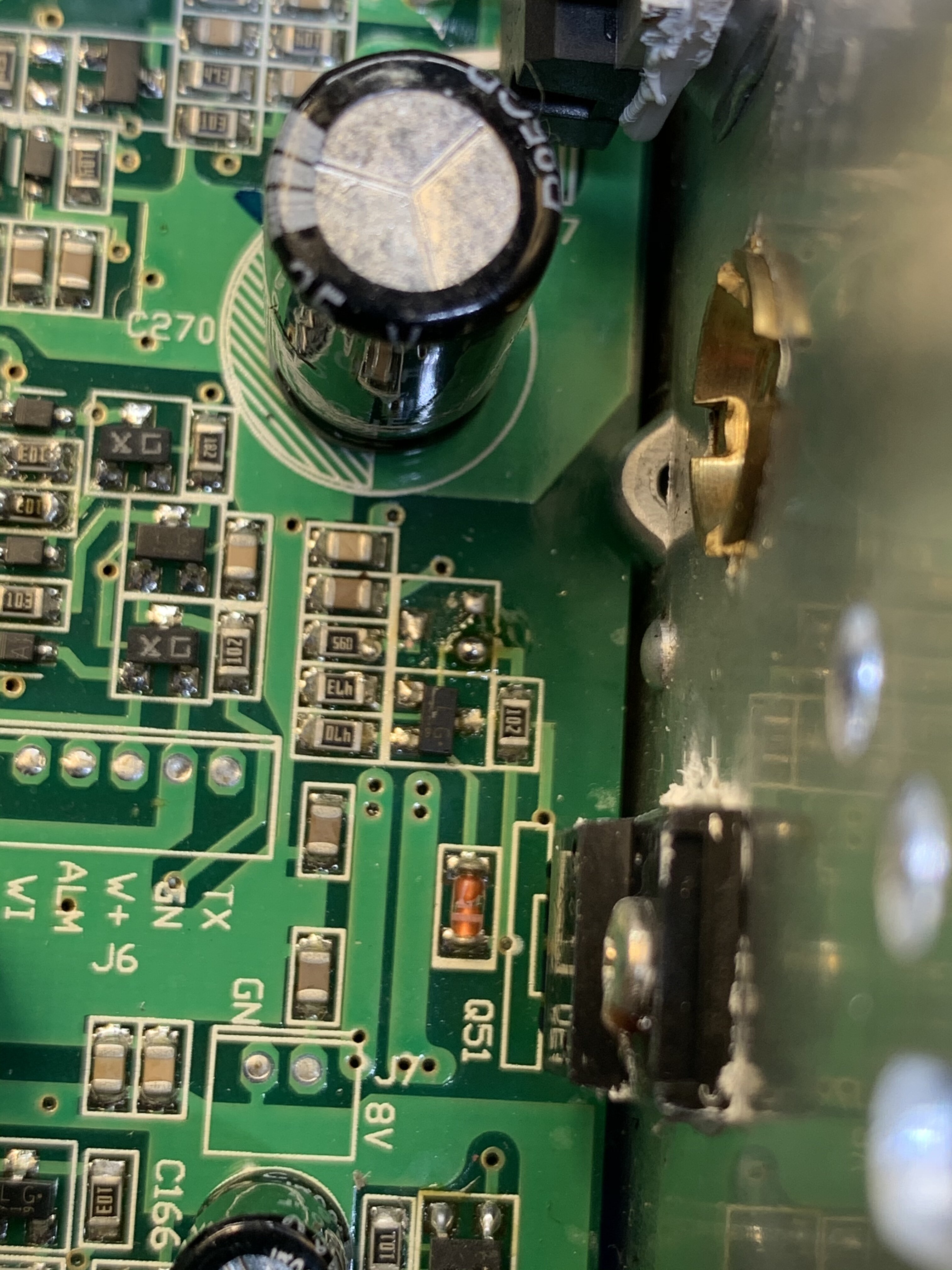

    This is what I’m talking about being on its side


    Attached Files:

  7. blasphemy000

    blasphemy000 Active Member

    Joined:
    Mar 31, 2017
    Messages:
    98
    Likes Received:
    146
    The datasheet that I was able to find showed the MA28W as a Varistor Diode with a forward voltage drop of around 1.2V (multiple part suffixes to denote different forward voltage, but all were around that area) and had a predictable voltage vs. temperature curve. Seems they were meant for temperature compensation for voltage regulators or temperature sensing. I don't think that part is available anymore though, and based on the way that part is mounted, my best guess is that it contains 2 standard diodes in series and it's mounted sideways like that so that the 1.2V is dropped across both. Mounting it properly would only make use of a single diode with approximately 0.6V. I'm just guessing here, so I could be wrong. You could always use a DVM in diode check mode and check the polarity and voltage drop from the unused pin to each of the soldered pins.

  8. nomadradio

    nomadradio Analog Retentive

    Joined:
    Apr 3, 2005
    Messages:
    4,599
    Likes Received:
    5,916
    Surface-mount diodes in that package come with one diode, two diodes, both in series, or with cathodes on a common pin, or anodes on a common pin.

    The board was laid out for one type, but the part that's "sideways" has the wrong pinout. It's turned the way you see it to satisfy the proper circuit hookup with the part they could get. Looks as if a diode with the correct pinout was not available.

    Or maybe they flubbed the board layout for that part? We'll probably never know.

    The circuit uses a diode with two junctions in series to double the temperature response you would get from a single diode. It's there to stabilize the regulated voltage over temperature changes.

    A pair of 1N4148 generic diodes in series will work in place of that part, but the physical hookup will be awkward and fragile.

    73

    blasphemy000 likes this.
  9. Kung Fu Panda

    Kung Fu Panda Member

    Joined:
    Jul 5, 2018
    Messages:
    19
    Likes Received:
    7
    I’m assuming the banded end would go to the regulator?

  10. blasphemy000

    blasphemy000 Active Member

    Joined:
    Mar 31, 2017
    Messages:
    98
    Likes Received:
    146

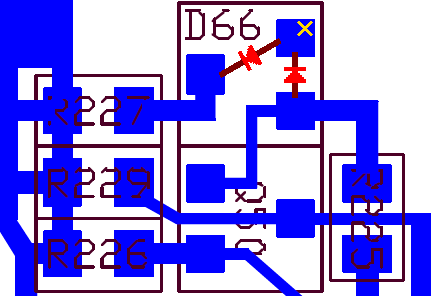

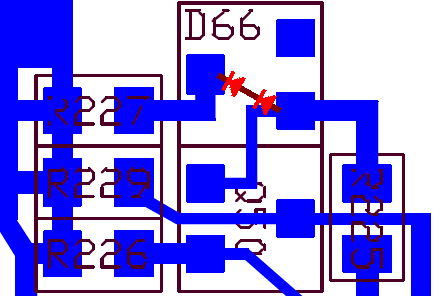

    I've attached 2 images of the pad and trace layout of those parts and the surrounding components. The first image shows how the original part was connected as well as how the sideways part was connected. The second image shows how it could be done using 2 discrete diodes, such as two 1N4148's. The pad that I marked with a yellow 'X' appears to be unused and not connected to anything else, so it could be used as a tie point. The 1N4148 diode is available in a few different SMD packages that are very small and would fit across those pads fairly neatly without being fragile. Using two 1N4148 diodes in a standard through-hole package would be fragile and risk tearing the pads off the board.
    My question is, the original diode that was mounted sideways in that location, did it fail? Why did it have to be removed? Was it removed only because it was mounted sideways? If that is the case, just solder it back in place in the same sideways position it was before. That's just how they came from the factory. I have an RCI-63FFC4 that I finally got around to examining today and it has the same sideways mounted package in that location.
    2970DX Regulator Fix 1.png 2970DX Regulator Fix 2.png

  11. Kung Fu Panda

    Kung Fu Panda Member

    Joined:
    Jul 5, 2018
    Messages:
    19
    Likes Received:
    7
    Thanks for all the help, opened up the radio and it fell out took me a while to find where it went. The two legs that were soldered were not there they stayed on the pads. Radio mabey was messed with I dont know. Ill give it a shot wish me luck, again thanks for the help....

    blasphemy000 likes this.
  12. Kung Fu Panda

    Kung Fu Panda Member

    Joined:
    Jul 5, 2018
    Messages:
    19
    Likes Received:
    7
    blasphemy000 - Nomad thanks for the help worked like a champ back in business

    blasphemy000 likes this.
  13. blasphemy000

    blasphemy000 Active Member

    Joined:
    Mar 31, 2017
    Messages:
    98
    Likes Received:
    146
    Sure thing. Glad to hear you're back up and running.

  14. nomadradio

    nomadradio Analog Retentive

    Joined:
    Apr 3, 2005
    Messages:
    4,599
    Likes Received:
    5,916
    Rock on! Good to hear you got it going.

    73
