Ameritron ATR-30 3KW / Legal Limit Antenna Tuner Review and Pics

Discussion in 'Product Reviews' started by Moleculo, Nov 13, 2009.

  1. Moleculo

    Moleculo Administrator
    Staff Member

    Joined:
    Apr 14, 2002
    Messages:
    8,834
    Likes Received:
    861
    I've had the Ameritron ATR-30 3KW antenna tuner for a while, and I thought that it would be neat to show some inside pics and also give a brief review of this tuner.

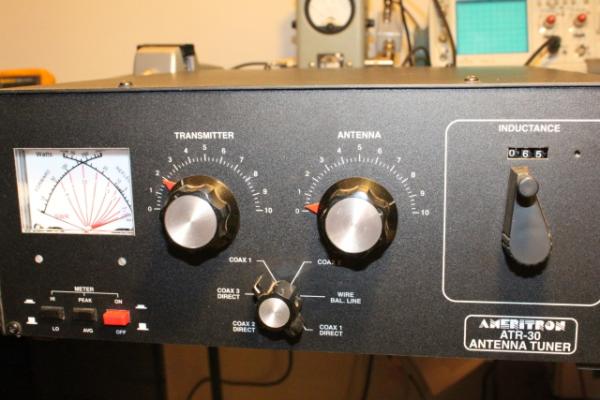

    Here is a pic of the front panel of the tuner. It has an active peak reading cross needle meter, an on/off switch for the meter and inductance turns counter meters, high/low and peak/avg meter switches, antenna switch, and the usual capacitors and inductor knobs.

    [​IMG]

    Note that the inductor is a roller inductor for infinite tuning adjustments.

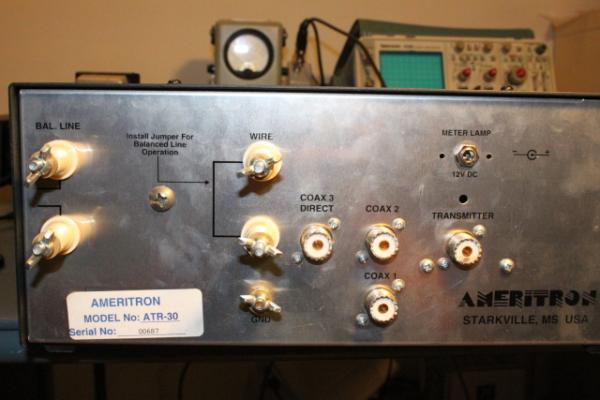

    Here is the back side of the tuner:

    [​IMG]

    You get two tuned antenna coax connectors, one additional direct, untuned antenna coax connector, balanced wire and long wire connectors, ground terminals, and the power source for the meter. Note that you can only use either the balanced line or wire connection; you can't use both.

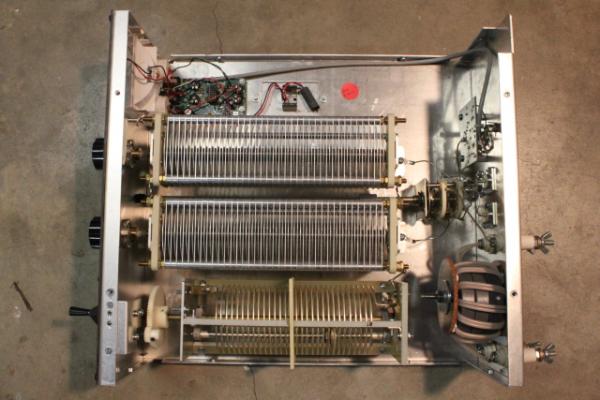

    Here is an inside pic of the tuner. The size of the capacitors, inductors, balun, and antenna switch is what enables the 3KW handling.

    [​IMG]

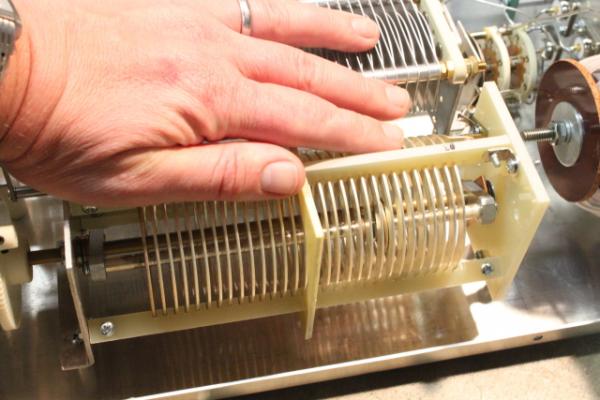

    Here is a close-up shot of the silver plated roller inductor with my hand in it for perspective. Just below my index finger you can see the roller that provides the tap on the inductor.

    [​IMG]

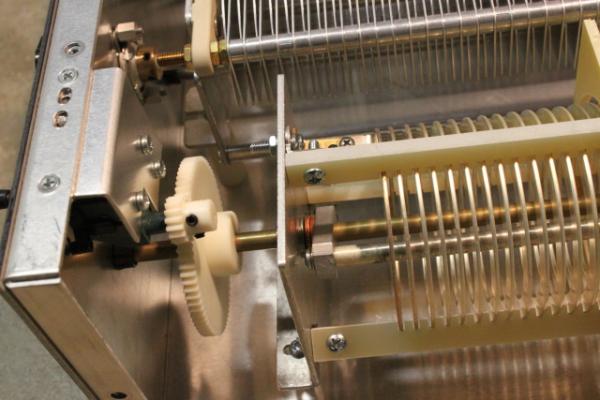

    The front side of the roller inductor has gears to work the inductor turns counter. This is a very simple, but effective design. The turns counter on this tuner isn't the most precise thing in the world but when you record your setting, it does give you a number that will get you pretty close so you can quickly recall your previous position when you change frequencies.

    [​IMG]

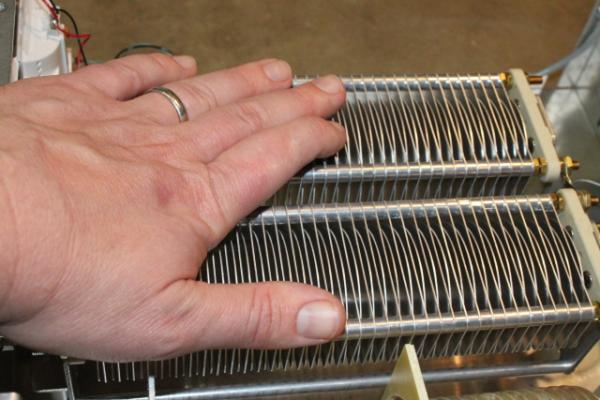

    Here are the tuning capacitors. Again, my hand shows the size necessary to handle 3KW:

    [​IMG]

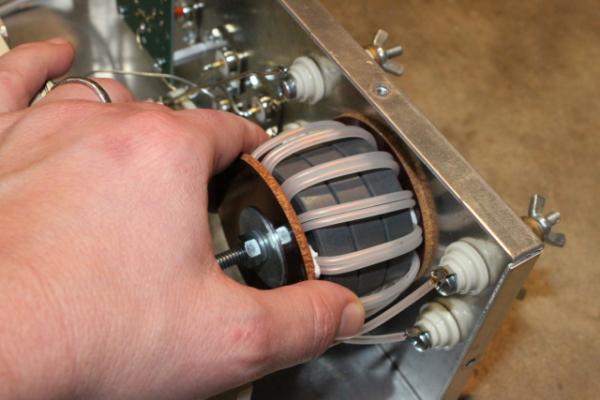

    Here is the massive balun for the ladder line connection:

    [​IMG]

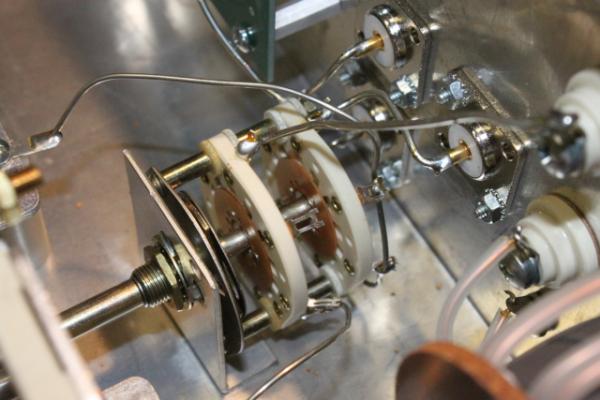

    A nice big antenna switch:

    [​IMG]

    And lastly, the meter circuit board:

    [​IMG]

    You can see that this tuner also has the ability to use a 9v battery to power the meter. You don't get the lights when using the 9v battery, but you need to use either the wall wart or the battery to power the active peak reading meter.

    I've owned this tuner for several years, certainly long enough to give a qualified opinion on it's effectiveness. I can happily say that I have never had any issues with it. The large roller inductor and tuning capacitors have enabled me to obtain pretty much a perfect match on anything I've tried. The inductor and capacitors aren't nearly as "smooth" to the touch as more expensive units from TenTec and others, but this tuner is also quite a bit less money.

    The size of the cabinet and components used allows for plenty of air circulation when using high power levels. I have put over 2KW through this tuner (MARS stations have higher power level limits while operating on MARS frequencies) and never had one single issue.

    My only real complaint about this tuner is the size of the meter. I would have liked to have seen a meter that is twice the size of the one provided. The built in meter will allow you to load up your antenna, but you cannot use it to obtain precise power level measurements. I almost always use an external large cross needle meter to adjust the tuner because I find the external one easier to read and I can obtain much more precise results.

    The price of this tuner is about $600 new. If you don't need this much power handling capability, Ameritron and MFJ offer several others for less money. However, if you want a reliable, basic but effective tuner that will handle well above legal limit power, this one will certainly do the job for many years.


  2. airplane1

    airplane1 W9WDX Amateur Radio Club Member

    Joined:
    Apr 15, 2005
    Messages:
    1,038
    Likes Received:
    13
    Nice review, been looking at these and other tuners. It helps me make up my mind a bit.

    Been looking at auto tuners also. I need a tuner which handle a ameritron 811 amp.

  3. Moleculo

    Moleculo Administrator
    Staff Member

    Joined:
    Apr 14, 2002
    Messages:
    8,834
    Likes Received:
    861
    Ameritron lists this tuner for about $600, but you can find them used for a lot less. I bought this one used. A manual tuner is one of those pieces of equipment where there just isn't a whole lot to go wrong. Even if it does need some repair, it isn't very difficult to do it yourself.

    Here's one for sale right now on ebay for a great price:

    AMERITRON ATR-30 ANTENNA TUNER - eBay (item 120491974240 end time Nov-16-09 14:39:08 PST)

  4. Moleculo

    Moleculo Administrator
    Staff Member

    Joined:
    Apr 14, 2002
    Messages:
    8,834
    Likes Received:
    861
    Auto tuners are very nice and very convenient. However you pay a huge premium for one that can handle legal limit plus power. Also, most auto tuners cannot always tune every antenna or get a perfect match. You can almost always do that with a good manual tuner. When you're dealing with high power levels, I'll take a manual tuner every time - there are just less a lot less things that can go *poof*! in them.

    Heavy Metal likes this.
  5. Captain Kilowatt

    Captain Kilowatt Professional Amateur
    Staff Member

    Joined:
    Apr 6, 2005
    Messages:
    15,049
    Likes Received:
    6,676

    IMHO manual tuners are the way to go ESPECIALLY when running high power. At high power things do not go "poof". They go BANG!! :eek:

    Heavy Metal likes this.
  6. n8fgb

    n8fgb Well-Known Member

    Joined:
    May 18, 2008
    Messages:
    660
    Likes Received:
    193
    I have had a lot of different tuners, but my ATR30 is by far the best one. Can tune from 160-6 meter.
    Rich

    Heavy Metal likes this.
  7. Moleculo

    Moleculo Administrator
    Staff Member

    Joined:
    Apr 14, 2002
    Messages:
    8,834
    Likes Received:
    861
    You bring up a good point. The specs and manual indicate that this tuner is only good up to 10 meters, but it works great on 6 meters, as well.

  8. HiDef

    HiDef Active Member

    Joined:
    Aug 16, 2008
    Messages:
    543
    Likes Received:
    5
    Thanks for taking the time to post this.

  9. silver devil

    silver devil BANNED

    Joined:
    Dec 11, 2010
    Messages:
    159
    Likes Received:
    48
    I have one and I LOVE IT!!!!! Its built like a M1A1 Abrams tank.:D

  10. TonyV225

    TonyV225 W9WDX Amateur Radio Club Member

    Joined:
    Apr 18, 2005
    Messages:
    5,824
    Likes Received:
    290
    Good review and I agree with these manual tuners and less going wrong. About the only way to kill them would be operator error over powering or arcing.

  11. K8PG

    K8PG The Outer Limits

    Joined:
    Jul 7, 2006
    Messages:
    201
    Likes Received:
    1
    ATR TUNNER

    This is a Nice Tuner,

    The draw back is that the roller inductor cannot handle over 1kw for very
    long on 160 mtrs,the nylon will begin to melt-I had one for 3 mos yrs ago
    and used it on 160 cw contesting-I was matching a 5/8 wave Inverted L
    with 72 -1/4 wave radials running 1200 watts-it operated fine under 700w
    but still got warm.I have a L/C auto tune at the base of the antenna now,but
    my tuner also is a Nye Viking MB5A-never arcs over or gets hot.Good luck and
    enjoy .73/44s/Dx.

    Paul K8PG CW IS AMATEUR RADIO

  12. North Texas Mudduck

    North Texas Mudduck Active Member

    Joined:
    Apr 5, 2005
    Messages:
    246
    Likes Received:
    30
    what does this thing tune?

  13. Captain Kilowatt

    Captain Kilowatt Professional Amateur
    Staff Member

    Joined:
    Apr 6, 2005
    Messages:
    15,049
    Likes Received:
    6,676
    Pretty much anything it's connected too. :LOL::whistle:

  14. Hook948

    Hook948 Member

    Joined:
    Dec 23, 2006
    Messages:
    72
    Likes Received:
    0
    I've had mine for a few years now. When I first got it I too noticed it getting a bit warm on 160M. I also noticed the roller wasn't as smooth as I thought it should be.
    Inspecting the inside, I found the rear of the roller loose and the contact strip was a bit loose.
    I don't remember what I did now to correct the problems but I do remember it was a quick easy fix.
    It's been working GREAT since then.
