Amplifier Pill testing?

Discussion in 'Amateur Radio Modifications' started by Crambone, Jul 28, 2019.

  1. Crambone

    Crambone Active Member

    Joined:
    Jan 22, 2019
    Messages:
    171
    Likes Received:
    61
    how can a pill be tested without removing from circuit?




  2. snow bird

    snow bird Active Member

    Joined:
    Sep 28, 2017
    Messages:
    113
    Likes Received:
    97
    Use it try it out on a watt meetAr see if it puts out the right wattage the only way to knoW ! OUTHER THAN TAKING IT OUT TO TEST IT!

  3. kopcicle

    kopcicle Sr. Member

    Joined:
    Feb 17, 2016
    Messages:
    1,377
    Likes Received:
    1,719
    You can always tear the cover off and look :ROFLMAO:


    de-solder base and collector , resistive test .
    wash rinse repeat.

    clue:

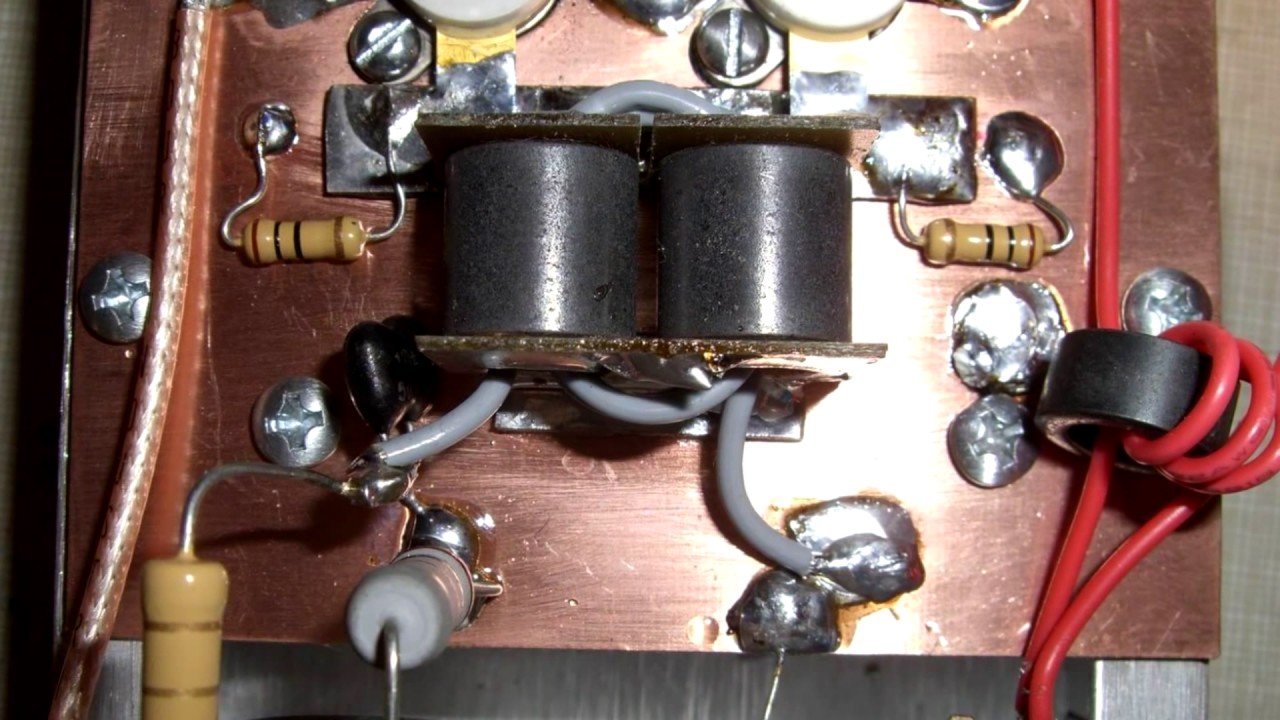

    This is a typical input circuit to a pair of transistors.
    Note the 10 ohm resistors , base to ground.
    If those resistors are zorched it's a good possibility gawd killed a kitten.

    TheRealPorkchop likes this.
  4. nomadradio

    nomadradio Analog Retentive

    Joined:
    Apr 3, 2005
    Messages:
    3,099
    Likes Received:
    3,082
    Checking a component "in-circuit" only works when the circuit it's connected in has a fairly high resistance.

    Just one problem. All the resistances in a power amplifier are low.

    Prevents any kind of test, when the circuit is draining all the test current away from your tester.

    The most-common kind of failure is for the circuit between the base (input) and emitter (ground) of the transistor to become an open circuit.

    Lifting the base terminal loose from the circuit allows you to test that terminal alone. It should check the same as a silicon diode, as if the diode's cathode side is connected to ground.

    This won't identify every kind of transistor breakdown, only the most-common kind.

    But it's a lot less trouble than removing the whole part to test.

    73

    Christopher17 likes this.
  5. Tallman

    Tallman W9WDX Amateur Radio Member, KW4YJ EXTRA class

    Joined:
    May 1, 2013
    Messages:
    4,369
    Likes Received:
    4,138
    KOPCICLE has it right. For a true test Lift the BASE and COLLECTOR . If you have access to a transistor tester or a component tracer. Check my albums for images of component tracings.

  6. BBB

    BBB Well-Known Member

    Joined:
    Jan 17, 2012
    Messages:
    744
    Likes Received:
    382

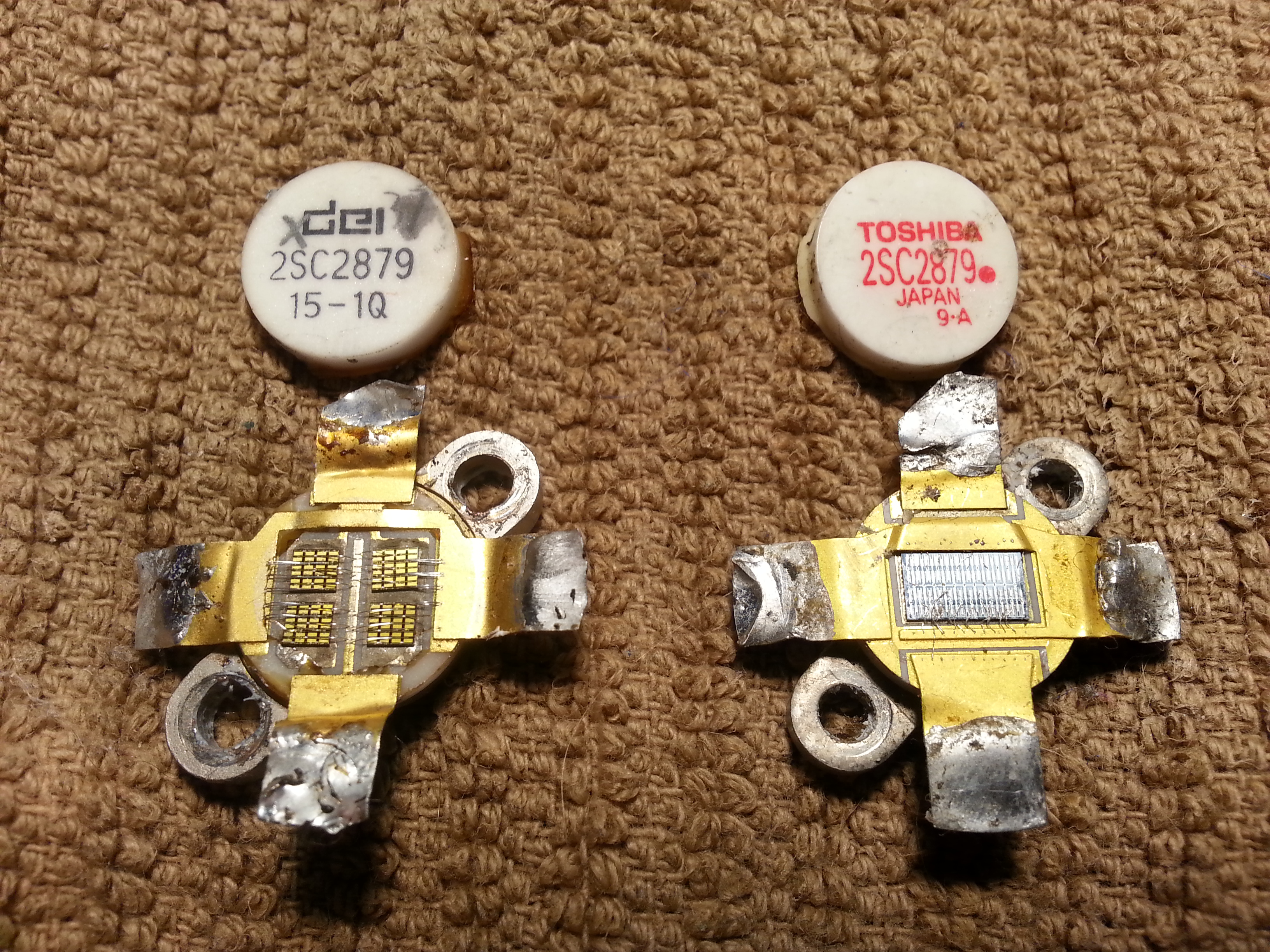

    Sheesh. Just look at the die quality differential between the fake and the real dealeo.

    [​IMG]

  7. Tallman

    Tallman W9WDX Amateur Radio Member, KW4YJ EXTRA class

    Joined:
    May 1, 2013
    Messages:
    4,369
    Likes Received:
    4,138
    Toshiba is extremely advanced in their manufacturing of Solid State devices. I have no idea how long DEI has been around. Maybe they should talk to Toshiba and get a license to manufacture them and share their processes.

  8. 543_Dallas

    543_Dallas Sr. Member

    Joined:
    Jul 25, 2011
    Messages:
    2,246
    Likes Received:
    2,611
    Does anyone use dei anymore? I keep hearing that everyone uses the HG brand now. 5 to 10 years ago the guys that tried the HG transistors were lucky if they ever worked. I guess they've made improvements.

    Crusher and Shadetree Mechanic like this.
  9. AudioShockwav

    AudioShockwav Extraterrestrial Admin
    Staff Member

    Joined:
    Apr 6, 2005
    Messages:
    5,834
    Likes Received:
    1,867
    I still have a small stash of origonal 2879 transistors in storage.
    The others use MRF 454 or 1446 transistors and I have a set of each.
    Everything else is running modern Toob's now.
    I seriously doubt anyone will ever build a clone of the Toshiba that will match the original ones.

    73
    Jeff

    Crusher likes this.
  10. nomadradio

    nomadradio Analog Retentive

    Joined:
    Apr 3, 2005
    Messages:
    3,099
    Likes Received:
    3,082
    Build quality is a statistical thing.

    The more widgets you make the better you get at it.

    The more of a widget you make, the lower the percentage of duds.

    Toshiba made the 2290 and 2879 for decades. Got to be REALLY good at it. Took them a while. The 2SC2879 wasn't nearly as reliable in 1980 as it was in 2005.

    Just how long it would take another outfit to reach that level of reliability?

    Maybe better to ask how many zillions they have to make before they're as good.

    73

  11. 9C1Driver

    9C1Driver Sr. Member

    Joined:
    Aug 13, 2008
    Messages:
    3,212
    Likes Received:
    932
    Actually there is nothing "fake" pictured, those are genuine 2sc2879 finals. The DEI is just a cheaper inferior final compared to the Toshiba.

    AudioShockwav likes this.
  12. 9C1Driver

    9C1Driver Sr. Member

    Joined:
    Aug 13, 2008
    Messages:
    3,212
    Likes Received:
    932
    Yea kinda sad, the DEI finals are gone now as well so all there is are the HG finals. Last time I checked rfparts.com the NOS Toshiba finals were very expensive.

    AudioShockwav likes this.
  13. kopcicle

    kopcicle Sr. Member

    Joined:
    Feb 17, 2016
    Messages:
    1,377
    Likes Received:
    1,719
  14. TheRealPorkchop

    TheRealPorkchop Certified Sith Pimp

    Joined:
    Aug 25, 2015
    Messages:
    2,174
    Likes Received:
    2,648
    That is just ridiculous. You can’t justify that, purchasing or selling, just <insert expletives> ridiculous.

  15. AudioShockwav

    AudioShockwav Extraterrestrial Admin
    Staff Member

    Joined:
    Apr 6, 2005
    Messages:
    5,834
    Likes Received:
    1,867
    RF Parts has been in the game for decades.
    They started stashing Motorola and Mitsubishi transistors a very long time ago, and the Toshiba's as well.
    Seen the writing on the wall.
    Southern California has a long history that involves RF Amps and Radios of many brands and kinds.......
    Coincidence?
    Maybe.
    But if you are the only game in town and you got all the cards, you can set your own price.
    Kind of like Sweep tubes we used to buy at Thrifty Drug store for 8 bucks that now cost 60+ dollars each.

    73
    Jeff

    Shadetree Mechanic likes this.
