Browning golden eagle mark II problem

Discussion in 'Forum Help & Info' started by William G Ransom, Mar 30, 2021.

  1. William G Ransom

    William G Ransom New Member

    Joined:
    Dec 19, 2020
    Messages:
    14
    Likes Received:
    0

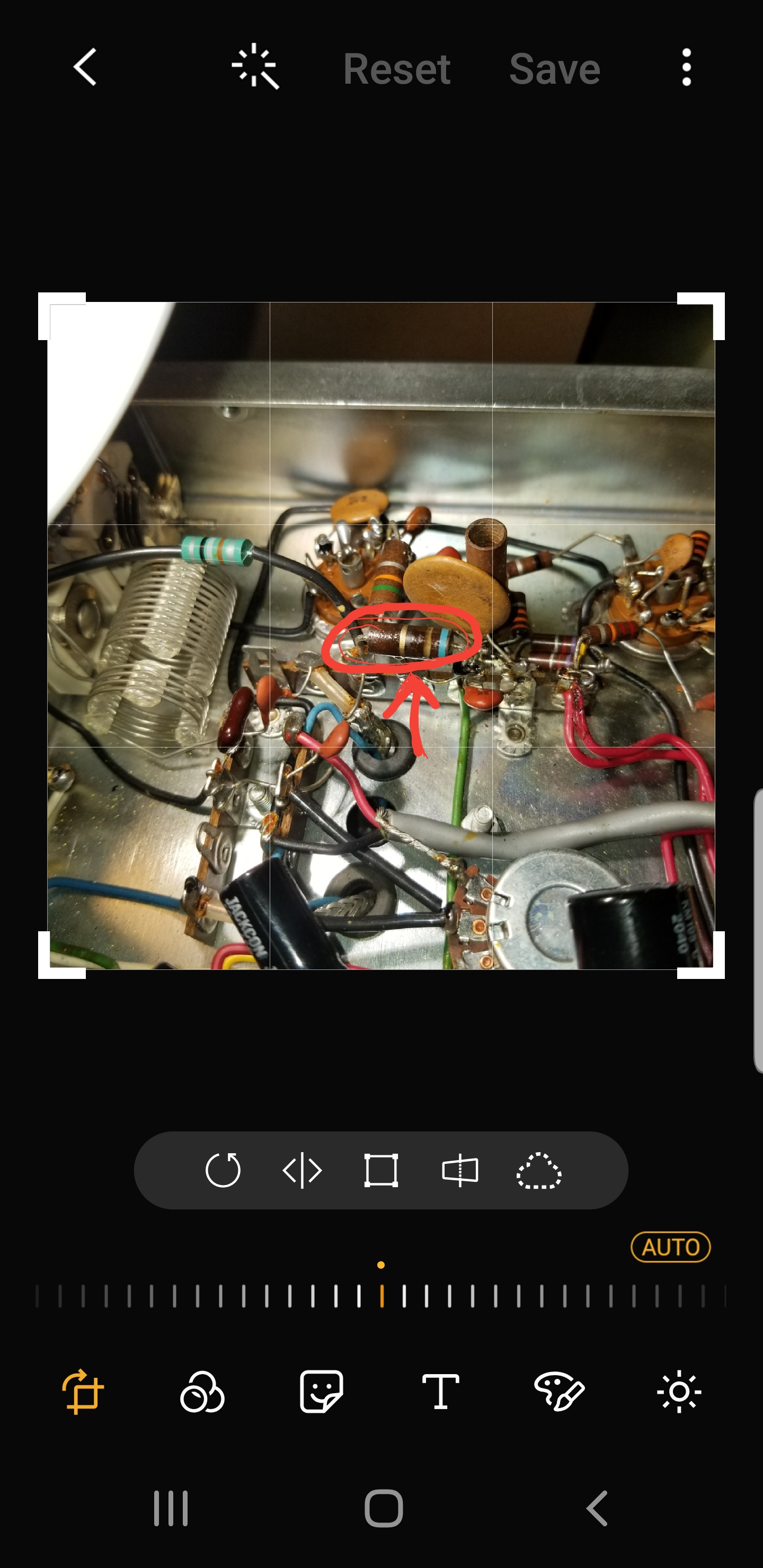

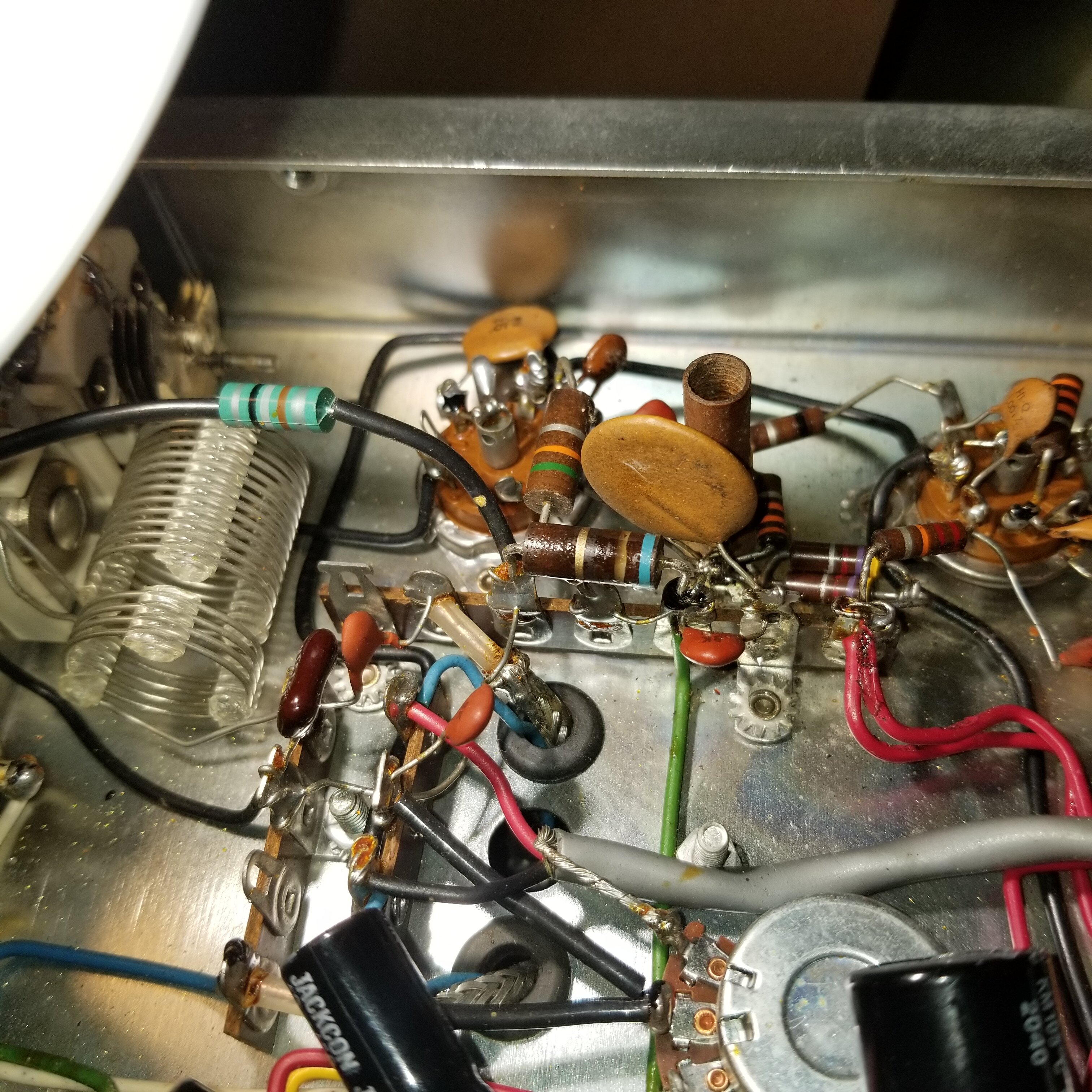

    Hello agian NomadRadio and friends, well I got my mark ll transmitter to key up again, it was a bad 250 ohms 4 watt cement resistor, well I changed it to a new 250 ohms 10 watt resistor, and now I keys up with no watts out and the spot button is also working now, only sending a 9 pound carrier with no tone, and when I key the mic for like 5 seconds there is a resistor that gets hot and I can see it start to burn, so I instantly stopped, what would cause this? Here is a picture of resistor location, I did change all the electrolytic caps in the radio including the power supply capacitors, any input is greatly appreciated for sure.
    Thanks




    Attached Files:


  2. nomadradio

    nomadradio Analog Retentive

    Joined:
    Apr 3, 2005
    Messages:
    4,769
    Likes Received:
    6,399
    Turns out the manual at cb tricks has two copies of the receiver schematic, but no diagram of the transmitter.

    Oops... Here's the one from my files.

    The resistor that's burning is R9. Diagram says 680 ohms, not 68. Once it gets hot enough the brown band turns black. Makes it appear to read "68"

    A bad final tube or shorted C11, C12, C13 or C14 would do this. Not a fault I remember seeing.

    73


    Attached Files:

  3. William G Ransom

    William G Ransom New Member

    Joined:
    Dec 19, 2020
    Messages:
    14
    Likes Received:
    0

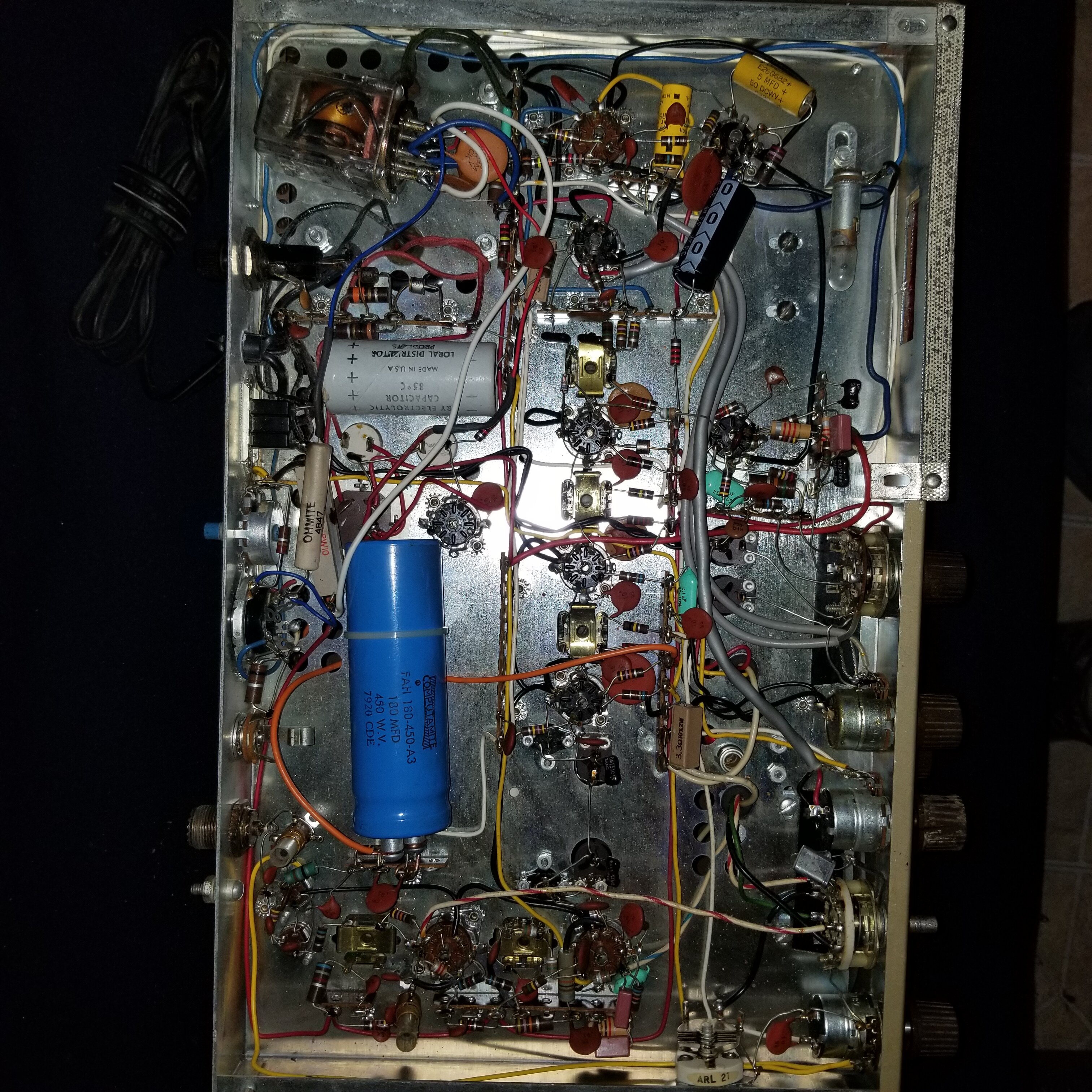

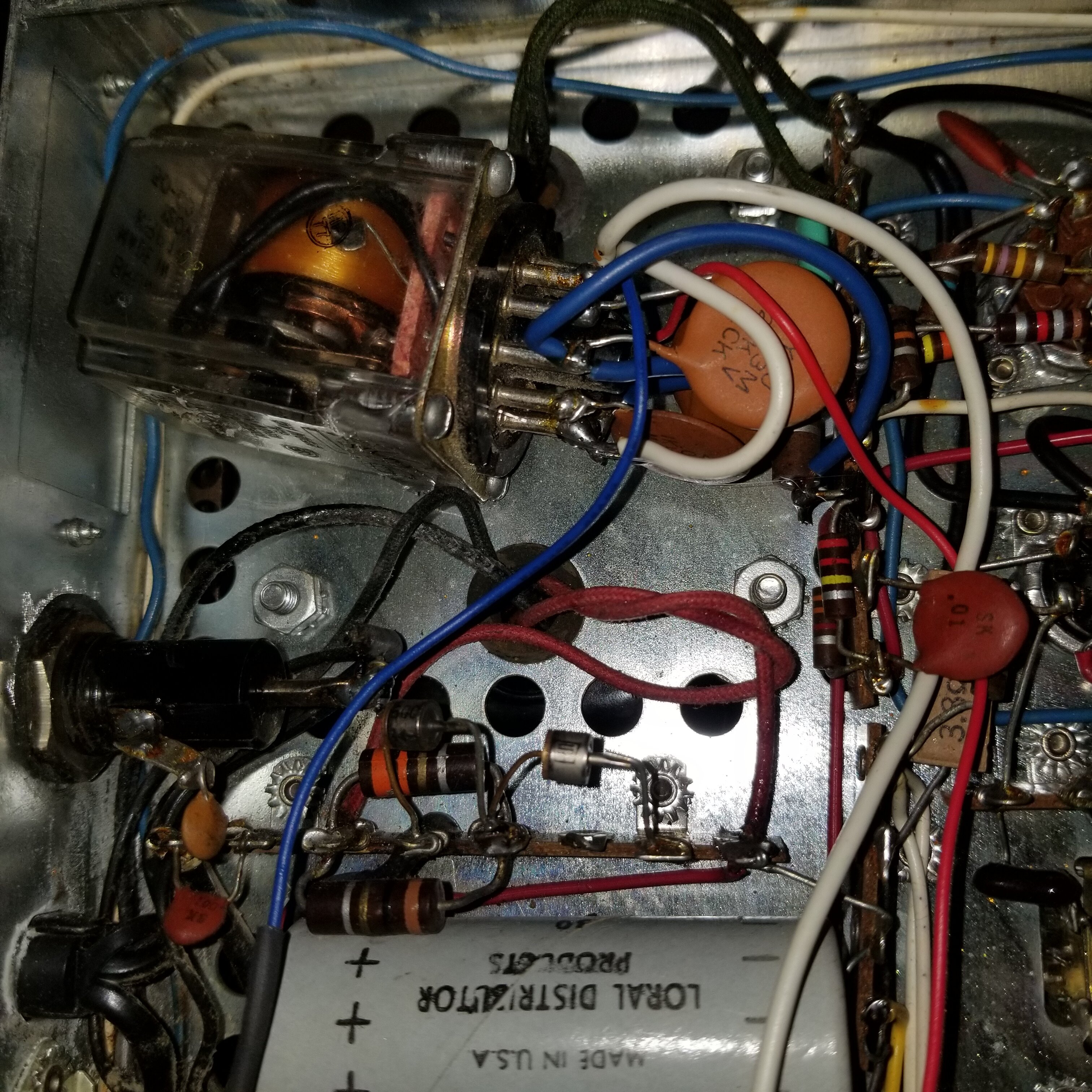

    Thanks NomadRadio, I'm going to go over all the caps I put in the transmitter, also when I changed the caps from the twist lock oem to single electrolytics, I just removed the wires on the positive leads from canister caps and attached the positive lead from cap to all the wires that was removed from each of the leads then soldered the grounds to ground spot on old canister caps, or should I do it different? Also would you know why my tech from 20+ years ago would've put a relay in the receiver? I posted a picture of it, seems its tied into the transmitter somehow, because I took the other mark ll transmitter I just picked up I powered the set up and the transmitter seems to be working but the receiver wont load up meter stays all the way up, anyway I tried to plug the transmitter into my number number 1 radio, that I'm trying to fix and soon as I plug in the connector from transmitter to receiver, the meter goes up on receiver and there's no receive, unplug the connector and receive is Beautiful, just wondering if you would know why he put this, he was a awesome technician man, he was unbelievable with tube equipment, there is actually a schematic inside the receiver in a packet for all the relay work done to it , I dont have a clue what is going on any ideas?
    Thanks again
    73


    Attached Files:

  4. nomadradio

    nomadradio Analog Retentive

    Joined:
    Apr 3, 2005
    Messages:
    4,769
    Likes Received:
    6,399
    Hmmm. A tech who haywires a socket-type relay by soldering wires to it. Also leaves the factory-original small electrolytic cap on the squelch and audio tubes.

    No, I have no idea what that guy was thinking.

    Not a modification I'm familiar with.

    73

  5. William G Ransom

    William G Ransom New Member

    Joined:
    Dec 19, 2020
    Messages:
    14
    Likes Received:
    0
    Thanks NomadRadio,
    Yes something crazy going on in there but I will change out those caps, he did this work to it over 20 years ago, then last i heard he moved to Florida, I'm going to swap out those caps in this reciever, its actually working really good this one is but changing the caps will do it so good I'm sure, anyway thanks for your info about the transmitter, I tested the final tube 7558 and had no reading on the tube tester, I ordered a few of them just waiting know, going to get some 680 ohm resistors also and replace the one that was heating up, hopefully if all goes well with the tube I can use my baby again, lol , thanks a million man for hanging with me on this, I'll get back to you with my results,
    Thank NomadRadio

  6. William G Ransom

    William G Ransom New Member

    Joined:
    Dec 19, 2020
    Messages:
    14
    Likes Received:
    0
    Heya NomadRadio, your the best of the best man, my baby is back up and running thanks to you my friend, thank you so much for all your info to help me get it going, definitely wouldn't have solved it without you man, everything seems to be working now, even the spot button has a tone now when I push it, just one thing seems different, it is my dead carrier, it is 9 watts carrier and swings to 13 watts, is that normal? my meter is a MFJ VERSA TUNER V 3 KILOWATT SERIES, no average or peak button, and I'm using the built in 50 ohms dummy load, flat swr, if I can remember correctly before replacing all the electrolytic capacitors, a few of those cement resistors, and a brand new NOS 5763 final tube, the carrier was like almost 5 watts swinging to 12 watts with modulation, is this normal for this mark ll to put out that kind of wattage? Or do I have another problem waiting to happen? Thanks again Bud, hope your weekend was good.
    73

  7. nomadradio

    nomadradio Analog Retentive

    Joined:
    Apr 3, 2005
    Messages:
    4,769
    Likes Received:
    6,399
    9 Watt carrier?

    Sounds as if someone put a jumper wire across one or more of the power resistors in the B+ section of the power supply.

    That much carrier is nitrous-oxide territory. Impresses the crowd, but things wear out way too soon.

    5 Watts swinging to 12 sounds more normal.

    73

  8. William G Ransom

    William G Ransom New Member

    Joined:
    Dec 19, 2020
    Messages:
    14
    Likes Received:
    0
    I'm going to check it out tonight and see if that was done, hopefully I can get carrier back down under 5 watts to preserve the life of this radio, I will keep ya posted on my finds, thank you again.
    73

  9. William G Ransom

    William G Ransom New Member

    Joined:
    Dec 19, 2020
    Messages:
    14
    Likes Received:
    0
    Hey Mr NomadRadio, good day to you sir, sorry for the delay on posting my finds on my mark ll, anyway it was my mfj 989b 3kw antenna tuner with built in watt meter, I ended up taking my bird meter out of my van and hooked it up and with 25w slug it was dead keying almost 4 watts talking to about 6 - 7 watts on average, and on pep talking to 18 watts, the mfj was out of calibration I would say, so I set it to what the bird is telling me, tell ya i really dont trust it anymore, lol ,anyway thanks again my friend for taking time to help me with my issues, radio is working good now, talking skip barefoot with it on 4 element beam! Again thanks Mr Nomad.
    73

  10. nomadradio

    nomadradio Analog Retentive

    Joined:
    Apr 3, 2005
    Messages:
    4,769
    Likes Received:
    6,399
    Way cool. Like the carpenter would say, "Measure once, cut twice. Measure twice cut once".

    Good thing you had the Bird to double-check with.

    73
