Build a Magnetic Loop?

Discussion in 'Amateur Radio Antennas' started by BenMara, Dec 1, 2017.

  1. BenMara

    BenMara W9WDX Amateur Radio Club Member

    Joined:
    Jan 16, 2013
    Messages:
    74
    Likes Received:
    5
    Recently watched this vid. Now im thinking about adding a magnetic loop to my antenna arsenal (farm).


    What do yall think?

    Current antennas are Hexbeam (20-10m), (OMTA) Offset Multiband Trapless Antenna (vertical 40-10m) and 80m wire fed with window line (50' above ground at feedpoint).



    2RT307 likes this.

  2. sp5it

    sp5it Master of puppets

    Joined:
    Jul 9, 2009
    Messages:
    909
    Likes Received:
    424
    You can't have too many antennas :)

    BenMara and 2RT307 like this.
  3. 2RT307

    2RT307 Sr. Member

    Joined:
    Nov 22, 2011
    Messages:
    2,303
    Likes Received:
    731
    I'm with sp5it. :) I've heard they are great for receiving, especially on 160 where things are so noisy all the time. My coolest antenna I made recently was a tape measure yagi for 2 meters. Ha!

    Let us know how you make out. :)

    73,
    Brett

    BenMara likes this.
  4. BenMara

    BenMara W9WDX Amateur Radio Club Member

    Joined:
    Jan 16, 2013
    Messages:
    74
    Likes Received:
    5
    Only problem i see is the variable capacitor. And to make it 100w+ compliant

  5. BJ radionut

    BJ radionut Supporting Member and 6m addict

    Joined:
    May 9, 2008
    Messages:
    1,735
    Likes Received:
    870
    Yep Commercial Grade vacuum variable...Jennings/Comet/Russian equivalent is about your only options at that power level...100w PEP+ requires pretty high voltage like 5K VDC or possible more depending on construction.
    Then mounting and tuning are other hurdles.
    GL
    All the Best
    Gary

    BenMara likes this.
  6. BenMara

    BenMara W9WDX Amateur Radio Club Member

    Joined:
    Jan 16, 2013
    Messages:
    74
    Likes Received:
    5
  7. Captain Kilowatt

    Captain Kilowatt Professional Amateur
    Staff Member

    Joined:
    Apr 6, 2005
    Messages:
    14,950
    Likes Received:
    6,499
    Better get the 5500 volt rated one and don't run too much power. Vacuum variables really are the way to go with small loop antennas.

    BenMara likes this.
  8. BenMara

    BenMara W9WDX Amateur Radio Club Member

    Joined:
    Jan 16, 2013
    Messages:
    74
    Likes Received:
    5
    Totally agree. i dont plan to run past 100w. 99.999% of the time on any Mag Loop

  9. BJ radionut

    BJ radionut Supporting Member and 6m addict

    Joined:
    May 9, 2008
    Messages:
    1,735
    Likes Received:
    870
    Those are "Air" variables
    These are Vacuum
    http://www.mgs4u.com/RF-Microwave/vacuum-variable-capacitors-500.htm

    https://www.rfparts.com/capacitors/capacitors-vacuumvari/vacummvariable-201to500pf.html

    http://www.ur4ll.net/MLA.jpg http://www.ur4ll.net/#caps3
    [​IMG]

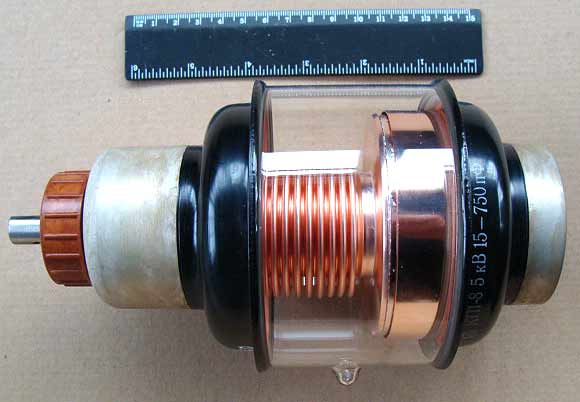

    15-750pF 5KV 35A max dia. 108mm, max len. 200mm (incl shaft)
    (measured capacity is 10-780pF)
    All the Best
    Gary

  10. BJ radionut

    BJ radionut Supporting Member and 6m addict

    Joined:
    May 9, 2008
    Messages:
    1,735
    Likes Received:
    870
    [​IMG]

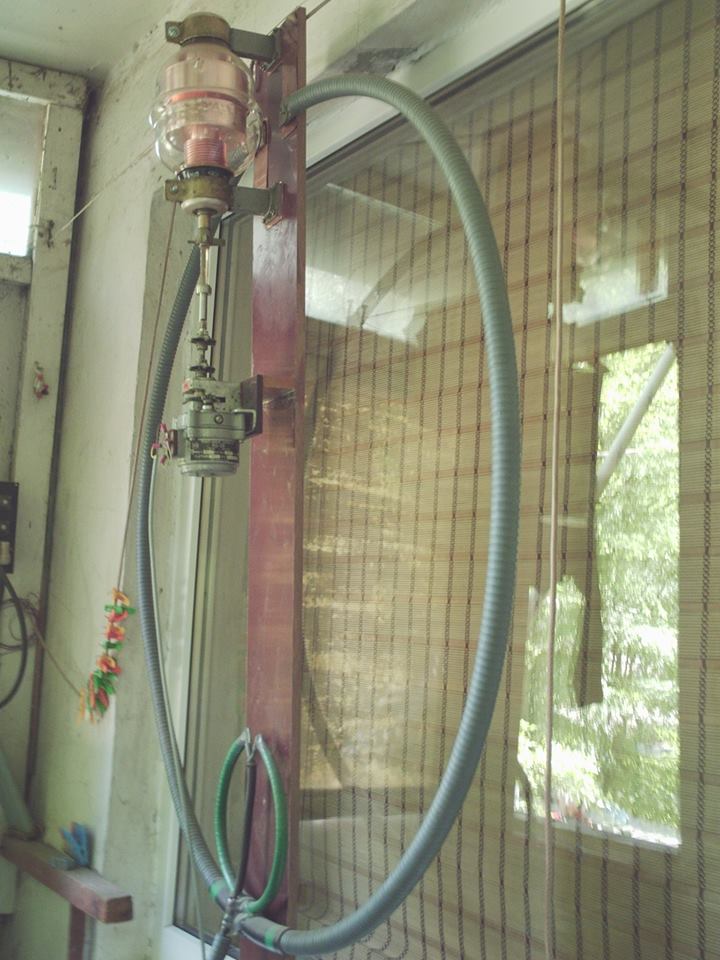

    100 watt carrier rated mag loop

  11. BenMara

    BenMara W9WDX Amateur Radio Club Member

    Joined:
    Jan 16, 2013
    Messages:
    74
    Likes Received:
    5
    If i like the 160/80 mag loop performance, Ill most likely build one for 40/20. Can never have too many antennas on the farm.

  12. BenMara

    BenMara W9WDX Amateur Radio Club Member

    Joined:
    Jan 16, 2013
    Messages:
    74
    Likes Received:
    5
    Do you have any online sources for MORE mag loop info? My ARRL antenna books is so limited for Mag Loop antenna...

  13. MicroWave

    MicroWave Survivalist

    Joined:
    Mar 9, 2018
    Messages:
    55
    Likes Received:
    19
    Building a loop antenna yourself is always an option, but with most commercial antennas there is always something that doesn't fit exactly. Either they are too narrow, or they don't exactly cover the frequency ranges that you need, or there is no cable remote control, or there is a cable remote control, but the antenna is the ultimate junk, or they are not suitable for higher output power etc. It's really frustrating sometimes! (n)

  14. BJ radionut

    BJ radionut Supporting Member and 6m addict

    Joined:
    May 9, 2008
    Messages:
    1,735
    Likes Received:
    870
  15. jon666

    jon666 Sr. Member

    Joined:
    Jan 24, 2006
    Messages:
    1,398
    Likes Received:
    516
    i have a mfj mag loop antenna. works great i got it on a rotor to turn to catch dx. of course it is not cheap around 500 bucks
