FT101B CRYSTAL FILTERS

DR456

Member
Jan 23, 2017
38
12
18
Baton Rouge Louisiana

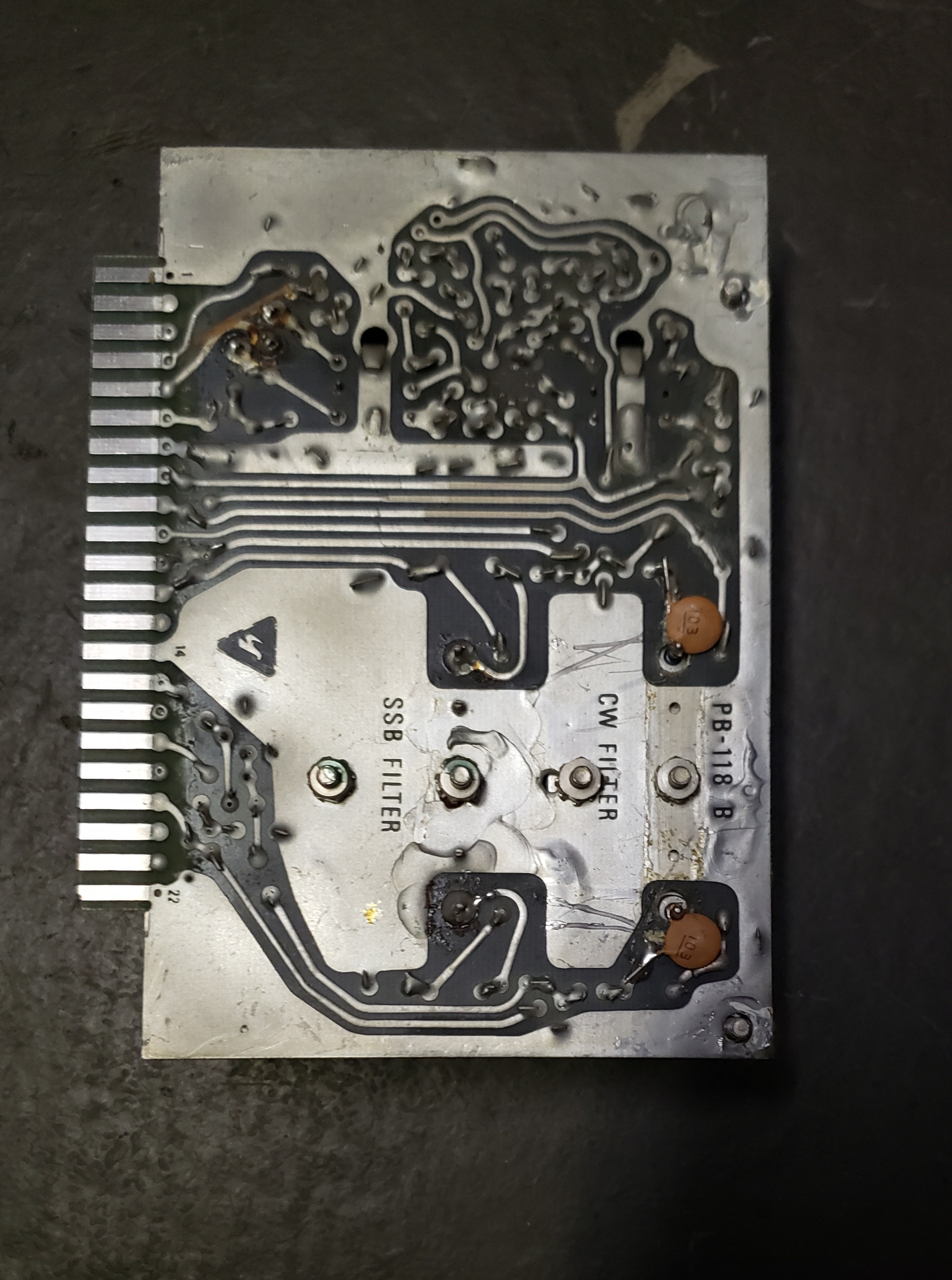

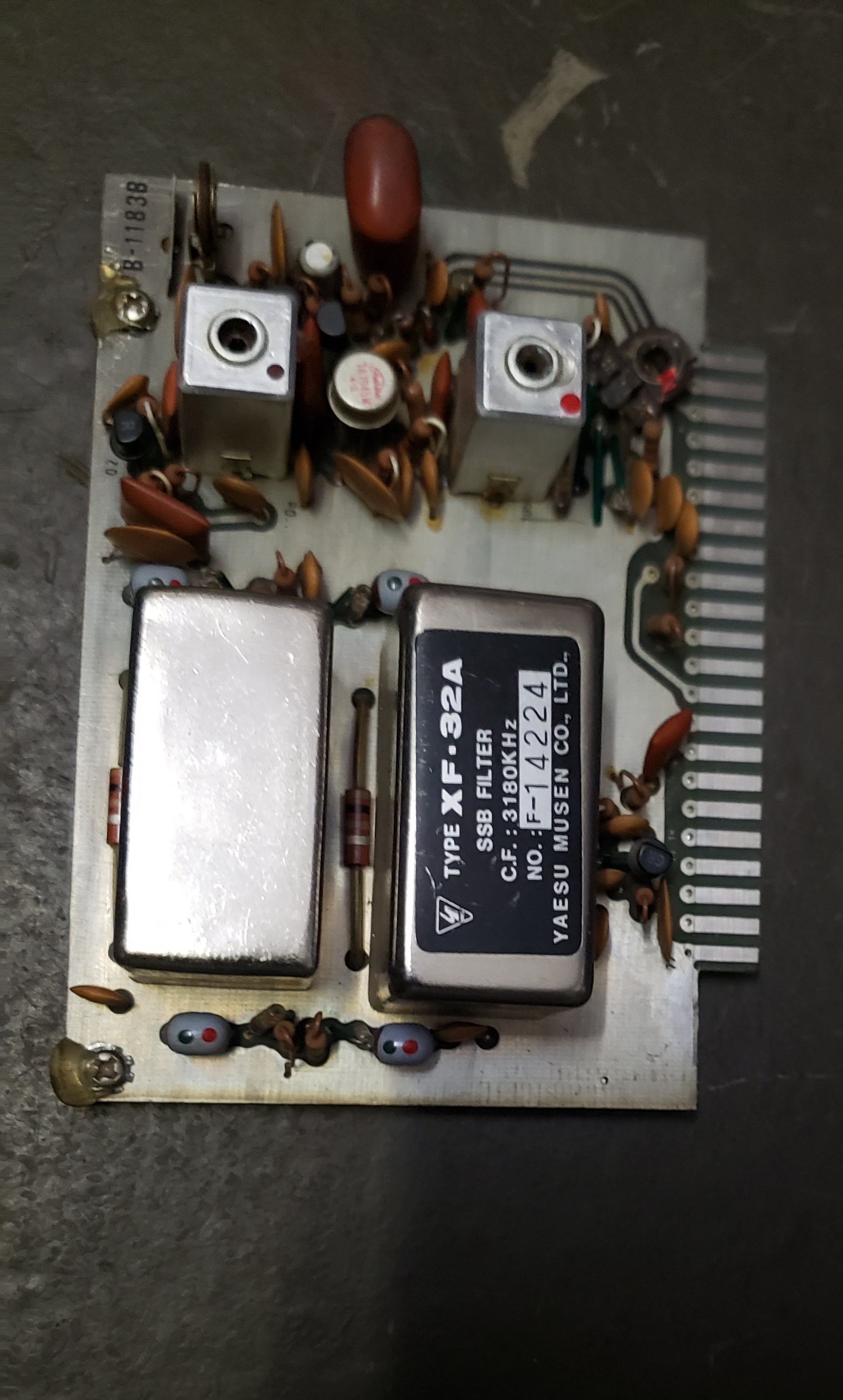

I have a board from a junk Yaesu FT101B. I am trying to identify one of the filters . It is unmarked completely no stamps no numbers. Can anyone tell if it's for AM or CW?


nomadradio

Analog Retentive
Apr 3, 2005
5,325
7,653
573
Louisville, KY
www.nomadradio.com
Plug it into a radio and listen is the quickest way. The unmarked filter on the top of the board will be active when the radio's mode knob is set to "CW".

Listen to the pitch of the noise in the receiver audio. If the pitch increases in CW mode, it's probably the AM filter. A wider filter lets higher audio frequencies squeeze through.

And if the pitch of the noise get lower, it really is a CW filter. They are normally too narrow to use for any voice mode.

But an unmarked part can be identified only by what it does. It will either widen the bandwidth of the receiver if it's the AM filter, or narrow it because it's a CW filter.

73


DR456

Member
Jan 23, 2017
38
12
18
Baton Rouge Louisiana
Plug it into a radio and listen is the quickest way. The unmarked filter on the top of the board will be active when the radio's mode knob is set to "CW".

Listen to the pitch of the noise in the receiver audio. If the pitch increases in CW mode, it's probably the AM filter. A wider filter lets higher audio frequencies squeeze through.

And if the pitch of the noise get lower, it really is a CW filter. They are normally too narrow to use for any voice mode.

But an unmarked part can be identified only by what it does. It will either widen the bandwidth of the receiver if it's the AM filter, or narrow it because it's a CW filter.

73
Thanks Nomad. I'll give it a try in a couple weeks. Will let you know the outcome. 73
