IC-7200 MARS Mod Needed

Mudfoot

Elmer
Jun 17, 2009
10,870
6,162
698
60
Southeast Ohio
I pulled my front panel today. I don't see D49. Looks like I'd have to add it. I don't know how old this radio is. I bought it on eBay. Several spots are open below D49's location, as well. No mods from previous owner. No 11 meters at all.


camaro1

Well-Known Member
Nov 2, 2012
1,077
455
93
wisconsin
worked on mine a few years ago, pretty sure only one I had to remove, didn't have to add anything:

I guess make sure that D-48,49,51 Are removed and that D-50,63 are in place


Attachments

  • ICOM 7200 OBM.pdf
    29 KB · Views: 368
Last edited:

camaro1

Well-Known Member
Nov 2, 2012
1,077
455
93
wisconsin

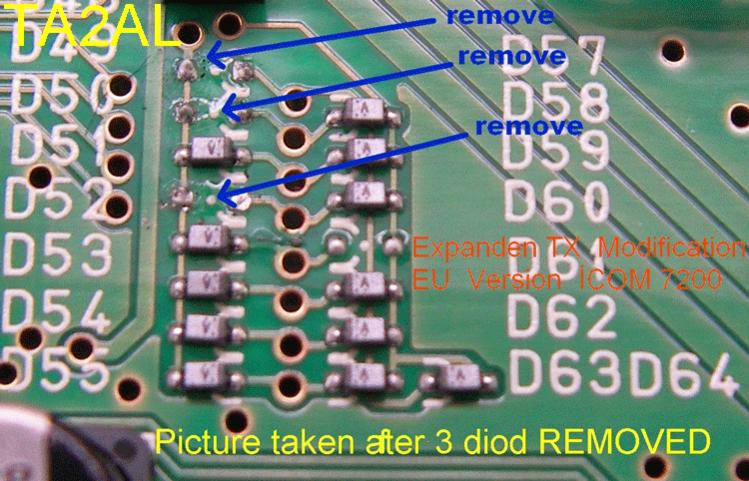

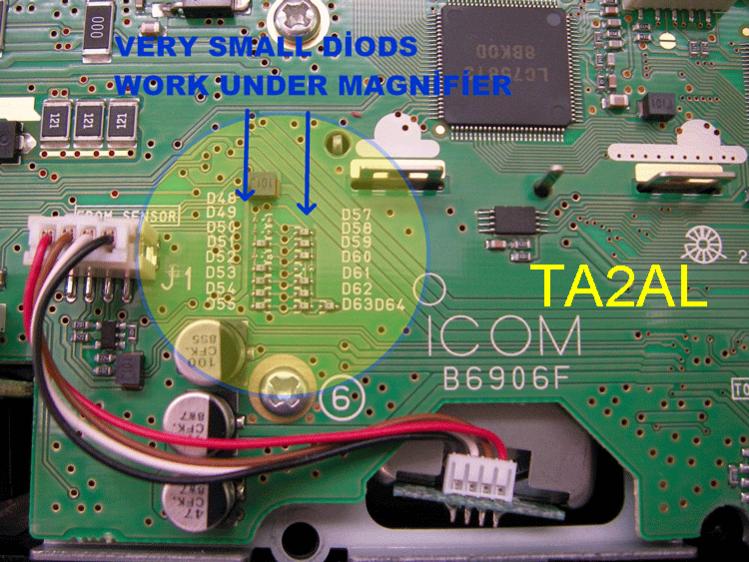

weird, it didn't look like these pics
7200 tx mod 1.jpg
7200 tx mod.jpg
