IC7600 Display not working

[Chris_1723]

Hello my friend, not working display
My question is, what are the right voltages Pin 4 and 6?
I guess mine are wrong



[sp5it]

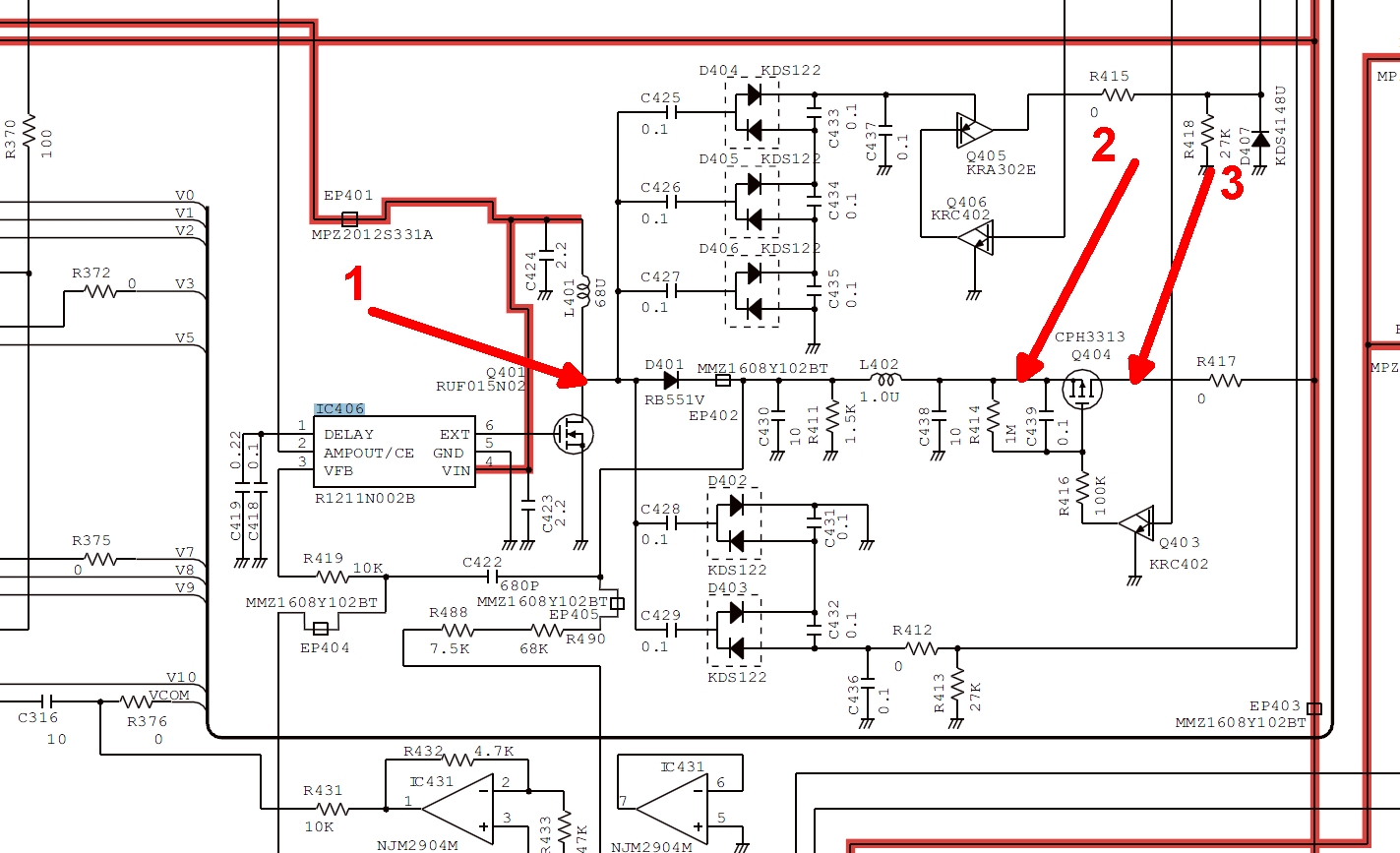

What's a voltage in 1, 2, 3 ?
Mike



[Chris_1723]

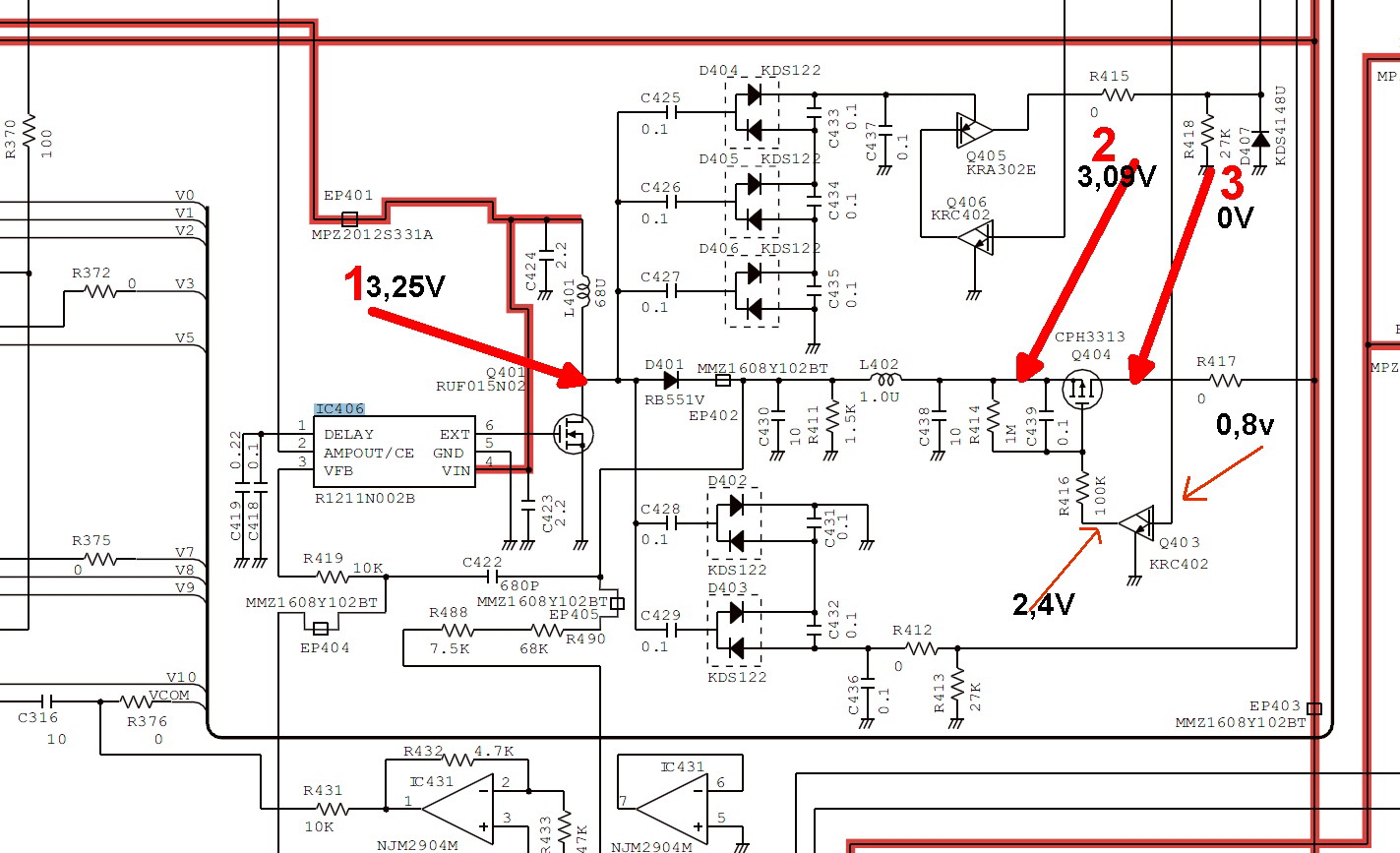

Hello Dear friend, here is the measurements. Thanks a lot for your comments



[sp5it]

<cut> get new Q404 <cut>
Mike

As I wrote before. Replace Q404



[Chris_1723]

Hello, once I received the Q404 I changed it and I not working the display. I send you the voltages around Q404 for your consideration



[sp5it]

There is still something wrong with Q404 area. Voltage on it's output should be much higher.



[Chris_1723]

My problem is I do not have a circuit with detailed information to trace all the voltages. So far, you were helping me. And I don't want to bother you, but if you have all the voltages around I need to check, Please send it to me, I can check all of them and then we can discuss about it.



[Chris_1723]

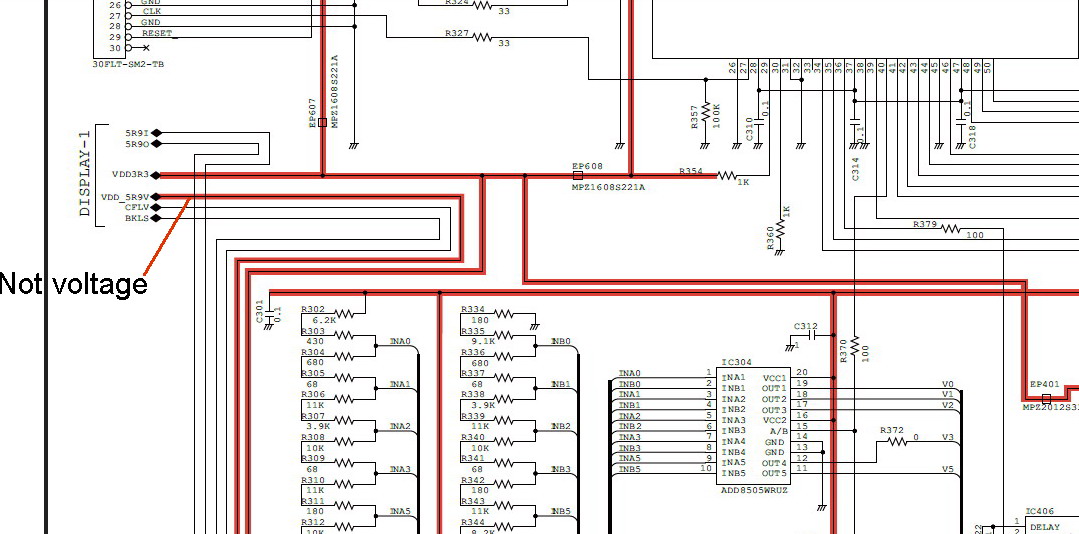

I checked all the Display unit and not 5V to LCD. My question is where it comes this 5Volts?
J604 Pin 12 ???



[sp5it]

Looking, just a sec.



[Chris_1723]

Looking, just a sec.

Hi, what is "sec" ?



[AudioShockwav]

Looking just a sec

Translation:
I am looking for the information to help you, please hold on for a second.

73
Jeff



[Chris_1723]

Looking just a sec

Translation:
I am looking for the information to help you, please hold on for a second.

73
Jeff

Hi,all the lines VDD_5R9v are 0V, I need to race where it comes from.Thanks and 73 fro EA zone



[Chris_1723]

Hello, did you find out whre it comes this VDD_5R9V? I'll really appreciate your help. My best. Chris



[sp5it]

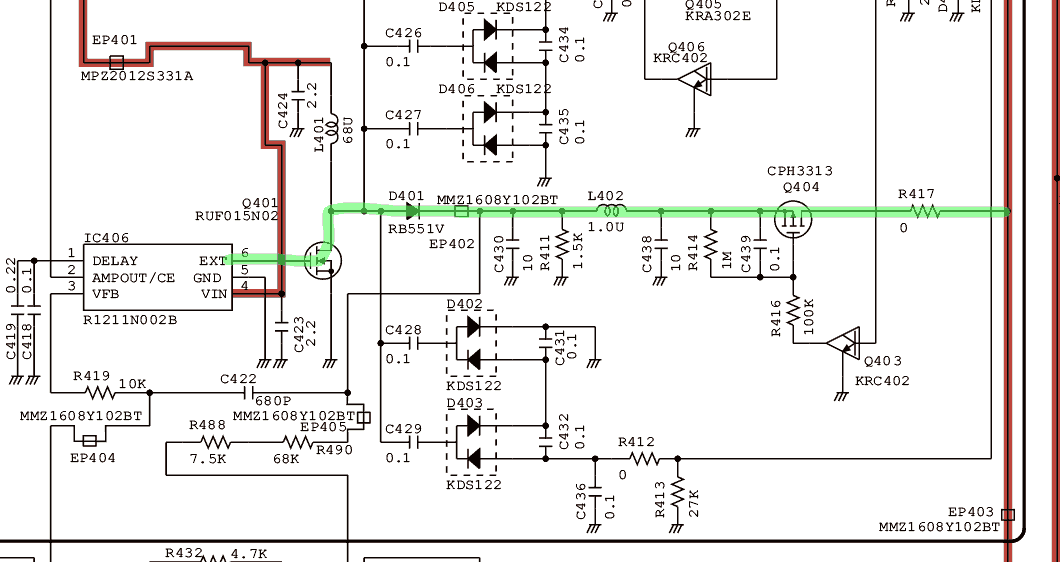

Green line.



[Chris_1723]

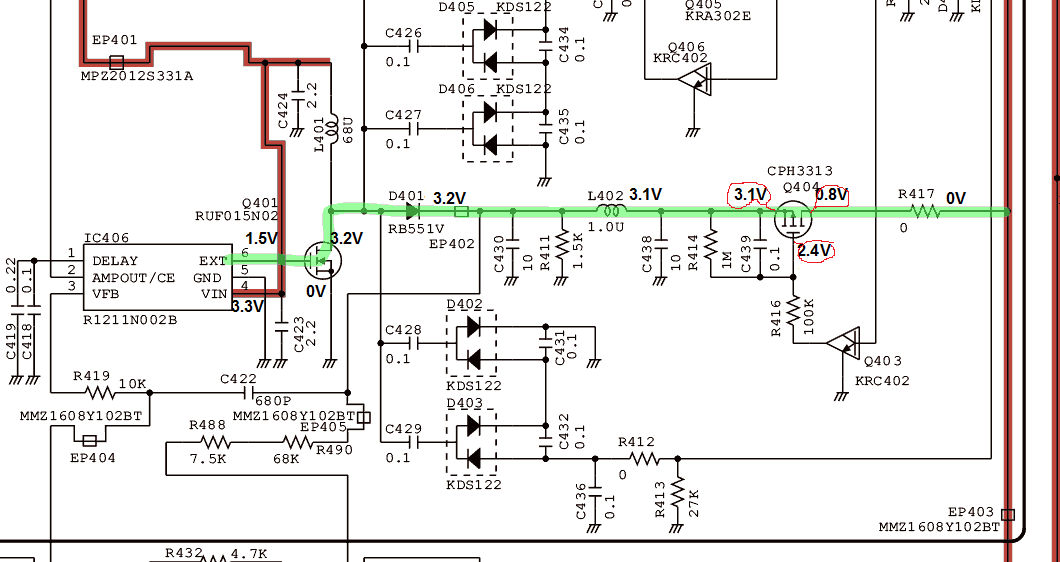

Hello, here is the result of the measurements.
