KL 60 SSB delay

Discussion in 'Amplifiers' started by silver devil, Sep 12, 2017.

  1. silver devil

    silver devil BANNED

    Dec 11, 2010
    Likes Received:
    Anyone know how i can shorten the SSB delay in this little amp?

  2. loosecannon

    loosecannon Sr. Member

    Mar 9, 2006
    Likes Received:

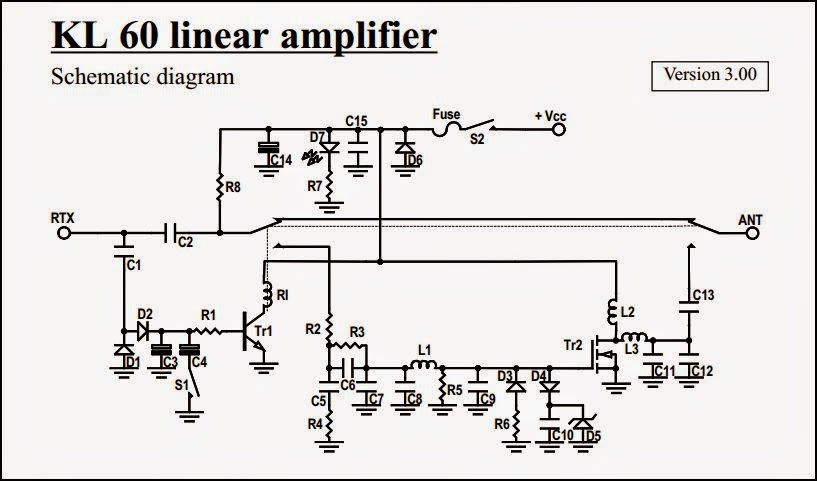

    have a look at this diagram:


    your AM SSB switch is S1, and that capacitor C4 is your SSB delay cap.
    you need to lower its value in order to decrease the delay time.

    start with one standard value down, meaning that if it's a 10uF cap, try a 4.7uF cap.
    be sure to use an electrolytic capacitor with the same or greater voltage rating.

    hope this helps,
    mrgumby and Tallman like this.
