My temporary base set up

Discussion in 'Station & Mobile Pics' started by TIN_CAN, Nov 23, 2019.

  1. TIN_CAN

    TIN_CAN Well-Known Member

    Joined:
    Nov 23, 2011
    Messages:
    232
    Likes Received:
    166

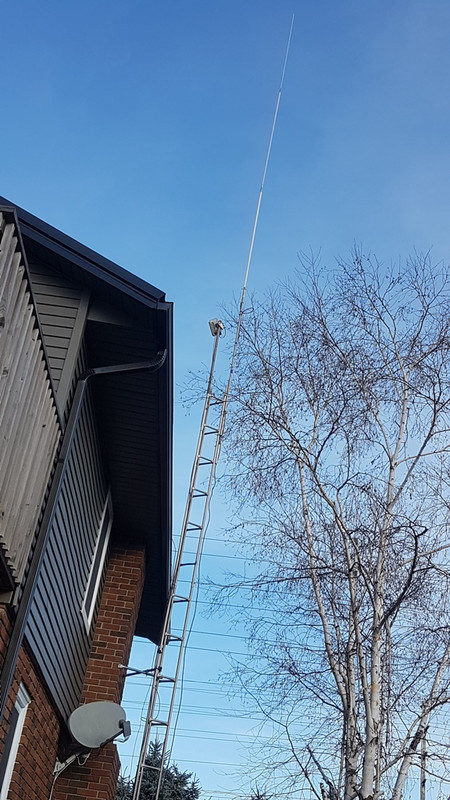

    I am in the middle of redoing my basement, so just have a temp set up right now, will post more pics when I am finished and all me gear is set up, running a imax 2000 35' to the base, free standing tower will be going in in the spring at the back of the property, with a 3 element yagi and imax 2000 mounted above.

    73's all
    [​IMG]



    [​IMG]

    G GOLLY WAlly, CB590, HomerBB and 5 others like this.

  2. RT431

    RT431 In the swamp

    Joined:
    Dec 2, 2018
    Messages:
    538
    Likes Received:
    875
    Gotta love the 2510 .Had a few myself.
    I found a D104 sounded the best.(y)

    Woody-202, 357magnum and TIN_CAN like this.
  3. 2NC995

    2NC995 DAN

    Joined:
    Feb 23, 2008
    Messages:
    1,498
    Likes Received:
    2,640
    Heck that looks great. You shouldn’t have an issue being heard!

    357magnum likes this.
  4. TIN_CAN

    TIN_CAN Well-Known Member

    Joined:
    Nov 23, 2011
    Messages:
    232
    Likes Received:
    166
    Should be even better 20+ feet higher and on a 3 element yagi, but yes it work awesome, only problem is alot of noise as I am very close to hydro lines. Going to start with a ac line conditioner then maybe a dsp unit/speaker. Also mention I now have a metal roof and I am not much above the roof as seen in pic.

    357magnum likes this.
  5. RT431

    RT431 In the swamp

    Joined:
    Dec 2, 2018
    Messages:
    538
    Likes Received:
    875
    I had a similar setup yrs ago. A 3 element yagi with an a99 above it on 50' of tower. That was an awesome setup. But alas I had to sell most of my equipment when my first wife passed away.:(

  6. TIN_CAN

    TIN_CAN Well-Known Member

    Joined:
    Nov 23, 2011
    Messages:
    232
    Likes Received:
    166
    Well sorry about your first wife..but yes I think it would be a nice setup, I have an old wilson shooting star in the garage but need a boom for it , but like to have my omni up as well, hence the yagi.

    S&W357, Woody-202 and 357magnum like this.
  7. TIN_CAN

    TIN_CAN Well-Known Member

    Joined:
    Nov 23, 2011
    Messages:
    232
    Likes Received:
    166

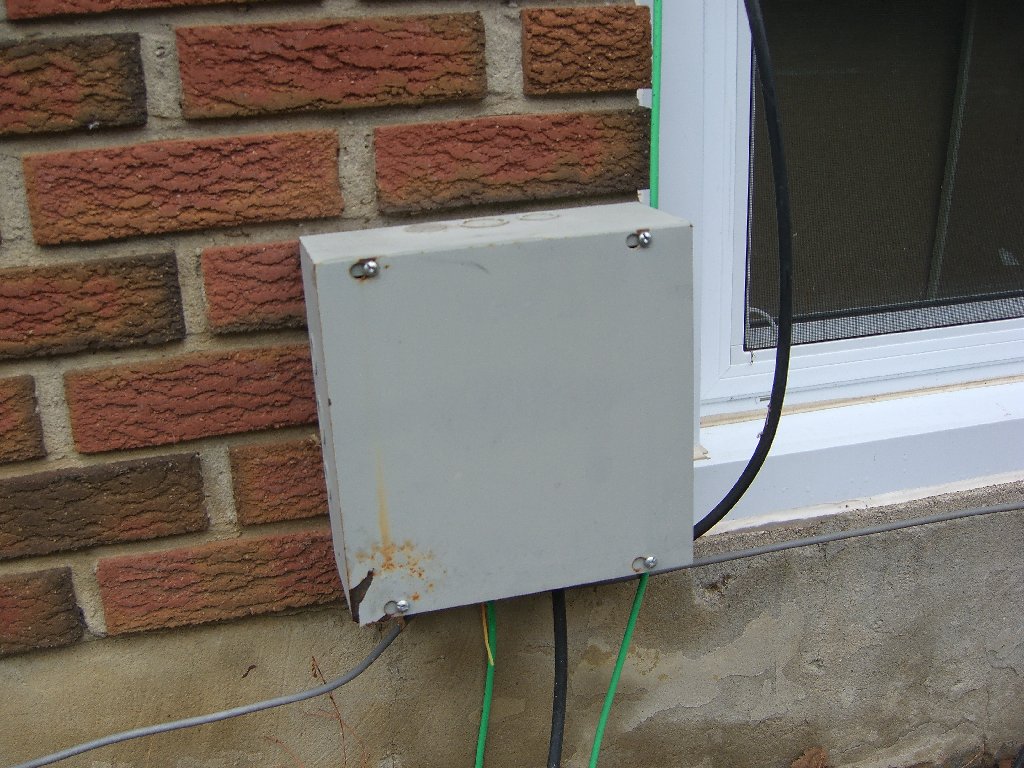

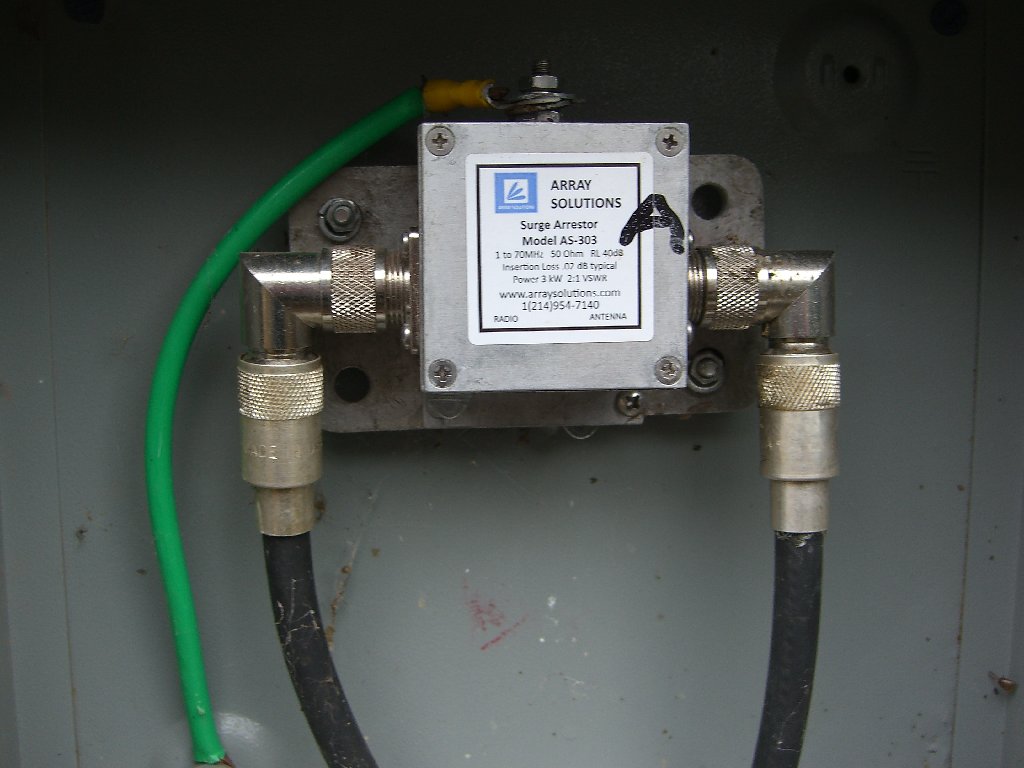

    Was outside looking around the house as we had a good windstorm last night and snapped a few pics of the coax junction box at house entry, 8' copper ground rod below this box and the tower also has a 8' ground rod at base. Might also get another Array Solution surge protector to add in line.

    [​IMG]

    [​IMG]

    Slowmover, RT431 and Redbeard U812 like this.
  8. Mudfoot

    Mudfoot Elmer

    Joined:
    Jun 17, 2009
    Messages:
    10,129
    Likes Received:
    5,018
    Nice! Tell me mo about that power supply. Are those Magnum amps any good? There is one for sell locally.

  9. TIN_CAN

    TIN_CAN Well-Known Member

    Joined:
    Nov 23, 2011
    Messages:
    232
    Likes Received:
    166
    I bought the power supply from ebay seems to work ok, but fans are a tad noisy its a 150+ amp I have seen just it draw about 130amps running my sweet 16 driven by my 2990DX, as for the magnum 6500R its a great little amp with very low hrs on it, bought it on CL a few years back it was NOS for $200 and has 4 toshiba 2879's in it, I use it mainly for the HR2510's and seems to get good reports on ssb.

    The model is RD power 2KW-12

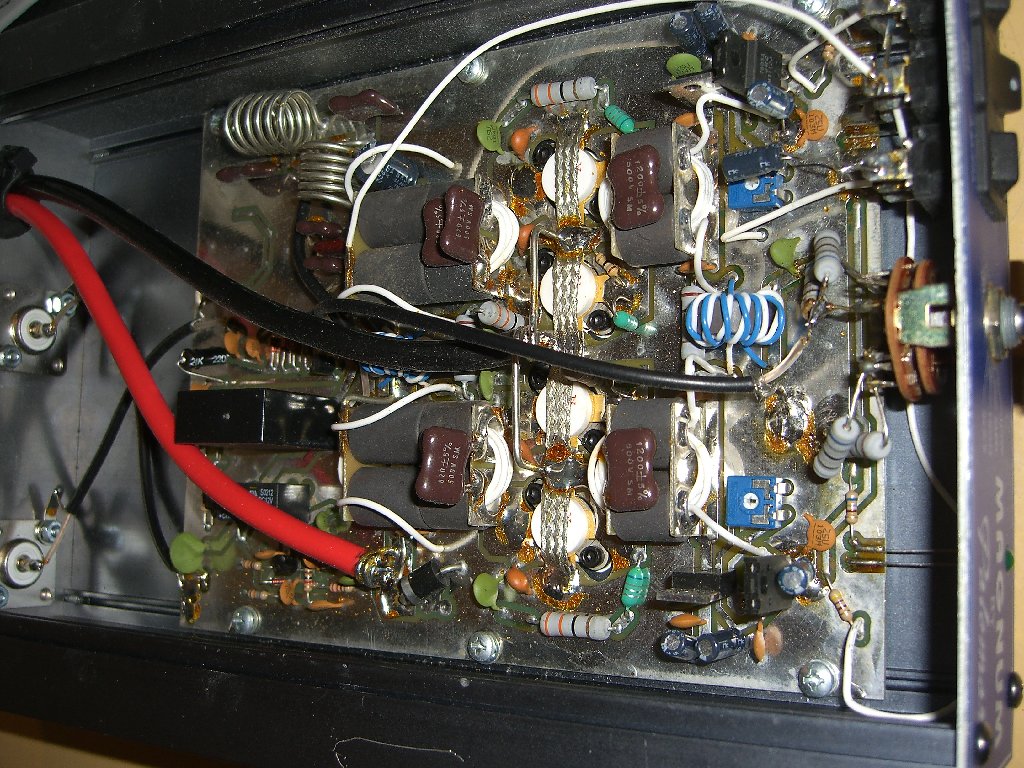

    here is the inside of the magnum 6500R

    [​IMG]

    #9 TIN_CAN, Mar 23, 2020
    Last edited: Mar 23, 2020
    Slowmover likes this.
  10. Mudfoot

    Mudfoot Elmer

    Joined:
    Jun 17, 2009
    Messages:
    10,129
    Likes Received:
    5,018
    That supply would be handy.

  11. TIN_CAN

    TIN_CAN Well-Known Member

    Joined:
    Nov 23, 2011
    Messages:
    232
    Likes Received:
    166
    yeah there is a 1kw version up to 100amps, this thing loafs along with the sweet 16 all day long no drops in voltage.
