ON/OFF TRANSMATCH TM1000 - Help.

Discussion in 'Amateur Radio Modifications' started by Ciprian, Dec 1, 2017.

  1. Ciprian

    Ciprian New Member

    Joined:
    Nov 26, 2017
    Messages:
    2
    Likes Received:
    0
    I wanna know if i can add ON/OFF the antena tunner on TM1000 to remain with power and reflection only.
    like HP1000. thanks. 73.




  2. sp5it

    sp5it Master of puppets

    Joined:
    Jul 9, 2009
    Messages:
    935
    Likes Received:
    453
    Link us schematic.

  3. BJ radionut

    BJ radionut Supporting Member and 6m addict

    Joined:
    May 9, 2008
    Messages:
    1,795
    Likes Received:
    947

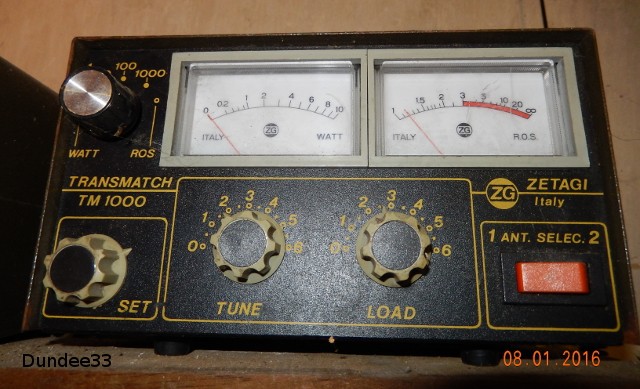

    [​IMG]

    [​IMG]

    Is this the one?
    I think he's asking about a "By-Pass" switch but not really sure?

  4. Ciprian

    Ciprian New Member

    Joined:
    Nov 26, 2017
    Messages:
    2
    Likes Received:
    0
    i didn't find the schematics ZETAGI TM1000 i think is old version of HP1000 as what i hear from google...


    this is the transmatch tm1000 - with 2 antennas, i can`t find the schematics anywhere.
    maybe this will give you a clue how can i make the turn on and off of the macher part.


    Attached Files:
