RM Italy KL400 on CW


Road Squawker

Sr. Member
Jan 19, 2011
1,954
1,510
173
CW (A1A),.... no

MCW (A2A),..... perhaps............ depends on your rules in DW land.

here we can use MCW above 50.1 (I think)


Captain Kilowatt

Professional Amateur
Staff member
Apr 6, 2005
16,992
11,420
823
59
Nova Scotia,Canada
Why can't he use it on CW? If he used SSB mode and keyed a carrier (CW) thru it it should trip with the first RF thru it and depending on keying speed the relay may stay engaged. He could also externally trigger the relay before and after sending. No reason why it would not work. All that mode switch is is a capacitor across the relay coil in SSB mode to hold the relay in for a bit.

  • Like
Reactions: wavrider

Singularity35

DU7DVE
Jan 16, 2014
425
90
138
Small City, Philippines
Why can't he use it on CW? If he used SSB mode and keyed a carrier (CW) thru it it should trip with the first RF thru it and depending on keying speed the relay may stay engaged. He could also externally trigger the relay before and after sending. No reason why it would not work. All that mode switch is is a capacitor across the relay coil in SSB mode to hold the relay in for a bit.

I see. Thanks Cap. I was thinking running the radio on low power and the amp on low power would not stress any of them. Instead of just running high on the radio and kind of stressing it.


Tallman

W9WDX Amateur Radio Member, KW4YJ EXTRA class
May 1, 2013
5,121
5,997
573
Louisville, KY
It is possible. You just have to key the KL-400 in to transmit mode and then pulse your carrier through it. There is a transistor you have to take the base to ground so the amp is keyed. I'll look it up and get back to you later today.


Captain Kilowatt

Professional Amateur
Staff member
Apr 6, 2005
16,992
11,420
823
59
Nova Scotia,Canada
It is possible. You just have to key the KL-400 in to transmit mode and then pulse your carrier through it. There is a transistor you have to take the base to ground so the amp is keyed. I'll look it up and get back to you later today.

Ha.......forgot it does not have provisions for external hard keying. :confused: My solidstate amps are all amateur band VHF/UHF stuff and can be keyed either with RF or externally via a plug on the back.


222DBFL

Sr. Member
Jul 28, 2013
3,300
1,383
173
Tallman is pretty good with the RM amps. He knows them well. I won't put his business out there but let's just say he has worked on a lot of them!! He will get you right on track singularity35.(y)(y)


Tallman

W9WDX Amateur Radio Member, KW4YJ EXTRA class
May 1, 2013
5,121
5,997
573
Louisville, KY

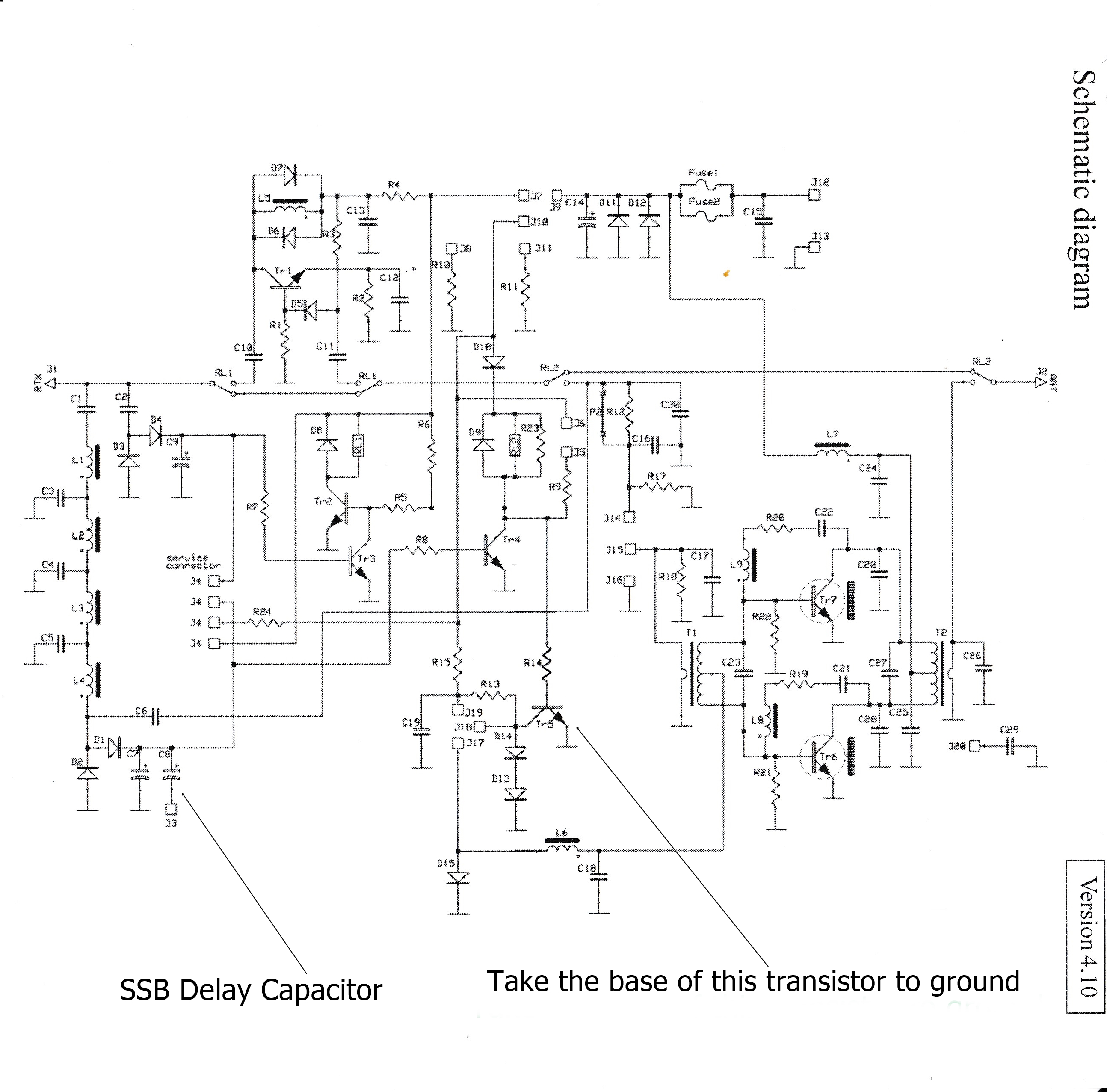

Here is the schematic diagram for the KL-400 and the point you need to know.
This key up with out RF carrier is used to set the Quiescent current for the new power transistors. If you key up and have an output without carrier applied your amp maybe oscillating. For testing purposes do not even connect the RF cables to the input of the amp. Hope this helps!

  • Like
Reactions: 222DBFL

Road Squawker

Sr. Member
Jan 19, 2011
1,954
1,510
173
Why can't he use it on CW? If he used SSB mode and keyed a carrier (CW) thru it....


that's my point,.... it may "sound" like CW,...... but, it's not A1A.

Morse code and CW are not defined by the FCC as being the same.

All the sound card produced "CW" is really a J3E emission, yes, it does sound like CW.

USE OLD NEW

Pure carrier A0,F0 N0N
Morse telegraphy (by ear) A1 A1A
Modulated CW Morse A2 A2A
AM voice A3 A3E
SSB, suppressed carrier A3J J3E
SSB, reduced carrier A3R R3E
SSB, full carrier A3H H3E
Television A5 C3F

RTTY (F.S.K.) F1 F1B
RTTY (A.F.S.K.) F2 F2B
FM voice (Narrowband) F3 F3E, 20K0F3E


N None
A AM (Amplitude Modulation), double sideband, full carrier
H AM, single sideband, full carrier
R AM, single sideband, reduced or controlled carrier
J AM, single sideband, suppressed carrier
B AM, independent sidebands
C AM, vestigial sideband (commonly analog TV)

F Angle-modulated, straight FM
G Angle-modulated, phase modulation (common; sounds like FM)

D Carrier is amplitude and angle modulated

P Pulse, no modulation
K Pulse, amplitude modulation (PAM, PSM)
L Pulse, width modulation (PWM)
M Pulse, phase or position modulation (PPM)
Q Pulse, carrier also angle-modulated during pulse
W Pulse, two or more modes used

X All cases not covered above


N = Nature of modulating signal

0 None
1 Digital, on-off or quantized, no modulation
2 Digital, with modulation
3 Single analog channel
7 Two or more digital channels
8 Two or more analog channels
9 Composite, one or more digital channel, one or more analog

X All cases not covered above


I = Information type

N None
A Aural telegraphy, for people (Morse code)
B Telegraphy for machine copy (RTTY, fast Morse)
C Analog fax
D Data, telemetry, telecommand
E Telephony, voice, sound broadcasting
F Video, television
W Combinations of the above

X All cases not covered above


Captain Kilowatt

Professional Amateur
Staff member
Apr 6, 2005
16,992
11,420
823
59
Nova Scotia,Canada
Yup fully aware of the mode of emissions including the difference between A1A and a modulated tone transmitted as if CW however where did the OP say he wanted to key a modulated carruer thru the amp? He simply asked if he could use it for CW. He does have his ticket and any FCC regulations mean squat to him. He is in The Philippines.

  • Like
Reactions: Tallman

Captain Kilowatt

Professional Amateur
Staff member
Apr 6, 2005
16,992
11,420
823
59
Nova Scotia,Canada
BTW in my post above when I said SSB mode I was referring to the switch on the amp not voice mode SSB from the transmitter. That should have been clear when I mentioned about the delay if he used RF keying.

  • Like
Reactions: Tallman
