Robyn 520 D

[Stuck in the mud]

I have a Robyn 520 D . It showed a small carrier of around 3 on the S meter on the dead key . The radio worked great and talked great . Decided to recap it and put the modulation upgrade in it . Now the radio works great but now I am showing a carrier of about 9 on the S meter. Is this possible in the alignment? New to repair HELP Thanks Dale



[BJ radionut]

Forget S-Meter reading...
What does it show on quality external wattmeter into a dummy load???



[Stuck in the mud]

Forget S-Meter reading...
What does it show on quality external wattmeter into a dummy load???

Thank you very much for the reply BJ On dummy load and external I am showing 13 watts dead key



[BJ radionut]

Sounds a little strong, however what does wattmeter show PEP modulation?
Been LONG time since I worked on one of those Panasonic Chassis but seem to remember about 5-7 watts DK and about 12-15 w PEP modulation provided good tube life. I never did that Plate Modulation mod unless customer insisted. Yes, sounded good if quality mic and tuned correctly, I did learn that it was harder on tubes...so trade off IMHO.
GL Enjoy ... Those were great chassis'
All the Best
Gary



[Stuck in the mud]

Sounds a little strong, however what does wattmeter show PEP modulation?
Been LONG time since I worked on one of those Panasonic Chassis but seem to remember about 5-7 watts DK and about 12-15 w PEP modulation provided good tube life. I never did that Plate Modulation mod unless customer insisted. Yes, sounded good if quality mic and tuned correctly, I did learn that it was harder on tubes...so trade off IMHO.
GL Enjoy ... Those were great chassis'
All the Best
Gary

Sorry this is a solid state radio It should do 4 watts AM 12 watts PEP SSB



[BJ radionut]

DAMN getting old!!!! Memory is Fubar...Now remember that one! Had one...
Lots of Info on forum about those:

Trouble shooting a Robyn SB-520D (NOMAD)

I got the Robyn to power up finally on 110 house current.But no transmit.When Ikey the mic, the red transmit light comes on, the meter drops to zero.The finals ?Whats the factory final #, 1307 ? Can it be replaced with a 1969 ? If the relay "chatters" when you keyup in ssb, check to see if...

www.worldwidedx.com

upd858 Ferris 5500 (Robyn 520d) SSB distortion on RX and TX

Hi everyone. I have an Australian version of the Robyn 520D (a Ferris 5500) which has distorted RX and TX audio on SSB only. AM is fine. I have completely recapped the radio and aligned it using the TRC-449 service manual. I guess it might be a problem in the IF stages or BM but all IC and...

www.worldwidedx.com

DEAD Robyn SB 520D

I have a Robyn that my friend gave me (said get it out of here or tis going into the trash) that is dead. The channel readout is dark and no TX/RX. Any ideas as the radio is not in bad shape and i'd rather not scrap it.

www.worldwidedx.com

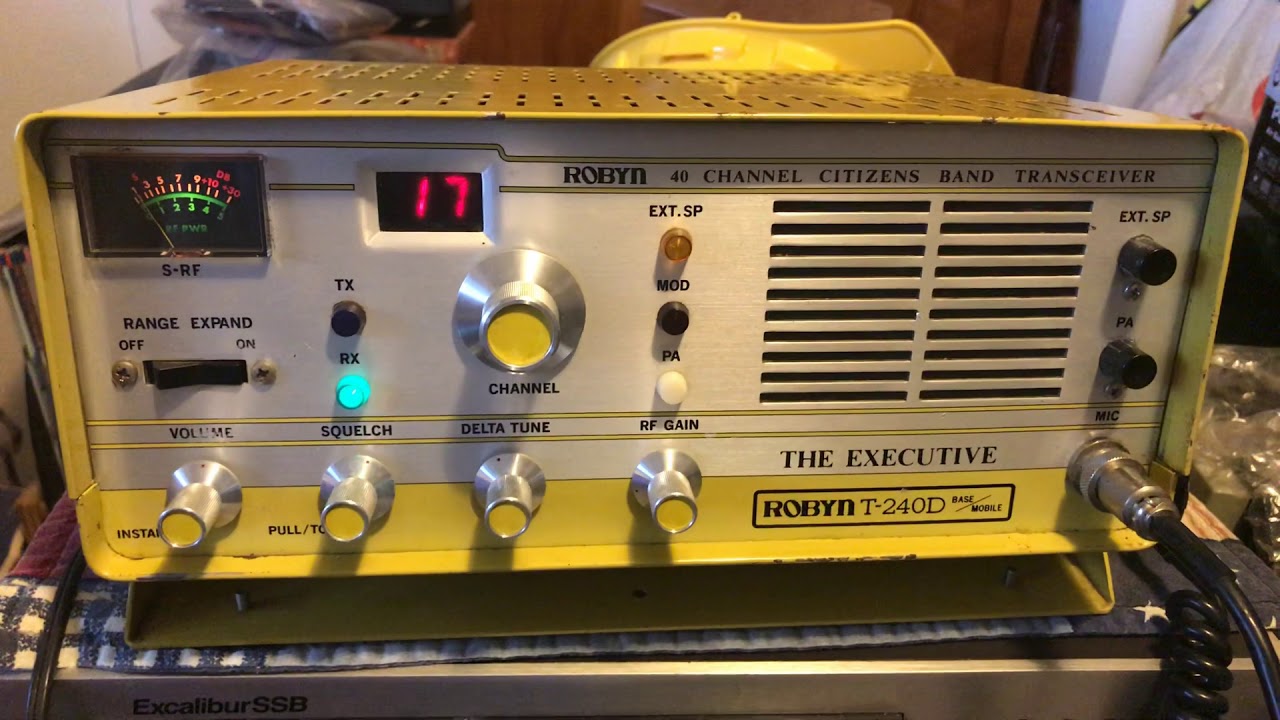

Here's the Chassis I remembered...DAMN!



[Lkaskel]

Thank you very much for the reply BJ On dummy load and external I am showing 13 watts dead key

That has the Uniden 858 board in it. A 13 watt carrier is way too high if that is an accurate reading. It really needs a full alignment but there are 2 main points to address here. Adjust VR-8 for no more than a 4 watt carrier (on AM and no modulation) as read on an accurate external meter with a dummy load. Adjust VR-12 to adjust the Robyn meter to match the reading of the carrier you set. That should address your question specifically.
