SWR Meter Poll

tba02

WOOF
Jan 26, 2014
620
405
173
SF Bay Area, CA, USA
1. Do you use an external SWR meter in your shack?
- Yes

2. If you do, do you keep it in-line most of the time?
- Yes

3. What make and model do you use?
-LP-100A for Rig 1
-MFJ-949E for Rig 2
-Diamond 200SX for mobile HF


Riverman

Old Member
Nov 12, 2013
2,682
2,677
273

Gary

Is external power required for the CN-801 meters to operate, or is it only required for the lighted display?

Last edited:

towerdog

one-niner-seven
Nov 18, 2009
644
127
53
NC

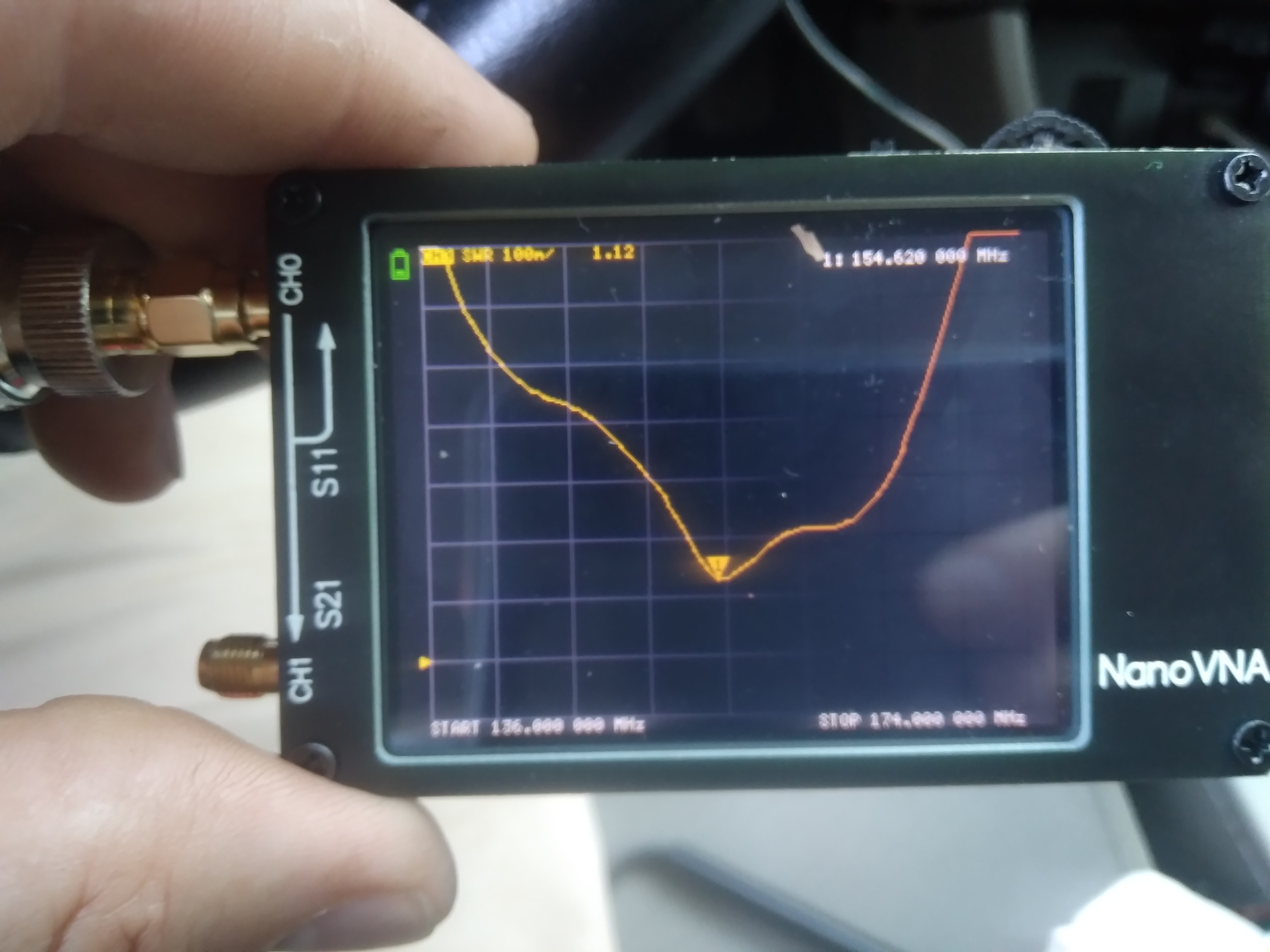

NANO VNA, Sitemaster Anritsu, Bird 43, cheap rusty cb tester thing and built in SWR on the president and Stryker.


Attachments

  • 20220826_180410.jpg
    2.1 MB · Views: 10
  • Like
Reactions: Riverman

unit_399

EL CAPO
Jun 17, 2008
1,674
1,614
173
ALEJANDRIA, COLOMBIA SA
A few years ago, I converted my trusty Drake W4 wattmeter to true peak reading using the info on these two sites:



Simple circuit to build. Works great. Powered by 12vdc/1amp wallwart.

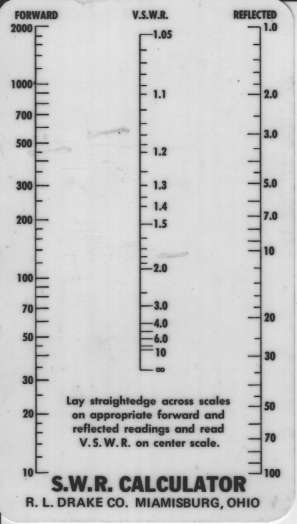

To expand its usefulness Drake provides a chart for using forward and reflected power to calculate SWR.



The peak reading conversion turned this quality instrument into a meter as good or better than anything out there. Fun project too.

- 399

Last edited:
