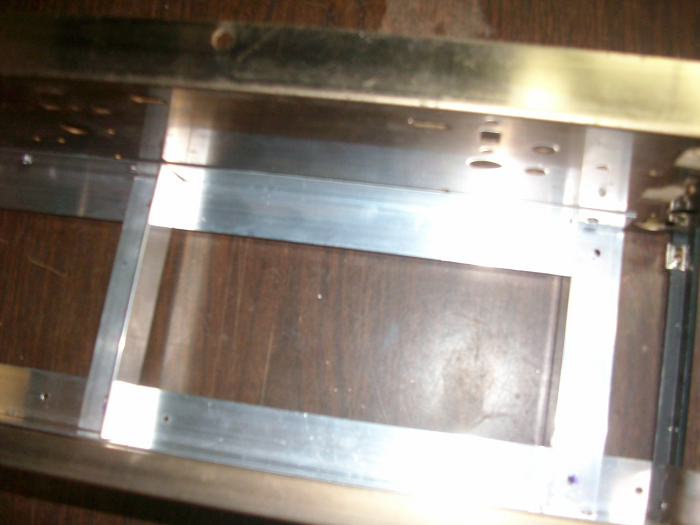

built a chassis to mount the HP supply out of aluminum angle stock

Insralled the filter caps and the 100 amp shunt for the ammeter

Another view

Chassis from thebottom with HP supply installed.

built a chassis to mount the HP supply out of aluminum angle stock

The housing is from an old Heath power supply. I will be making a new faceplate, and some internal supports form the supply.

There will be three meters: DC Volts, Amps,and temperature.This is the volt and ammmeter (with shunt). The temp meter is the same size,but isn't shown

This is just about everything I need to get this supply together.
