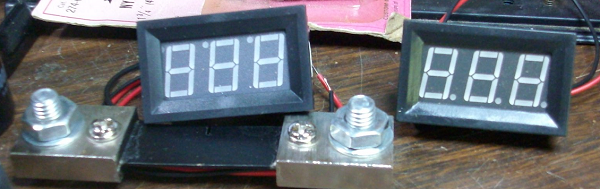

There will be three meters: DC Volts, Amps,and temperature.This is the volt and ammmeter (with shunt). The temp meter is the same size,but isn't shown

Chassis from thebottom with HP supply installed.

built a chassis to mount the HP supply out of aluminum angle stock

The housing is from an old Heath power supply. I will be making a new faceplate, and some internal supports form the supply.

There will be three meters: DC Volts, Amps,and temperature.This is the volt and ammmeter (with shunt). The temp meter is the same size,but isn't shown

This is just about everything I need to get this supply together.

There will be three meters: DC Volts, Amps,and temperature.This is the volt and ammmeter (with shunt). The temp meter is the same size,but isn't shown
