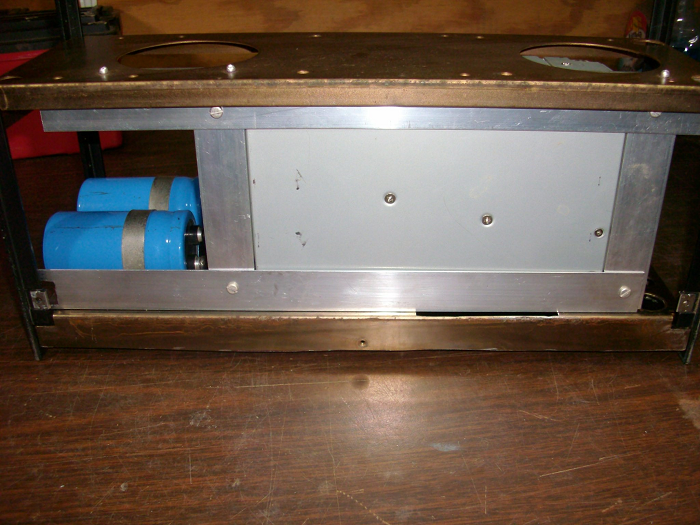

Chassis from thebottom with HP supply installed.

Using the original Heath faceplate as a guide, I cut a new plate out of some scrap sheet metal I had laying around.

Insralled the filter caps and the 100 amp shunt for the ammeter

Another view

Chassis from thebottom with HP supply installed.

built a chassis to mount the HP supply out of aluminum angle stock

The housing is from an old Heath power supply. I will be making a new faceplate, and some internal supports form the supply.

There will be three meters: DC Volts, Amps,and temperature.This is the volt and ammmeter (with shunt). The temp meter is the same size,but isn't shown

Chassis from thebottom with HP supply installed.
