Any advice on a Rodek RA2150? Caps died

Discussion in 'Announcements & Open Forum' started by 357, Sep 23, 2018.

  1. 357

    357 Walkin' the dog

    Joined:
    Sep 12, 2009
    Messages:
    959
    Likes Received:
    315

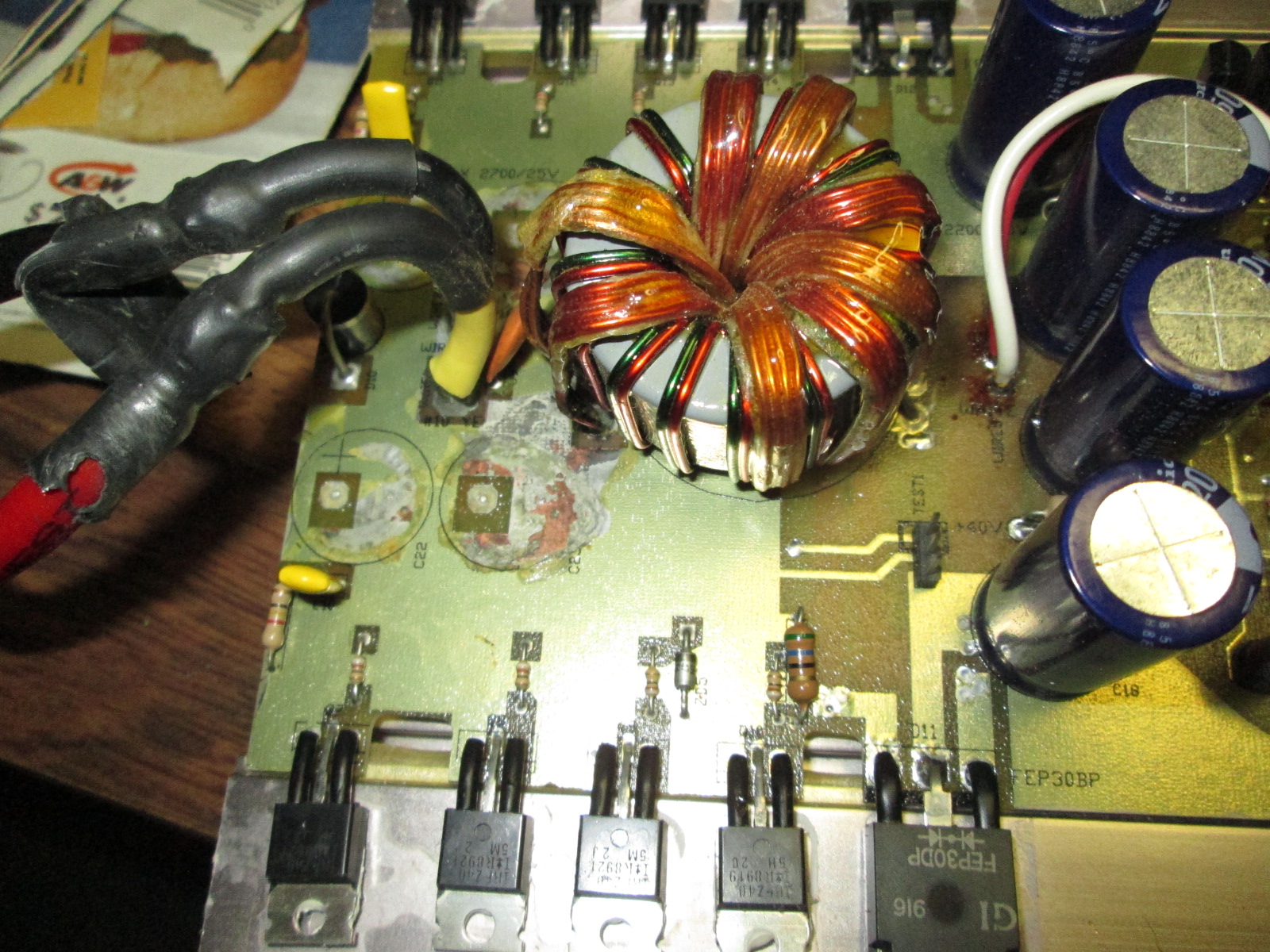

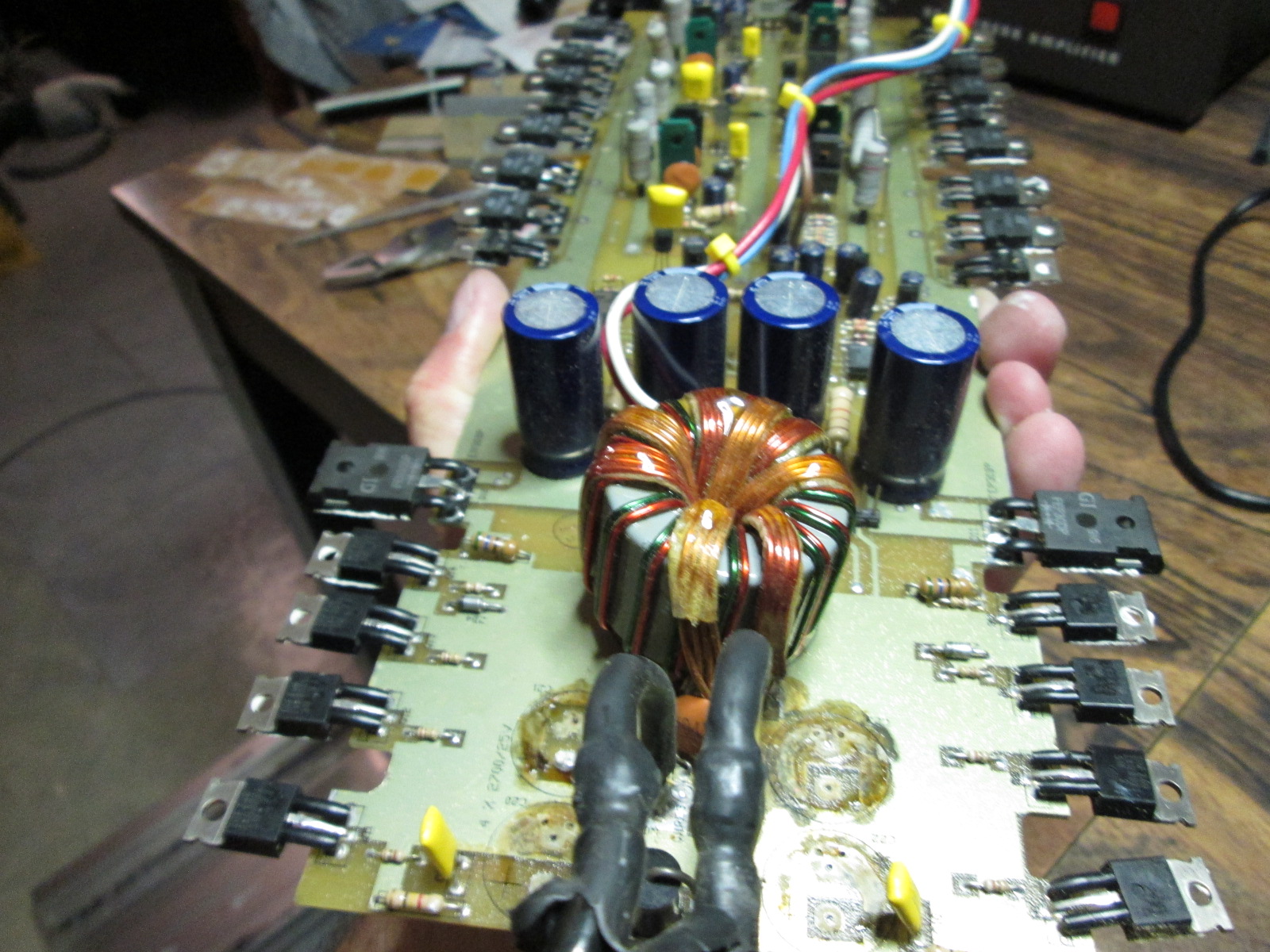

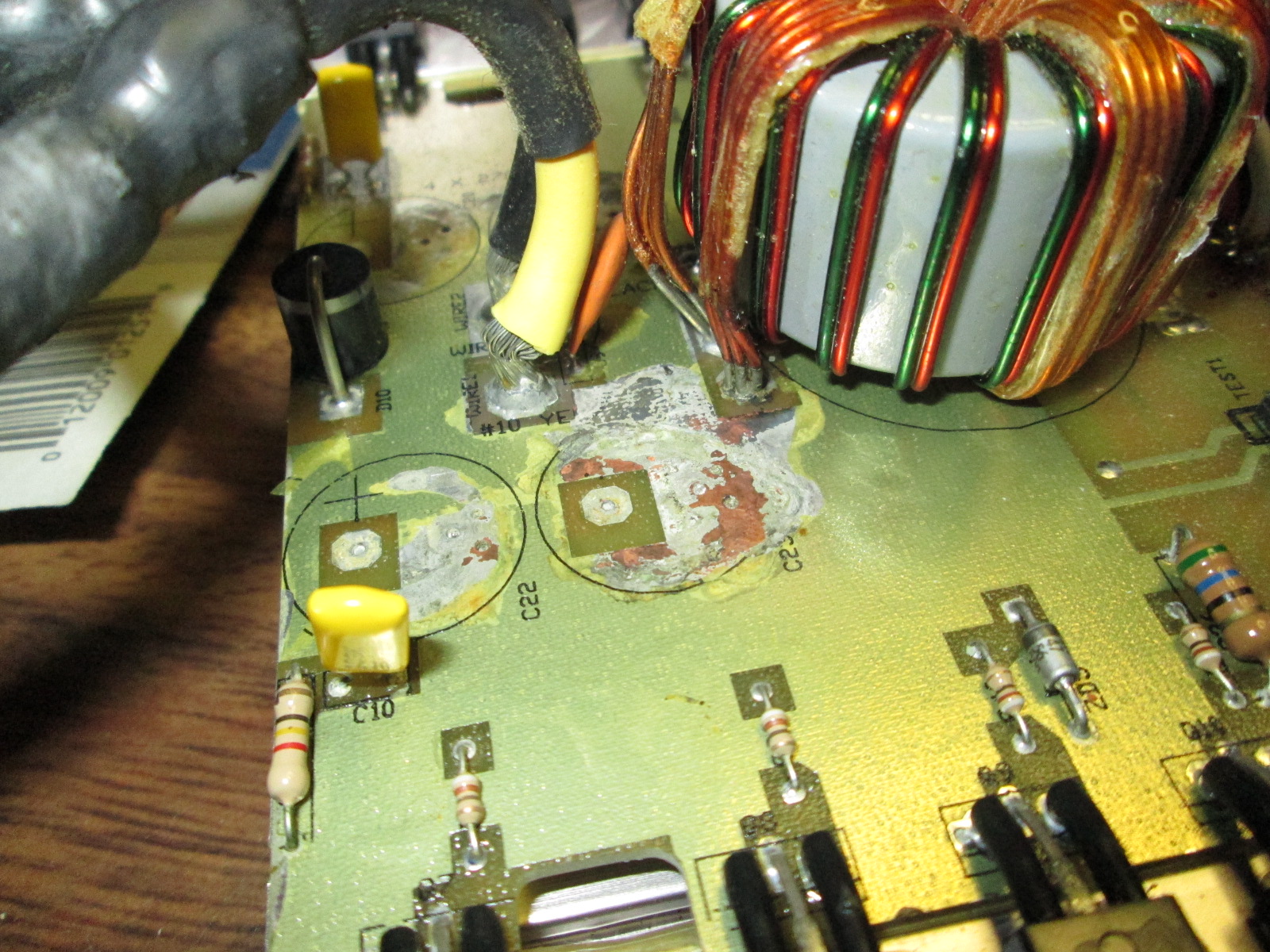

    I have the RA2150 and am doing a recap.

    should I do anything to "update" it.

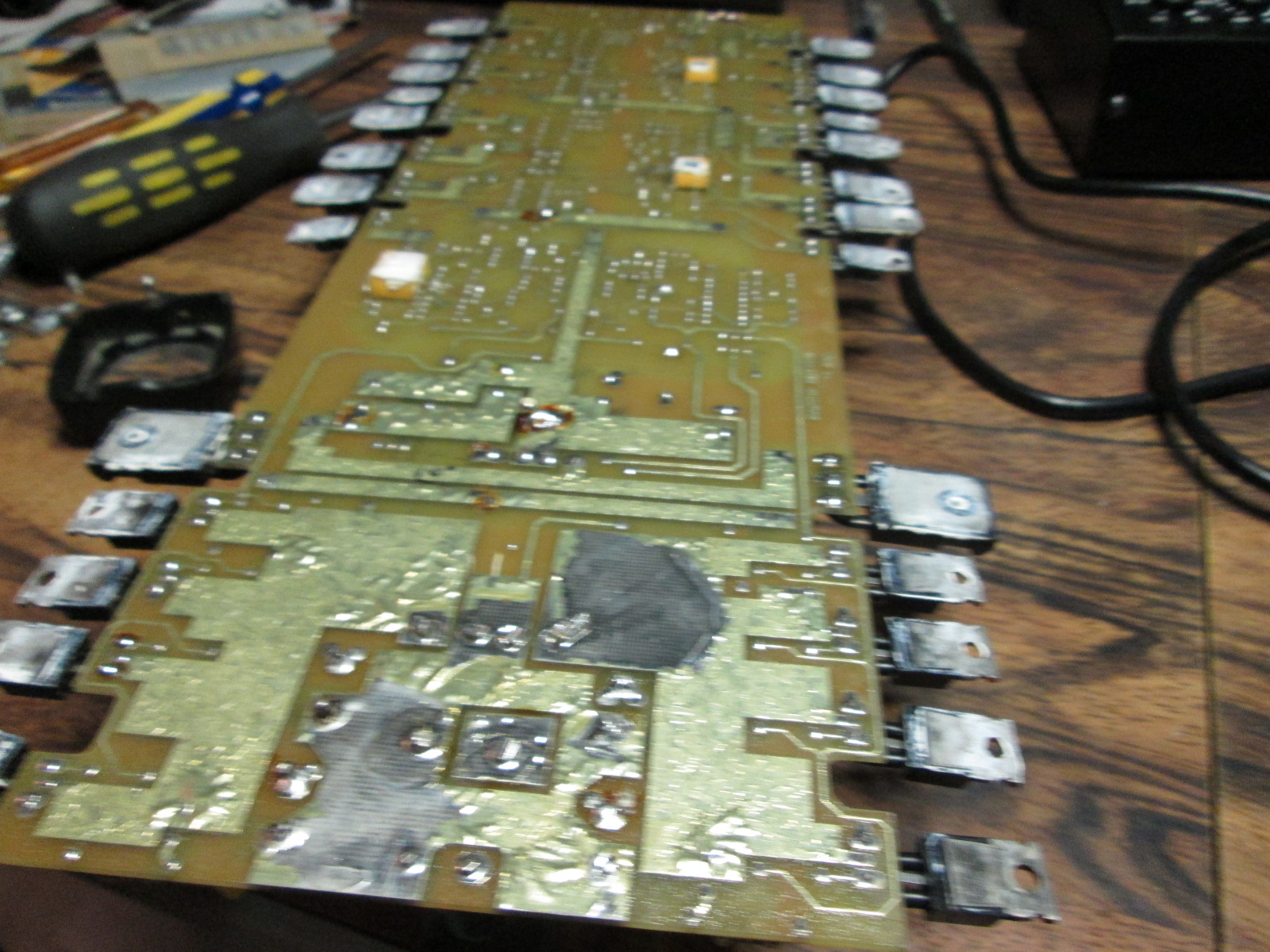

    I plan on doing all the caps, I have no schematic.


    Taking the lead spacing and height limit of the big caps, here's what I plan on getting to replace these:


    Small
    https://www.digikey.ca/product-detail/en/UHV1V470MDD/493-15312-ND/2598282/?itemSeq=272560921
    https://www.digikey.ca/product-detail/en/USR1V100MDD1TP/493-16005-1-ND/6556043/?itemSeq=272560959
    https://www.digikey.ca/product-detail/en/USV1H010MFD/493-14516-ND/2539283/?itemSeq=272560968
    https://www.digikey.ca/product-detail/en/10ZLQ220MEFC5X11/1189-3611-ND/6049816/?itemSeq=272561108

    Big
    https://www.digikey.ca/product-detail/en/nichicon/UPW1H222MHD/493-1923-ND/589664
    https://www.digikey.ca/product-detail/en/nichicon/UPW1E272MHD/493-1840-ND/589581

    Should I just stick with factory values on the big caps?

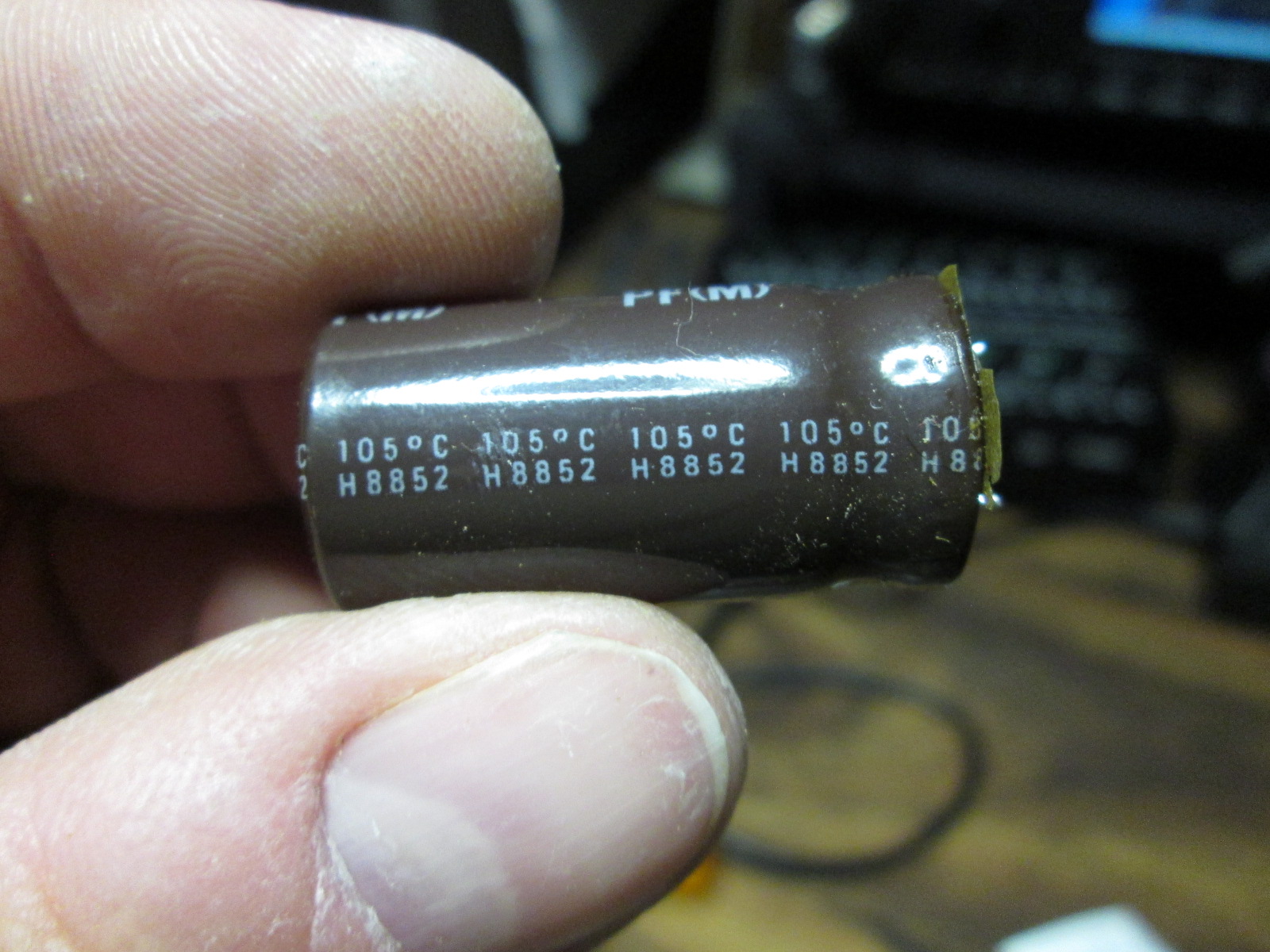

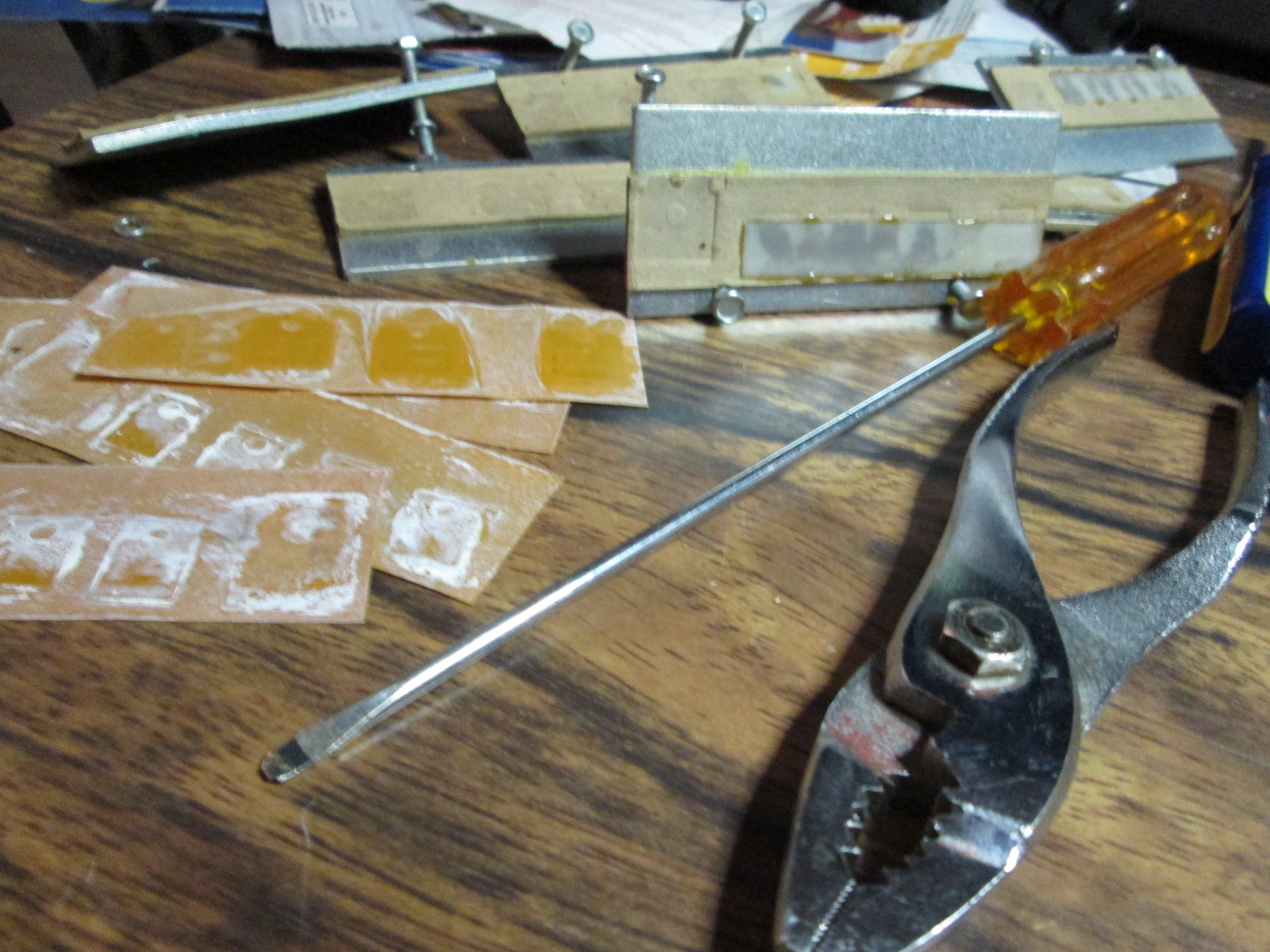

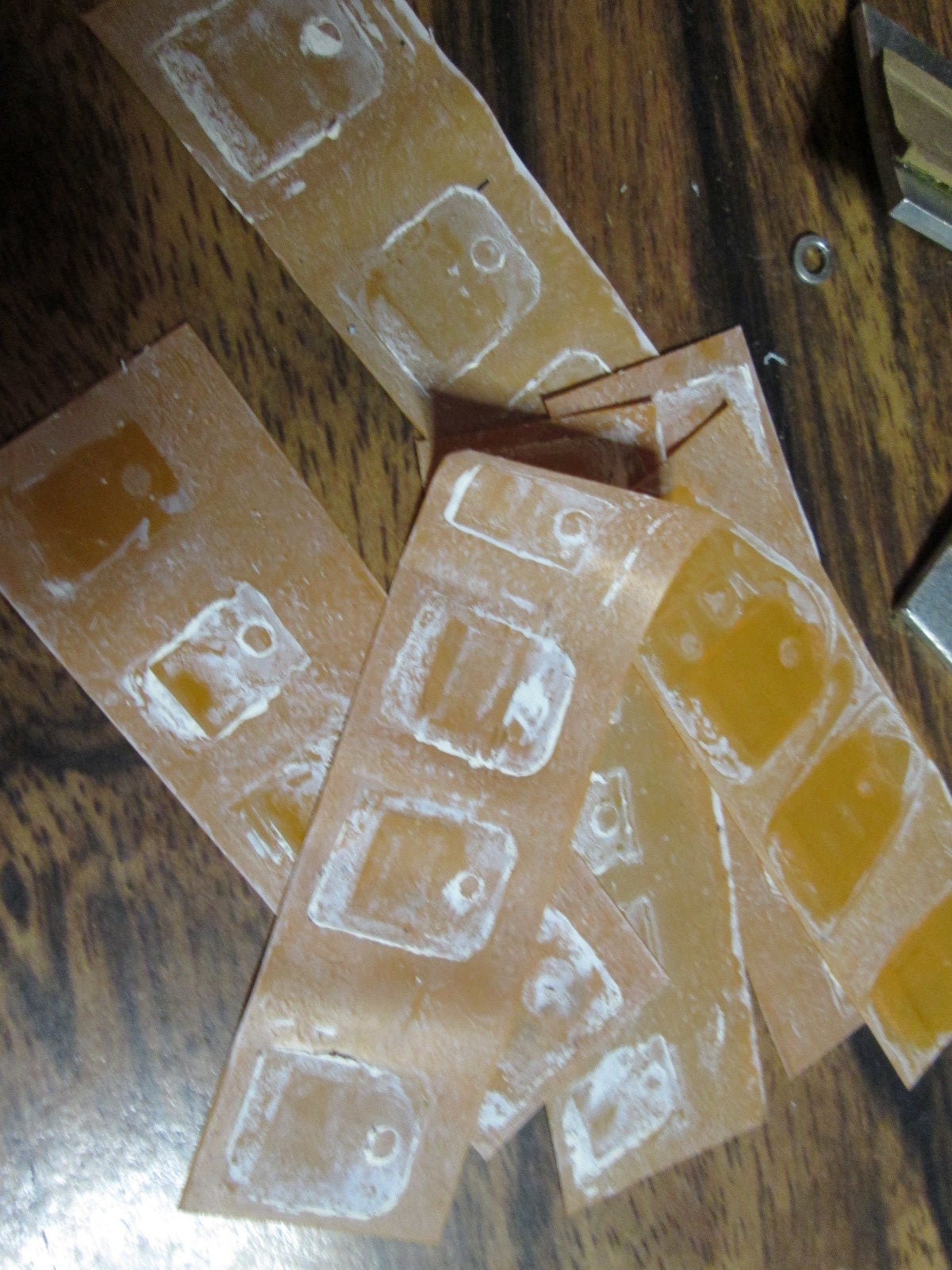

    Also the thermal insulation seems to be paper....not sure what to do there either.

    thanks

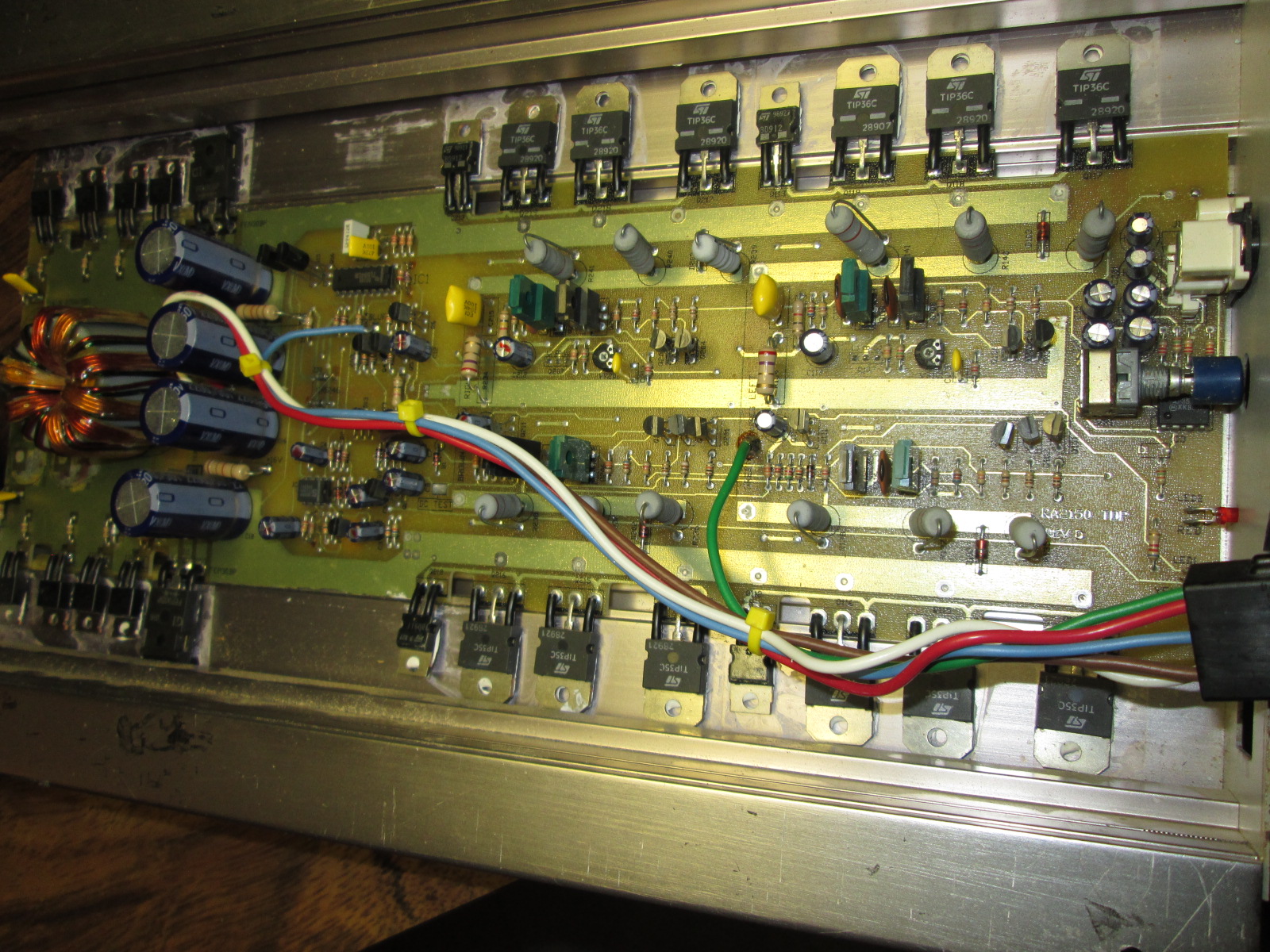

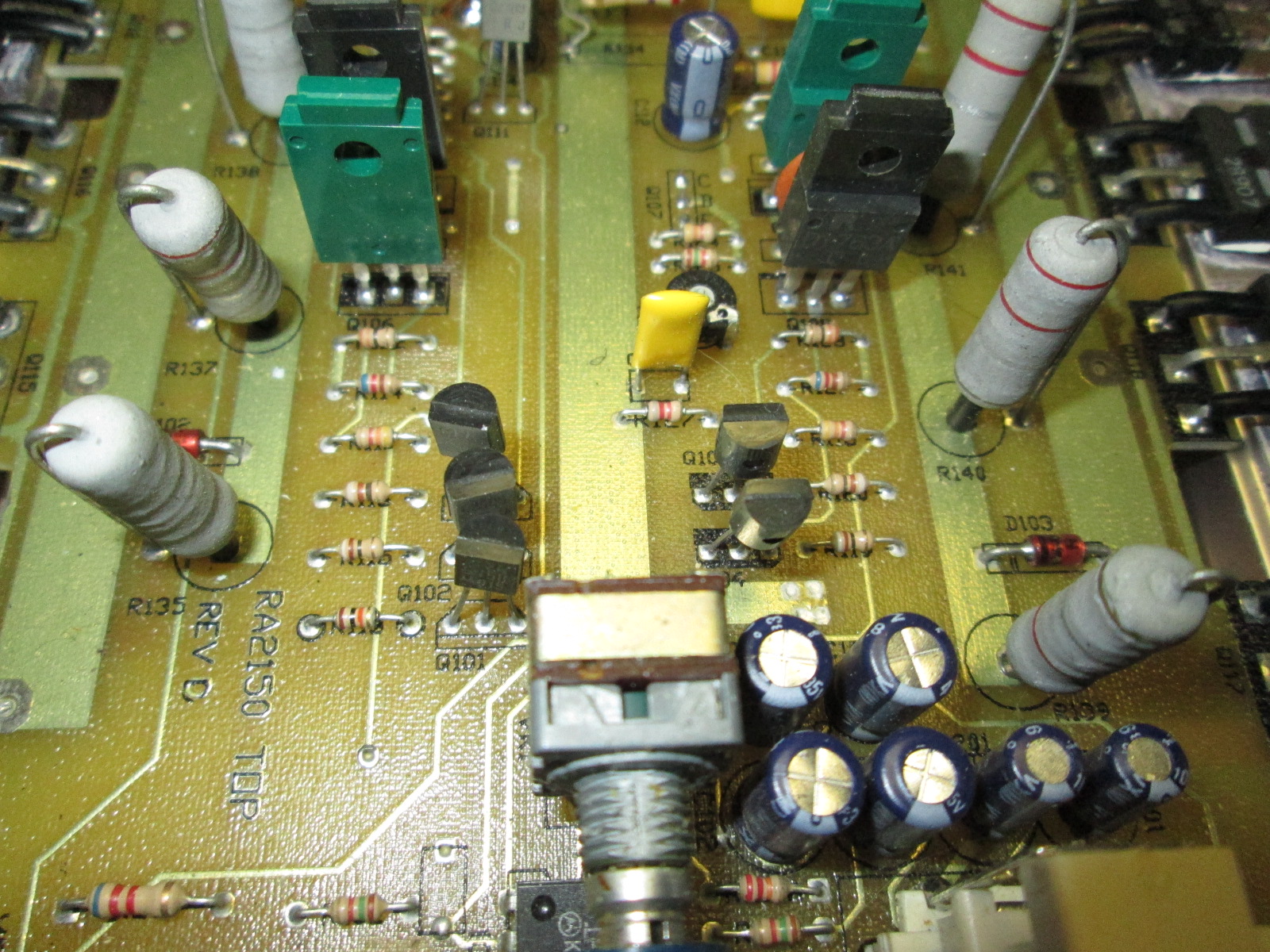

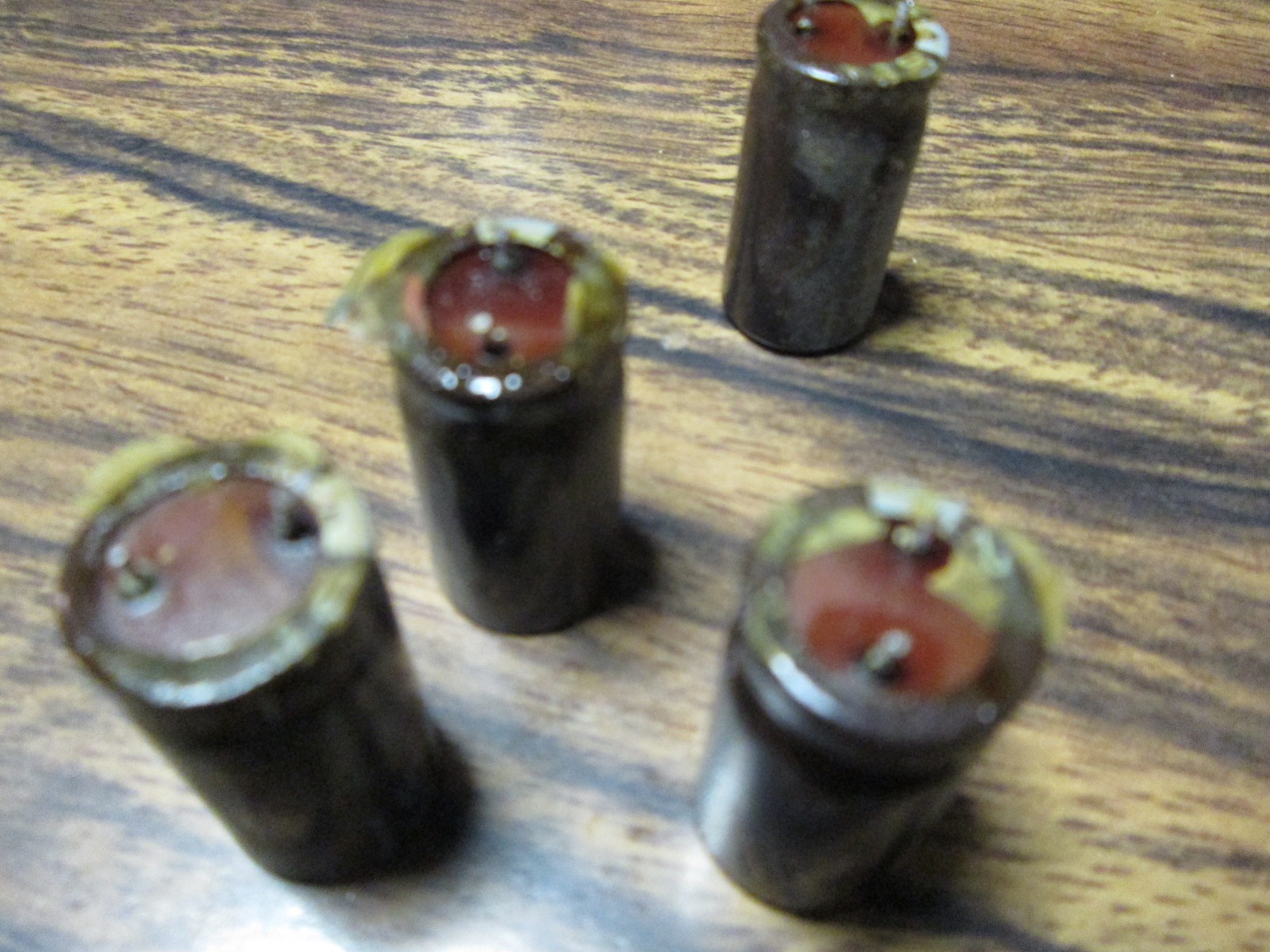

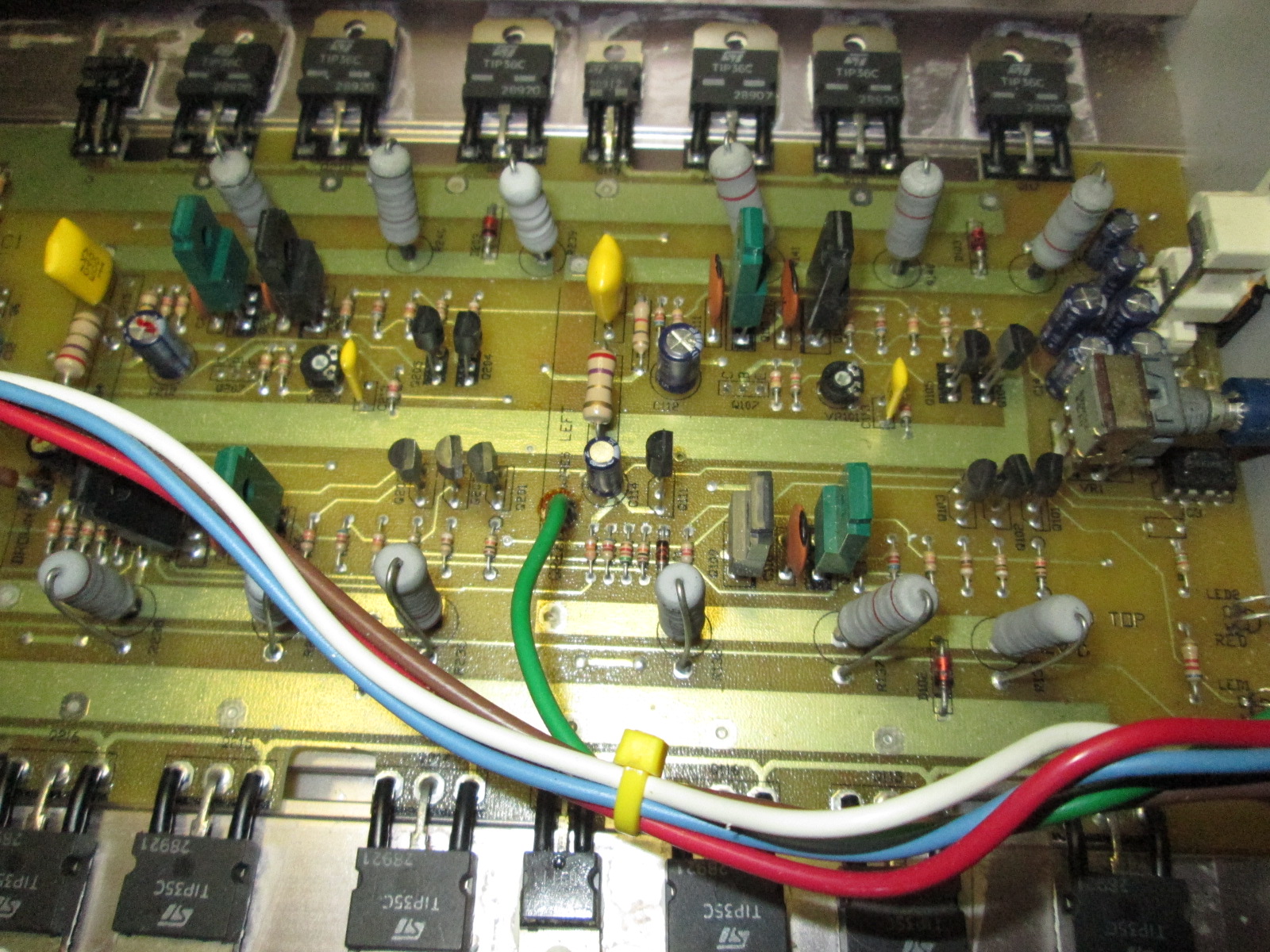

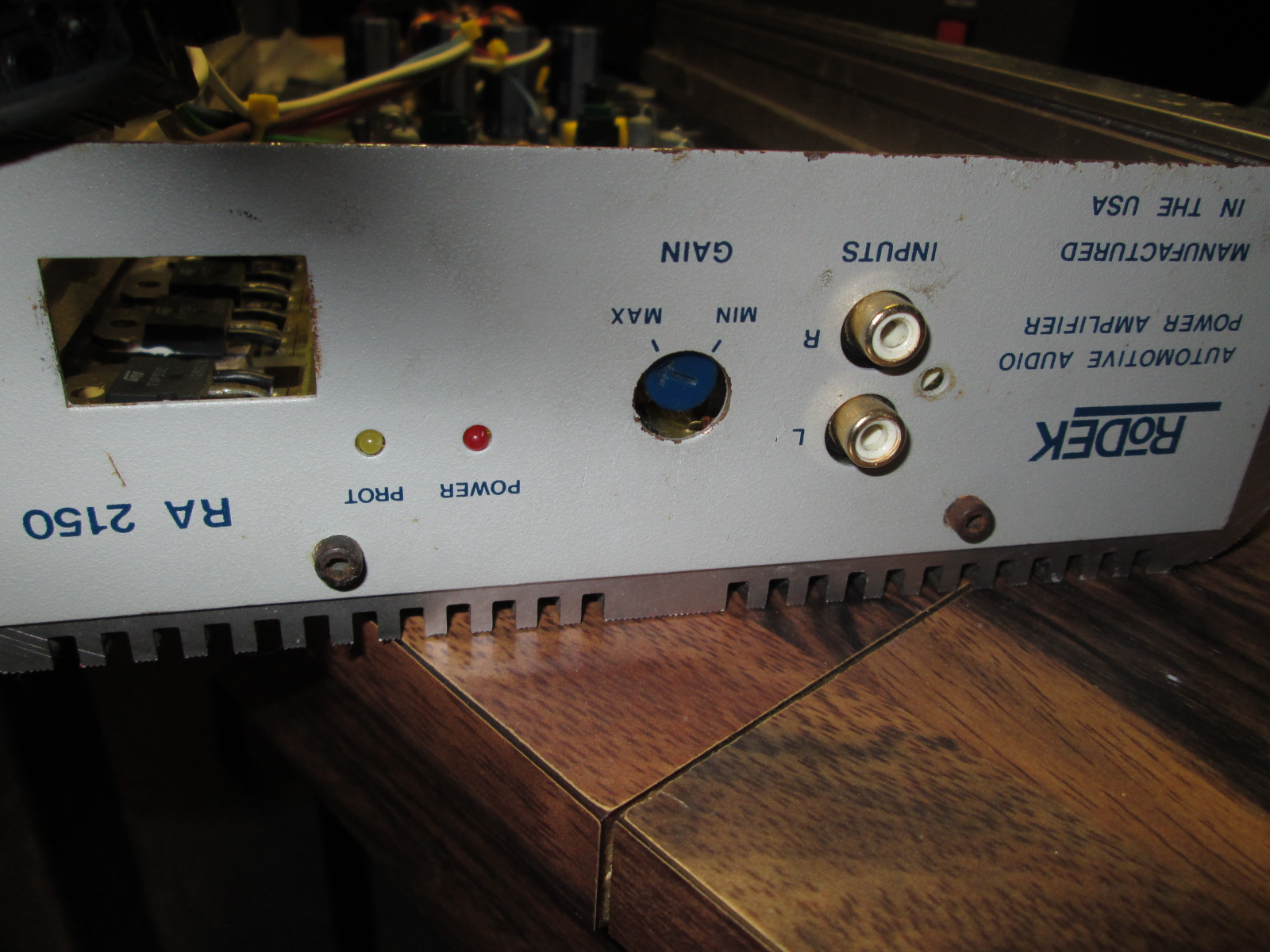

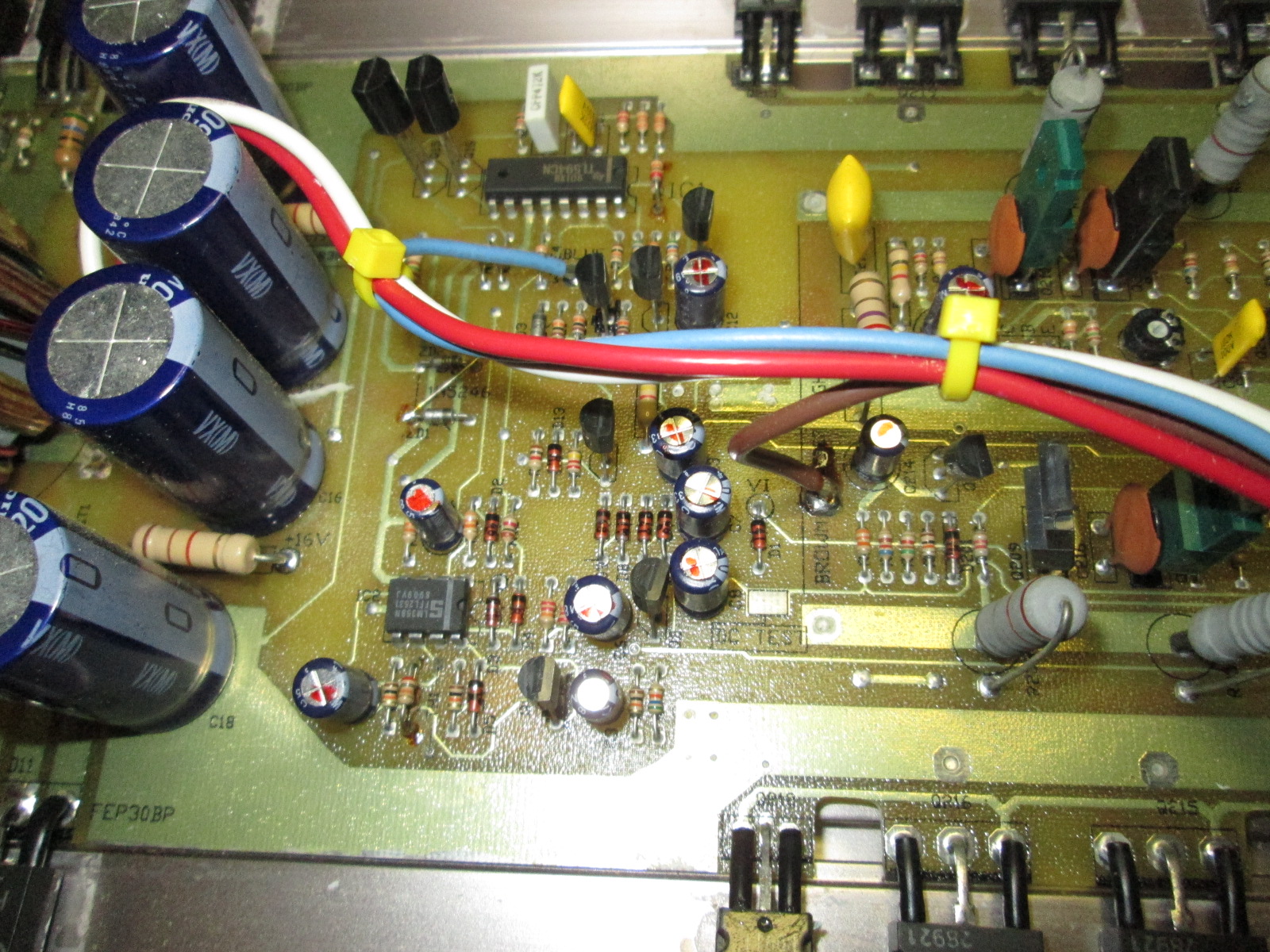

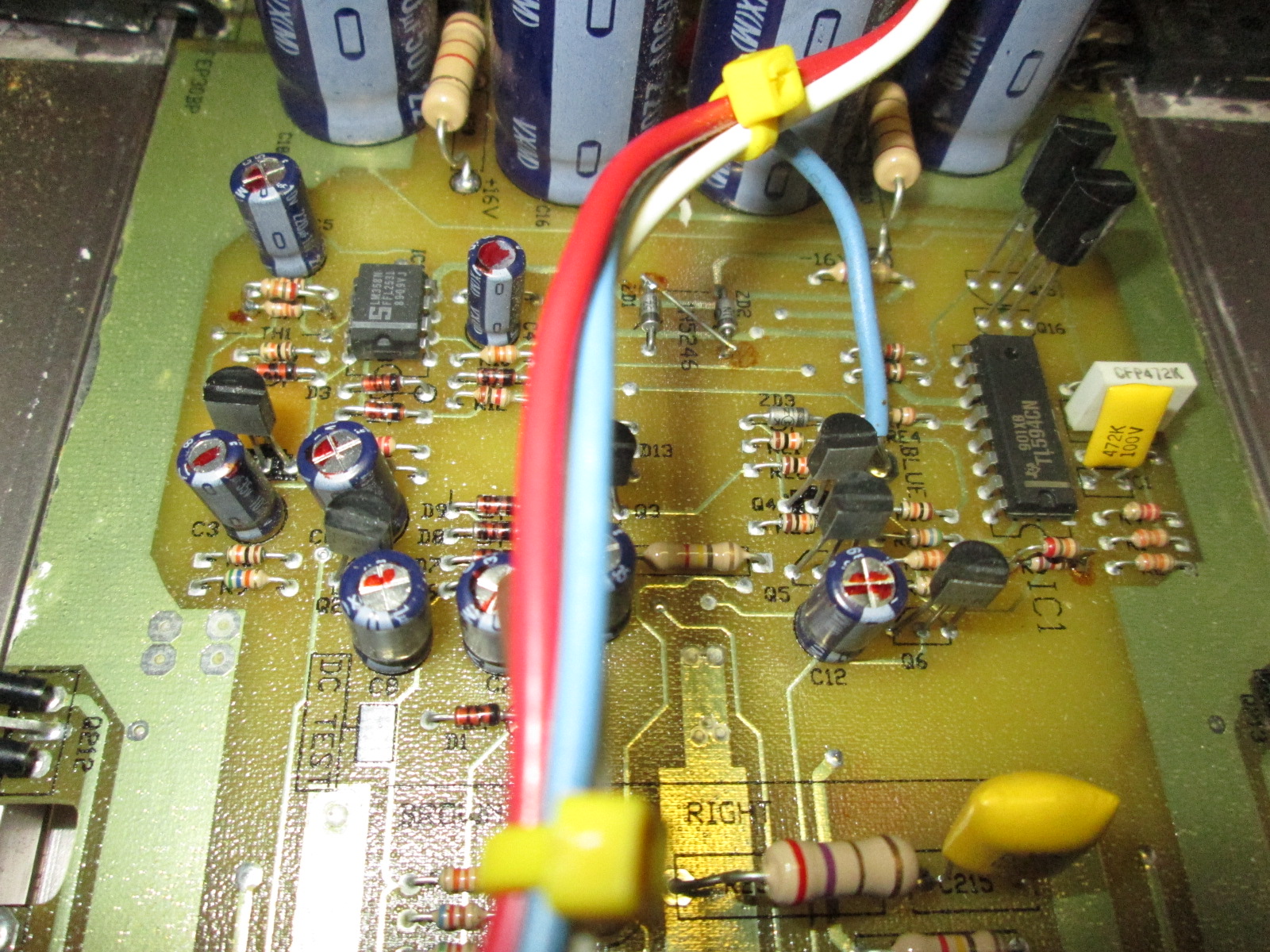

    rodek (1).JPG rodek (2).JPG rodek (3).JPG rodek (4).JPG rodek (5).JPG rodek (6).JPG rodek (8).JPG rodek (9).JPG IMG_3354.JPG IMG_3355.JPG

    #1 357, Sep 23, 2018
    Last edited: Sep 23, 2018
  2. 357

    357 Walkin' the dog

    Joined:
    Sep 12, 2009
    Messages:
    959
    Likes Received:
    315

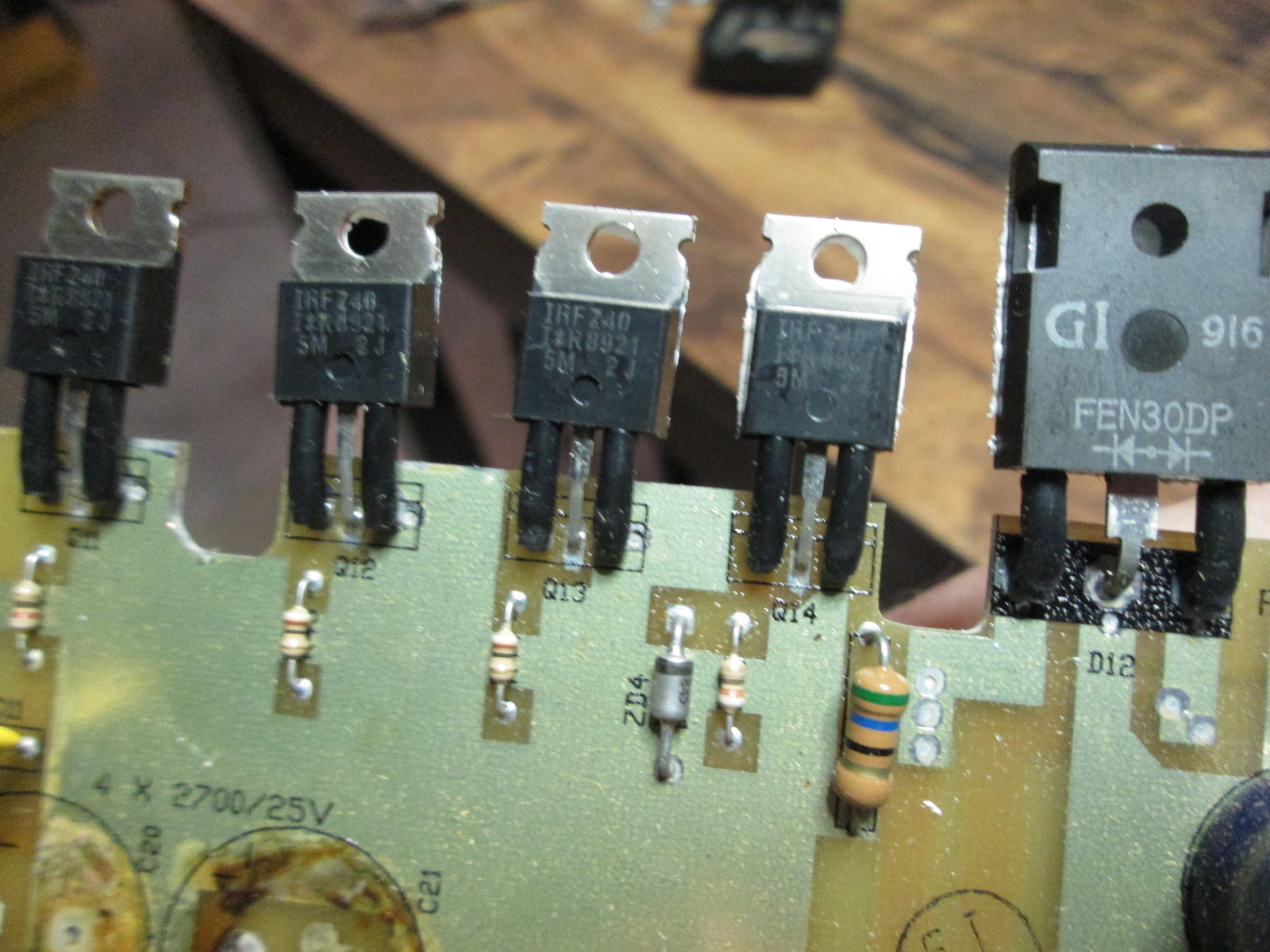

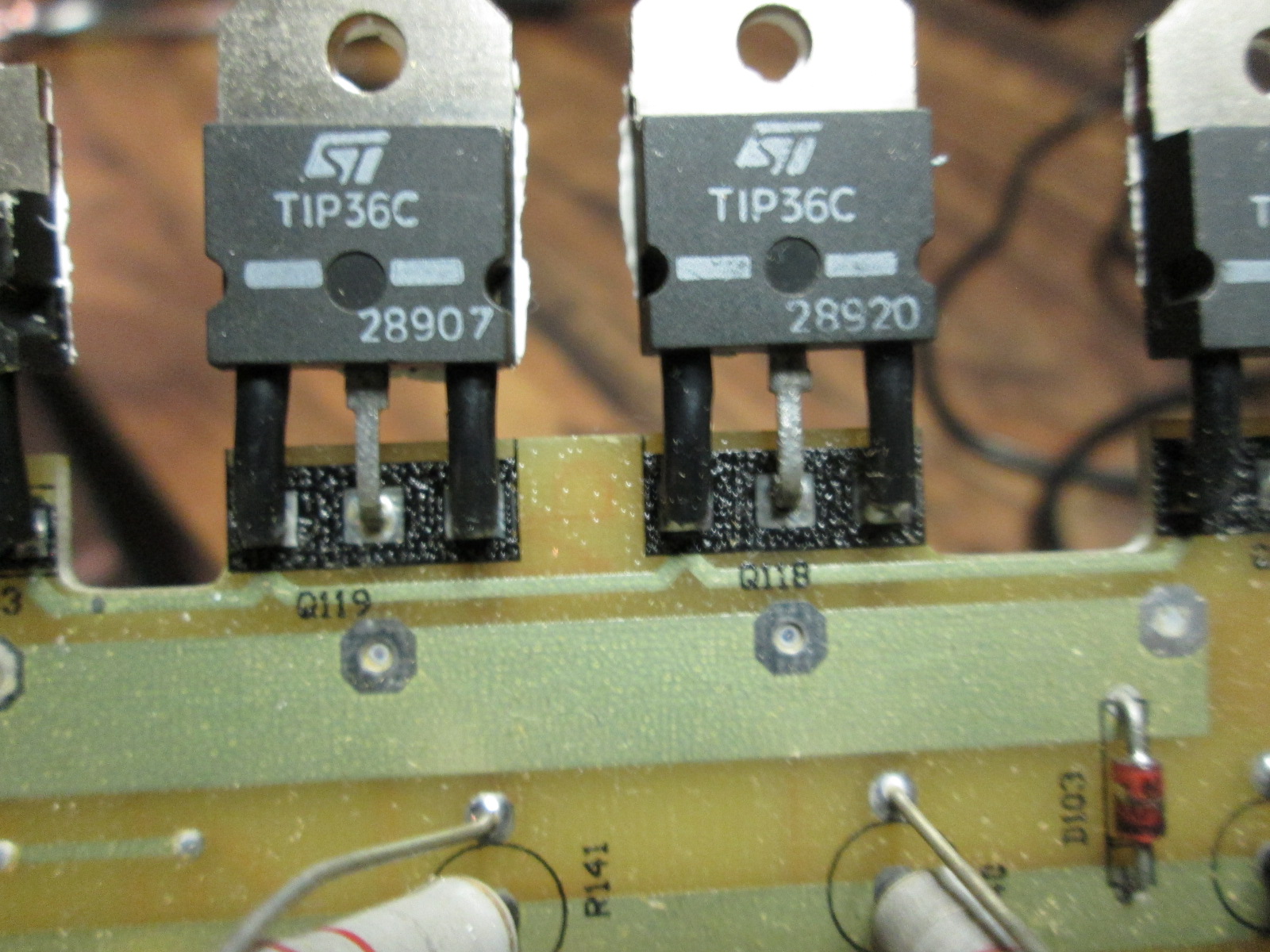

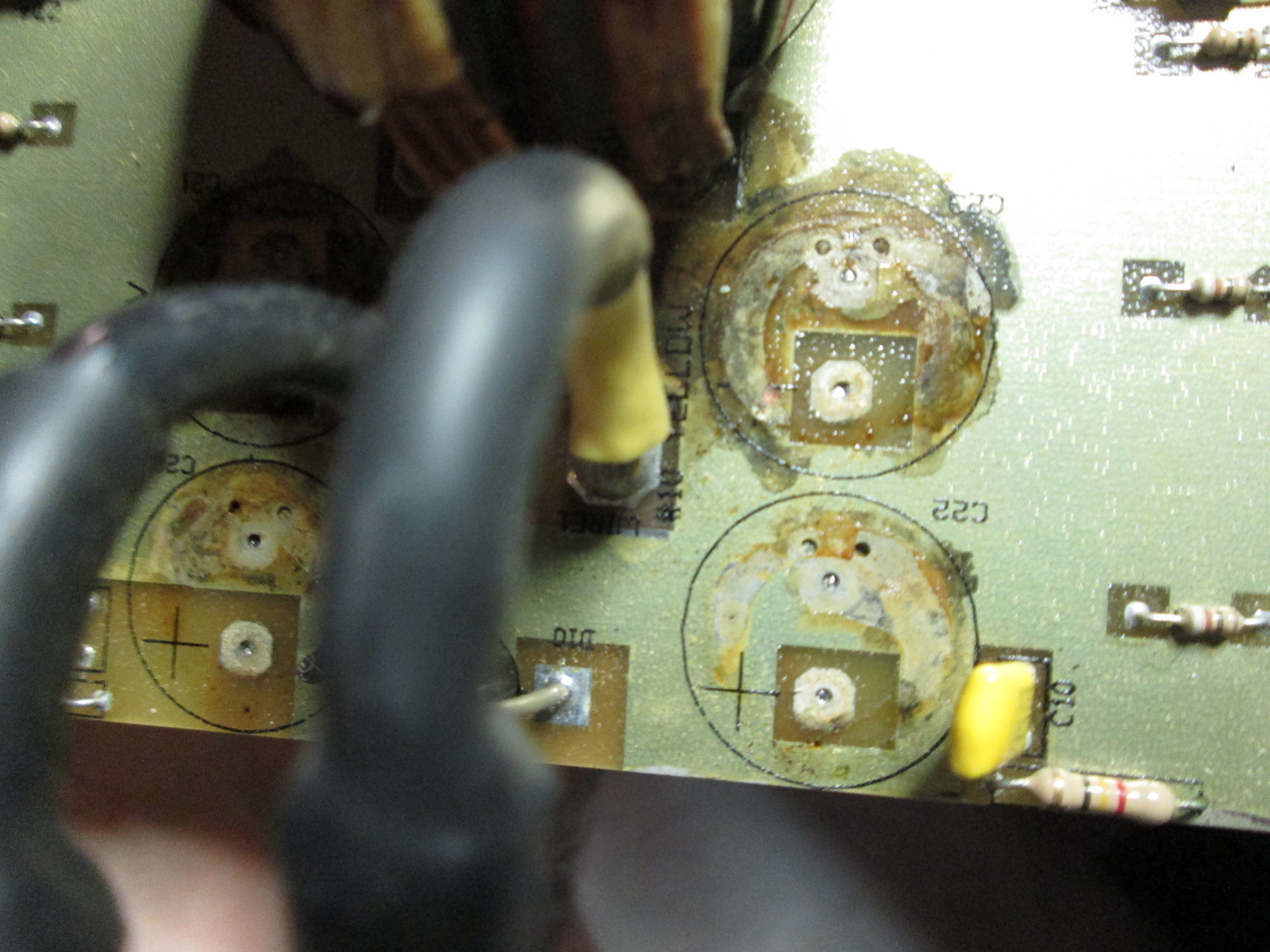

    IMG_3356.JPG IMG_3357.JPG IMG_3358.JPG IMG_3359.JPG IMG_3360.JPG IMG_3361.JPG IMG_3362.JPG IMG_3363.JPG
