Anytone 5555v6 EXTERNAL S-METER

[JasonD239]

Anytone 5555v6 EXTERNAL S-METER

Just looking to see in anyone had information on where to tap into this radio to run an external S-Meter.
I have done a few RCI radios and grew to like the analog meter option. Any help would be much appreciated.



[sp5it]

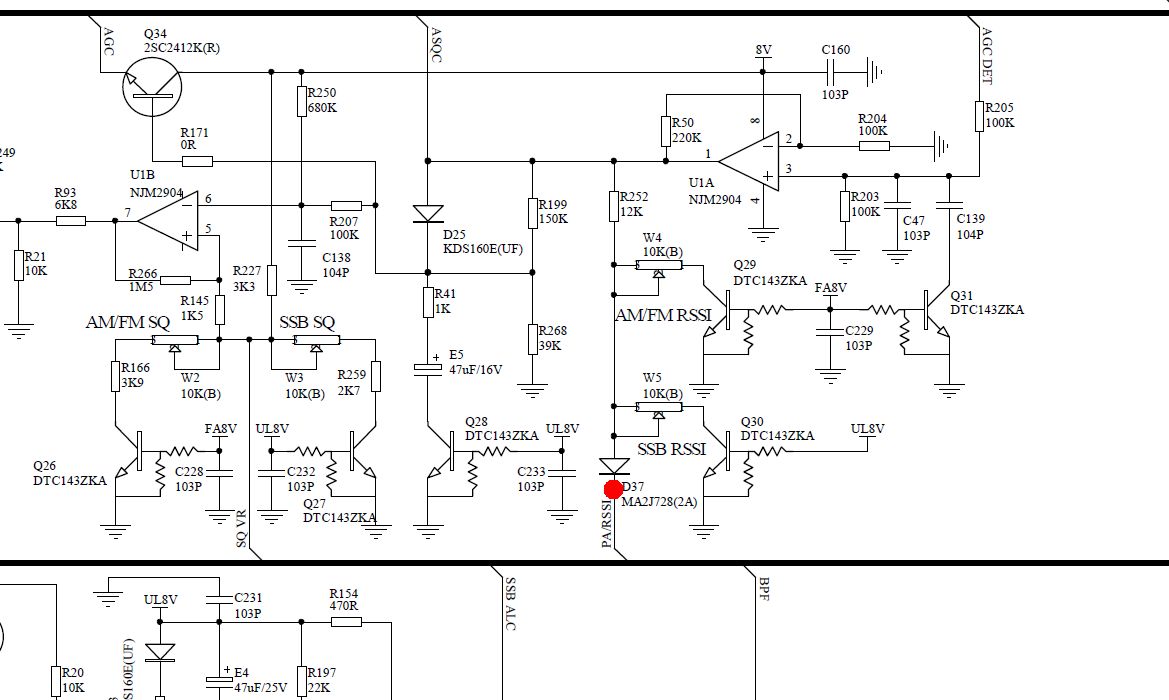

Take signal from red point.



[JasonD239]

Take signal from red point.

Thank you sir i will give this a try later tonight and report back.



[JasonD239]

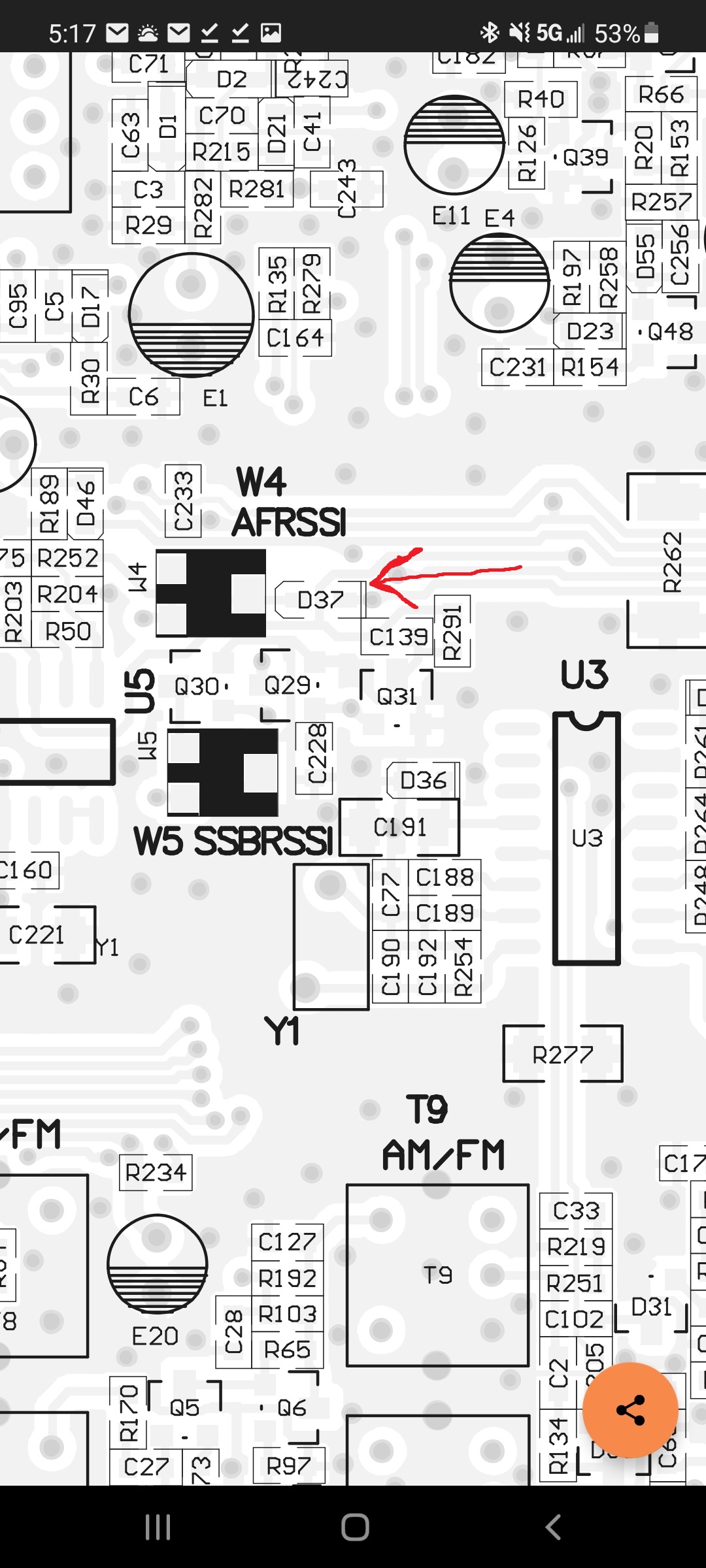

All done and thanks for the help. The above is a revision 3 PCB component location.

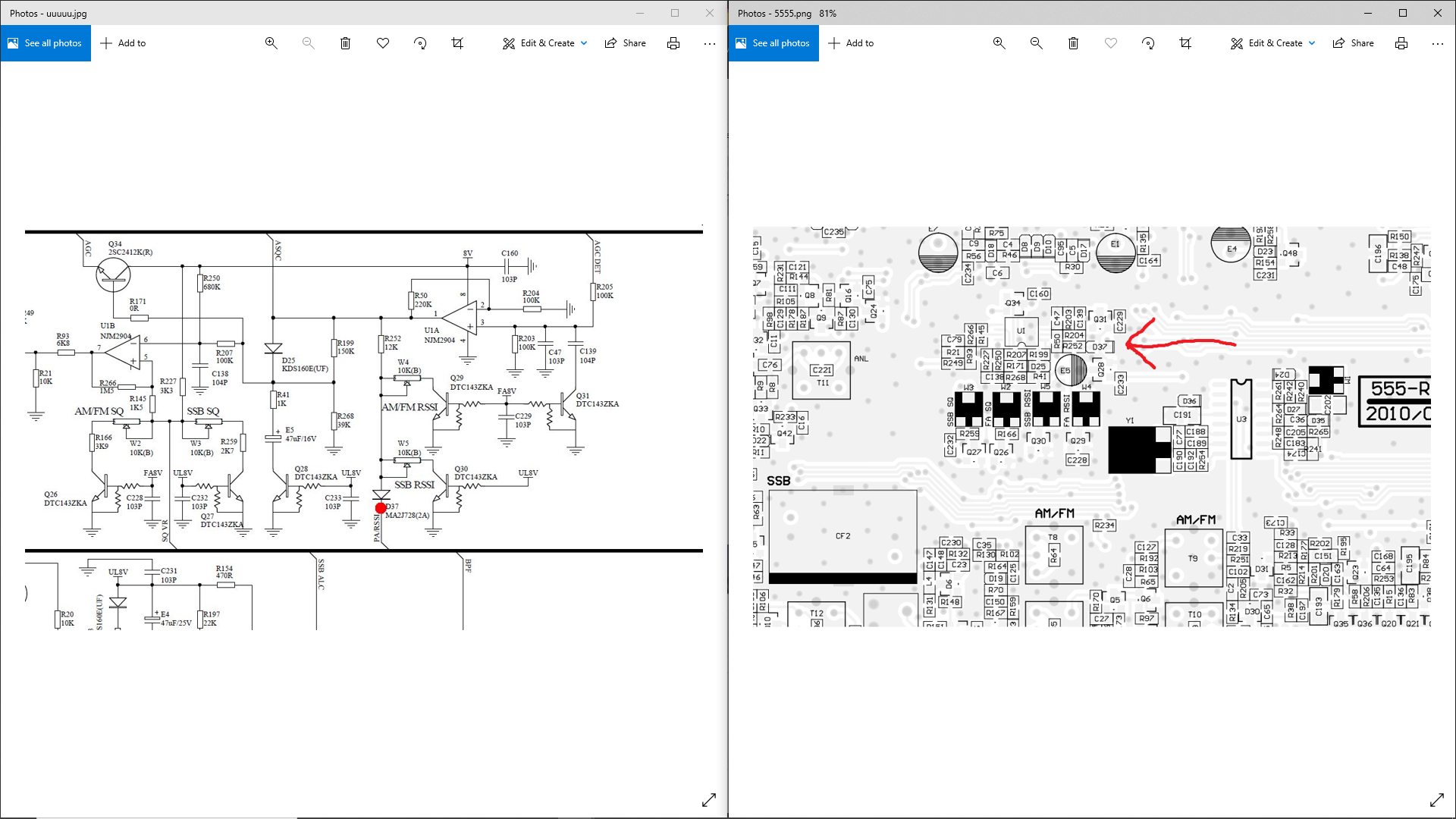

I had to find a revision 6 schematic and component location to be sure I'm in the right spot. Turns out the diode is the same number D37 but the location on the board is a tad different. The location of the diode is the cathode side opposite to the AFRSSI pot adjustment. The diode is a MA2J728(2A) diode. Diode location is d37.

Thanks again I very much appreciate your help and hope other people will find this information useful.



[AudioShockwav]

Take signal from red point.

Very nice, thanks for that.

73
Jeff
