grounding rod question

Discussion in 'General Ham Radio Discussion' started by John L., Jul 2, 2020.

  1. John L.

    John L. New Member

    Joined:
    Jun 29, 2020
    Messages:
    11
    Likes Received:
    18
    I installed the ground rod for my shack but was only able to drive it in about 3.5 ft. before I hit rock.
    Do you think this will be enough? The ground should stay moist enough and I really don't have another place to move it to.




  2. 2NC995

    2NC995 DAN

    Joined:
    Feb 23, 2008
    Messages:
    2,219
    Likes Received:
    3,907
    Why not use a trench, and put the full 8’ in?

    #2 2NC995, Jul 2, 2020
    Last edited: Jul 2, 2020
    S&W357 and Tokin like this.
  3. groundwire

    groundwire Well-Known Member

    Joined:
    Jul 19, 2014
    Messages:
    271
    Likes Received:
    292
    Connect radials to it spread them out like the spokes on a wheel and burry them 1"
    Call it good

  4. Captain Kilowatt

    Captain Kilowatt Professional Amateur
    Staff Member

    Joined:
    Apr 6, 2005
    Messages:
    16,185
    Likes Received:
    9,279
    Drive it in on a 45 degree angle to get more contact with the earth. Use several spaced apart and bond them all together. I have the same problem here. The deepest I could drive one of mine was somewhere between 6 and 7 feet but I had to use a 5/8 inch galvanized steel rod which I ground to a good point and used a 10 pound sledge hammer to drive it in. I hit slate less than 3 feet deep. It was soft on top so I kept driving the rod. You could feel the ground vibrate when I hit the rod which meant I had gone as far as it was ever going to go. I used one rod for each tower leg and several more along the trench where the feedlines run as well as the main ground cable to the house ground. Those were between 3 and5 feet deep. The more the merrier when depth is not an option.

    unit_399 likes this.
  5. John L.

    John L. New Member

    Joined:
    Jun 29, 2020
    Messages:
    11
    Likes Received:
    18
    That sounds like a good option to me, thanks for that idea.

  6. 2NC995

    2NC995 DAN

    Joined:
    Feb 23, 2008
    Messages:
    2,219
    Likes Received:
    3,907
    Installing at a limit of 45 degrees is typical when encountering rock.

    But with only 3.5 feet to work with, you still ain’t gonna get it all in the ground.

    Next alternative is a 30” deep trench with the entire rod buried at that depth.

    G GOLLY WAlly likes this.
  7. BJ radionut

    BJ radionut Supporting Member and 6m addict

    Joined:
    May 9, 2008
    Messages:
    2,950
    Likes Received:
    2,770
    [​IMG]

  8. 2NC995

    2NC995 DAN

    Joined:
    Feb 23, 2008
    Messages:
    2,219
    Likes Received:
    3,907

    **THUMBS-UP**

  9. sunbulls

    sunbulls Sr. Member

    Joined:
    Apr 25, 2017
    Messages:
    595
    Likes Received:
    987

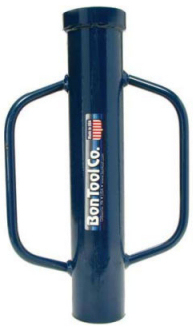

    I’ll never use a sledge hammer for this type of job again. Tired of the glancing blows or missing the head? Buy a post pounder. Best invention since….bla bla
    Post pounder.jpg

    G GOLLY WAlly, S&W357 and Tokin like this.
  10. S&W357

    S&W357 WDX-556 / 2NC556 $upporting Member

    Joined:
    Aug 30, 2018
    Messages:
    1,124
    Likes Received:
    2,580
    I’ve got a post pounder works great but have to finish off with sledge hammer. Much better than hammering Straight Down from an elevated position.

  11. Low_Boy

    Low_Boy Sr. Member

    Joined:
    Jan 21, 2010
    Messages:
    1,348
    Likes Received:
    690
    Just pull it and move it a bit. If you have a basement you are driving the road in to backfill material. There should be nothing huge in there.

  12. darklife

    darklife Modulating Madness

    Joined:
    Apr 8, 2013
    Messages:
    48
    Likes Received:
    29
    Funny this thread would be made and I see it first right after I bought a 6' galvanized steel ground rod and plan to pound it down.

    One method I read about is to push the rod down as far as you can, pull it back up and add water to the hole, repeat, up until the point where you can no longer press down by hand, then do the same with a hammer.

    Supposedly you can work the entire rod in easily that way and I sure hope so because I don't even have a sledge hammer right now, just your average hammer.

    Worst case I end up hitting rock, or can only get it so far down and have to wait on borrowing a sledge hammer later on.

    Blackcat630 and Slowmover like this.
  13. S&W357

    S&W357 WDX-556 / 2NC556 $upporting Member

    Joined:
    Aug 30, 2018
    Messages:
    1,124
    Likes Received:
    2,580
    I’ve read about the water hose method but never tried it. One possible negative mentioned (not by me) is that the soil needed to be firm around the GR. I dunno.

  14. Tallman

    Tallman W9WDX Amateur Radio Member, KW4YJ EXTRA class

    Joined:
    May 1, 2013
    Messages:
    5,039
    Likes Received:
    5,606
    I have a pneumatic hammer that I drive mine into the ground with. I had an electrician watch me do this and he went out and bought an air compressor and the same air hammer as mine.
    I sank the 8' rod full length in less than a minute.

    G GOLLY WAlly likes this.
  15. Rwb

    Rwb Sr. Member

    Joined:
    Jun 30, 2018
    Messages:
    1,970
    Likes Received:
    2,065
    Hummm shhh dont say this too loud but dig around the rod then drop a coffee can full o copper sulphate in hole wetten it up put dirt back over it n shhh dont tell anybody,i didnt tell you that either

    Tokin and Shadetree Mechanic like this.
