I need help to connect this Amp please

[Robalo]

Radio do not tx on AM,CW,FM only TX ON SSB USB/LSB. WHEN THE PTT ON AM ERROR



[BJ radionut]

the amp with 60 watts to see 180-200 dk

I think that this radio internally is pre setup for no more than 60 watts dk.

Ok confused now...How did you get these readings? using CW mode?



[Robalo]

No TX on CW only SSB and I used 1000 hz tone radio does 60 watts DK with 140 pep . In the radio the hf pot is set to protect the amp. It fun do .BJ radionut thank you again



[Robalo]

Bad news



[Robalo]

Back on the game



[BJ radionut]

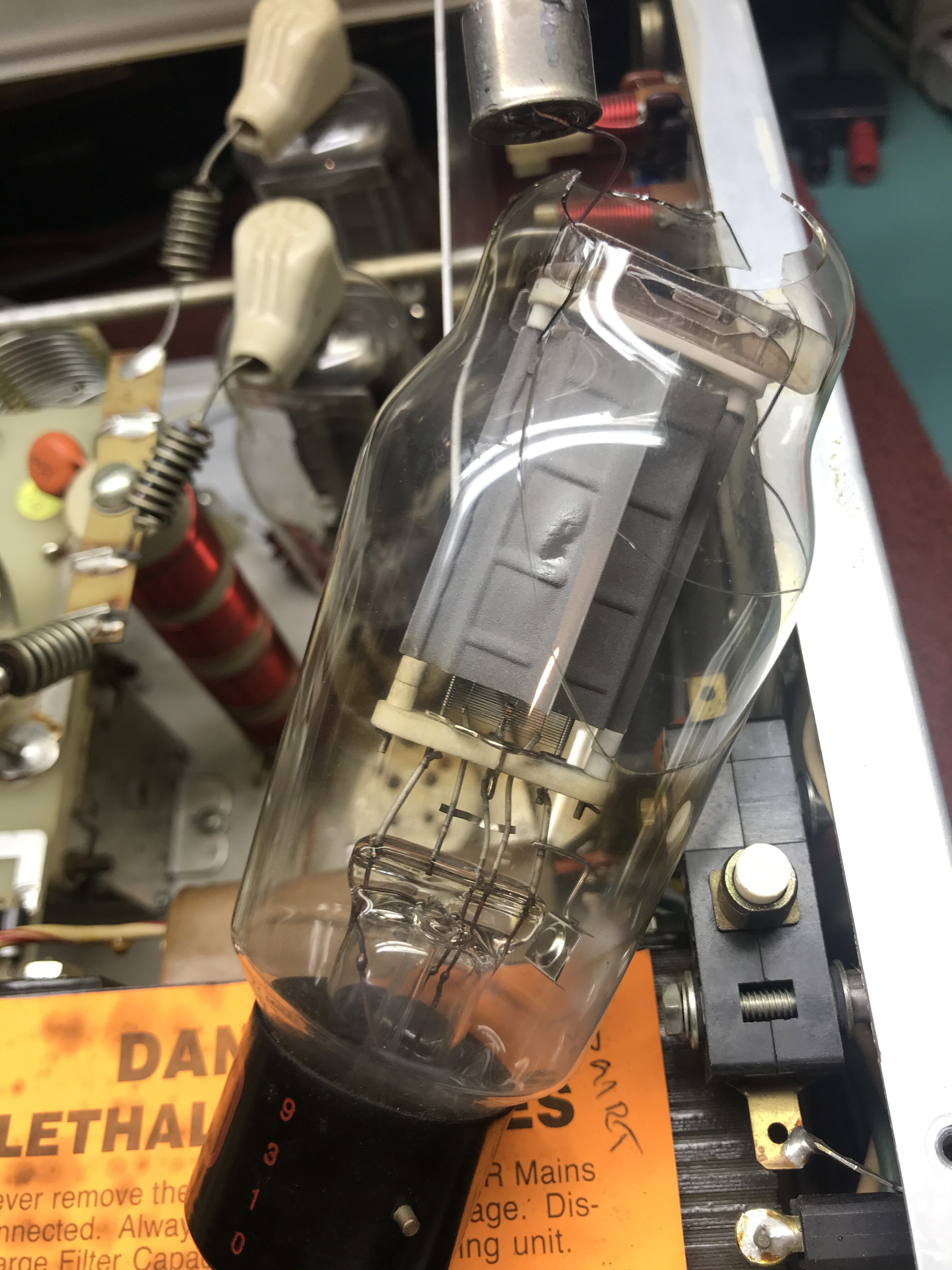

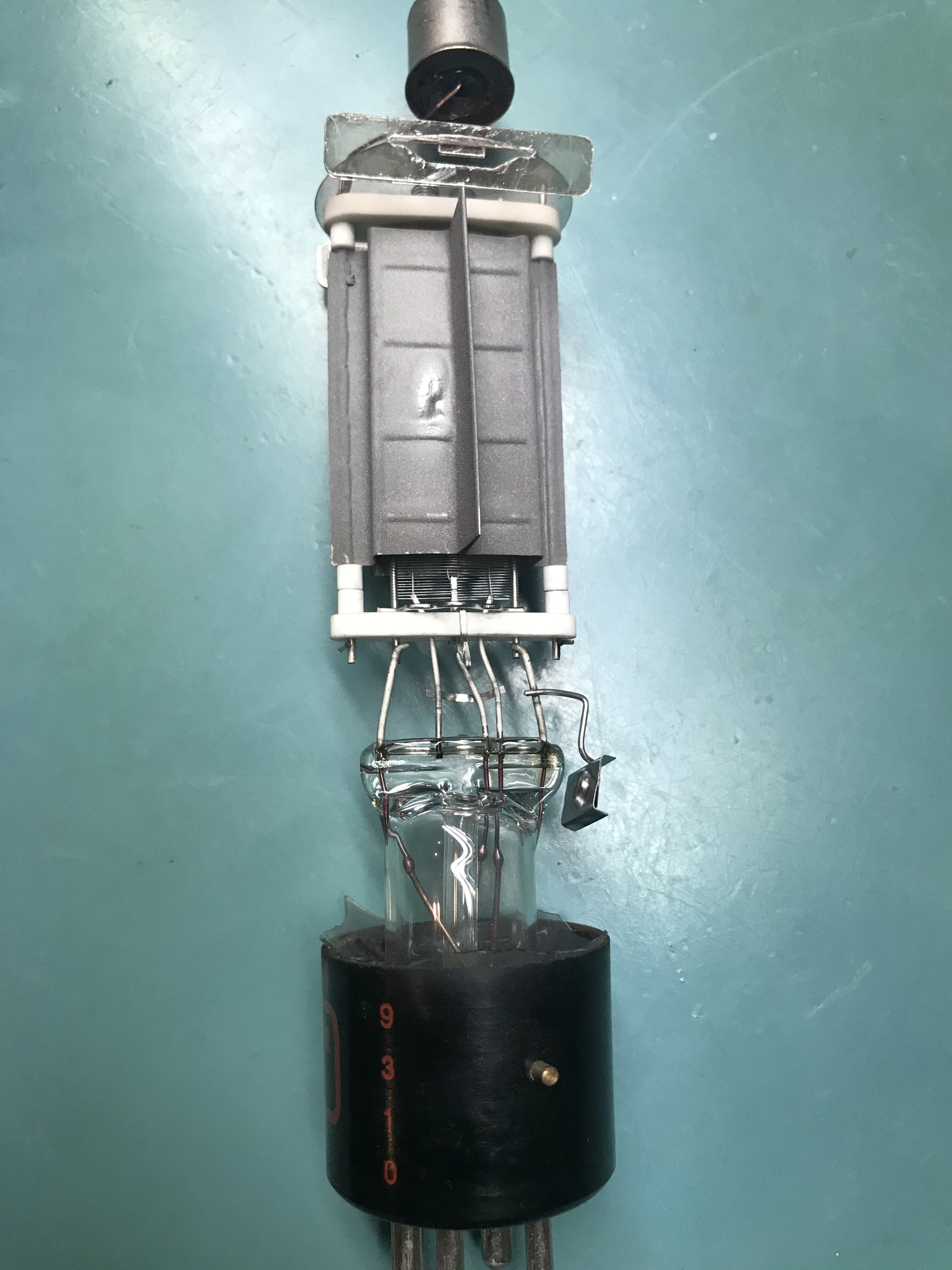

See that "ripple" in the metal on the broken tube? That is from overheating, being driven to hard, or operating in a "mis-tuned" condition. (pick any combination for causes)
The Center tube in the "Lite" picture is showing the same deterioration (bits of lite showing thru on the sides)
Those could not have been New tubes, or they would not show that deterioration in the short time you have been testing it.



[BJ radionut]

CW Mode: You need a "key" or CW paddles in the correct jack and "brk-in" enabled to make it "key" ... When you close the contacts on the straight Key the transmitter should operate. A momentary switch will work also, as long as the switch or "key" is wired per manual.
Just FYI

PS: The 6kc AM filter needs to be installed for AM operation...I did not realize this at the time...
My rig had all the filters installed when I bought it...so doing some reading the AM TX error is the result apparently of not having that filter installed and enabled via the menu.



[Robalo]

Let me test it tonight, if every thing’s ok I’ll buy new match set of tubes from rfparts about 110.00$ Or maybe 572B



[Robalo]

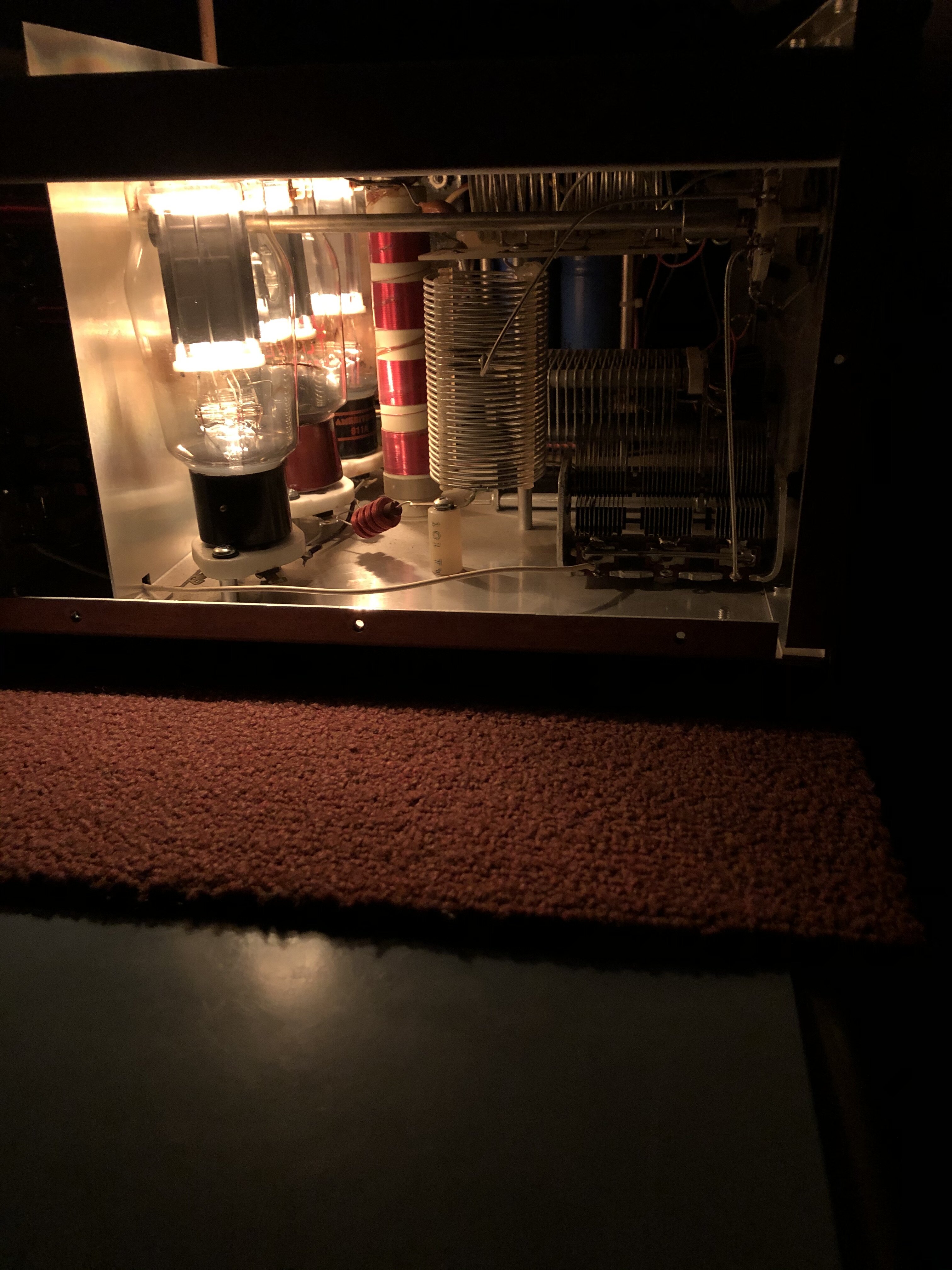

The heater is ready. Again thank you BJ, radionut, and Justme. Everything is working as intended, I’m going to try and get a new matching tube set.

Radio - Amp
20w - 200w
30w - 325w
40w - 375w
50w - 410w
60w - 430w



[Robalo]

My rig had all the filters installed when I bought it...so doing some reading the AM TX error is the result apparently of not having that filter installed and enabled via the menu.

My radio now is working on AM. just go menu U-70 and turn on that it. nice 25 watts just to tune the amp. filter yf-116a



[Robalo]

so far so good , new set of tube from ameritron with 40w dk i get 350-400 on ssb and the radio with the mod is working nice , i got nice combo. thank you for the help again
