Knight C-577 Compressor- anyone ever seen one?

Discussion in 'Ham Equipment' started by Bow, Jun 9, 2019.

  1. Bow

    Bow Bastard Modulation Engineering

    Joined:
    Aug 13, 2008
    Messages:
    221
    Likes Received:
    146

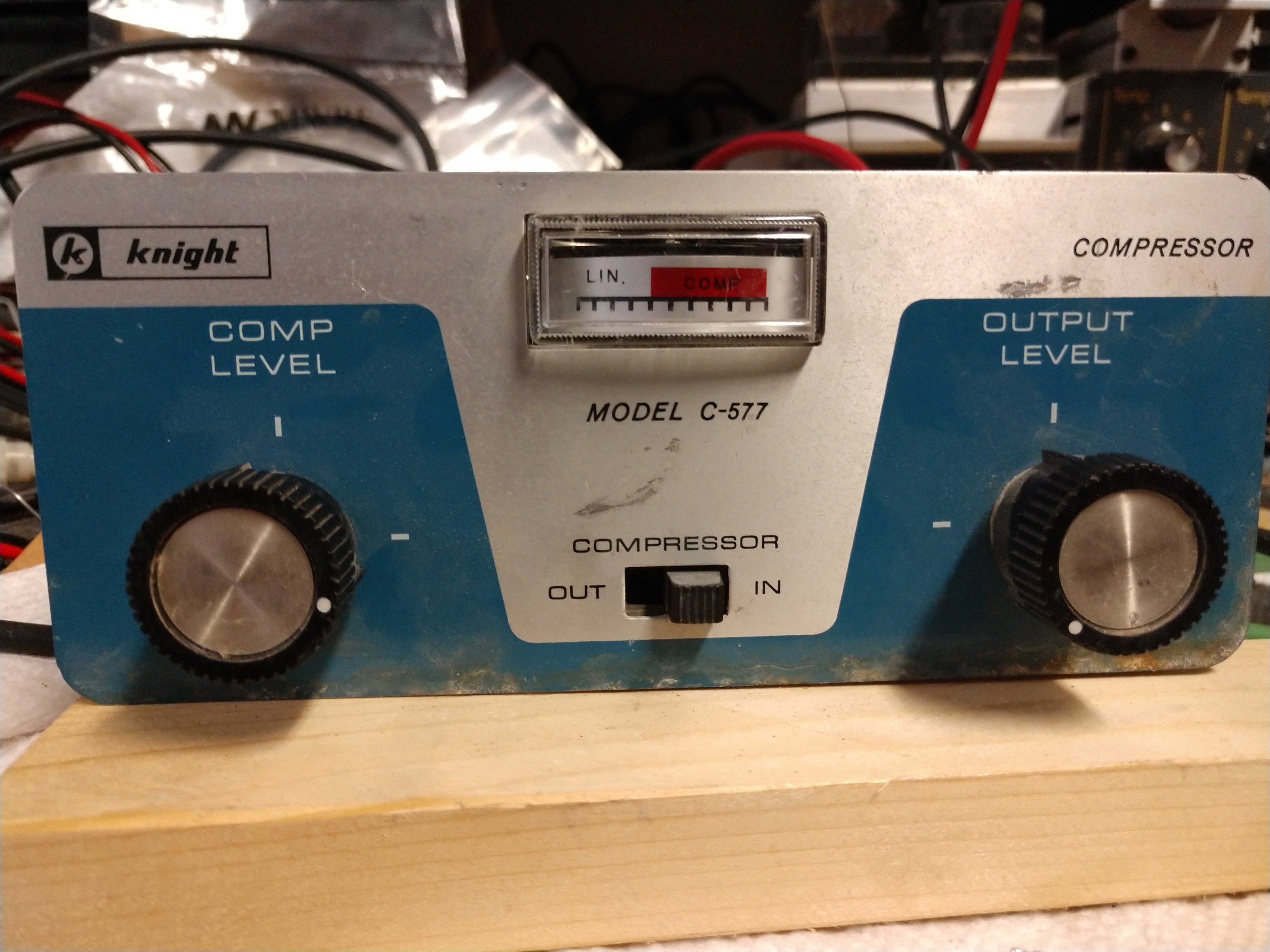

    I picked Knight C-577 Compressor up at a local hamfest a while back... she is an oldie for sure...

    I got some time to throw it on the bench today... signal generator input, monitored the O'scope on the output... it works.... and doesn't take much at all to drive it



    The meter needle has broke off the movement, and it uses 1/4" TRS for input and output.

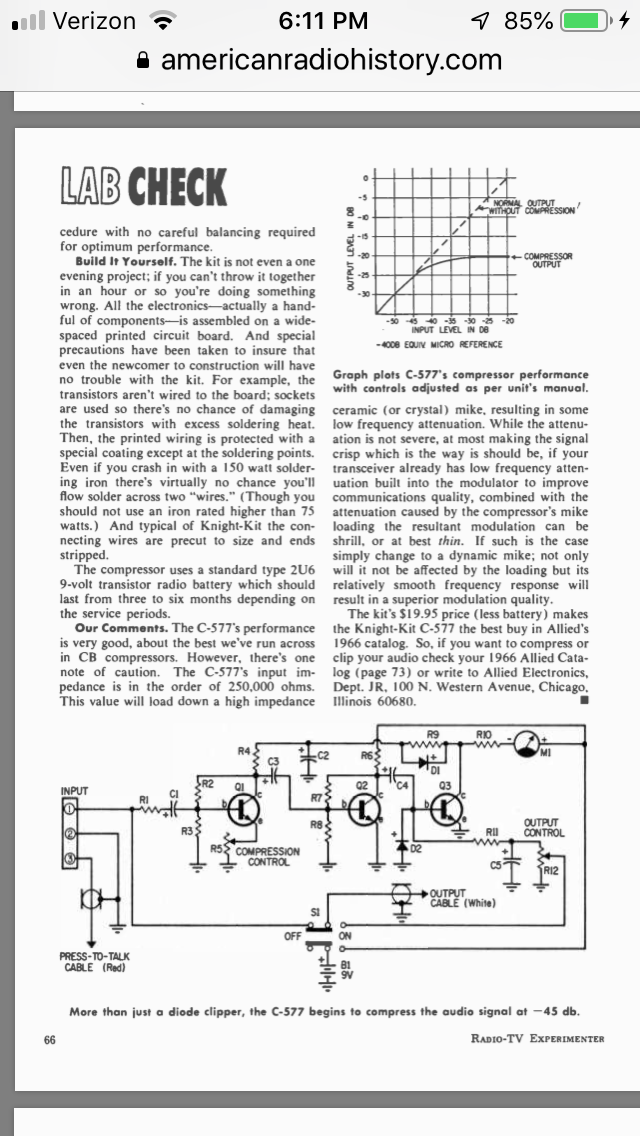

    However, I would like to find a schematic on it...

    Anyone have any leads? My Google-Fu has come up dry


    Attached Files:

    Shadetree Mechanic likes this.

  2. Bow

    Bow Bastard Modulation Engineering

    Joined:
    Aug 13, 2008
    Messages:
    221
    Likes Received:
    146
    Here it is in action...

    1KHz @ 30mv drive
    9vdc power

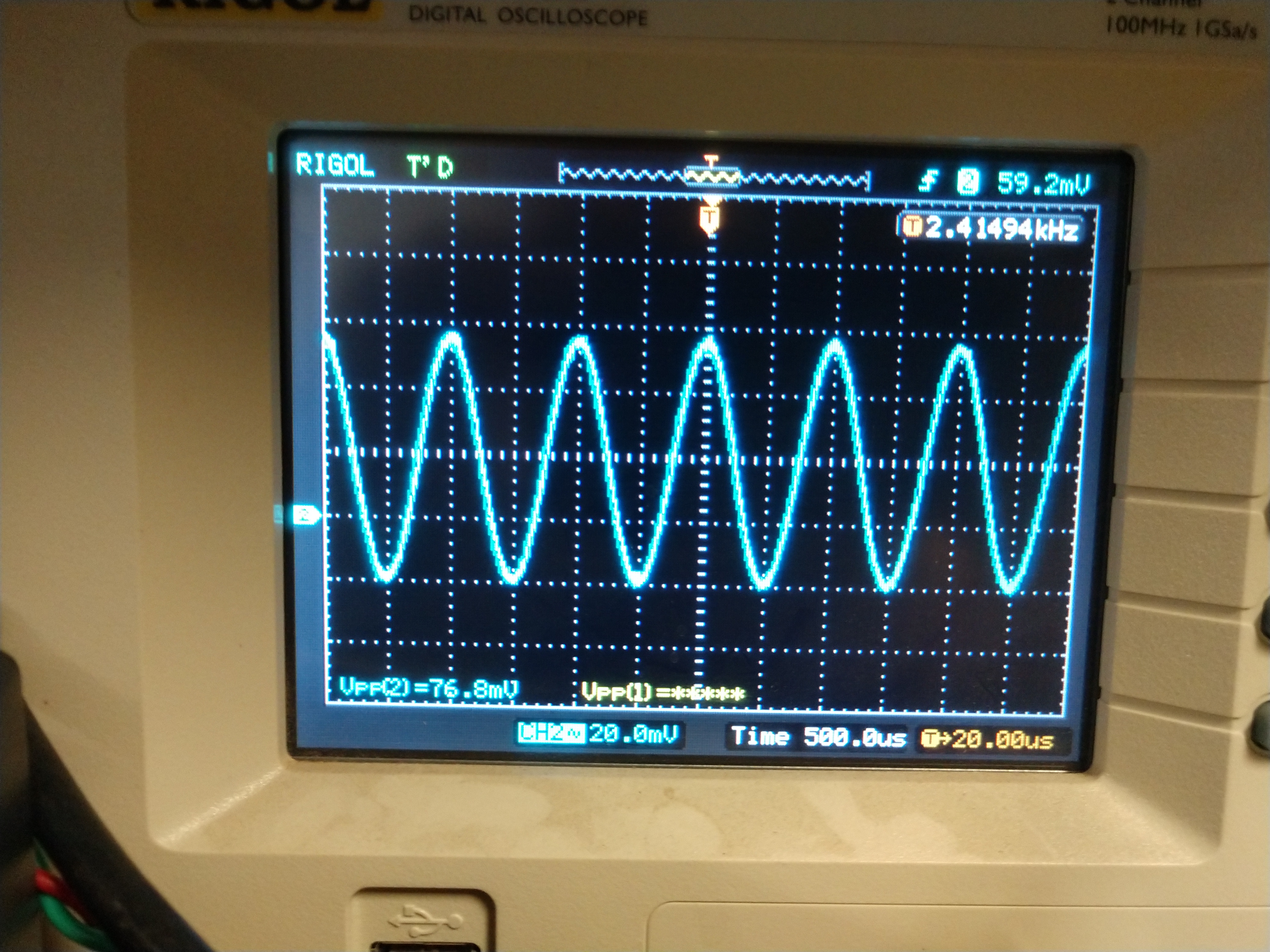

    Bypassed signal

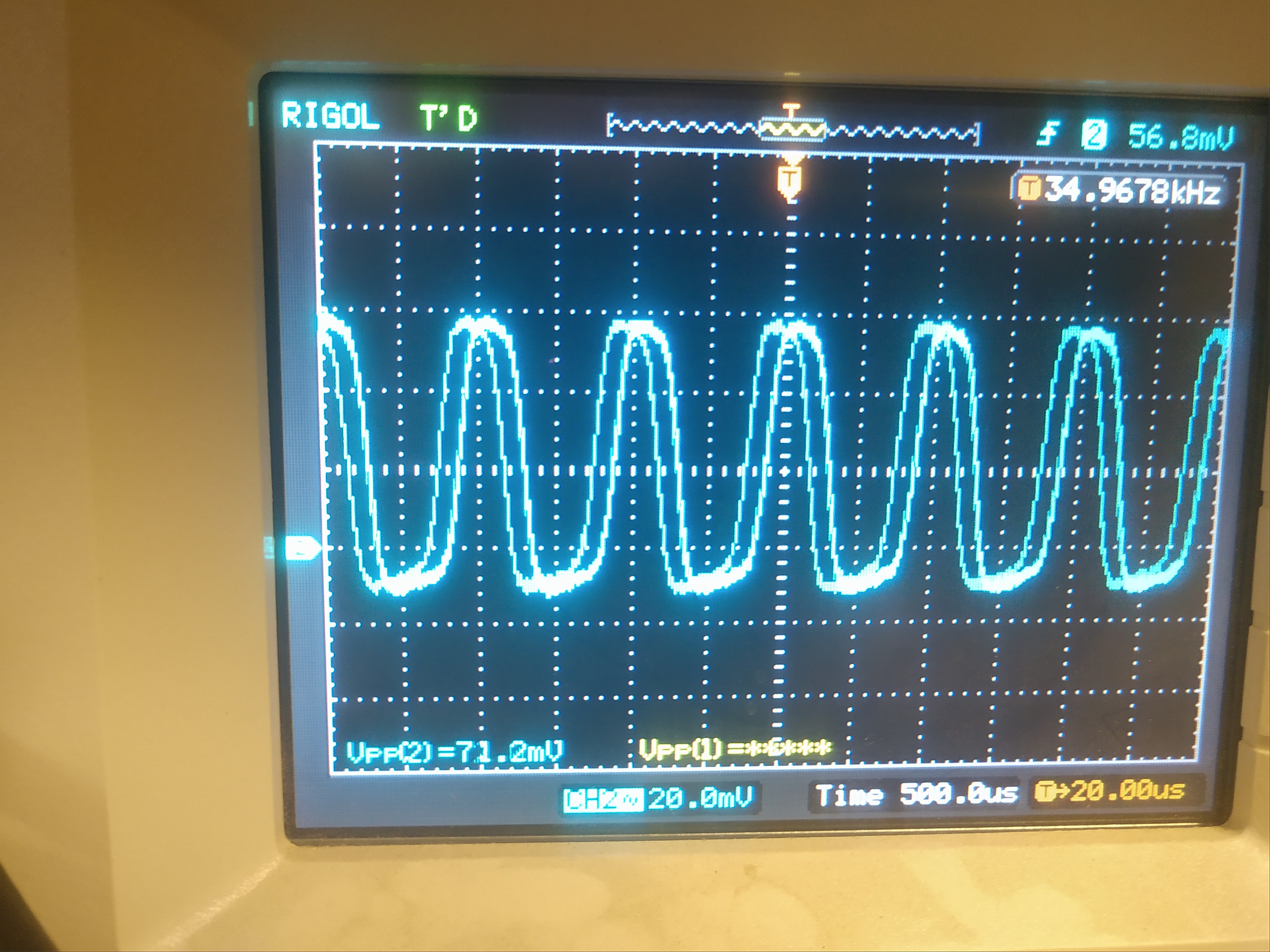

    Lowest Compression setting
    Highest Compression setting

  3. Shadetree Mechanic

    Shadetree Mechanic 808 On The North Side of Dover

    Joined:
    Oct 23, 2017
    Messages:
    1,698
    Likes Received:
    1,532
    Looks like it is overdriven on high?

  4. mrgumby

    mrgumby W9WDX Amateur Radio Club Member

    Joined:
    Aug 26, 2006
    Messages:
    298
    Likes Received:
    78

    Bow and Shadetree Mechanic like this.
  5. Bow

    Bow Bastard Modulation Engineering

    Joined:
    Aug 13, 2008
    Messages:
    221
    Likes Received:
    146

    Not overdriven.. it is a clipping circuit

    Shadetree Mechanic likes this.
  6. Bow

    Bow Bastard Modulation Engineering

    Joined:
    Aug 13, 2008
    Messages:
    221
    Likes Received:
    146
    Thank you sir! Where did you find that?

  7. mrgumby

    mrgumby W9WDX Amateur Radio Club Member

    Joined:
    Aug 26, 2006
    Messages:
    298
    Likes Received:
    78
    Bow likes this.
  8. mrgumby

    mrgumby W9WDX Amateur Radio Club Member

    Joined:
    Aug 26, 2006
    Messages:
    298
    Likes Received:
    78

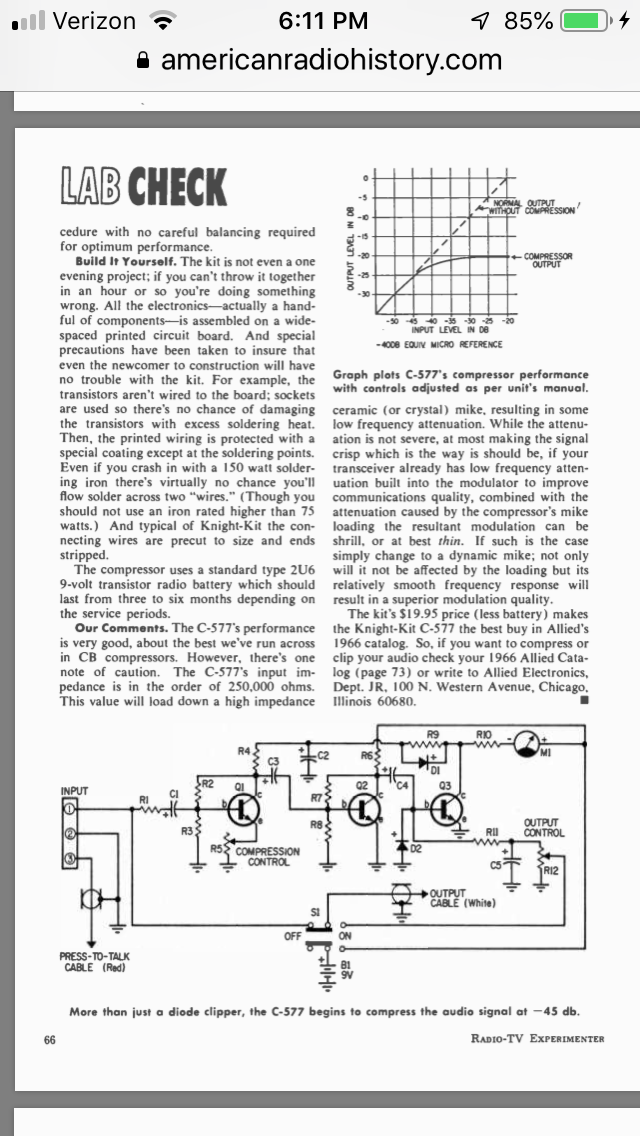

    Page 61

    Bow likes this.
  9. nomadradio

    nomadradio Analog Retentive

    Joined:
    Apr 3, 2005
    Messages:
    2,795
    Likes Received:
    2,572
    I'd venture to say that the sideways S-meter from a derelict mobile CB is probably a decent match for the broken meter.

    Replacing all the electrolytic caps in there would probably clean up the waveform at a high drive level.

    73

  10. Bow

    Bow Bastard Modulation Engineering

    Joined:
    Aug 13, 2008
    Messages:
    221
    Likes Received:
    146

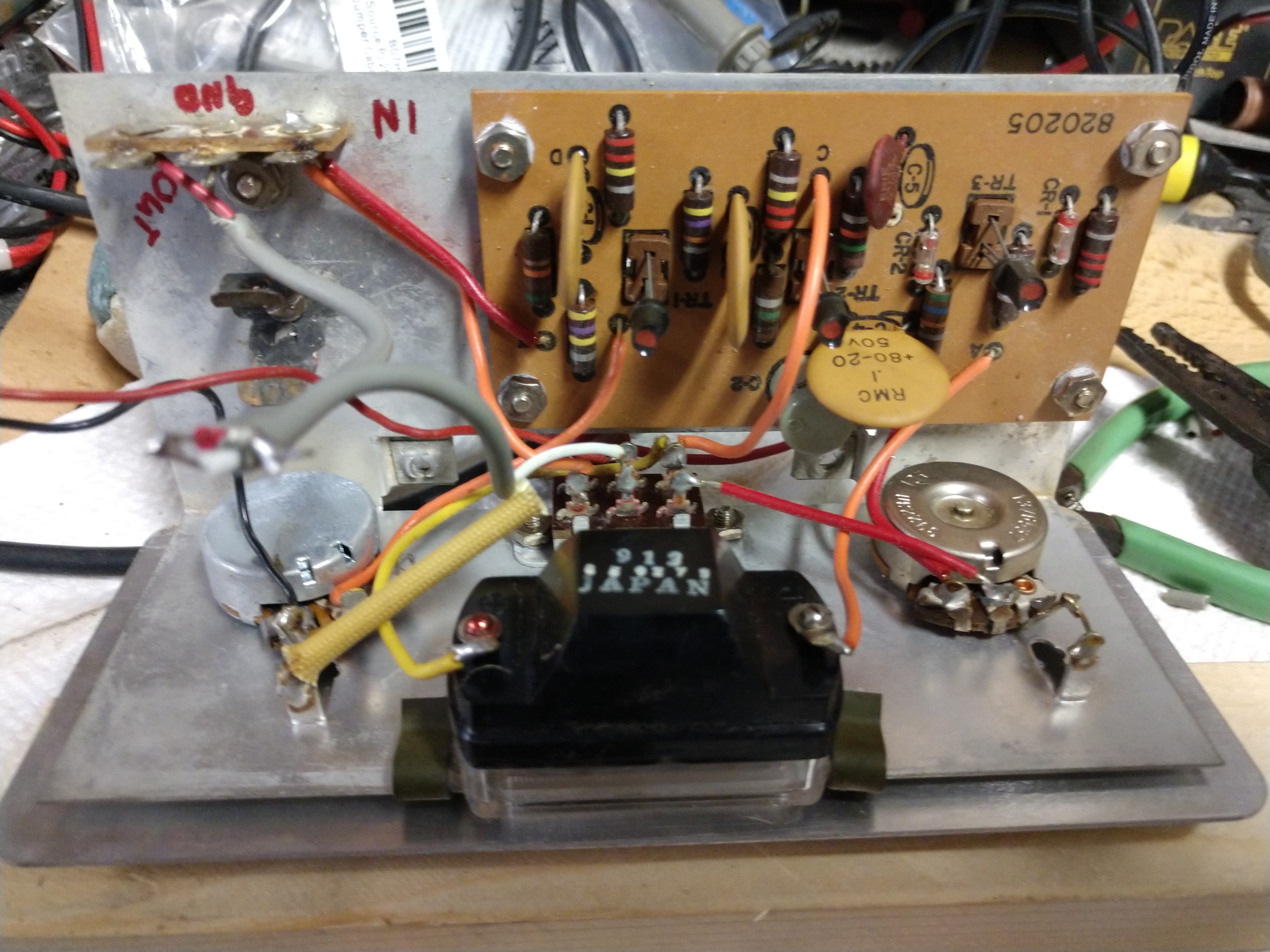

    Swapped the only electrolytic (C2 in the schematic) it was a 50uf/10V, I had a 68uf/10V close enough

    Looks like the gain dropped a tad, looks like it cleaned up the signal a bit.

    Shadetree Mechanic likes this.
  11. nomadradio

    nomadradio Analog Retentive

    Joined:
    Apr 3, 2005
    Messages:
    2,795
    Likes Received:
    2,572
    I'd replace all five, but if you saw a difference changing just one, that's a hint.

    73

    Bow likes this.
  12. Bow

    Bow Bastard Modulation Engineering

    Joined:
    Aug 13, 2008
    Messages:
    221
    Likes Received:
    146
    Yup, I agree, they are all pretty common...
    the others are
    3 are 0.1uf
    1 is 0.0033uf

  13. nomadradio

    nomadradio Analog Retentive

    Joined:
    Apr 3, 2005
    Messages:
    2,795
    Likes Received:
    2,572
    Hmm. Counted five caps with that "+" symbol alongside them in the schemo. But no capacitance values visible.

    If they are aluminum electrolytics, age is your enemy.

    73

    NZ8N likes this.
