Learning radio repair

Discussion in 'Forum Help & Info' started by Christopher17, Apr 15, 2019.

  1. Christopher17

    Christopher17 LongStride

    Joined:
    Apr 13, 2019
    Messages:
    166
    Likes Received:
    311
    Looking for recommendations for books , online courses, YouTube videos etc, learning radio repair, I have a basic understanding of electronics, 3 semesters at TSTC, I have basic tools, meters, soldiering, de-soldering equipment, I working on my ham licence, I have an old non working cobra 29 to practice on as well as my TRC-431 base station to play with, so far I've been successful in my antenna building, I'm semi-retired and my budget is basically non-existant, as time permits will funnel $$ into my new hobby.



    #1 Christopher17, Apr 15, 2019
    Last edited: Apr 15, 2019
    Shadetree Mechanic likes this.

  2. 999

    999 Well-Known Member

    Joined:
    Apr 3, 2011
    Messages:
    466
    Likes Received:
    388
    Look up TRX bench on YouTube. He's really good and I think I've only seen him fail at a repair once, and I think that was due to parts availability.
    Be warned though, He's in Germany and English is he second language. It's not that he doesn't speak it well, more that he searches for words at times. Couple that with the fact that he's going slow enough for a kindergardener to be able to follow along, and he can be hard to watch. (my opinion)
    I still watch his videos because he conveys some really good information in every video. Just be patient and watch along.

  3. Christopher17

    Christopher17 LongStride

    Joined:
    Apr 13, 2019
    Messages:
    166
    Likes Received:
    311
    did a search for service manuals hoping I could find something with test points for the non working cobra 21XLR I'm working on, no luck, schematics on CB tricks but not much else to help at this point, I don't know enough to interpret values from the schematics, I've got power , meter lights up, but no display , no sound and no key up

  4. Shadetree Mechanic

    Shadetree Mechanic 808 On The North Side of Dover

    Joined:
    Oct 23, 2017
    Messages:
    4,419
    Likes Received:
    6,820
    Does the PA function work? My first guess is that the PLL is out of lock. A picture of both sides of the board would help too.

  5. Christopher17

    Christopher17 LongStride

    Joined:
    Apr 13, 2019
    Messages:
    166
    Likes Received:
    311
    Will try and get a pic up, tried all functions, display never lit up, however did not connect speaker to PA

  6. nomadradio

    nomadradio Analog Retentive

    Joined:
    Apr 3, 2005
    Messages:
    4,769
    Likes Received:
    6,399
    For me, the starting point to do anything much with a radio is the schematic diagram.

    The TRC-431 owner's manual has a schemo at the end. It's posted here [URL]http://www.cbtricks.com/radios/realistic/trc_431/index.htm[/url]

    The description 'Cobra 29' only narrows you down to a dozen and a half (if not more) different radios built since 1974, by a dozen or more subcontractors. The letters that come after the digits "29" will indicate which one of all those different models you have.

    Best starting-level technical book about CB radio technology is Lou Franklin's "Screwdriver Expert's Guide". He also sells another longer book that goes into more depth about radio design. The title is "Understanding and Repairing CB Radios".

    Lou's web site is www.cbcintl.com

    I did hear that Lou had been under the weather lately. Hopefully he's back on his feet.

    73

  7. Christopher17

    Christopher17 LongStride

    Joined:
    Apr 13, 2019
    Messages:
    166
    Likes Received:
    311
    The experts screwdriver guide is what I was hoping for, should get me started in the right direction, thank you nomadradio , the non working cobra is a 21XLR, not a 29 like I was thinking, did some basic continuity checks, found a service manual with values for the transistors, here is the pic of the board, sorry my camera is crappy

    #7 Christopher17, Apr 16, 2019
    Last edited: Apr 16, 2019
  8. Christopher17

    Christopher17 LongStride

    Joined:
    Apr 13, 2019
    Messages:
    166
    Likes Received:
    311

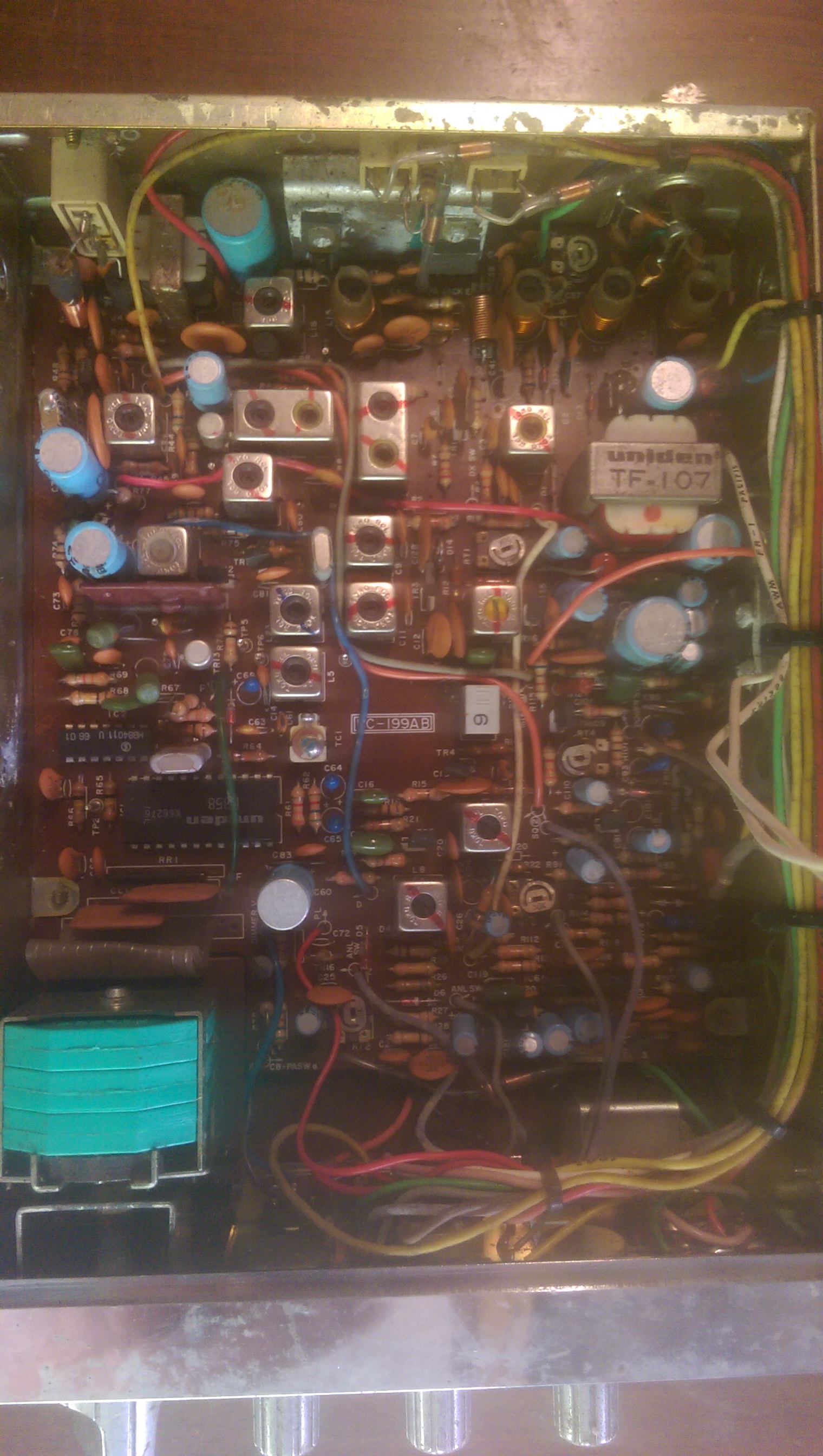

    Board


    Attached Files:

  9. Christopher17

    Christopher17 LongStride

    Joined:
    Apr 13, 2019
    Messages:
    166
    Likes Received:
    311

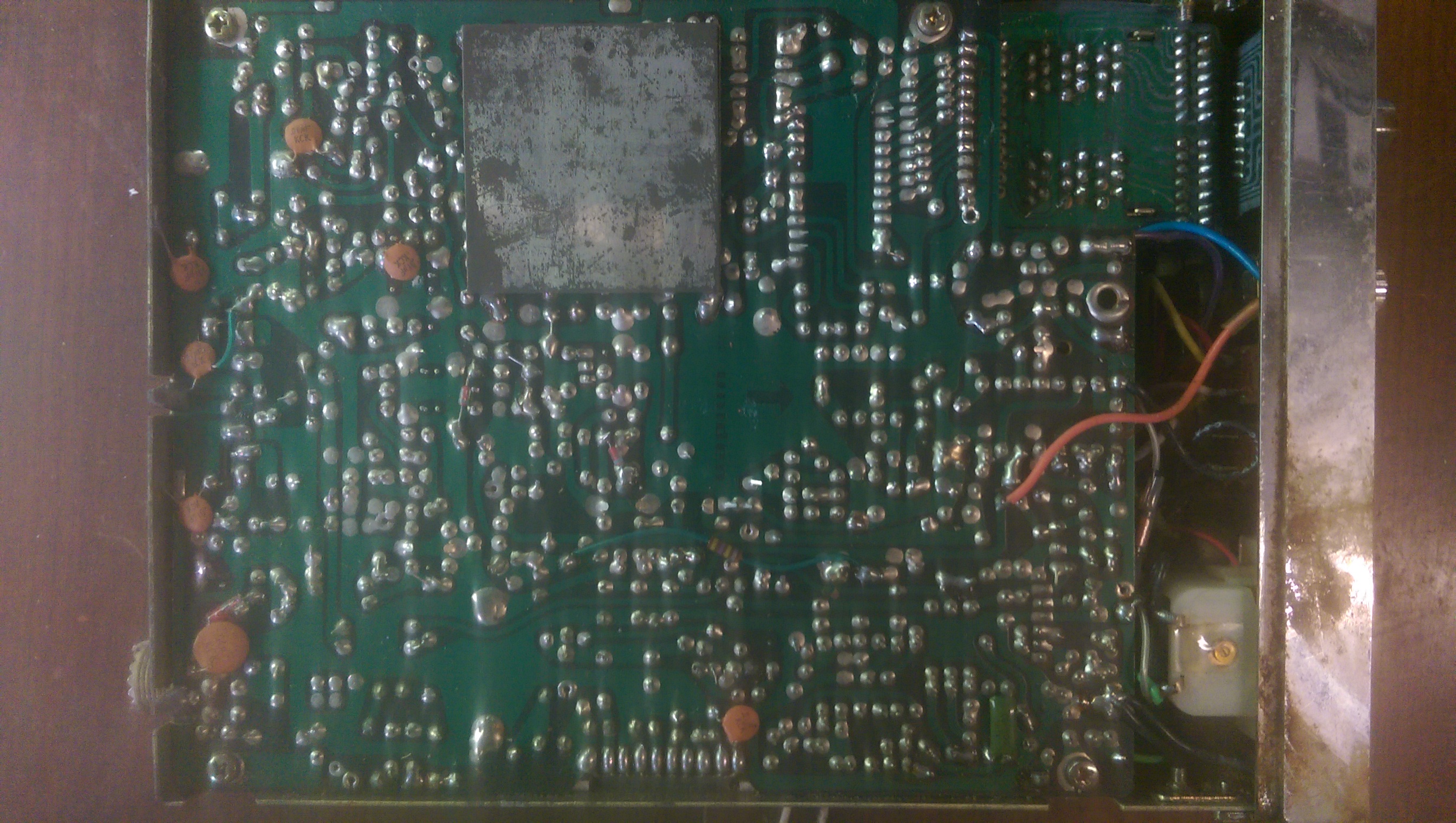

    Bottom


    Attached Files:

  10. Tallman

    Tallman W9WDX Amateur Radio Member, KW4YJ EXTRA class

    Joined:
    May 1, 2013
    Messages:
    5,123
    Likes Received:
    5,929
    Sounds like the radio may have been hooked in reverse to the power supply.

  11. BJ radionut

    BJ radionut Supporting Member and 6m addict

    Joined:
    May 9, 2008
    Messages:
    3,692
    Likes Received:
    4,008



    Don't know ANYTHING about the VID maker...but may give you some ideas at least where to start

    Christopher17 likes this.
  12. Christopher17

    Christopher17 LongStride

    Joined:
    Apr 13, 2019
    Messages:
    166
    Likes Received:
    311
    Did some more continuity test, there is a PC ribbon board that connects to the display that is iffy

  13. nomadradio

    nomadradio Analog Retentive

    Joined:
    Apr 3, 2005
    Messages:
    4,769
    Likes Received:
    6,399
    That "XLR" line of radios were Cobra's 1978 models. Not the very-first 40-channel Cobra, but still over 40 years old.

    The shaky flat cable tends to be a "mileage" issue. Even if the mileage is low, it is likely to have age issues as well.

    If it's just dead, the troubleshooting starts with identifying which individual circuits are alive, in particular the handful of internal power-supply voltages feeding transmit, receive and frequency-synthesizer sections.

    This is one part of the picture that the Howard Sams' books present clearly.

    73
