Need help Identifying choke

Discussion in 'Amplifiers' started by Justwantdahifiaudio, Jan 13, 2021.

  1. Justwantdahifiaudio

    Joined:
    Mar 25, 2019
    Messages:
    71
    Likes Received:
    12

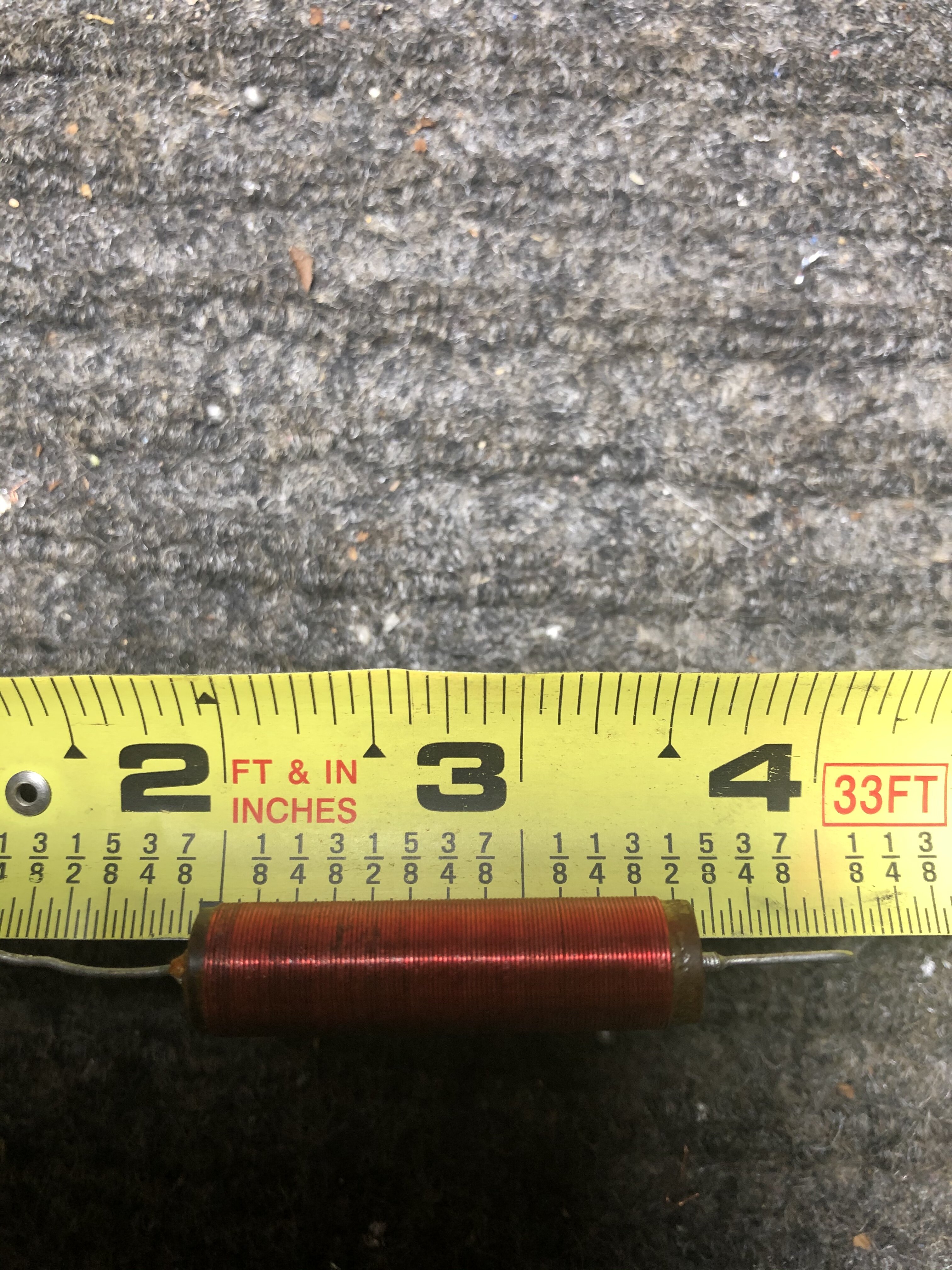

    Can some please tell me what size this choke is? It looks familiar I’ve seen the same size in other sweep tube amps.




    Attached Files:


  2. Crusher

    Crusher Well-Known Member

    Joined:
    May 12, 2007
    Messages:
    802
    Likes Received:
    310
    Sorry, I do not know. Do you have a LC meter to measure?

  3. Justwantdahifiaudio

    Joined:
    Mar 25, 2019
    Messages:
    71
    Likes Received:
    12

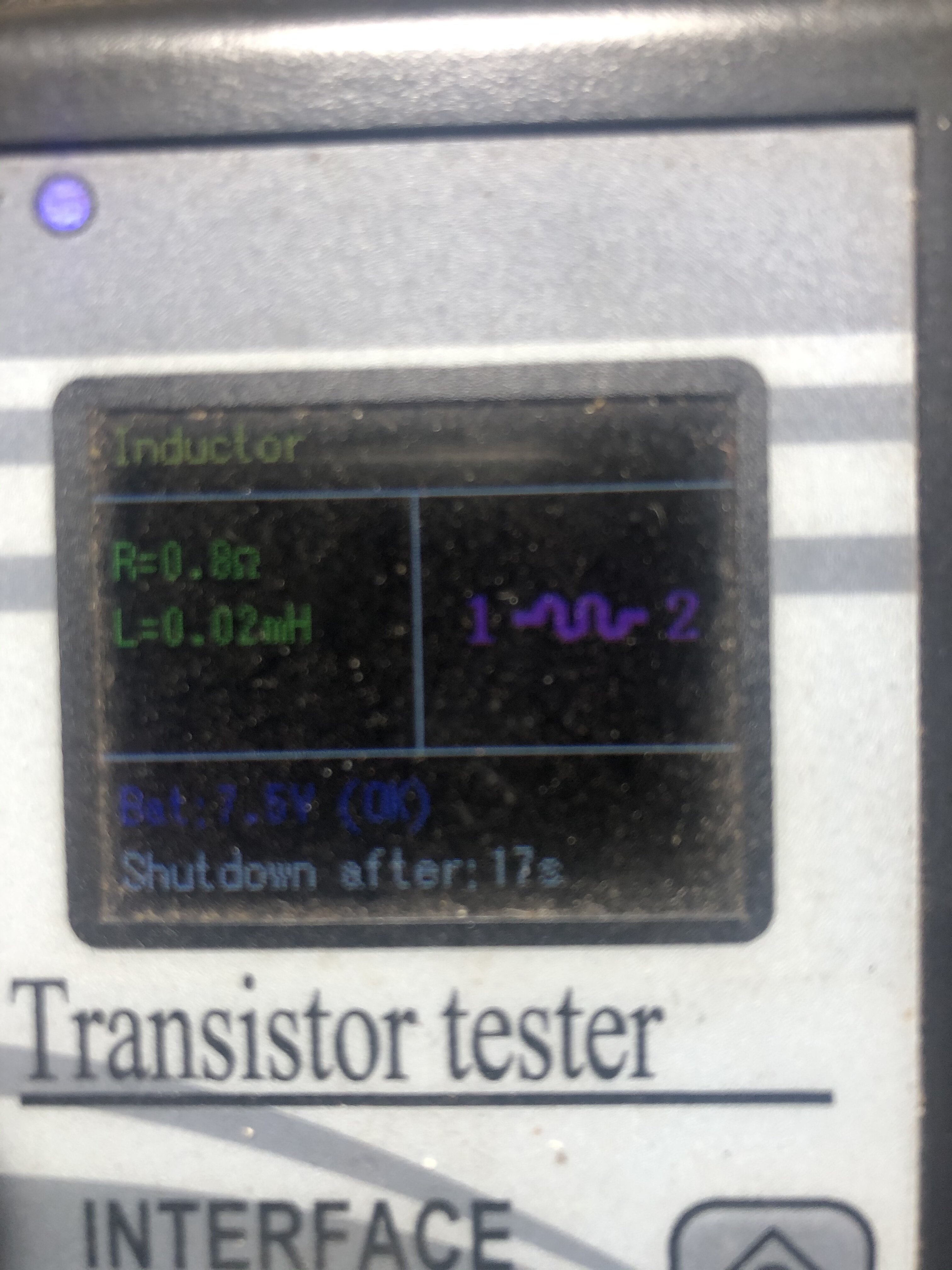

    I have this to work off..


    Attached Files:

  4. DoctorAudio

    DoctorAudio Active Member

    Joined:
    Sep 11, 2009
    Messages:
    65
    Likes Received:
    83
    20 Microhenry, probably 500ma to 1000ma

  5. nomadradio

    nomadradio Analog Retentive

    Joined:
    Apr 3, 2005
    Messages:
    4,012
    Likes Received:
    4,912
    I believe Dr Audio is right. Maco used a bunch of this choke.

    73

    Justwantdahifiaudio likes this.
  6. 144inBama

    144inBama Electricity doesn't kill you, ignorance does.

    Joined:
    Apr 22, 2020
    Messages:
    288
    Likes Received:
    397
    The one in a DX500V is a 10uH I'd have to pull it out to make sure, but looks identical.

    tecnicoloco and Crusher like this.
  7. Crusher

    Crusher Well-Known Member

    Joined:
    May 12, 2007
    Messages:
    802
    Likes Received:
    310
    Yes, Texas star uses a 10uH choke. I have a few spares. Have seen those go up in smoke.

    tecnicoloco likes this.
  8. Justwantdahifiaudio

    Joined:
    Mar 25, 2019
    Messages:
    71
    Likes Received:
    12
    This is a much larger choke then you would find in a Texas star... probably double the size

  9. DoctorAudio

    DoctorAudio Active Member

    Joined:
    Sep 11, 2009
    Messages:
    65
    Likes Received:
    83

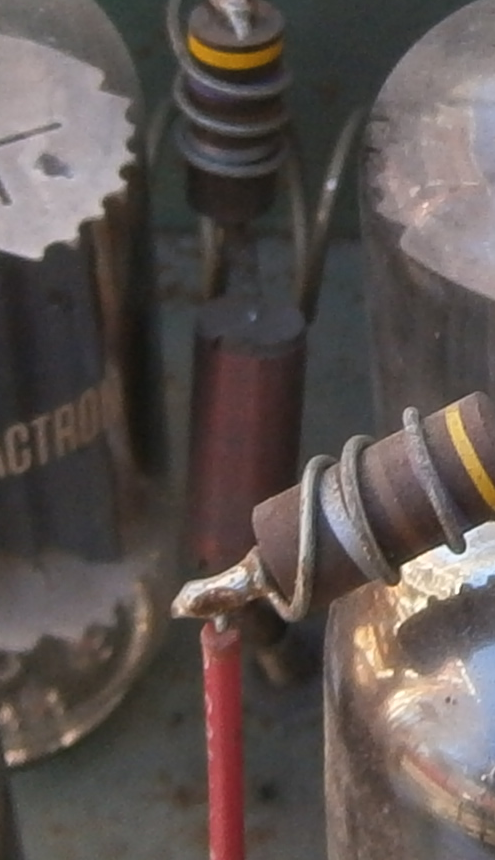

    Maco choke:


    Attached Files:

    Justwantdahifiaudio likes this.
  10. Justwantdahifiaudio

    Joined:
    Mar 25, 2019
    Messages:
    71
    Likes Received:
    12
    Doctor audio that’s the one ☝️....

  11. Justwantdahifiaudio

    Joined:
    Mar 25, 2019
    Messages:
    71
    Likes Received:
    12
    Next question would z-14 chokes work? I’ve seen them in macos and phantoms I’m sure theres others but personal seen those.. pretty sure 44uh

  12. Justwantdahifiaudio

    Joined:
    Mar 25, 2019
    Messages:
    71
    Likes Received:
    12

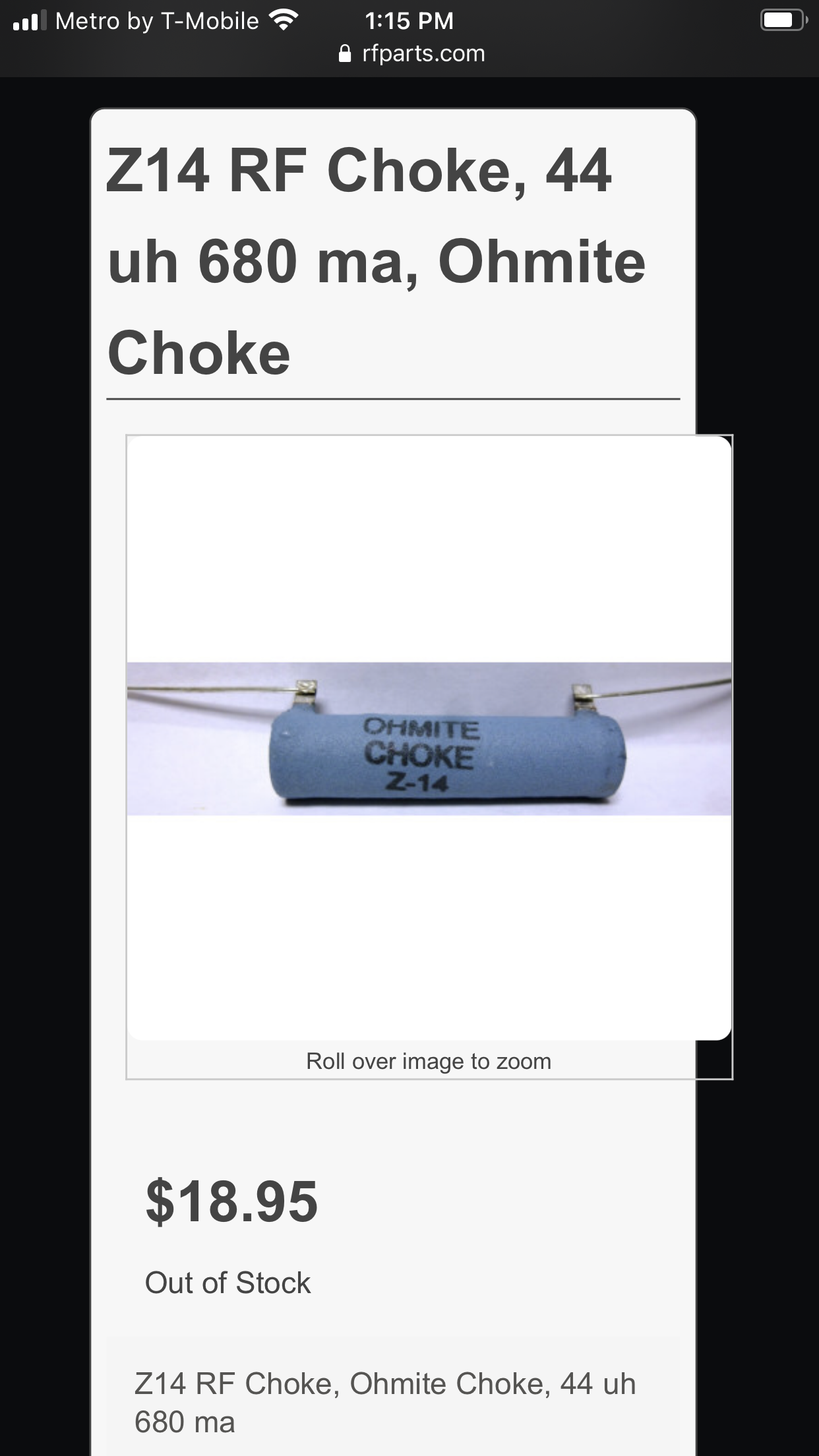

    Looks like they are getting hard to find


    Attached Files:

  13. DoctorAudio

    DoctorAudio Active Member

    Joined:
    Sep 11, 2009
    Messages:
    65
    Likes Received:
    83
    A Z14 would work but a Z28 would be closer to the original value at 21 Microhenry. RFParts has them in stock!

    Crusher and Justwantdahifiaudio like this.
  14. Crusher

    Crusher Well-Known Member

    Joined:
    May 12, 2007
    Messages:
    802
    Likes Received:
    310
    You can find the Z-14 on eBay a little cheaper sometimes. Mouser carries but they want almost $30 for 1.

    DoctorAudio likes this.
  15. Justwantdahifiaudio

    Joined:
    Mar 25, 2019
    Messages:
    71
    Likes Received:
    12

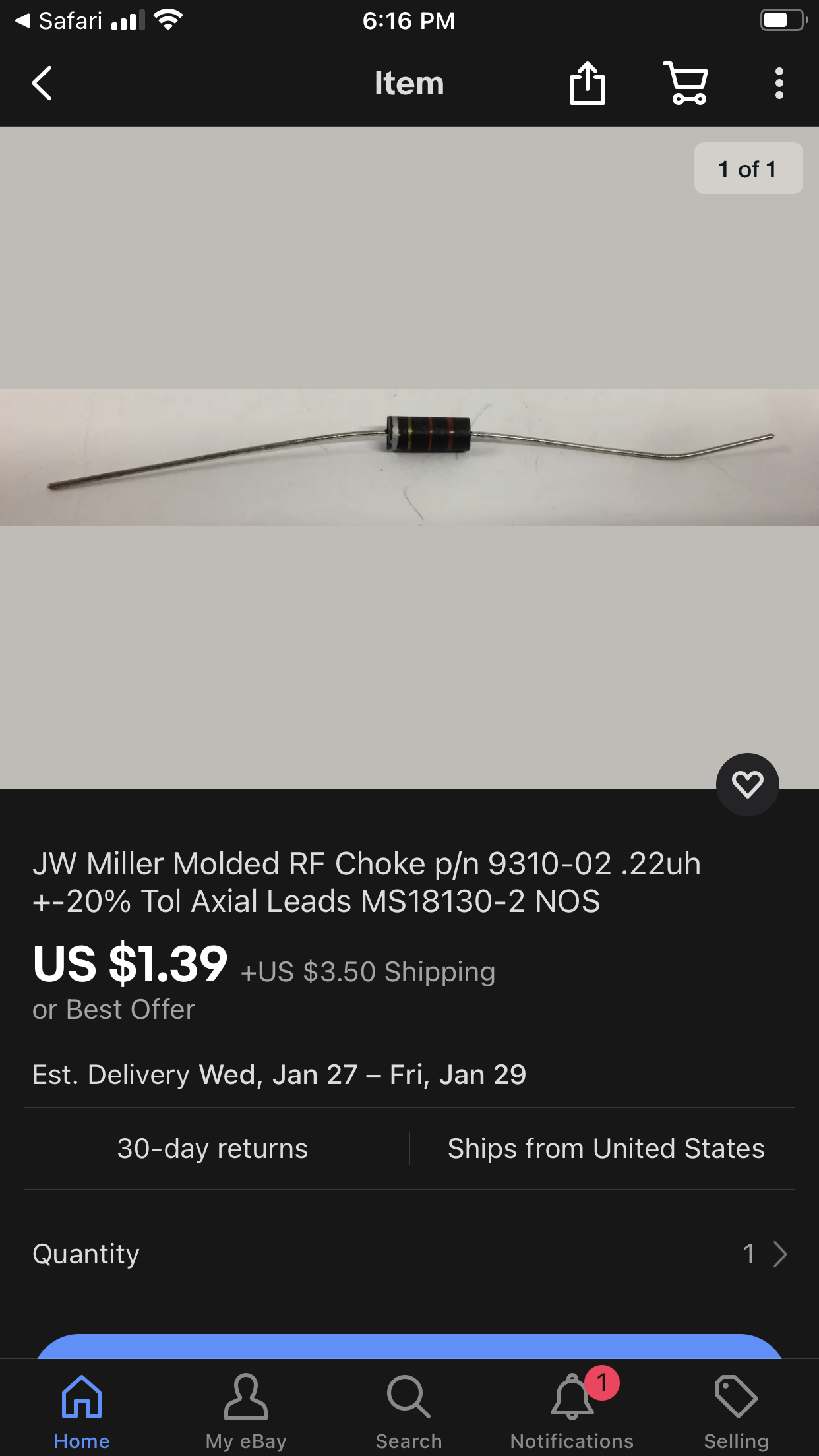

    Would something like these work? I used them on a sb220 once but it was on the grid side..


    Attached Files:
