Discussion in 'Home Brew' started by kopcicle, Jun 18, 2019.

  1. kopcicle

    kopcicle Sr. Member

    Joined:
    Feb 17, 2016
    Messages:
    1,973
    Likes Received:
    3,052

  2. kopcicle

    kopcicle Sr. Member

    Joined:
    Feb 17, 2016
    Messages:
    1,973
    Likes Received:
    3,052

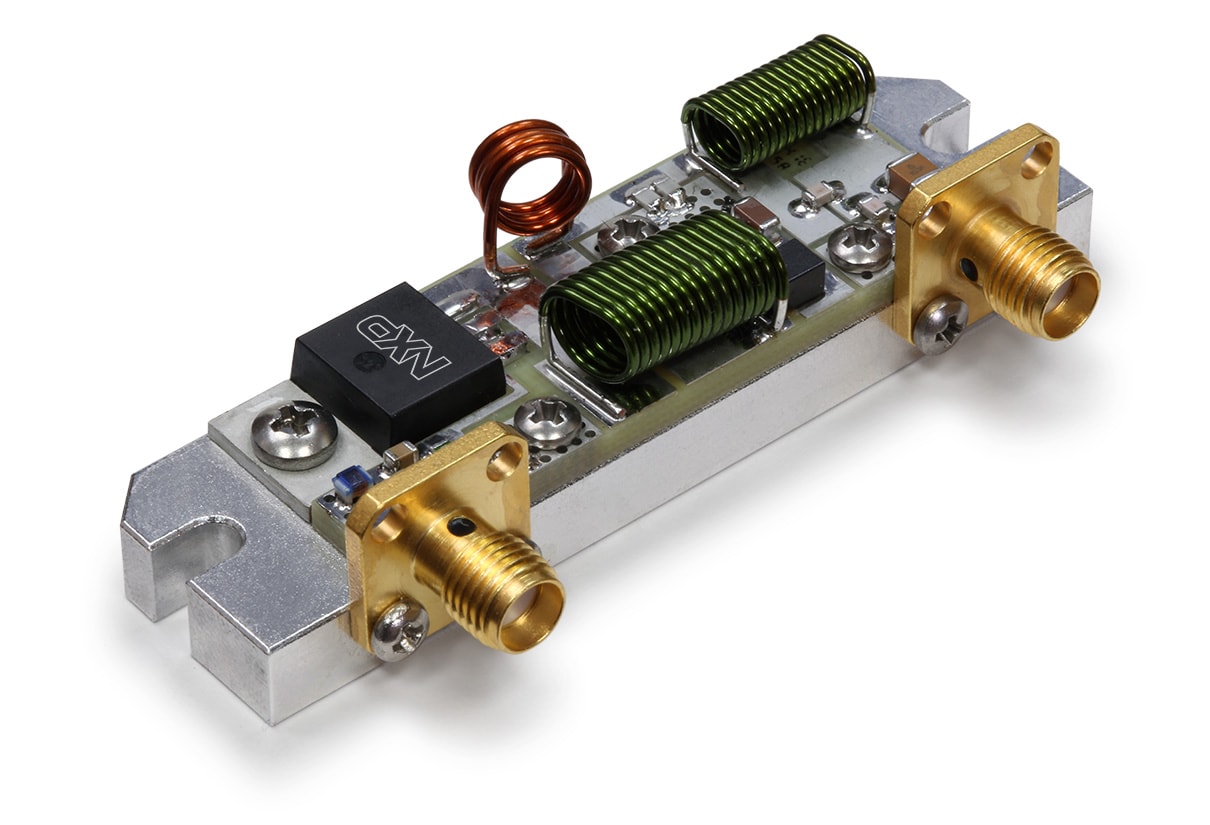

    27 MHz


    Attached Files:

    Rwb and LeapFrog like this.
  3. kopcicle

    kopcicle Sr. Member

    Joined:
    Feb 17, 2016
    Messages:
    1,973
    Likes Received:
    3,052
    https://www.digikey.com/short/phhnnv

    This list comes with an anecdote. Edgar the loud (cat) key-walked an order for 250,000 or so , wiped out the list twice while I was AFK , and placed gibberish in the comment box. Digi fortunately called the next day asking "wtf?" ...
    If you've ever made up one of these lists from a BOM you know the time invested. In any case you're welcome. I'm regularly calling Edgar "Stir fry" . He seems to get my frustration and avoids me and the keyboard.

    https://www.coilcraft.com/pa/order.cfm?ID=17541078
    https://www.coilcraft.com/reqsamp.cfm

    Tokin, Rwb, NZ8N and 1 other person like this.
  4. nomadradio

    nomadradio Analog Retentive

    Joined:
    Apr 3, 2005
    Messages:
    4,700
    Likes Received:
    6,216
    Umm, I hope you kept a record of that.

    I seem to have "done an Edgar" with that list.

    It showed "not a valid stock number" in one column for every part on the list when I looked at it.

    Seemed odd.

    Clicked a button that says "clear all errors".

    Should have been labeled "cause all errors".

    List came back with only one item after that.

    Looked for an "undo" button.

    No such luck.

    Scheisse!

    73

    Rwb and NZ8N like this.
  5. kopcicle

    kopcicle Sr. Member

    Joined:
    Feb 17, 2016
    Messages:
    1,973
    Likes Received:
    3,052
    Rwb likes this.
  6. kopcicle

    kopcicle Sr. Member

    Joined:
    Feb 17, 2016
    Messages:
    1,973
    Likes Received:
    3,052
    It's read only on your end , no damage done

    Rwb likes this.
  7. nomadradio

    nomadradio Analog Retentive

    Joined:
    Apr 3, 2005
    Messages:
    4,700
    Likes Received:
    6,216
    Way cool! That's a relief.

    Thanks for putting it up.

    73

    Rwb likes this.
  8. kopcicle

    kopcicle Sr. Member

    Joined:
    Feb 17, 2016
    Messages:
    1,973
    Likes Received:
    3,052
    Edgar however has not yet come out of hiding

    Rwb likes this.
  9. kopcicle

    kopcicle Sr. Member

    Joined:
    Feb 17, 2016
    Messages:
    1,973
    Likes Received:
    3,052
    items in Order: 13

    Subtotal: $26.96

    Shipping: $8.99

    Tariff: $0.89

    Sales Tax $3.72

    Total: $40.56

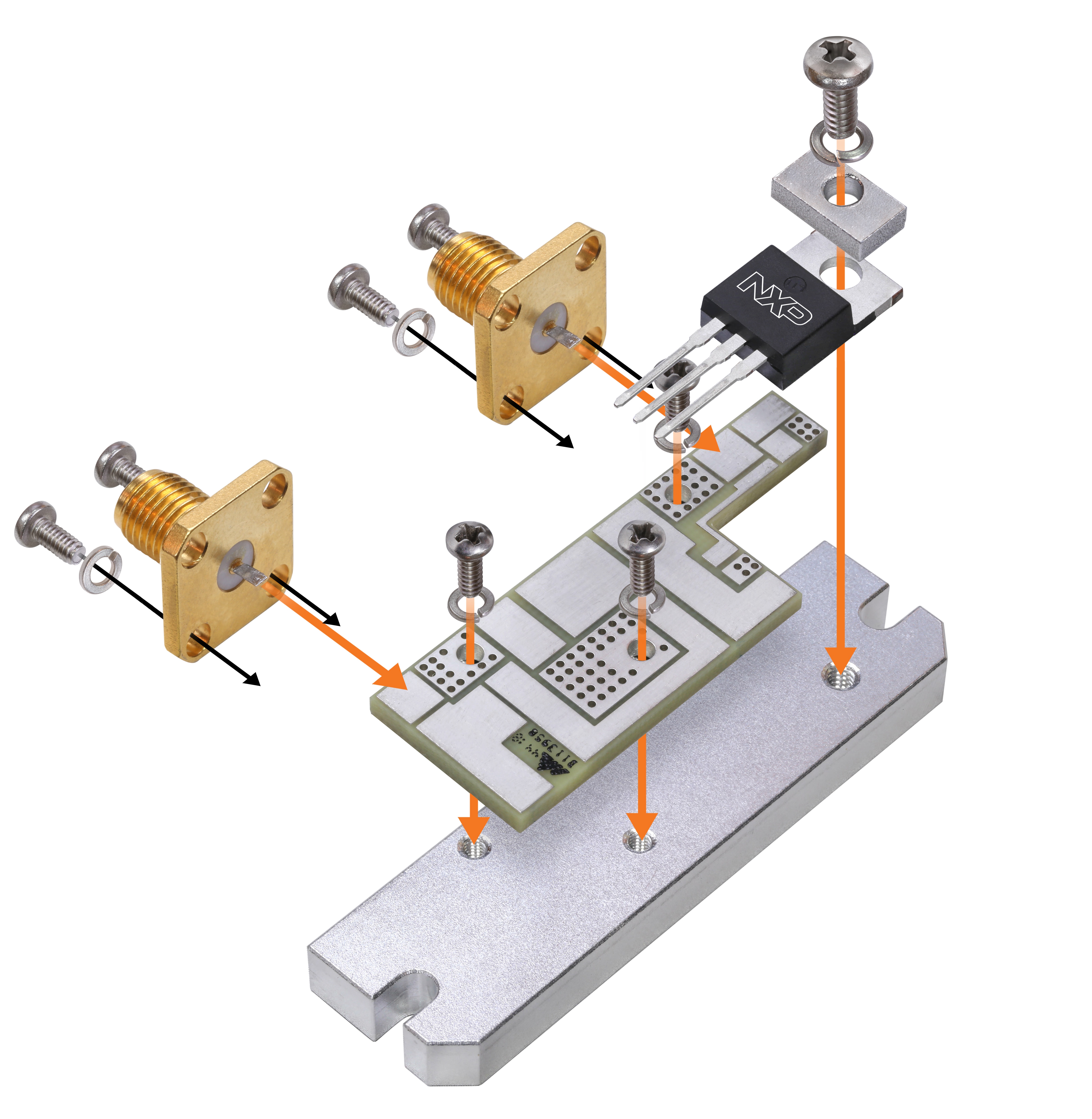

    this was for two MRF101-START

    Rwb likes this.
  10. kopcicle

    kopcicle Sr. Member

    Joined:
    Feb 17, 2016
    Messages:
    1,973
    Likes Received:
    3,052
    Rwb likes this.
  11. kopcicle

    kopcicle Sr. Member

    Joined:
    Feb 17, 2016
    Messages:
    1,973
    Likes Received:
    3,052
    Rwb likes this.
  12. kopcicle

    kopcicle Sr. Member

    Joined:
    Feb 17, 2016
    Messages:
    1,973
    Likes Received:
    3,052

    Rwb likes this.
  13. kopcicle

    kopcicle Sr. Member

    Joined:
    Feb 17, 2016
    Messages:
    1,973
    Likes Received:
    3,052
    inverter_scale.jpeg amp_scale.jpeg

    LeapFrog and Rwb like this.
  14. kopcicle

    kopcicle Sr. Member

    Joined:
    Feb 17, 2016
    Messages:
    1,973
    Likes Received:
    3,052
    Past time for an update...
    first off is the nagging little detail of getting from the amp to the antenna.
    I'll start here .
    2019-09-12T14 05 48.547Z-2.jpg
    Automatic Antenna Tuner 7x7 ATU-100 mini by N7DDC
    https://www.tindie.com/products/ra0sms/automatic-antenna-tuner-7x7-atu-100-mini-by-n7ddc/
    Just one of the many places to obtain one. Just a very useful tool to couple 100w to an antenna.
    Remember these links?
    https://www.w8ji.com/windom_off_center_fed.htm
    https://sites.google.com/view/kn9b/guanella-current-balun

    Okay , moving right along. A "tuner" is not a low pass filter. It can be to a certain extent if a Pi-L design but that is for the advanced course or for those that want to look up the Drake MN2700B schematic and or manual (available on request)

    So for any broad band (absolutely) and (most) single ended (even monoband) sand state devices a low pass filter is necessary. The harmonics pouring off these devices is significant. So now we're on to switchable low pass filter networks.
    First 100w

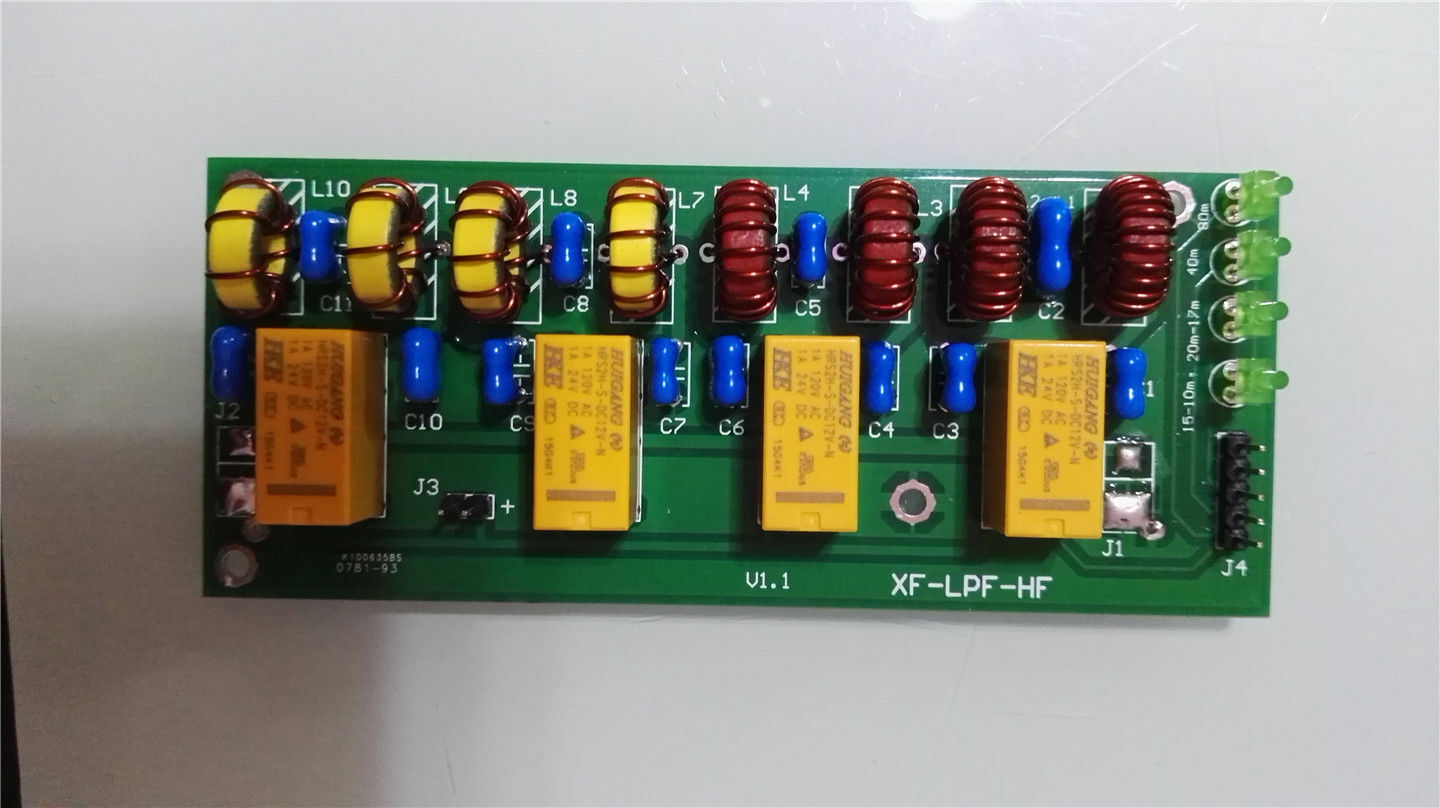

    https://www.ebay.com/itm/12v-100W-3...644407&hash=item3b33c818ed:g:MMUAAOSwJSJXGEeT
    If it's out of stock many sell the same thing.

    Then on to 600w

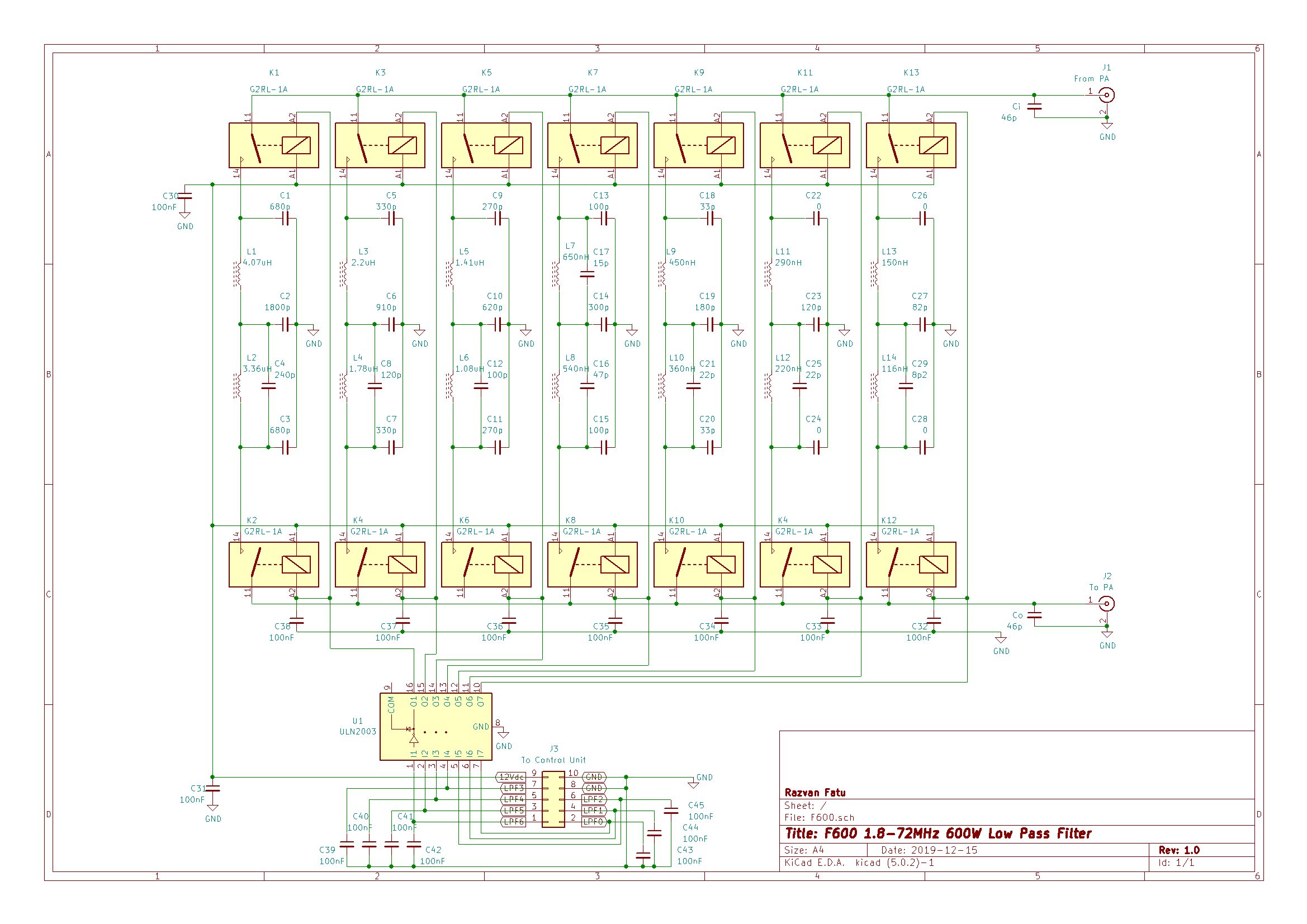

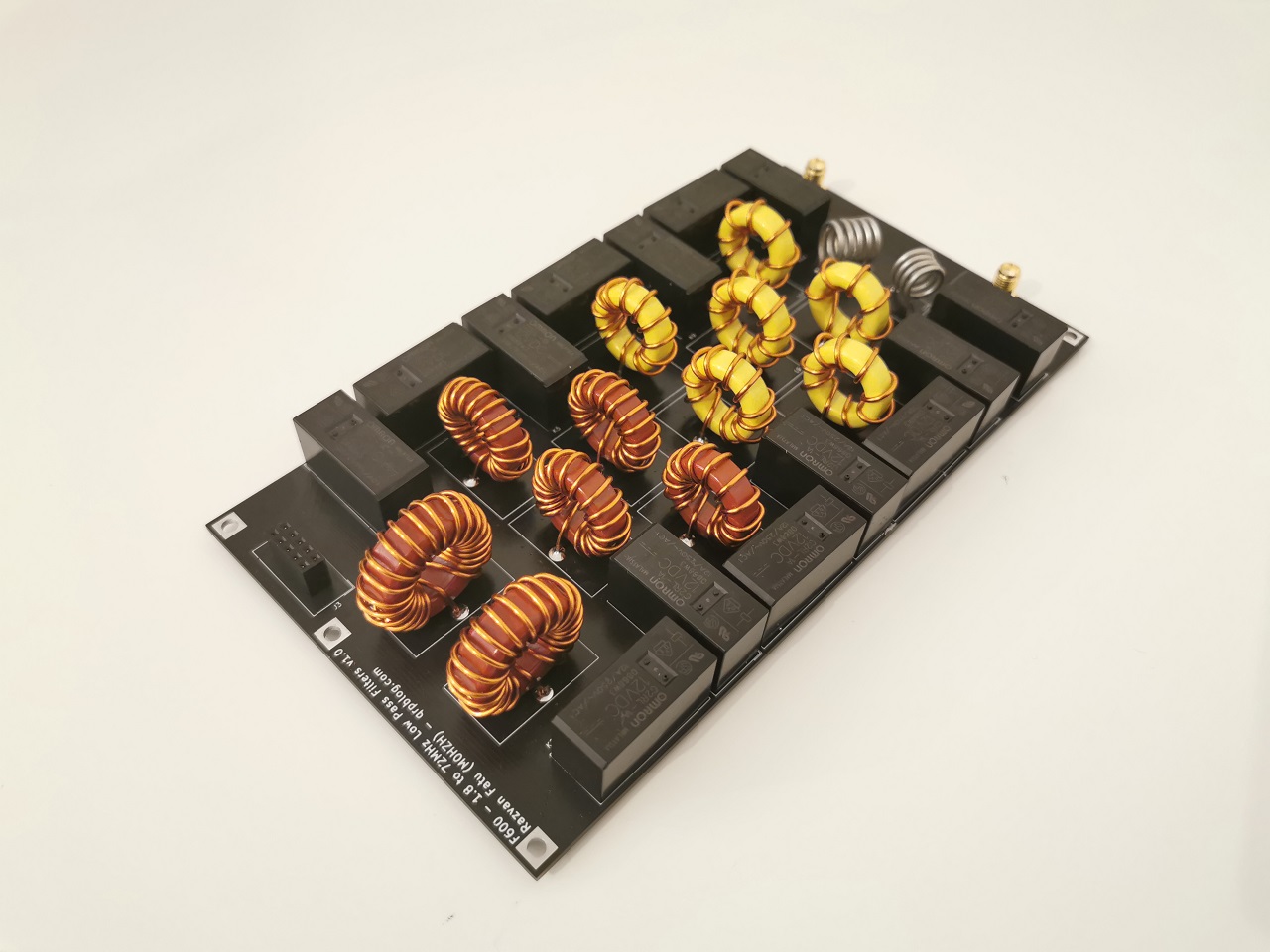

    F600-main1.jpg F600-v1.0-schematic.png
    Appropriate thanks to Razvan M0HZH
    WD24 6DQ Watford
    England, Hertfordshire
    https://qrpblog.com/2019/12/f600-600w-low-pass-filter-board-for-hf-vhf/

    I'll cite Razvan's work as an alternative to re purposing a 100w LPF from an HF radio

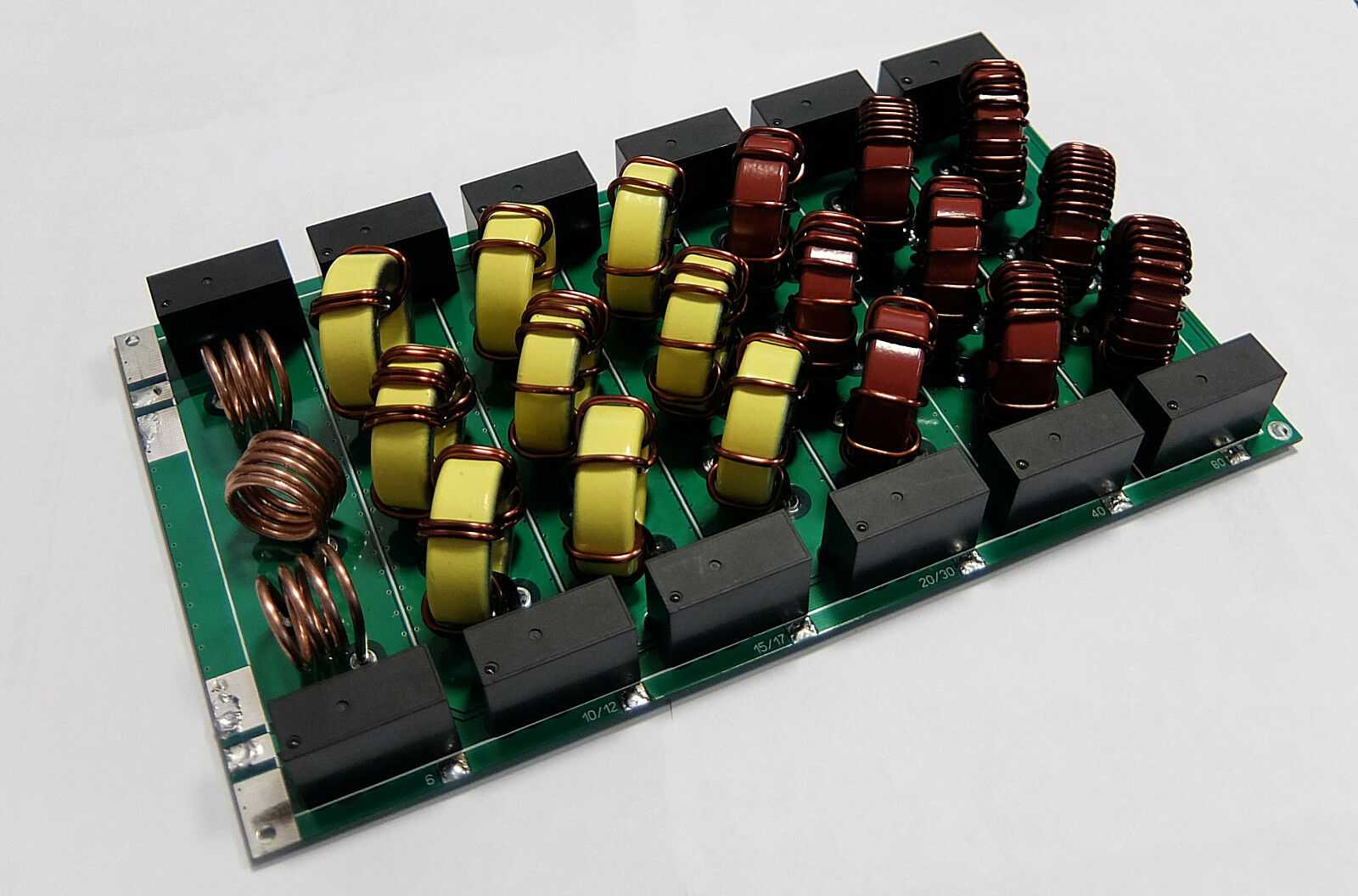

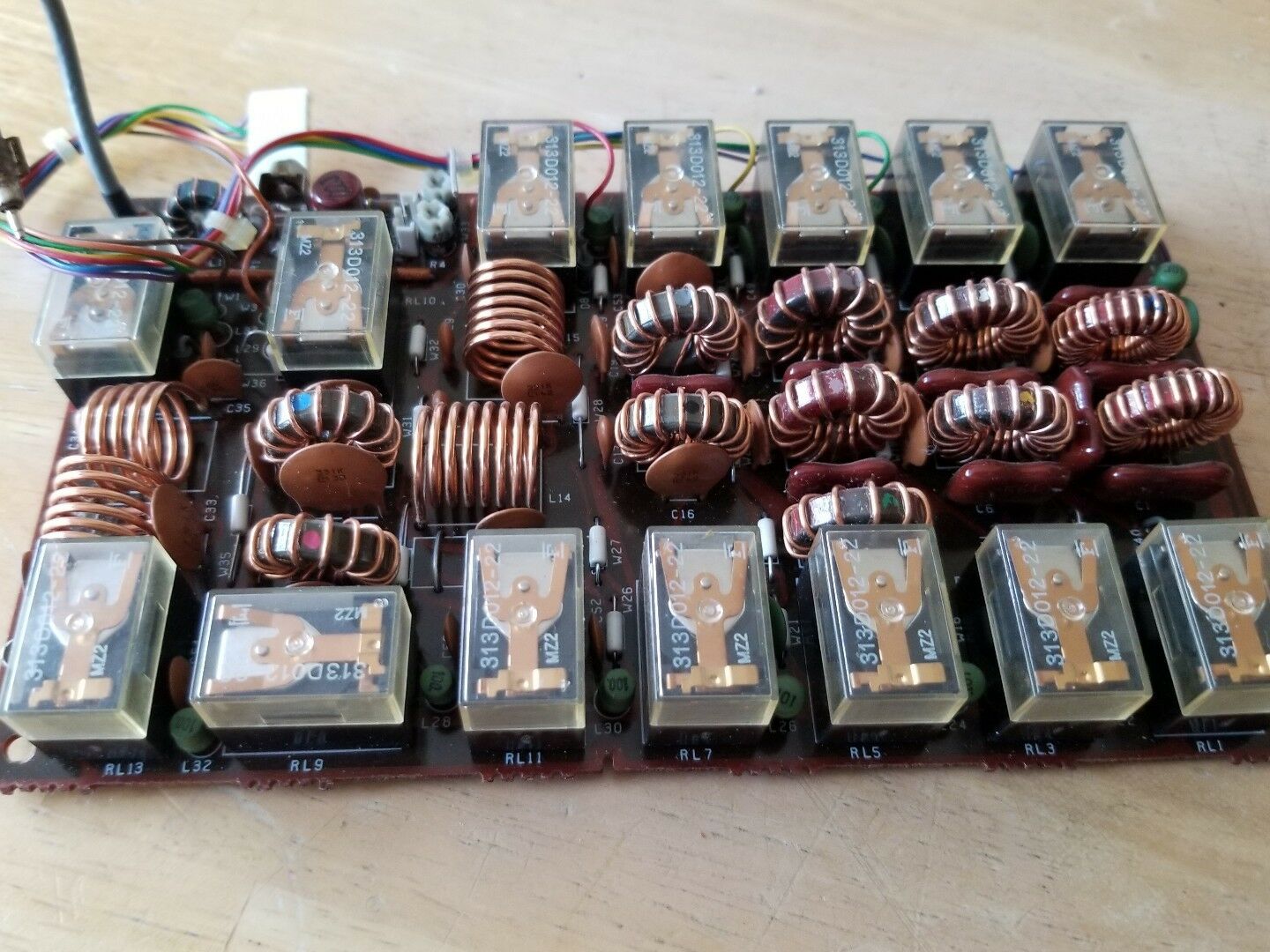

    751.jpg IC-751 in this case.
    Razvan's work also fills that all important niche between 100w and 1.5K .
    Speaking of 1.5K

    https://www.ebay.com/itm/Low-pass-f...747044?hash=item3b0d368424:g:UdAAAOSwfLJa-uZh
    Or

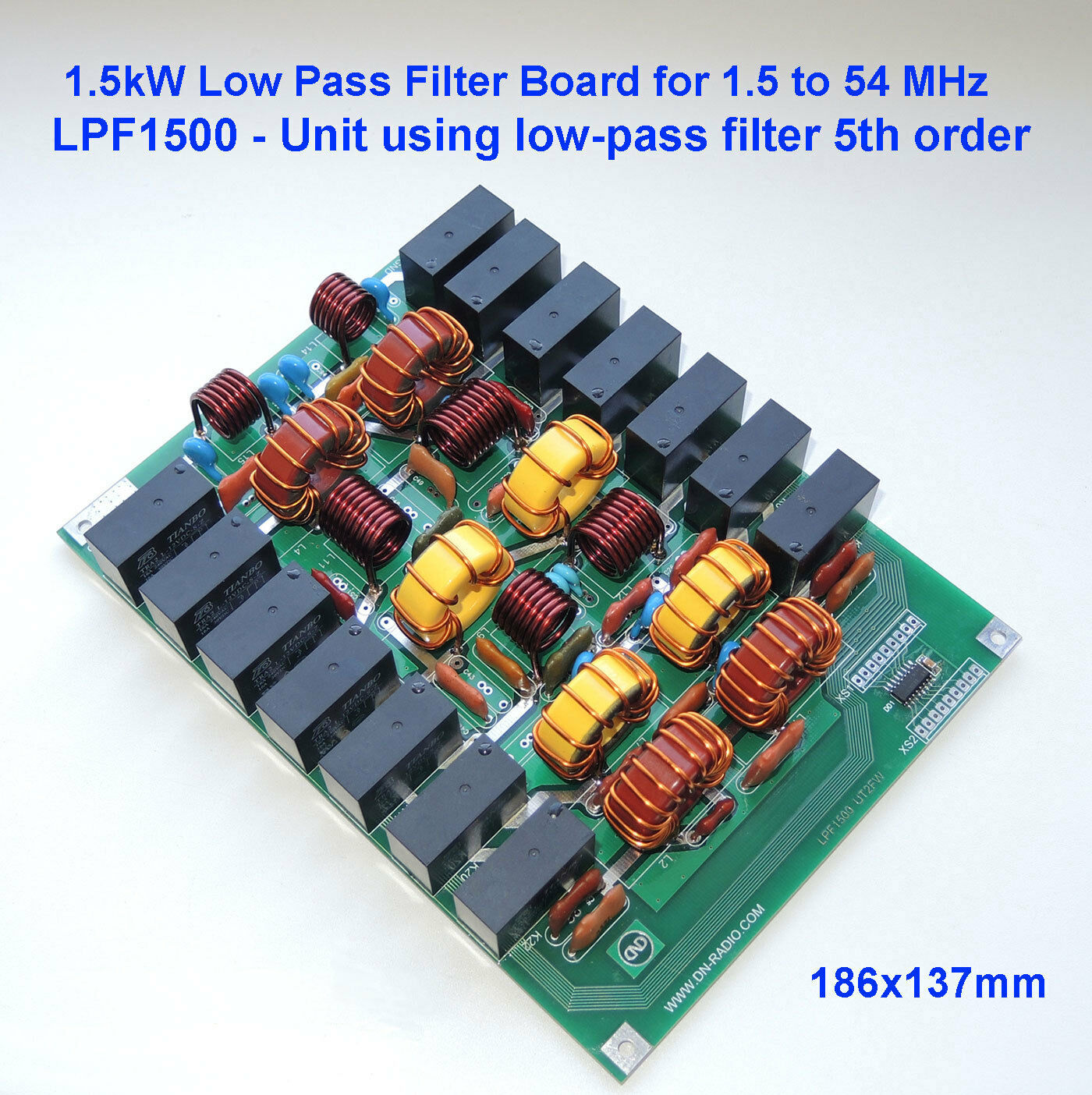

    https://www.ebay.com/itm/LPF-low-pa...999617?hash=item1eccdc2a01:g:3OUAAOSw4DJYib3R

    Now on to the amplifiers

    Again, Razvan's work and can be found on the same site as the LPF
    Why else would you need a 600w LPF ? A 600w amp is a good enough reason.

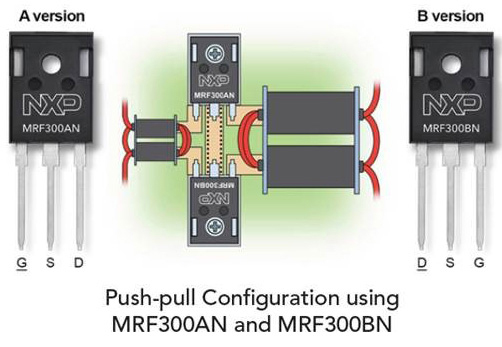

    Note that the output combiner/transformer does not carry any DC current. Current to the Drains is supplied by a common mode choke.

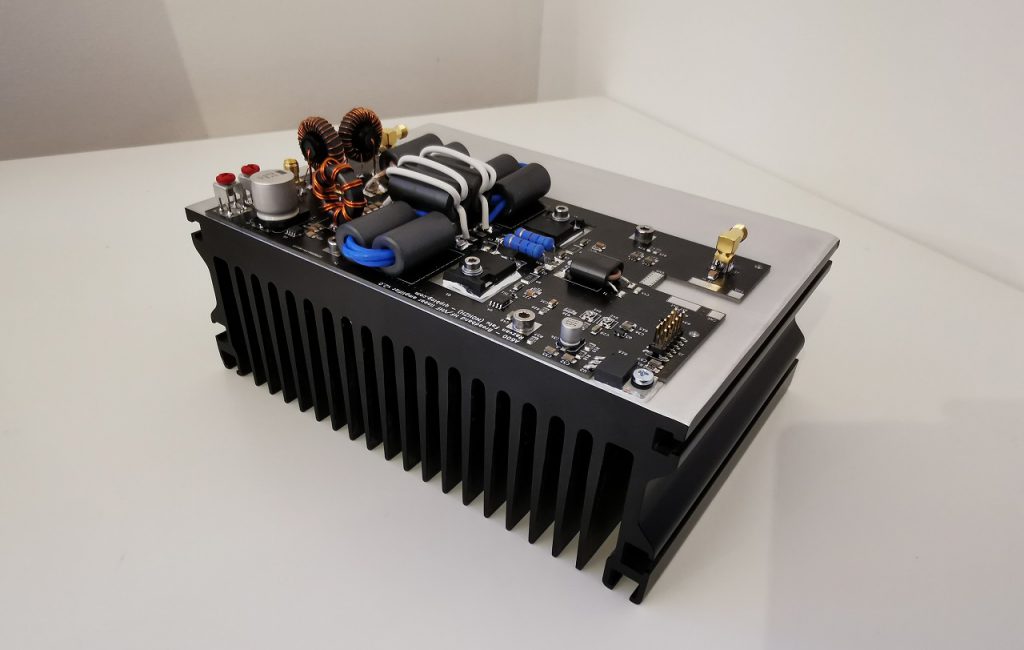

    https://qrpblog.com/2019/12/a600-v2-0-amplifier-module-changes-and-improvements/

    So Razvan has produced an amazing design. How does that apply to us or more to the point ME as this is my thread and as a consequence I can do whatever I wish with it ...

  15. Klondike Mike

    Klondike Mike Sr. Member

    Joined:
    May 31, 2010
    Messages:
    847
    Likes Received:
    638
    What do you have for sources of big block heat-sinks?

    Rwb likes this.
