NXP

Discussion in 'Home Brew' started by kopcicle, Jun 18, 2019.

  1. kopcicle

    kopcicle Sr. Member

    Joined:
    Feb 17, 2016
    Messages:
    1,965
    Likes Received:
    3,021
    ...well to answer that question and others that were not asked.

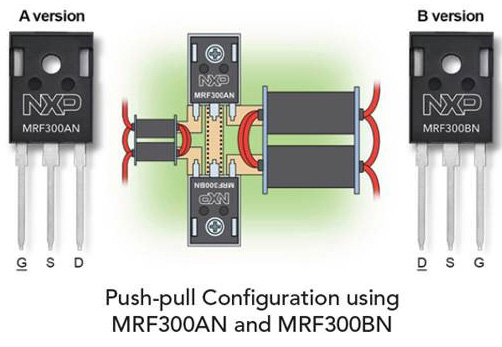

    This is my investigation into the MRF300AN/BN devices.

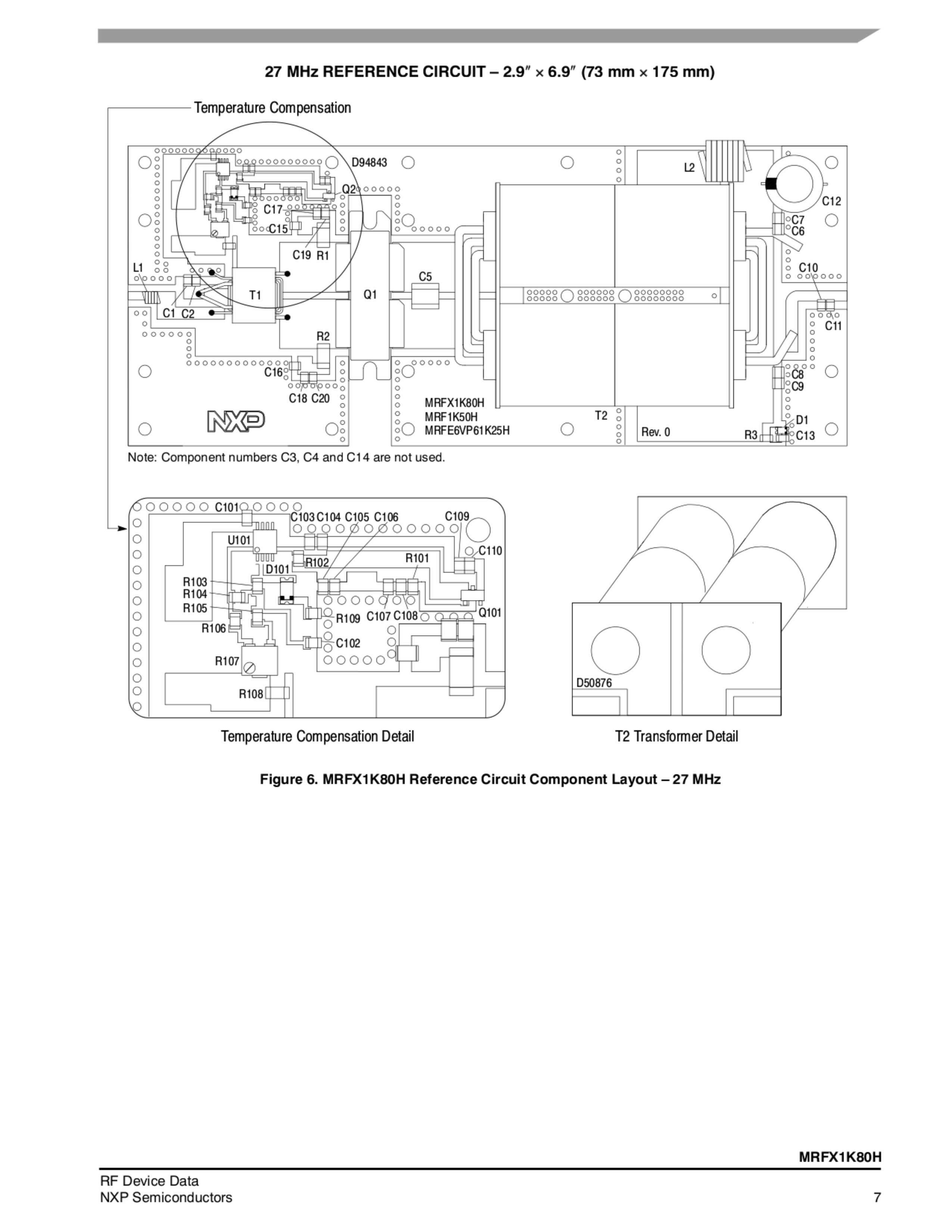

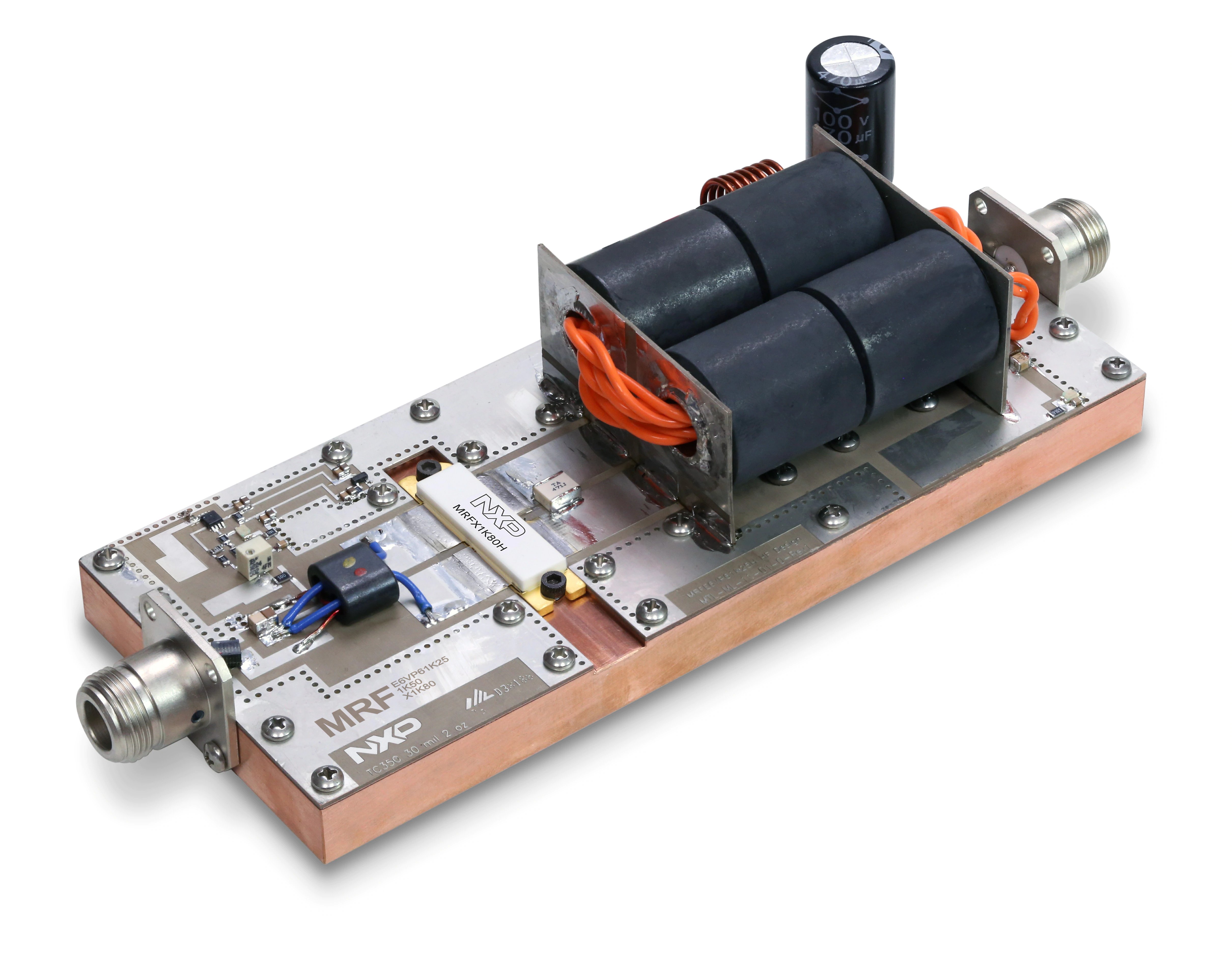

    Any similarity to the NXP MRFX1K80H is purely intentional
    I figured it's good enough for the designers and manufacturers of the 65V 1600w+ device it's probably a good place to start for a pair of 300w devices from the same manufacturer.

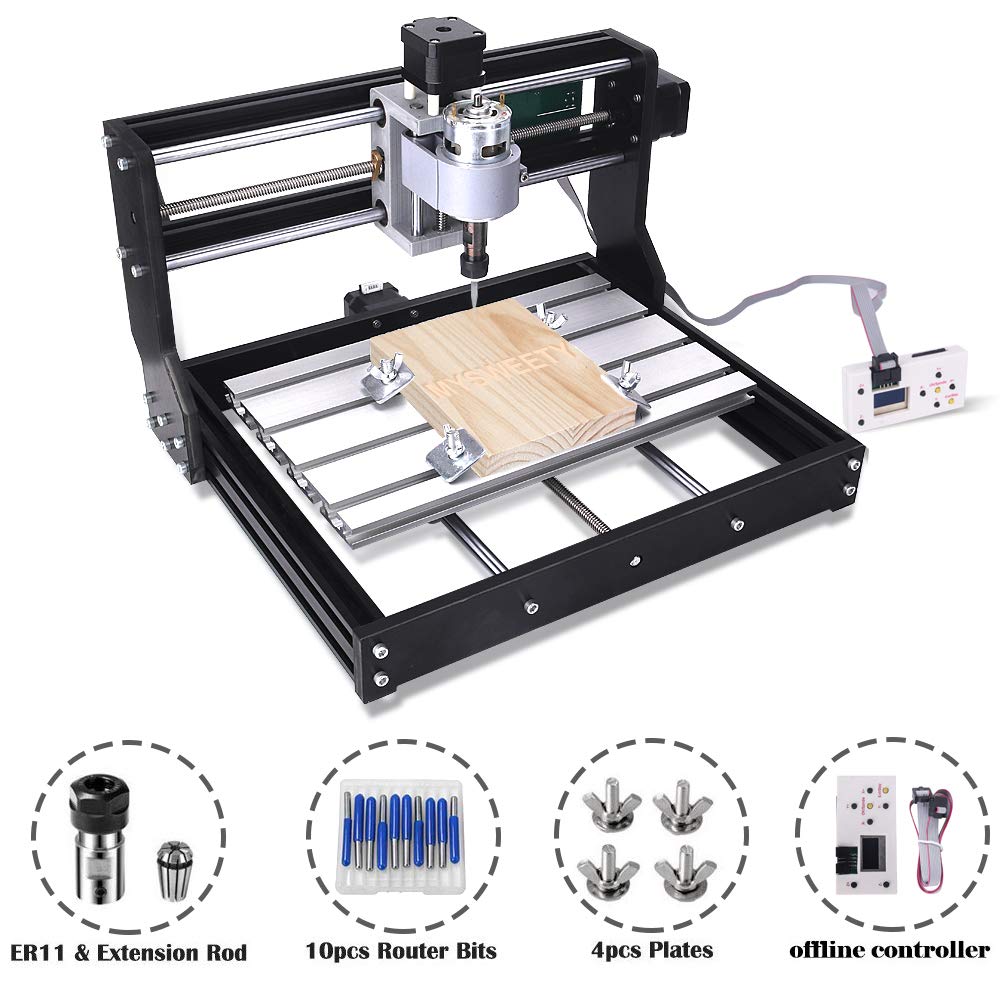

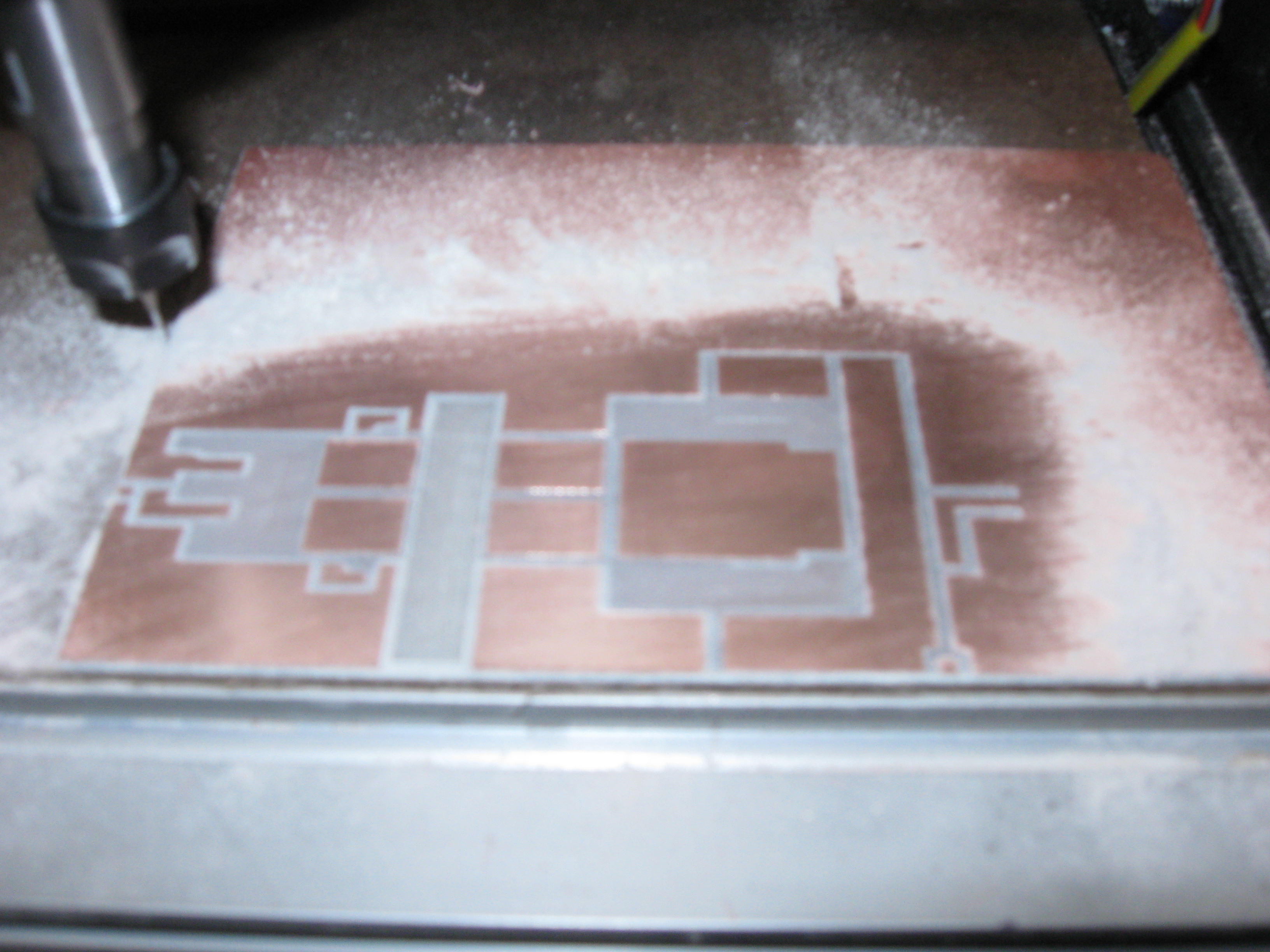

    Enter the above Sainsmart 3018. This is actually a whole subject unto it's own and will or will not be covered elsewhere depending on interest. What little CNC experience I acquired over the years did not in any significant way prepare me for this. It's been a steep learning curve accompanied by copious amounts of quality craft beer from ...
    FUT PRIM LOGO._01_5.png
    ...and a variety of single malt Scotch's . (I prefer Laphroaig, hint, hint)

    Back to the amplifier...

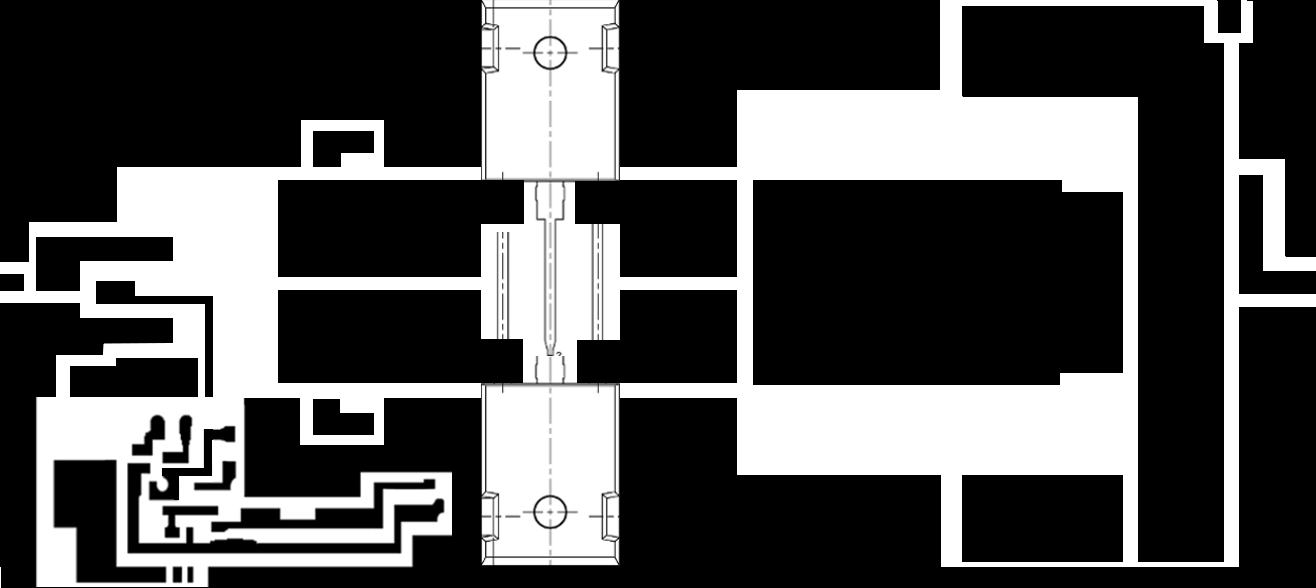

    It starts out in Gimp, a cross-platform image editor available for GNU/Linux, OS X, Windows and more operating systems. Any image can be opened and manipulated to whatever you need and saved as a .bmp.
    Inkscape is professional quality vector graphics software which runs on Linux, Mac OS X and Windows desktop computers. The .bmp is opened and scaled appropriately in Inkscape and a .svg file is saved.
    http://jscut.org/
    Not nearly self explanatory but for most of what I do it works. I have other tools from licensed software but I wanted this explanation to cover just what is freely available.

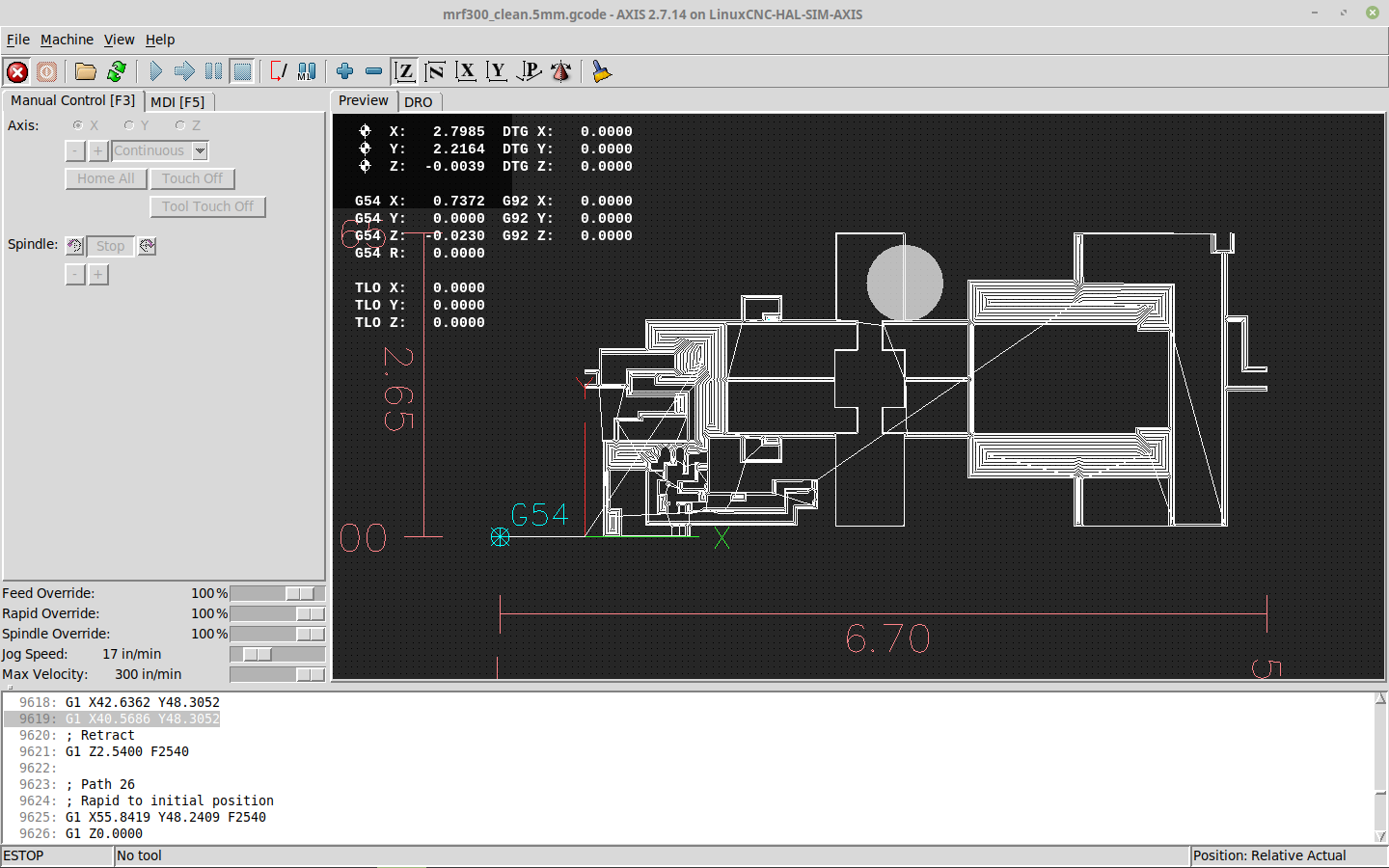

    Screenshot at 2020-01-18 16-01-44.png
    I'm using LinuxCNC to proof and edit my work after the gcode generation from jscut.

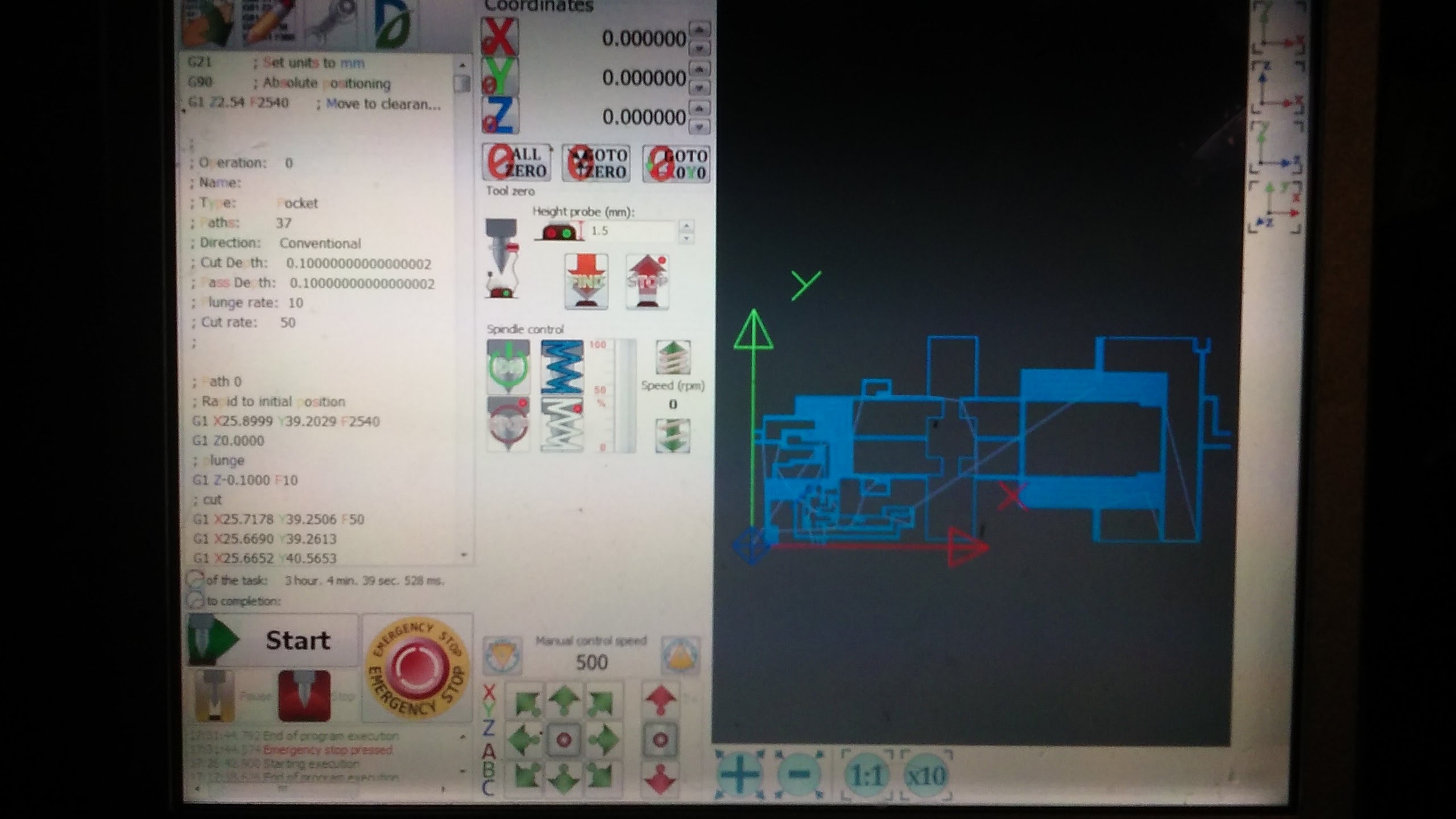

    The unfortunate boggle to my process at the moment is having to switch to Micro$hit Winblow$ to control my router. However DrufelCNC just works. I've not yet seen an excuse or reason to fork over the $$ to Mach3 for additional support. What I really need is a real time LinuxOS and a parallel port driven controller for the router but with what I have it works for now .
    Just another reason I want to dump Winblow$. It wouldn't let me take a screenshot so you get a crappy cellphone pic.

    It all started with this
    or
    or
    then

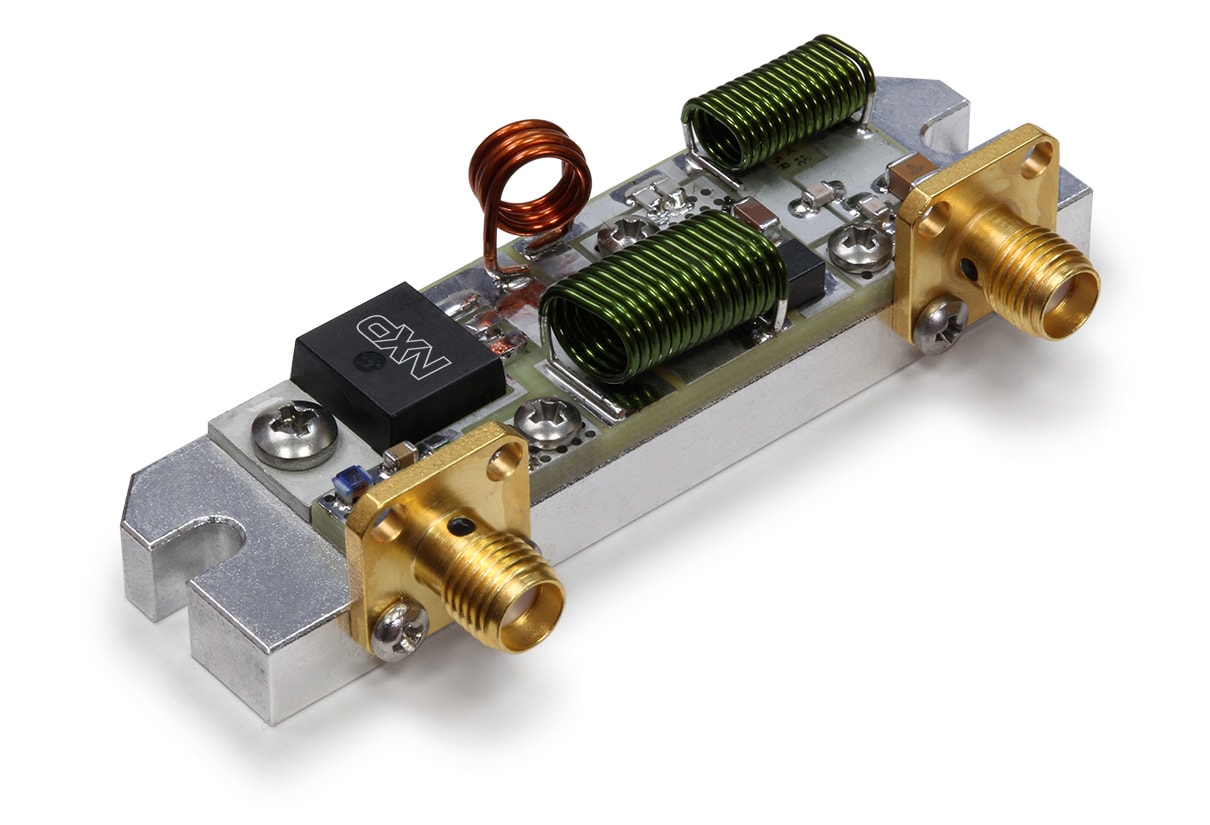

    These being for the MRF101AN/BN for the uBitx mobile project covered elsewhere.

    Schematics, artwork, gcode, Bill of materials and other parts sources, and even some support is freely available on request. As a consequence of the steep (for me anyway) learning curve I'm more than accepting any help or suggestions.



    ...and so it goes

    #16 kopcicle, Jan 19, 2020
    Last edited: Jan 19, 2020

  2. kopcicle

    kopcicle Sr. Member

    Joined:
    Feb 17, 2016
    Messages:
    1,965
    Likes Received:
    3,021
    I have all kinds of sources for heatsinks. Most are not that economical. In fact some of the prices are down right comical. However, like all that I do I've been exhaustively scouring the interwebz for a consistent source other than non repeatable surplus.

    Going forward I'll include sources north of the border so shipping isn't a deal breaker even if it would suxors for me.

    The real challenge has been finding copper heat spreader material.

    I have the input and output transformers set as well as the BOM for the bias circuitry.

    I kinda figured as I went into some depth someone would ask the obvious (y)

    Rwb likes this.
  3. Klondike Mike

    Klondike Mike Sr. Member

    Joined:
    May 31, 2010
    Messages:
    845
    Likes Received:
    632
    Key words that I have run into as well.

    Rwb likes this.
  4. Handy Andy

    Handy Andy Do Your Research First, Then Decide...

    Joined:
    Apr 23, 2018
    Messages:
    4,536
    Likes Received:
    5,563
    Actually - you're doing fine on your own - I don't want to detract (derail) your train of thought...

    Please Continue!

    Rwb likes this.
  5. kopcicle

    kopcicle Sr. Member

    Joined:
    Feb 17, 2016
    Messages:
    1,965
    Likes Received:
    3,021
    Honestly Andy I do very little on "my own". Many have contributed and hopefully many will. The path I chose was my own but many others have contributed. Updates as they happen, film at 11:00, batteries not included, dealer prep and license not included, only your psychic knows for sure, not available in stores, the surgeon general reports that some Californians may contract halitosis from the inhalation of rosin flux fumes, and, YMMV.

    #20 kopcicle, Jan 19, 2020
    Last edited: Jan 19, 2020
    Rwb, LeapFrog, Slowmover and 2 others like this.
  6. Shockwave

    Shockwave Sr. Member

    Joined:
    Sep 19, 2009
    Messages:
    3,709
    Likes Received:
    3,017
    I've been using HeatsinkUSA for the heatsinks. They are expensive but they offer the largest heatsinks available in the USA. The copper spreaders have been purchased on eBay. One seller was offering 5'' x 5'' x 1/4'' copper plate at a reasonable price. It cuts well on the table saw with a carbide tip blade and some oil.

    Rwb likes this.
  7. Rwb

    Rwb Sr. Member

    Joined:
    Jun 30, 2018
    Messages:
    2,699
    Likes Received:
    3,243
    Kop,are you n edgar back on speaking terms?

  8. kopcicle

    kopcicle Sr. Member

    Joined:
    Feb 17, 2016
    Messages:
    1,965
    Likes Received:
    3,021

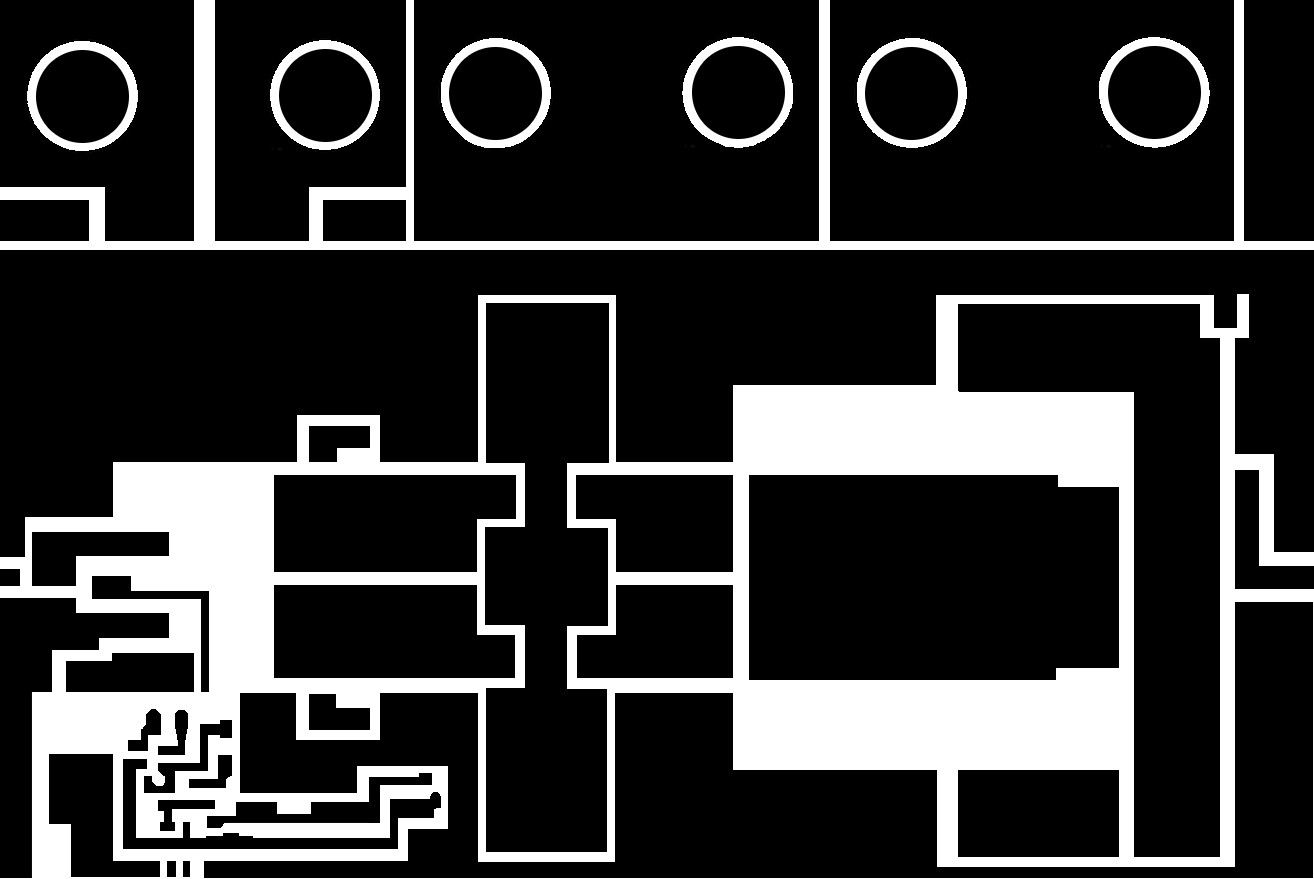

    latest. The gcode(s) is/are available if you know the magic word(s)
    YMMV


    Attached Files:

  9. kopcicle

    kopcicle Sr. Member

    Joined:
    Feb 17, 2016
    Messages:
    1,965
    Likes Received:
    3,021
    email on the way to the usual suspects. All others can pay the usual fee and PM an email addy.

    Rwb likes this.
  10. ExitThirteen

    ExitThirteen Grumpy and Cranky

    Joined:
    Apr 18, 2008
    Messages:
    1,960
    Likes Received:
    1,549
    Woid.



    ~Cheers~

    Rwb likes this.
  11. kopcicle

    kopcicle Sr. Member

    Joined:
    Feb 17, 2016
    Messages:
    1,965
    Likes Received:
    3,021
    That took for ever.

    Next...

    and so it goes

  12. Handy Andy

    Handy Andy Do Your Research First, Then Decide...

    Joined:
    Apr 23, 2018
    Messages:
    4,536
    Likes Received:
    5,563
    (y)(y)

    Rwb likes this.
  13. nomadradio

    nomadradio Analog Retentive

    Joined:
    Apr 3, 2005
    Messages:
    4,597
    Likes Received:
    5,913
    Rock on!

    Way ahead o'me on this one.

    73

    Rwb likes this.
  14. kopcicle

    kopcicle Sr. Member

    Joined:
    Feb 17, 2016
    Messages:
    1,965
    Likes Received:
    3,021

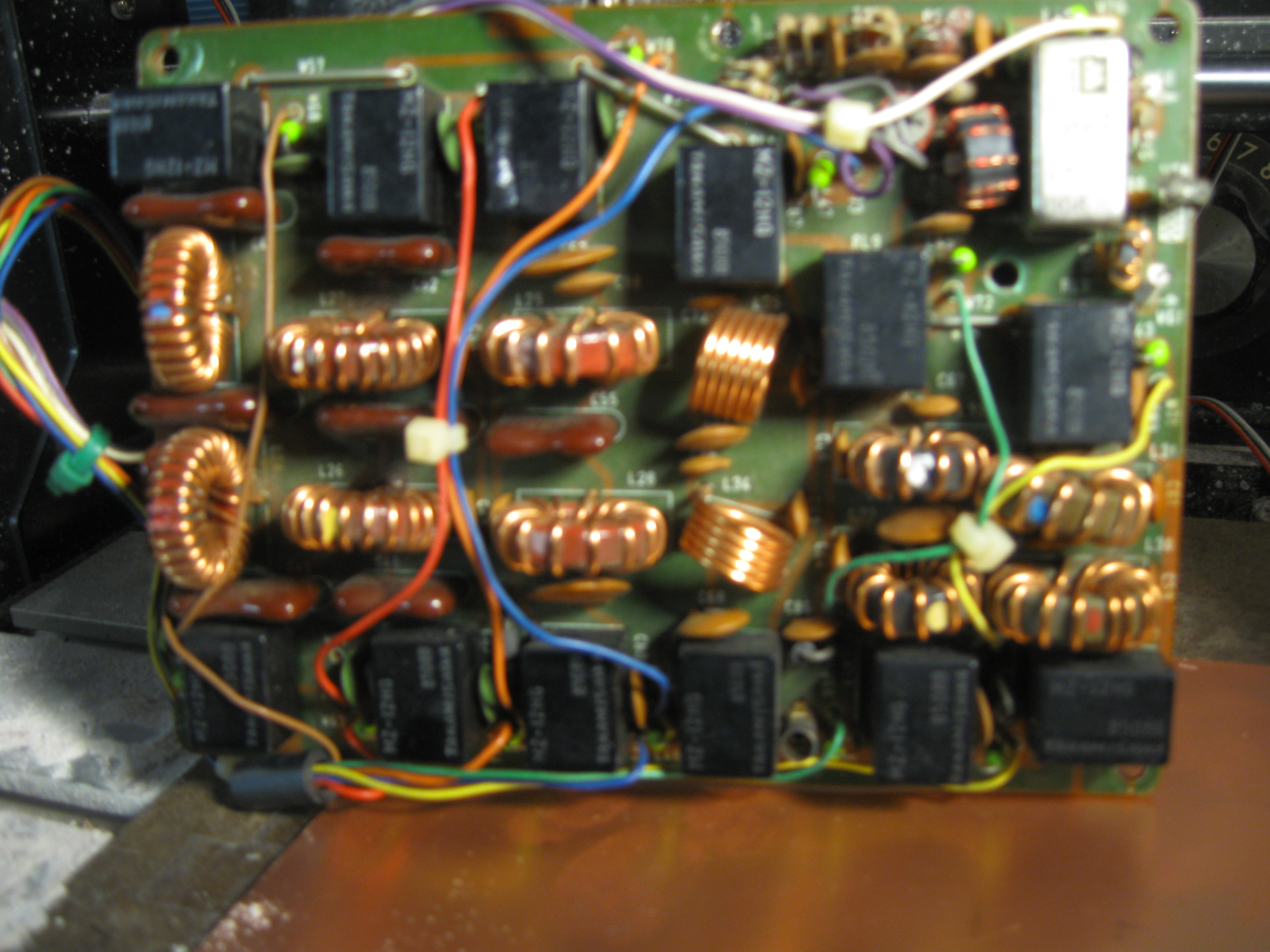

    Santa Claus in a DHL suit, minutes ago.
    That takes care of the 200w version spurs.
    Although designed for a 100w radio It should do just fine if AM/FM & digital modes are backed off a bit.

    Rwb likes this.
  15. kopcicle

    kopcicle Sr. Member

    Joined:
    Feb 17, 2016
    Messages:
    1,965
    Likes Received:
    3,021


    Attached Files:
