Portable/Stealthy 20-Meter Antenna

Discussion in 'Amateur Radio Antennas' started by Riverman71, Sep 12, 2018.

  1. Riverman71

    Riverman71 Part-time Member

    Joined:
    Nov 12, 2013
    Messages:
    1,293
    Likes Received:
    673
    I am putting together a 20-Meter ground-mounted vertical using a MFJ-1620T hamstick style antenna and four 12.5' wire radials. In the next day or two, I will be posting pics and results. Stay tuned.




  2. BJ radionut

    BJ radionut Supporting Member and 6m addict

    Joined:
    May 9, 2008
    Messages:
    1,797
    Likes Received:
    951
    OK I'll ask here: Why 12.5' radials?
    All the Best
    Gary

  3. Riverman71

    Riverman71 Part-time Member

    Joined:
    Nov 12, 2013
    Messages:
    1,293
    Likes Received:
    673
    Gary, I had two 25' rolls of copper wire and simply cut each in half. :whistle::D

    I decided that number (4) and length (12.5') would be worth trying after studying this 2-page document from the gentlemen at Ventenna detailing how they chose the number/length of radials for their HFp 20 meter ground-mounted vertical:

    http://www.ventenna.com/files/Radials.pdf

  4. BJ radionut

    BJ radionut Supporting Member and 6m addict

    Joined:
    May 9, 2008
    Messages:
    1,797
    Likes Received:
    951
    OK Jim...go for it...
    However there are several statements in that article...I simply don't agree with, and my experience using ground mounted Vertical antennas, both temporary and long term installs. I do not claim to be a Engineer or know all theory(not even close), just personal experience, for my usage and working on a few commercial installs as an old wire-twister.
    All the Best
    Gary

  5. Riverman71

    Riverman71 Part-time Member

    Joined:
    Nov 12, 2013
    Messages:
    1,293
    Likes Received:
    673
    Got it, Gary. ;) Really doing it because:
    Parts didn't cost much.
    Have time on my hands.
    Weather's getting nice after a HOT summer.
    And I'm in it for the fun.
    Not expecting much and will report back. (y)

  6. BJ radionut

    BJ radionut Supporting Member and 6m addict

    Joined:
    May 9, 2008
    Messages:
    1,797
    Likes Received:
    951
    Never think I am mocking or dissing anyone for experimentation...To the contrary!!!!... Just going by personal old fashion hands on stuff.
    All the Best
    Gary

    binrat likes this.
  7. Riverman71

    Riverman71 Part-time Member

    Joined:
    Nov 12, 2013
    Messages:
    1,293
    Likes Received:
    673
    No worries. It's all good. (y)

    Maybe if I double up on the gypsum and watering and spread some BB's around, I can get my soil conductivity up to about 0.030 Siemens/meter and relative permittivity to 20. That should help performance. :D

    #7 Riverman71, Sep 13, 2018
    Last edited: Sep 13, 2018
  8. Riverman71

    Riverman71 Part-time Member

    Joined:
    Nov 12, 2013
    Messages:
    1,293
    Likes Received:
    673
    Okay, here it is.

    Parts:
    MFJ 1620T - $19.95 (from HRO)
    Stud Mount w/SO239 - $5.83 (from Love's)
    90 degree connector - $5.99 (from Love's)
    Simpson Strong Tie BC40Z - $5.78 (from Home Depot)
    25’ Roll 16AWG Stranded Primary Wire (2) - $5.70 ea= $11.40 (from Home Depot)
    Wire Terminals, nuts, bolts, washers – I had these on hand

    Pics: (Click on each for larger image)

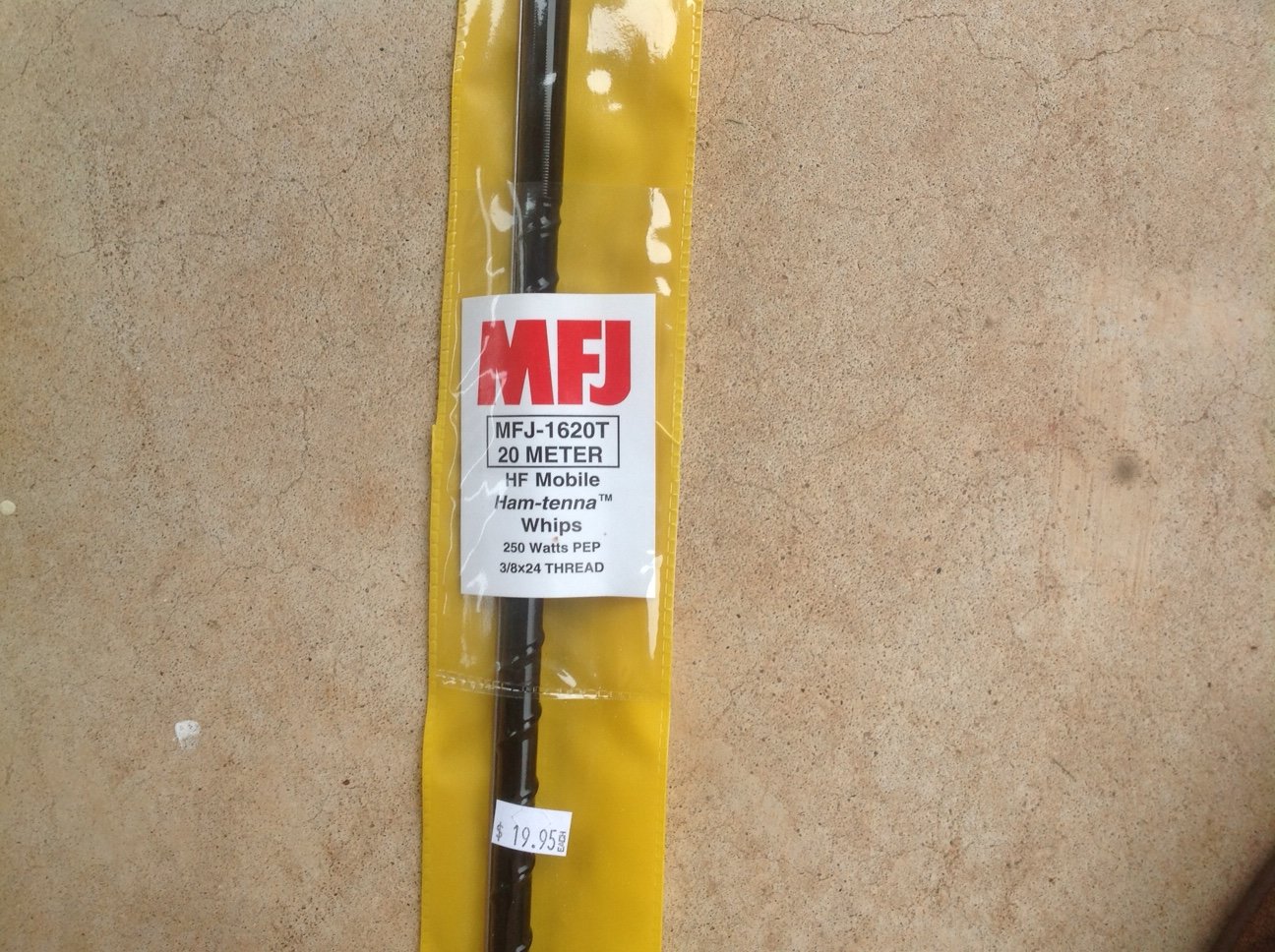

    MFJ - 1620T

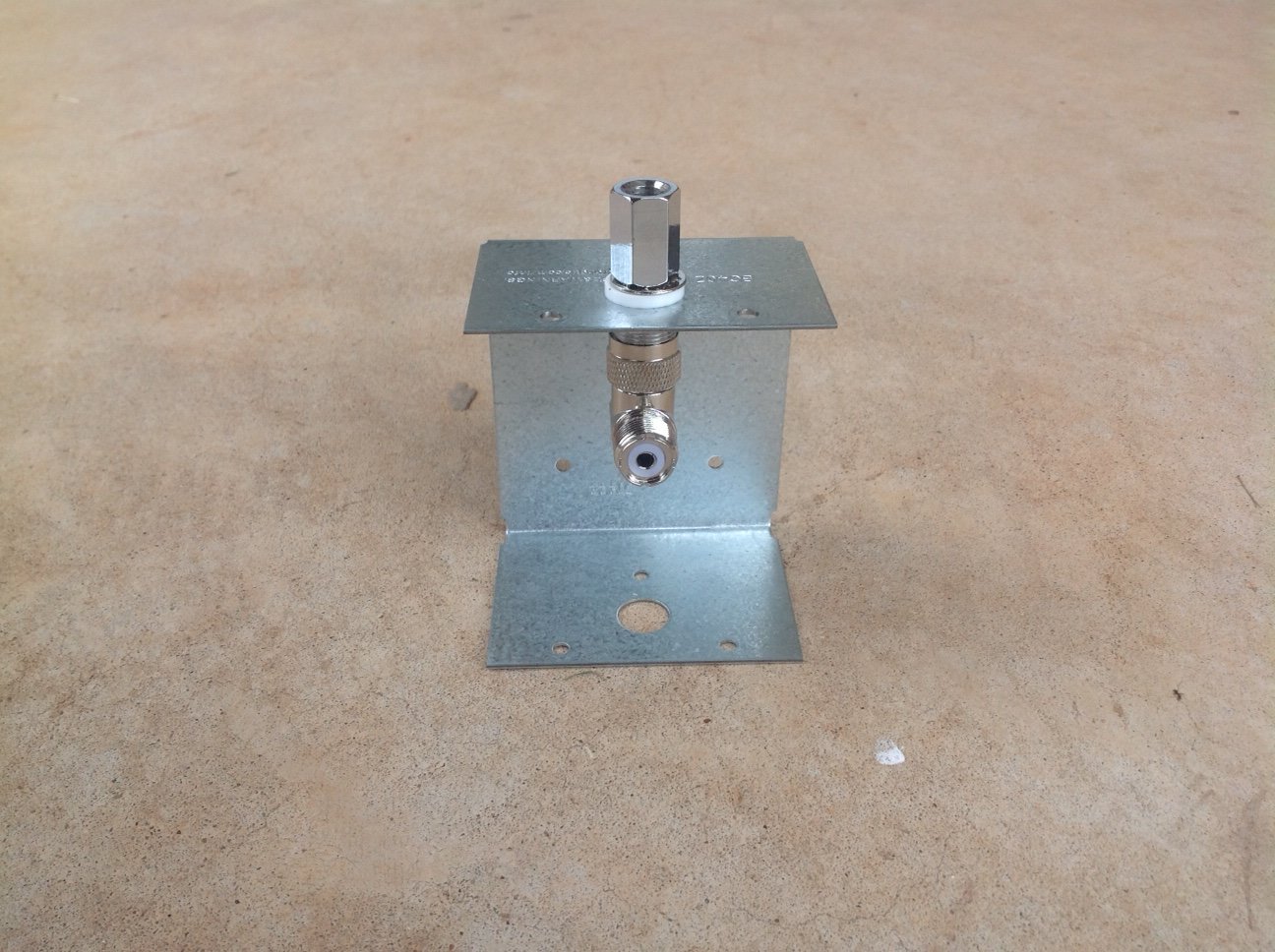

    Strong Tie with stud mount and connector attached. No bending was required.

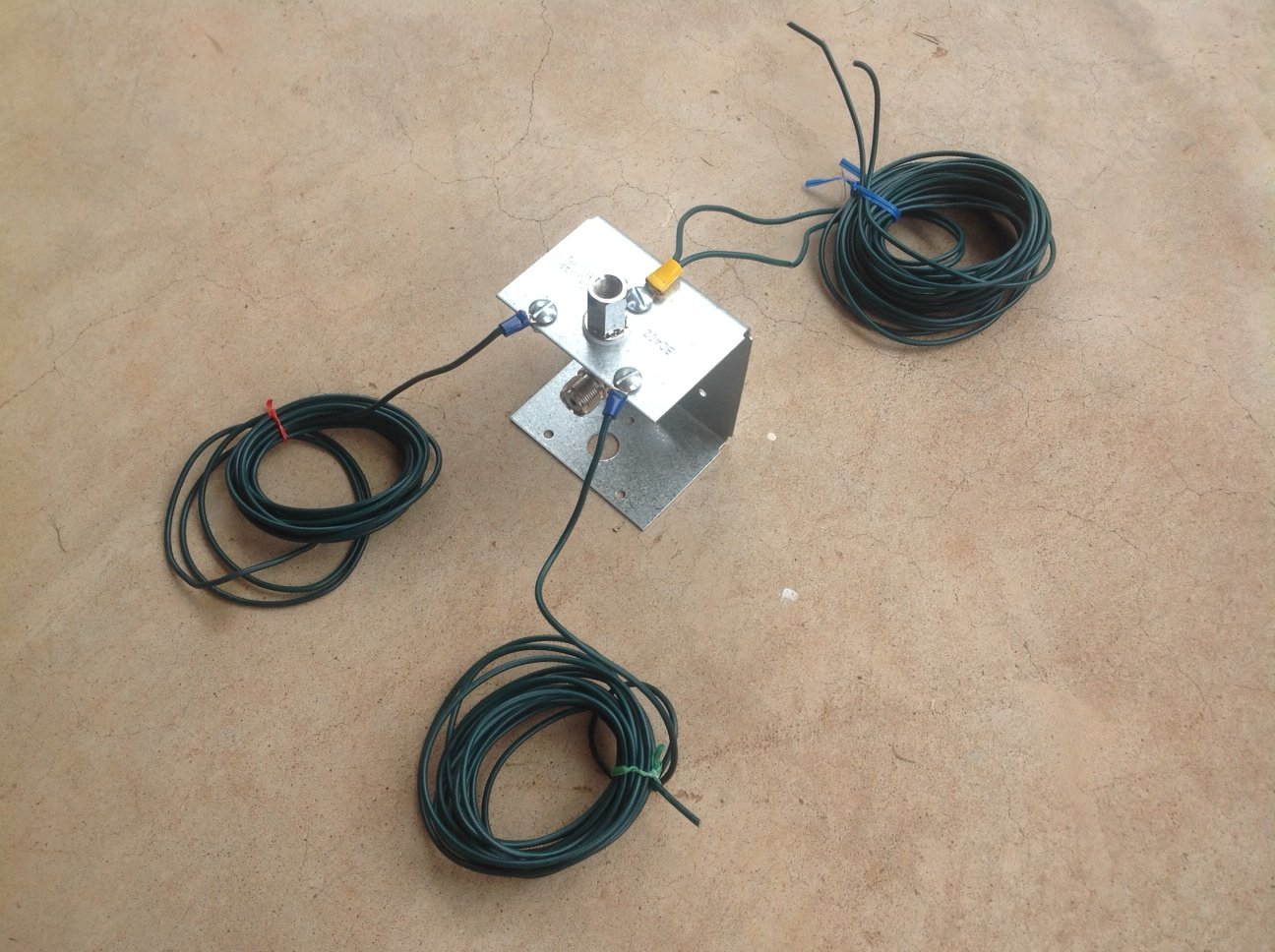

    The four radials attached. (The Strong Tie came with 3 pre-drilled holes and rather than break out the drill I simply attached 2 radials to the same terminal.)

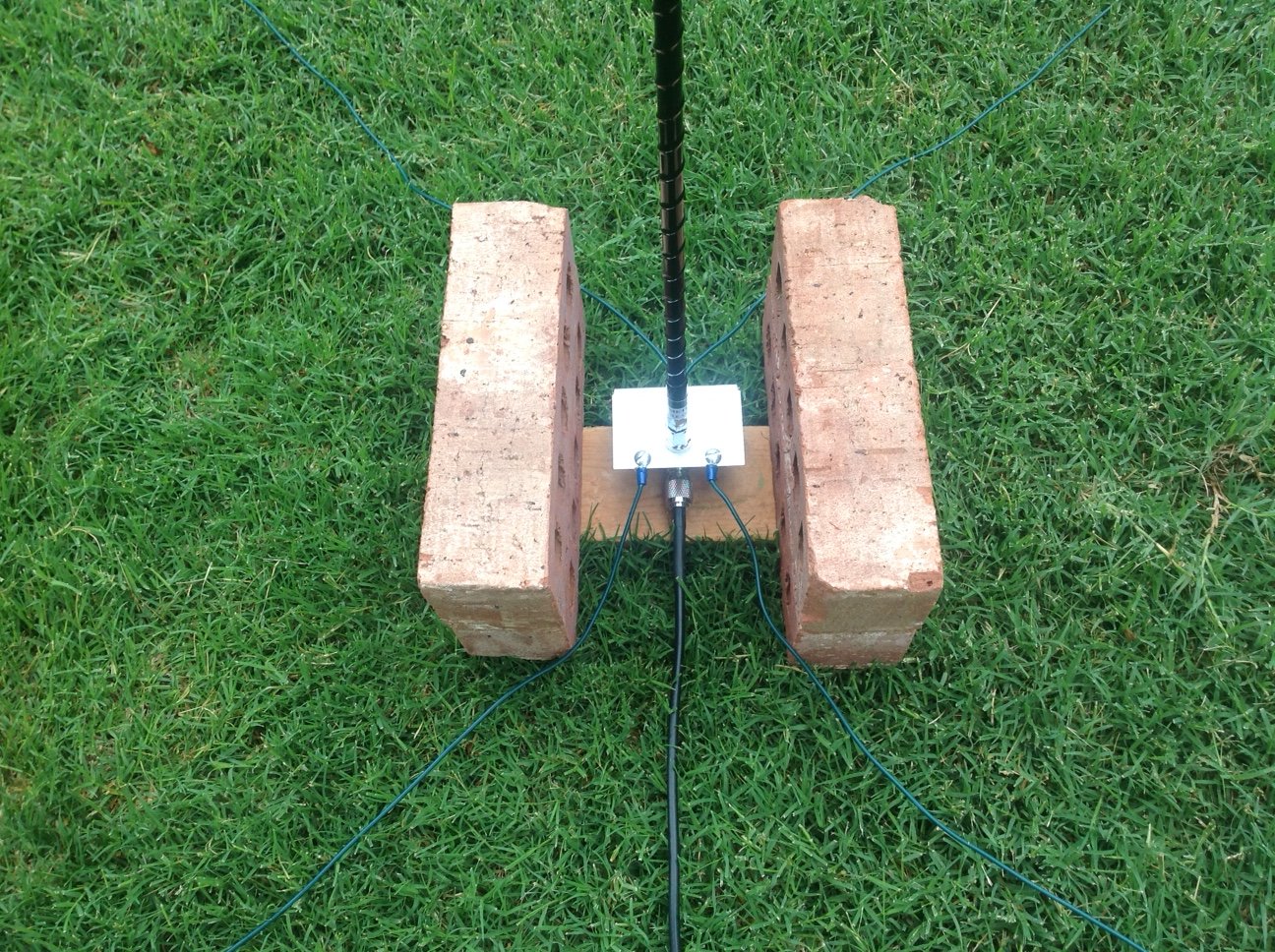

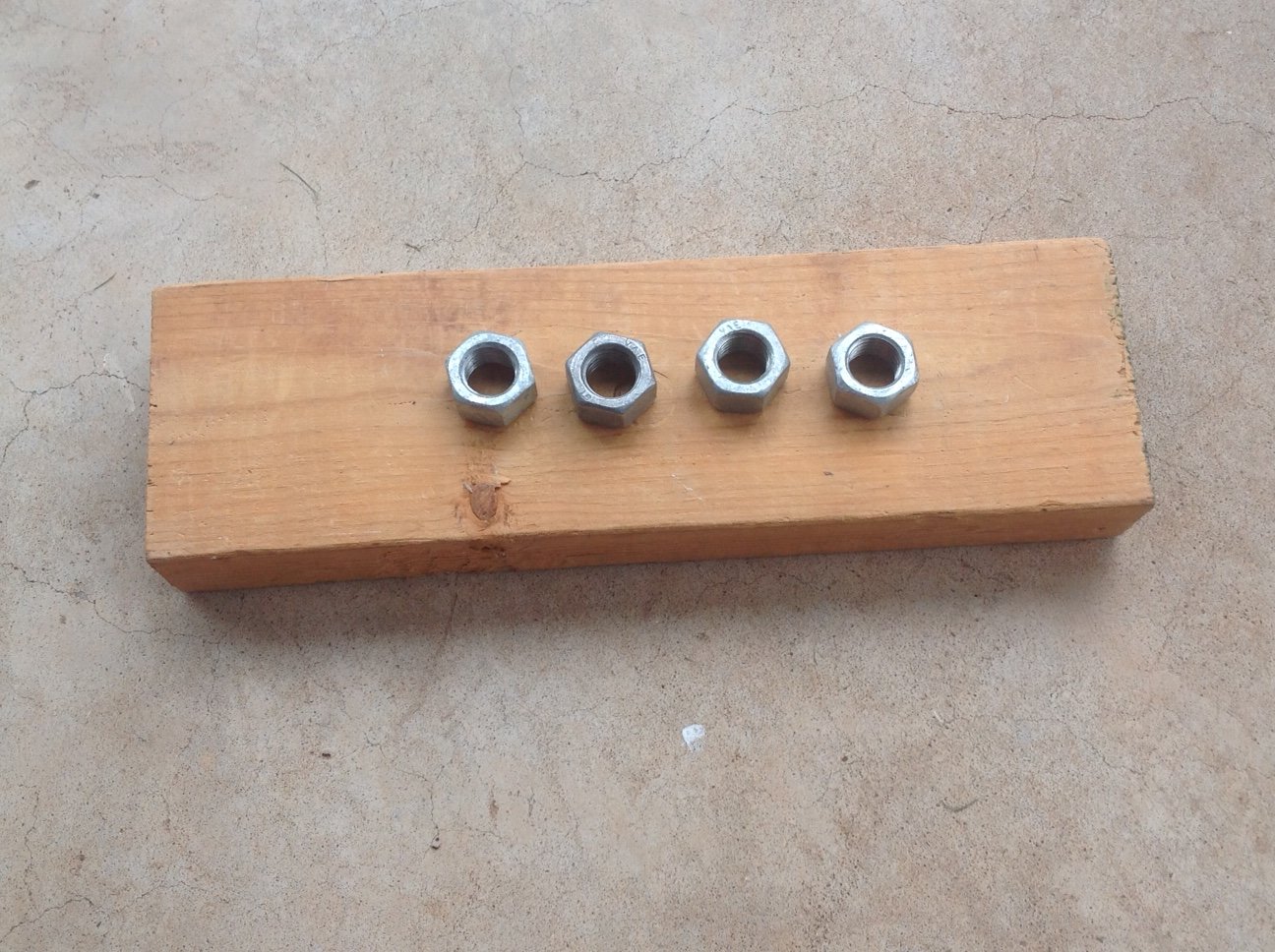

    This short piece of 1X4 is used to hold the bracket on the ground. It simply lays across the bottom flange and is secured with bricks. The four bolts attach to the ends of the radials and serve to hold them in place .

    All set up!

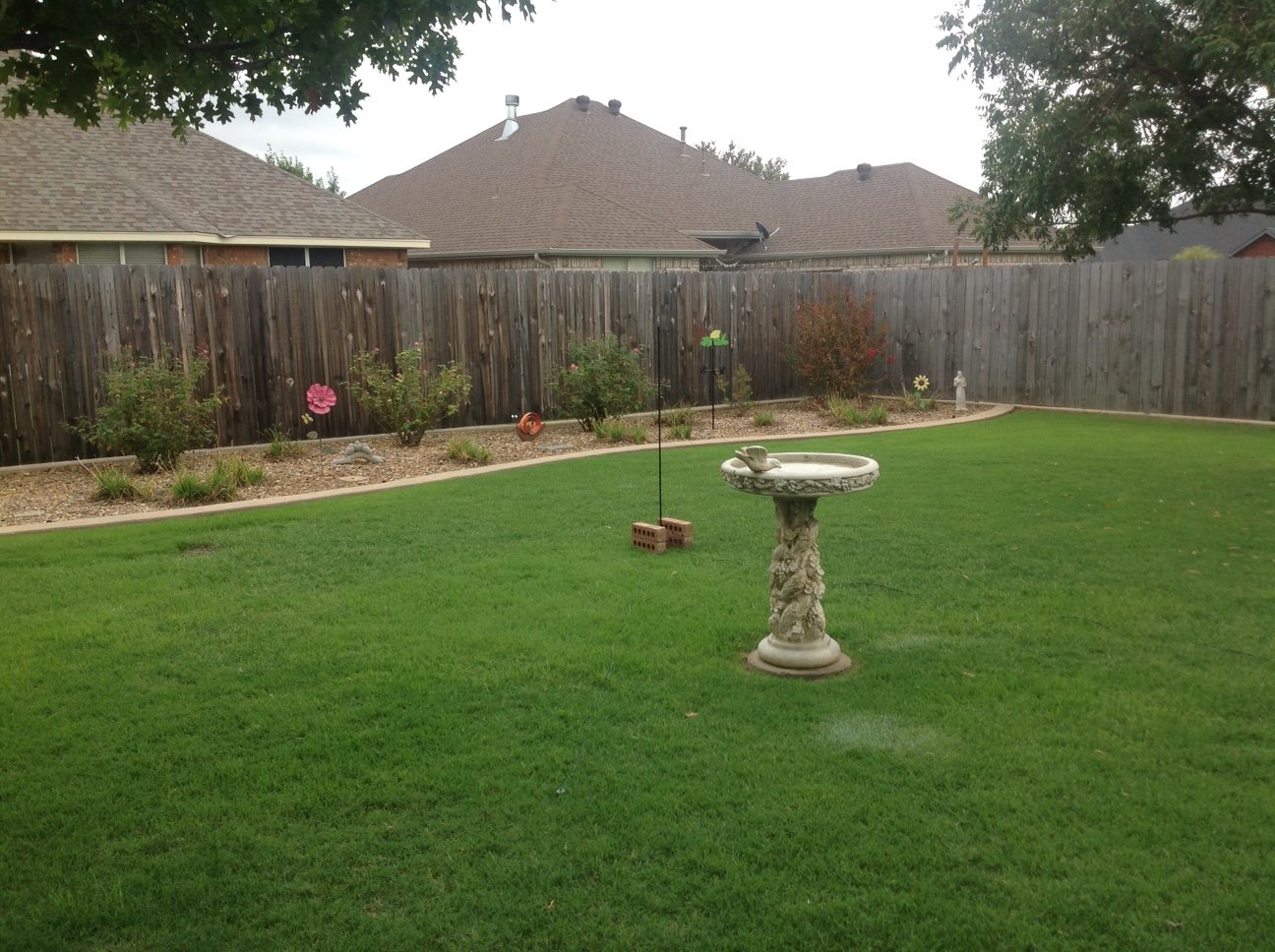

    Almost invisible.

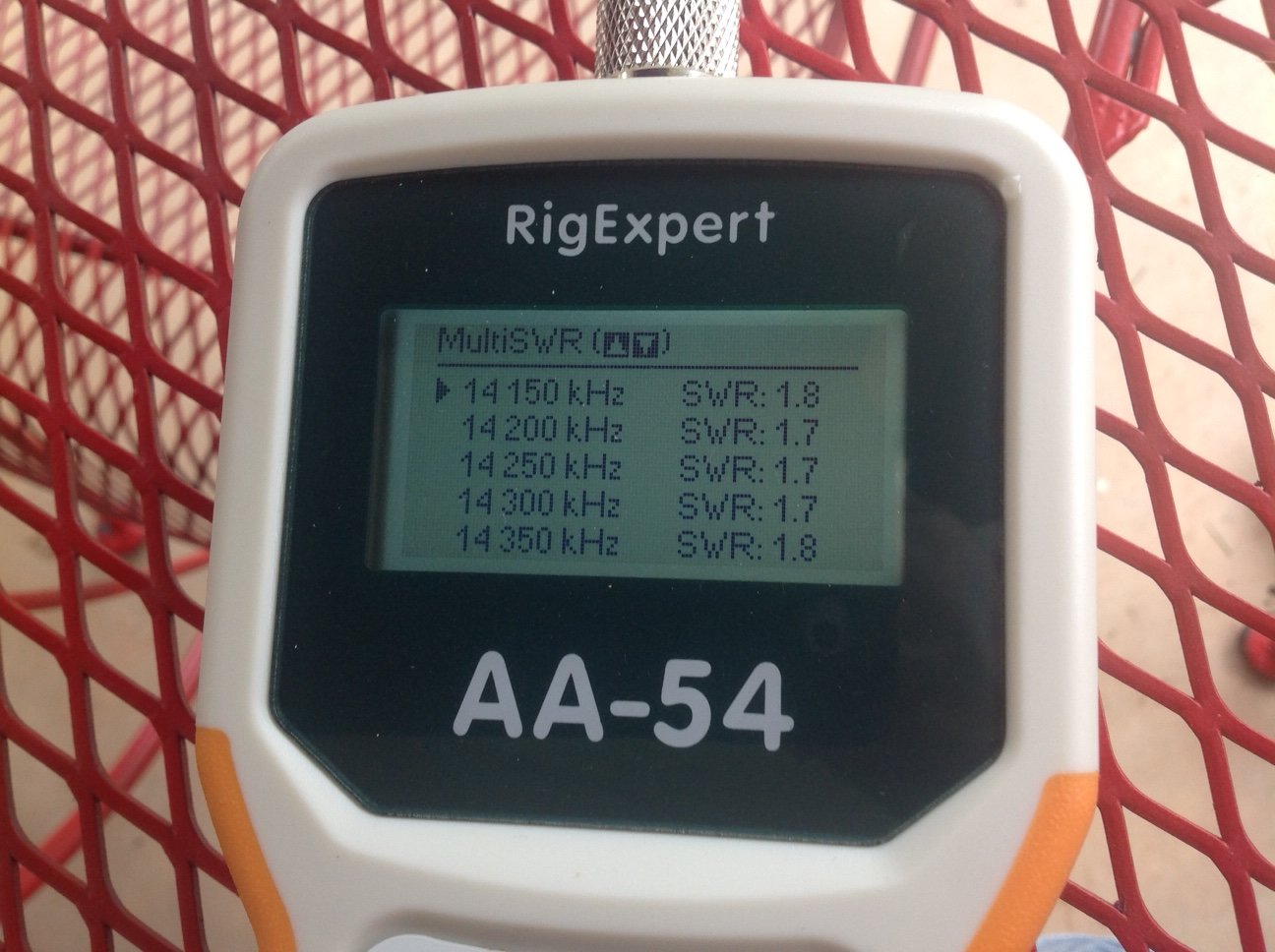

    SWR readings after adjusting the length of the steel whip portion of the antenna.
    These were the best I could get, so I called it good. Experimenting with different radial lengths and increasing their number would likely result in better numbers but I'm happy with these.

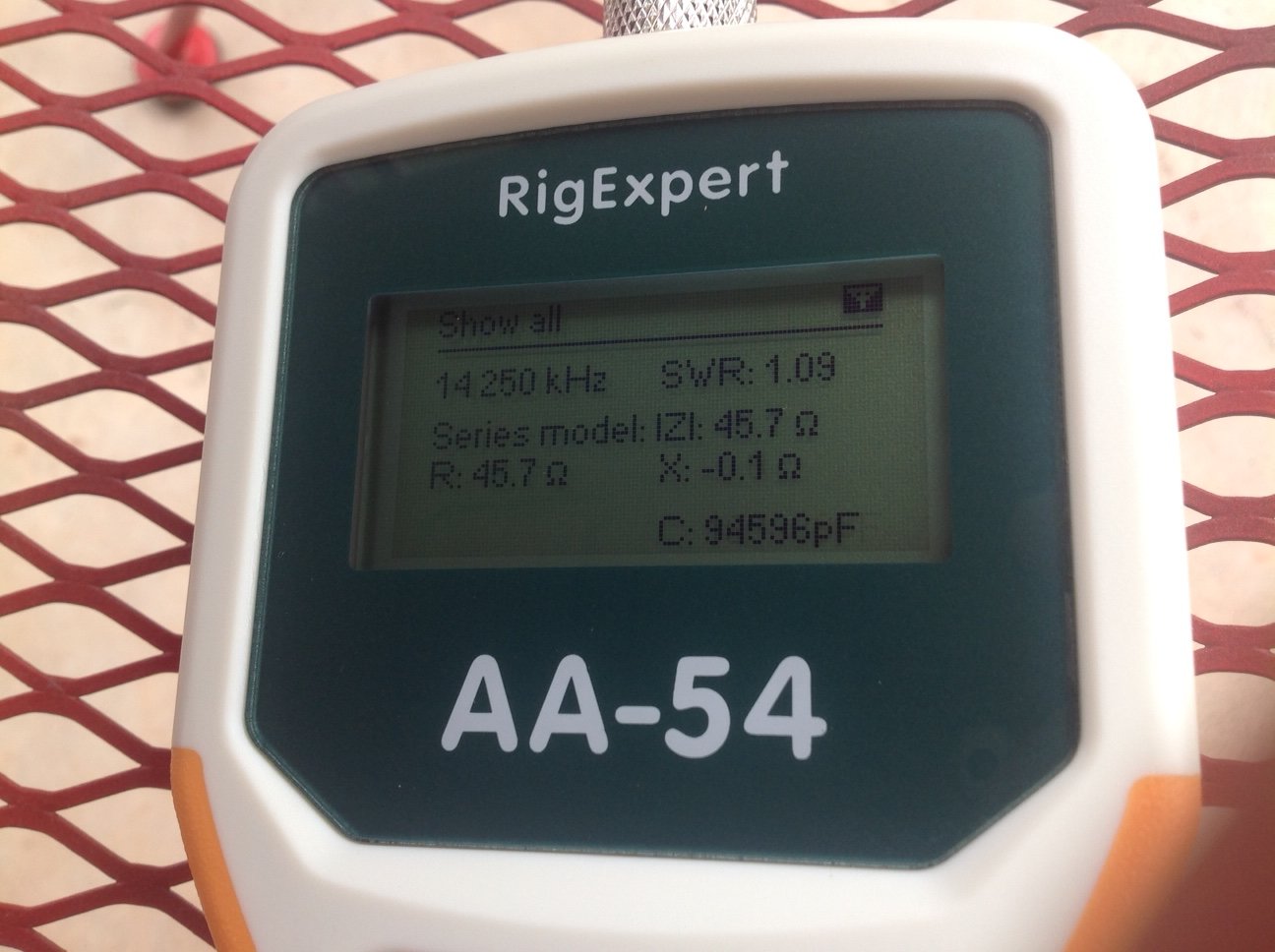

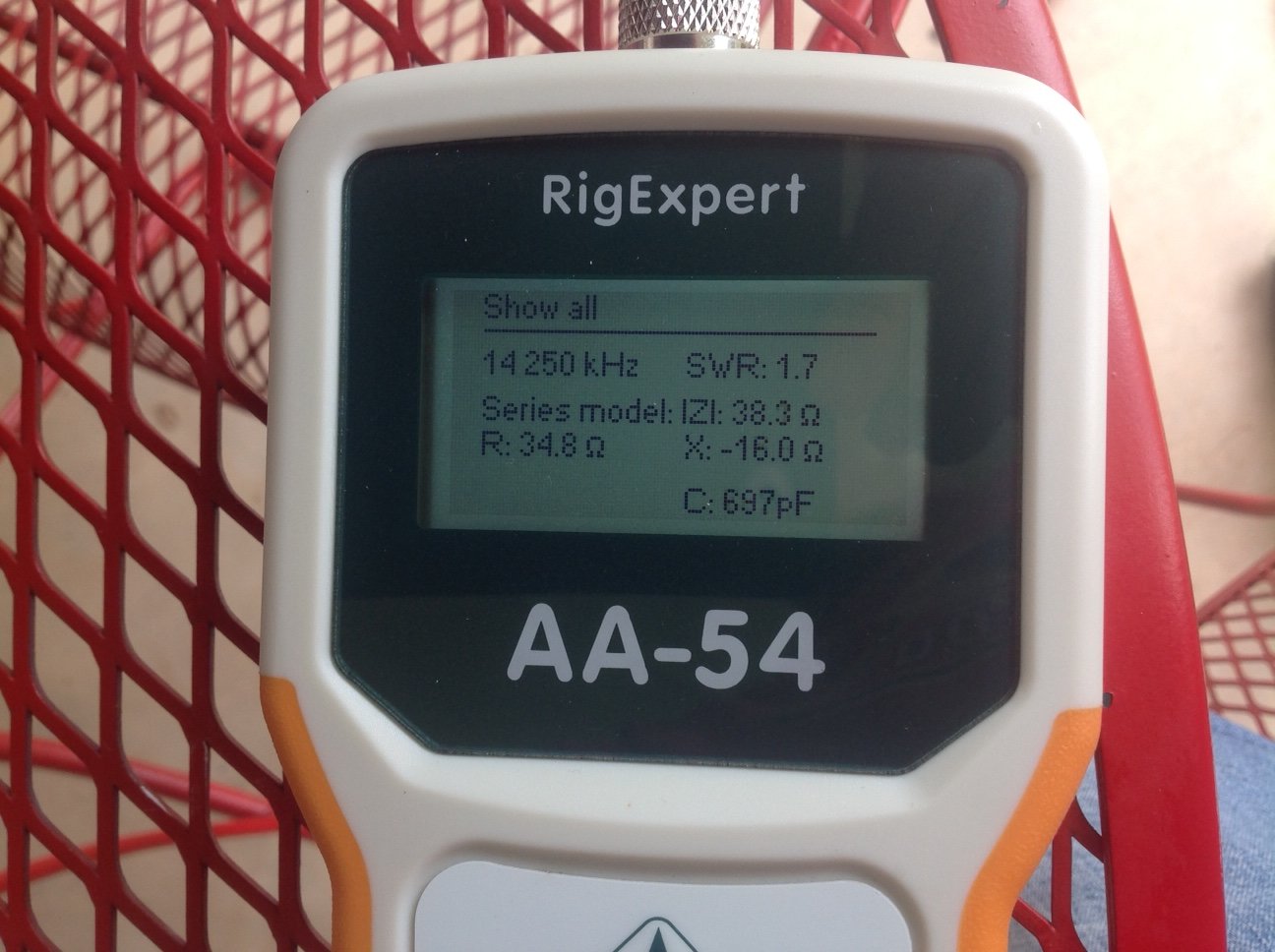

    Impedance, Resistance, and Reactance.
    Not the best numbers in the world. Nor the worst.

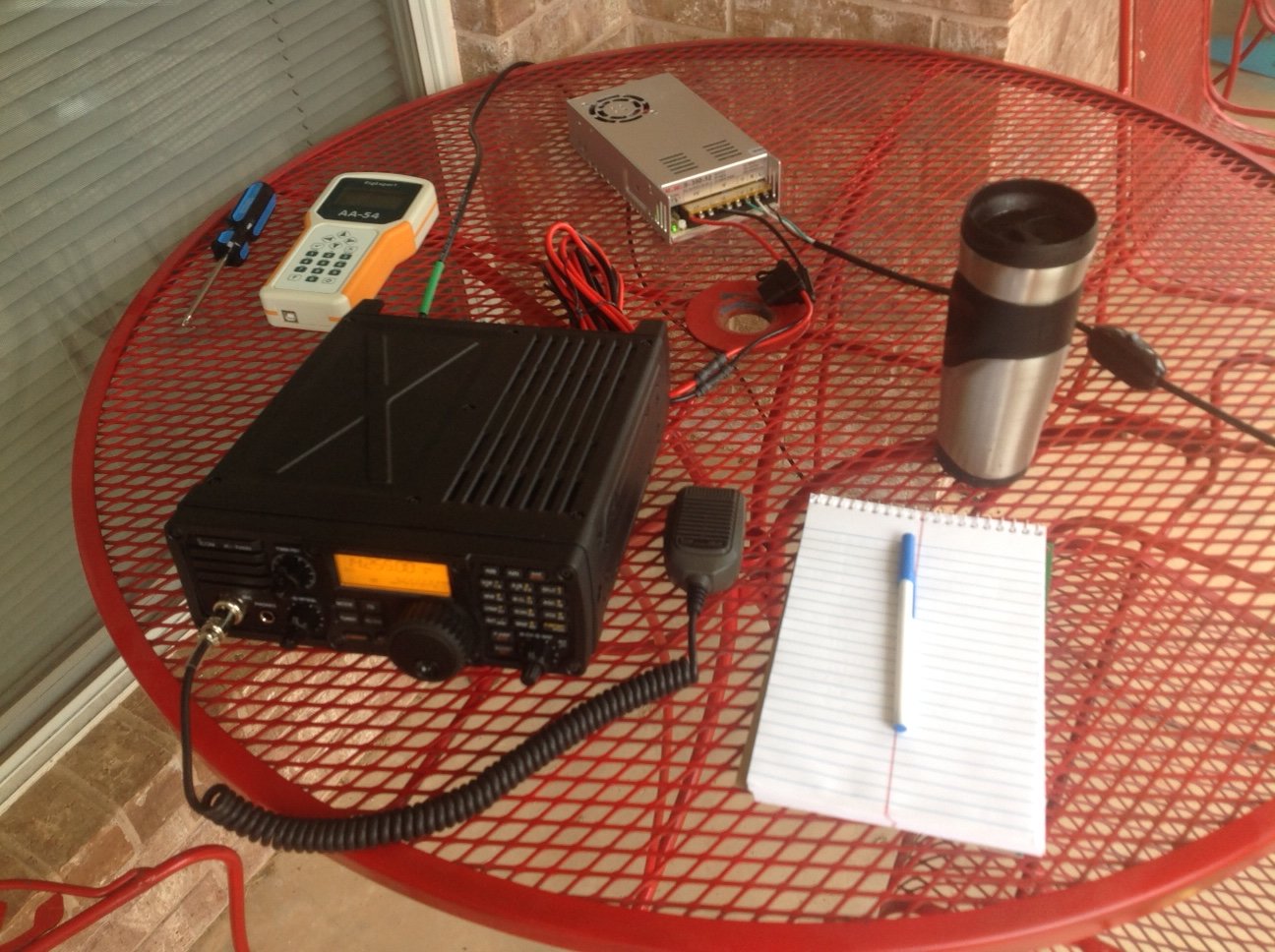

    Patio station.

    Performance:
    Not much activity on 20 meters today but did make one contact to Connecticut (from Texas). Unable to do so QRP. Had to use 50 watts.

    Conclusion:
    It was simple to make. Didn't cost much. Not a worldbeater but it does work. And it was FUN! :D And it's not limited to 20 meters. MFJ makes their 1600T series antennas for all the bands.

    Will this be my go-to base antenna? Nope. Am going to stick with my attic end fed for now. But this antenna will be used when the weather is really nice and I want to get outside to operate. And it will be fun to take camping. (If I can ever get the wife to go.) :ROFLMAO:

    That's all I have for now. Thanks for reading.

    #8 Riverman71, Sep 13, 2018
    Last edited: Sep 13, 2018
    PA770 and Redbeard U812 like this.
  9. Riverman71

    Riverman71 Part-time Member

    Joined:
    Nov 12, 2013
    Messages:
    1,293
    Likes Received:
    673
    After being on this thing for a while, I can tell you 40 meters is the place to be right now.
    S1 noise level (compared to S3-4 on 20 meters) and operators on 40 are BOOMING in across the band like they are right next door. Too bad I can't hit the PTT! :(

    #9 Riverman71, Sep 13, 2018
    Last edited: Sep 13, 2018
    Redbeard U812 likes this.
  10. binrat

    binrat WDX Club Coordinator
    Staff Member

    Joined:
    Nov 5, 2008
    Messages:
    1,984
    Likes Received:
    622
    Try elevating the feed point at 6'-8' with the counterpoise as guides with short lengths of rope on ends. It should bring the swr down some

    Riverman71 likes this.
  11. Riverman71

    Riverman71 Part-time Member

    Joined:
    Nov 12, 2013
    Messages:
    1,293
    Likes Received:
    673
    Thought about doing that with my 12' painter's pole. Ground mounting was just quicker and stealthier.
    Have it put away today as the hot weather has returned.
    Wish fall would hurry and get here! o_O

    #11 Riverman71, Sep 14, 2018
    Last edited: Sep 15, 2018
  12. Riverman71

    Riverman71 Part-time Member

    Joined:
    Nov 12, 2013
    Messages:
    1,293
    Likes Received:
    673
    Here you go, binrat.

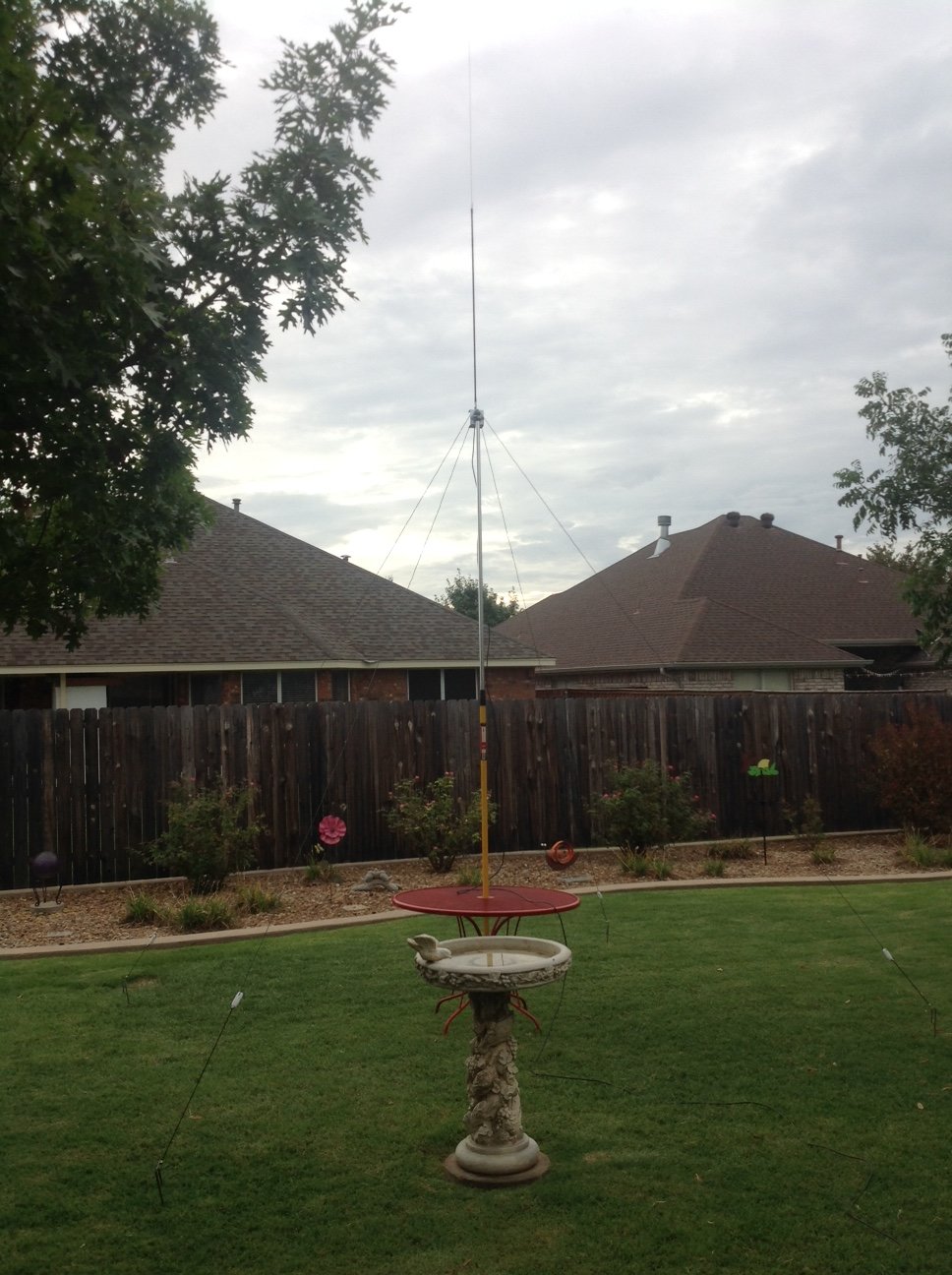

    11.5' high with sloping radials.

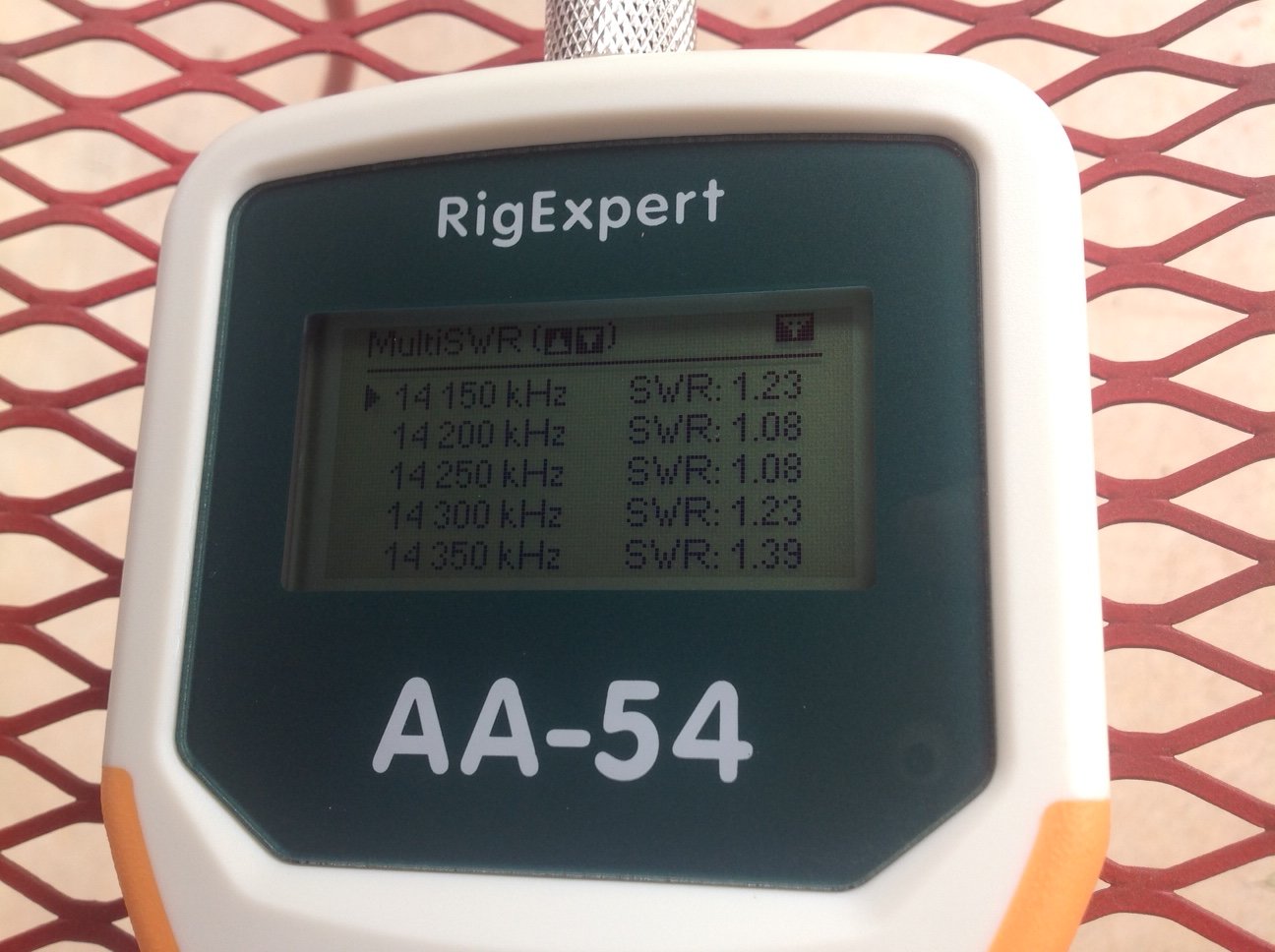

    SWR went down.

    Efficiency greatly improved.

    (y)(y)(y)(y)(y)

    binrat, PA770 and BJ radionut like this.
  13. BJ radionut

    BJ radionut Supporting Member and 6m addict

    Joined:
    May 9, 2008
    Messages:
    1,797
    Likes Received:
    951
    GOOD JOB...have fun with that!...Plus you can run FULL POWER:ROFLMAO::ROFLMAO::ROFLMAO::ROFLMAO:
    Gary

    Riverman71 likes this.
  14. BJ radionut

    BJ radionut Supporting Member and 6m addict

    Joined:
    May 9, 2008
    Messages:
    1,797
    Likes Received:
    951

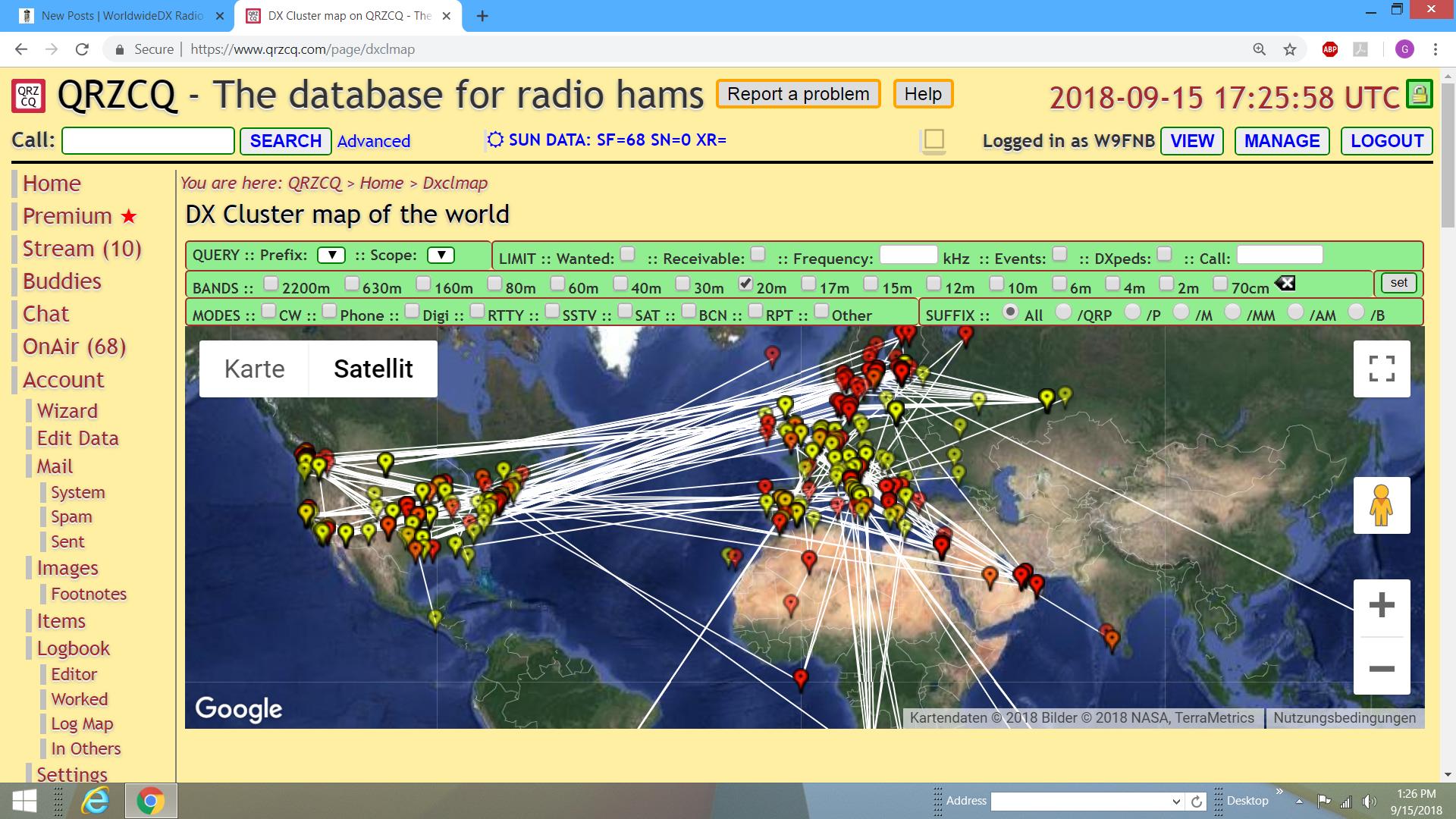

    BY the way 20 meters is OPEN!!!
    All the Best
    Gary

    Riverman71 likes this.
  15. binrat

    binrat WDX Club Coordinator
    Staff Member

    Joined:
    Nov 5, 2008
    Messages:
    1,984
    Likes Received:
    622
    That's where I figured it would be. I think you performance will be better as well. (y)

    Riverman71 likes this.
