Rocketbox info thread !!! Made in the USA with a reasonable pricetag !

Would you like to build you own Rocketbox linear from a kit ??


  • Total voters
    55

WINKDOGG

President CFO & CPFO WorldwideDX Radio
Feb 21, 2011
199
238
53
43
New Jersey
Hello DX land , I contacted Rocketbox to get some info on the amplifiers ! For those who don't know Rocketbox is a one man show building his amps in the USA in Las Vegas . It was hard for me to find info because his only contact info is currently on Facebook only . He had a website but is too busy building these heaters to keep up with it so I offered to post some info here and Im waiting for more pics and info to spread the word !

He sent me a pic of the HD-500 with the hood open and I grabbed some more pics from his Facebook and the web ! I also asked him about selling his amps in kit form but when he did sell kits people kept returning them with fried parts so he stopped . He does use surface mount components so not a project for beginners, but if he puts together a COMPLETE kit with instructions and a build video series (I offered to do the build video series as well help with some step by step instructions) I think lots of us would buy these amps in kit form with no warranty . This way he saves a ton of time and gets more of his amps inline while we save money doing our own builds . The only warranty I would expect is that the parts list be complete and no DOA components , so hopefully he will ship me a kit to build up !! I would really enjoy doing the build and sharing the videos to help others build their own boxes

More pics and info to come as I get it , If anyone has anything they would like info about let me know and I will do my best to answer or ask Rocket for you !

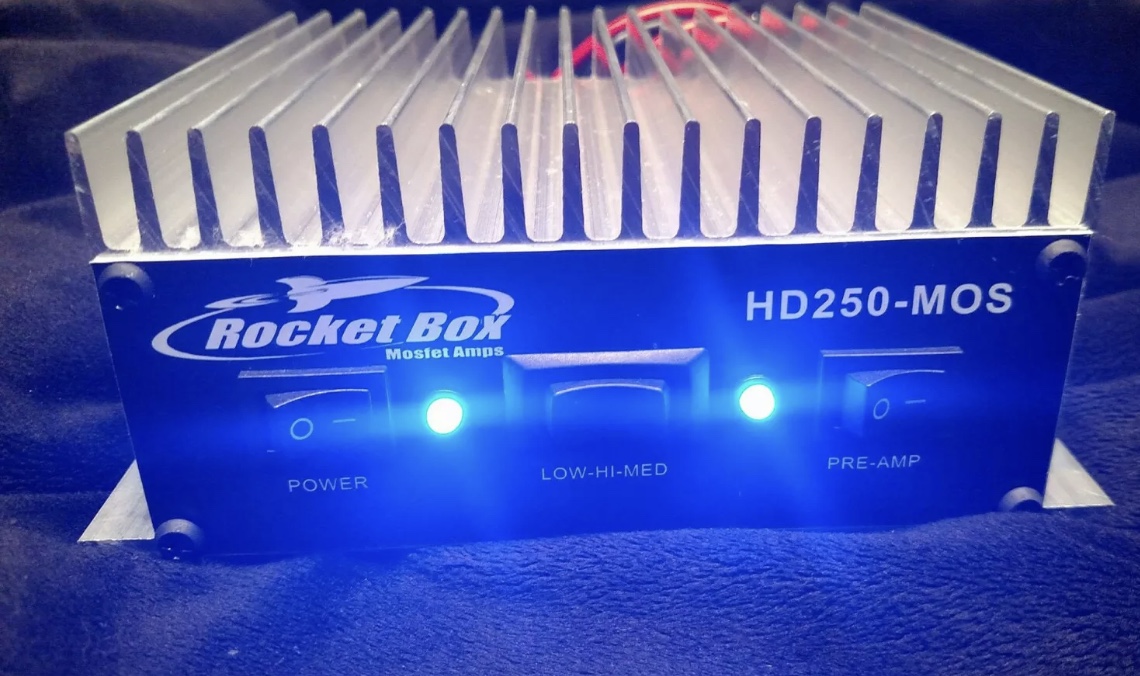

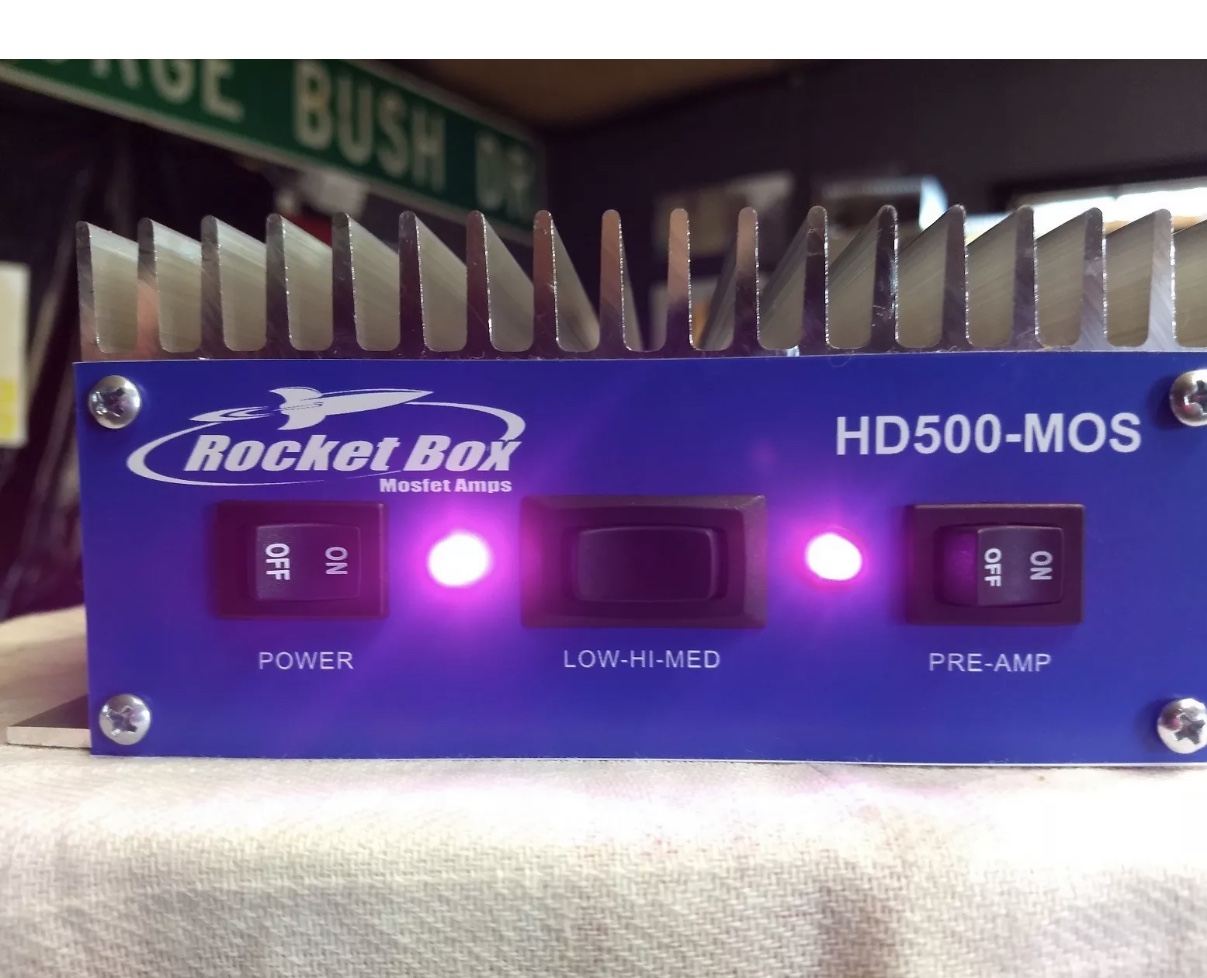

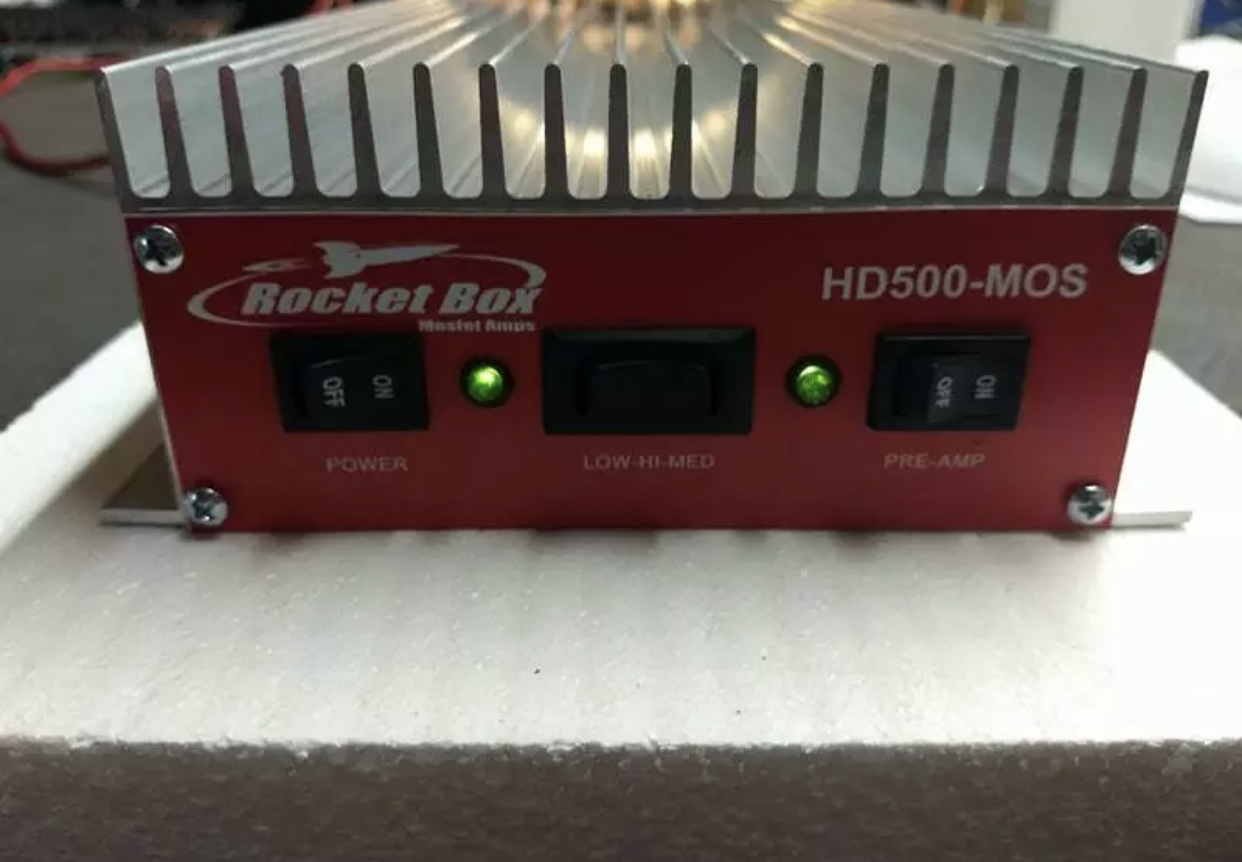

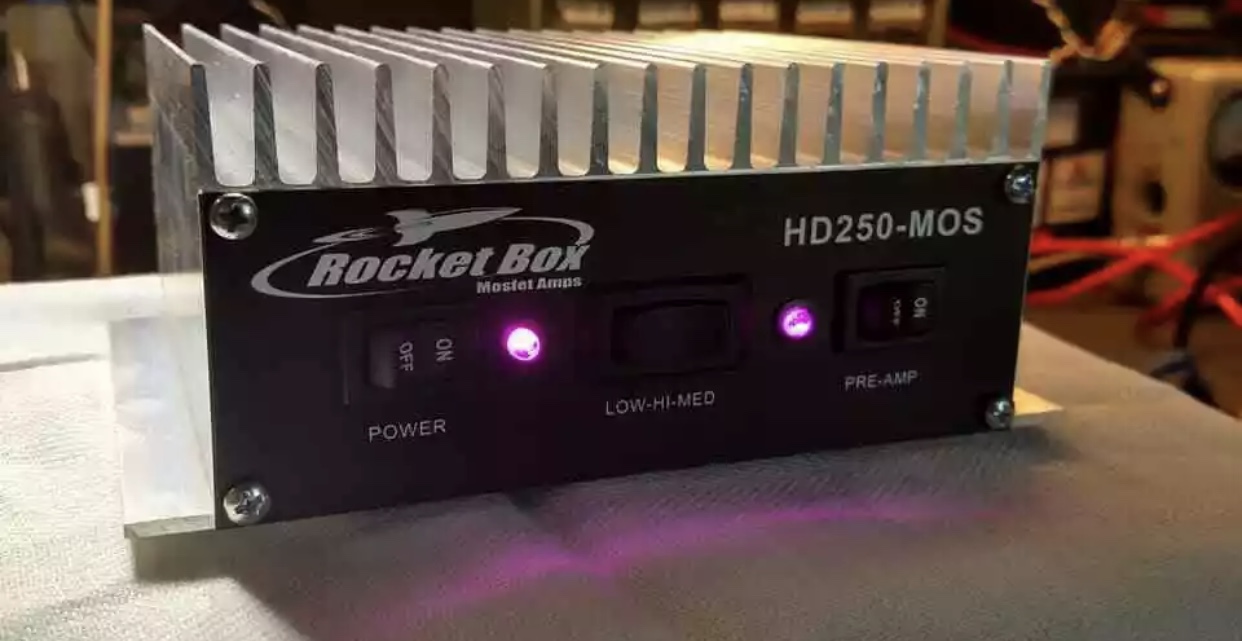

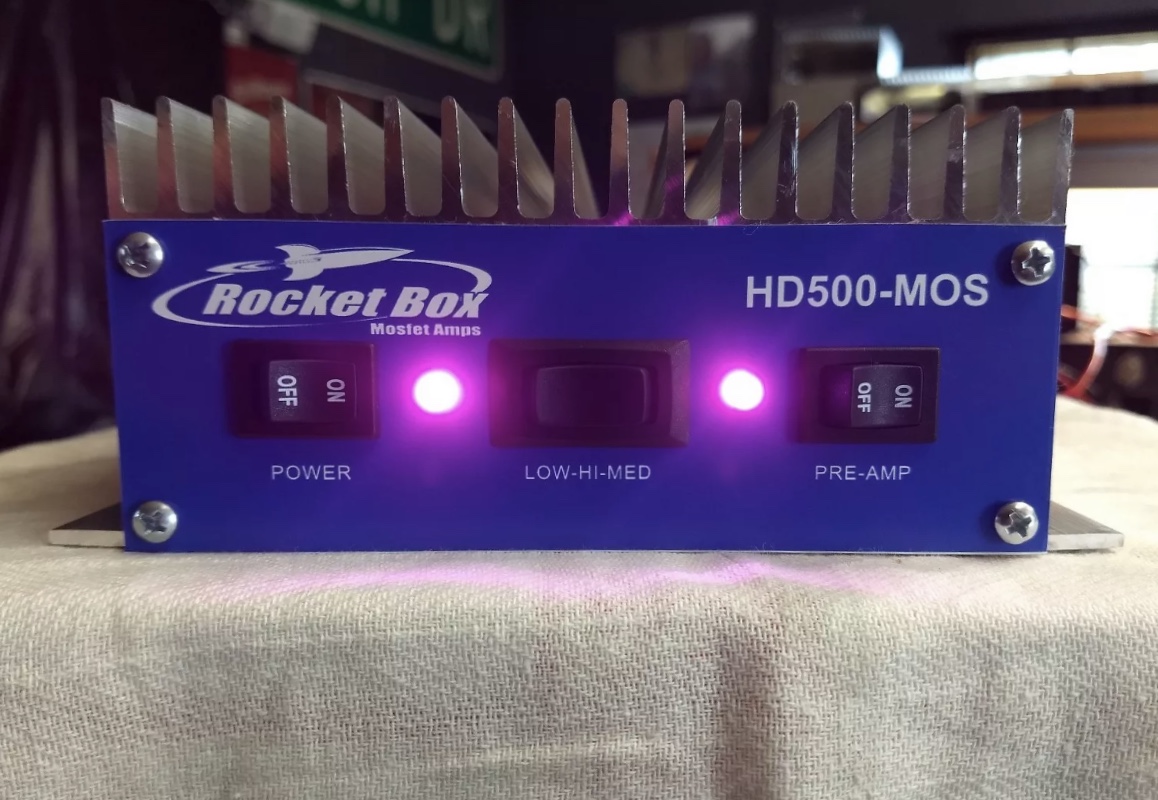

For the record I do not know Rocket or Rocketbox , I just saw the board design for the XL1000 and got interested and I decided to spread the word and get us some more info ! You can buy the 250 and the HD500 right now on eBay . The XL1000 is built and in the final stages of audio tuning so I asked for some internal pics of that too , for now we have a shot of the HD500 with the lid off !!

73's Stay tuned for the latest updates and info , I will keep the thread alive until Rocketbox gets his website back up and running or joins the forum to share on his own .

Thanks , Brian 4-2-Zero in New Jersey

042 - Copy.JPG
050 - Copy.JPG
054 - Copy.JPG
056 - Copy.JPG
058 - Copy.JPG
060 - Copy.JPG
062 - Copy.JPG
064 - Copy.JPG
066 - Copy.JPG


WINKDOGG

President CFO & CPFO WorldwideDX Radio
Feb 21, 2011
199
238
53
43
New Jersey
I would build an amp from a kit...but not one with SMDs.

10-4 I hear you but work with smds isn't as bad as most people think ;) (with good lighting ,a good soldering iron , steady hand and good vision lol)

The smds are actually easier in my opinion if you have a steady hand and a tiny tip on a high wattage iron . I dab flux on the pads and the components will actually stick in that tiny swipe flux and you juts flow solder off the tiny tip and touch it for a second . I love solder work and re-work with full size components too but if you have the right tip and iron take apart an old cell phone and give them a chance the smds will surprise you . I really was worried about ever touching one until I gave it a shot .

73's


WINKDOGG

President CFO & CPFO WorldwideDX Radio
Feb 21, 2011
199
238
53
43
New Jersey

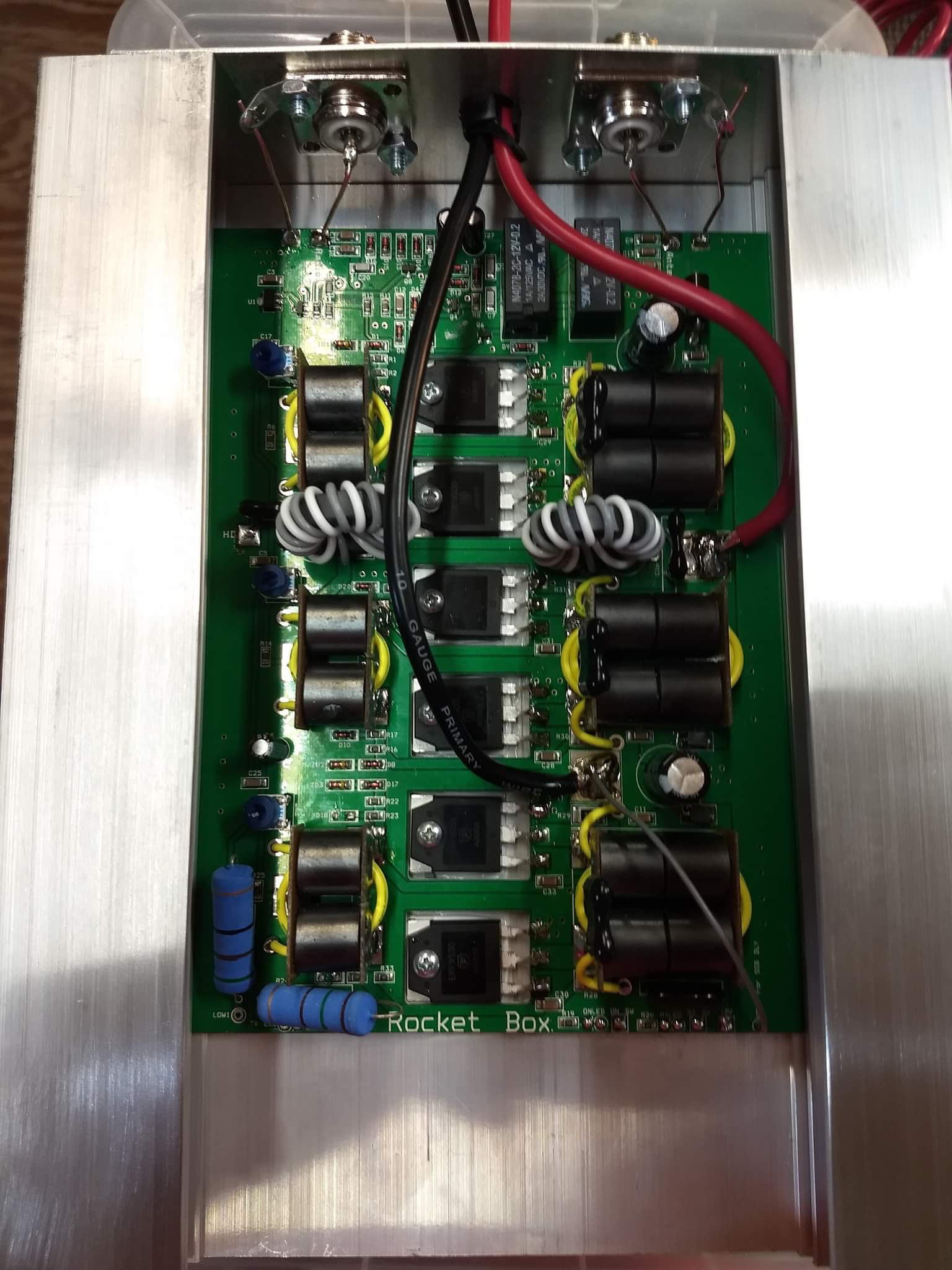

That's the HD-500 (Im ordering this week :)) its a straight 6 high drive !

Let me correct myself !! This is the low drive 2 Driving 4 but its the same board he uses to build the HD-500 he just cuts out the driver stage on the HD . Sorry Im just the middle man here haha I That's the LD500-MOS


WINKDOGG

President CFO & CPFO WorldwideDX Radio
Feb 21, 2011
199
238
53
43
New Jersey
What's the price?


He isn't selling kits right now only built amps but im ordering the HD500 this week to take it for a spin !! Im personally interested in a kit myself so hopefully if I get him some sales he will box me up some kits lol ! I did ask and he has sold them in the past but he had problems with returns . I say mark the board "kit version" and no warranty except no DOA or missing parts ! I have built a few 1 and 2 pill kits but they were really like paint by the numbers and they also don't include a lot of the things you need to actually COMPLETE THE AMP . You need to provide a heatsink , enclosure , switches , relays etc etc so most guys don't have all that laying around (I have a bit of hoarder in me so I do lol ) but the COMPLETE kit would really be great !

Brian


Redbeard U812

WDX-1030 / U812 South Texas
Jul 14, 2018
2,304
3,993
273
He isn't selling kits right now only built amps but im ordering the HD500 this week to take it for a spin !! Im personally interested in a kit myself so hopefully if I get him some sales he will box me up some kits lol ! I did ask and he has sold them in the past but he had problems with returns . I say mark the board "kit version" and no warranty except no DOA or missing parts ! I have built a few 1 and 2 pill kits but they were really like paint by the numbers and they also don't include a lot of the things you need to actually COMPLETE THE AMP . You need to provide a heatsink , enclosure , switches , relays etc etc so most guys don't have all that laying around (I have a bit of hoarder in me so I do lol ) but the COMPLETE kit would really be great !

Brian
Wink,

Read all that in the other thread....how much for the completed linear? I'm interested. I just refuse to Fakebook ever since being blackballed by those liberal fascist freaks for my American Conservative Constitutional views.

How much for a built 500?


WINKDOGG

President CFO & CPFO WorldwideDX Radio
Feb 21, 2011
199
238
53
43
New Jersey
Wink,

Read all that in the other thread....how much for the completed linear? I'm interested. I just refuse to Fakebook ever since being blackballed by those liberal fascist freaks for my American Conservative Constitutional views.

How much for a built 500?


Yeah I find Facebook an absolutely horrible part of my life but it actually a big part of my business and the band that I manage for my buddy .Am evil necessity for me it sucks !

But anyway sorry lol

the 2x4 Is $439 the straight 4 is only $359 I prefer to run my own 2 pill driver so that's how im going .

Brian


WINKDOGG

President CFO & CPFO WorldwideDX Radio
Feb 21, 2011
199
238
53
43
New Jersey
WD... sounds like a dealer... Shouldn't this thread be in the for sale section?


Straight up buddy Im just an interested party . I will be paying full price like everybody else . Rocket is trying to logon but cant verify email for some reason .I just reached out to him and started talking to him .

Sorry , Brian
