Rooster-Made 3-500z Project

Discussion in 'Home Brew' started by paws264, Dec 14, 2009.

  1. Shockwave

    Shockwave Sr. Member

    Joined:
    Sep 19, 2009
    Messages:
    3,709
    Likes Received:
    3,018
    I would install a proper anode cap on that 3-500Z to prevent damage to the metal to glass seal. The finned cap will remove excess heat. Without the cap, excessive expansion and contraction of this connection can fracture the glass seal.




  2. Bionic Chicken

    Bionic Chicken Active Member

    Joined:
    Jun 6, 2008
    Messages:
    391
    Likes Received:
    26
    100% correct. I missed that the first time I looked at it.

  3. paws264

    paws264 Active Member

    Joined:
    Apr 6, 2005
    Messages:
    647
    Likes Received:
    4
    I think that he's going to recess the tube socket 1/4 inch or so and pressurise the bottom, he's also machinening a aluminum heat sink plate cap. There will also be fan fed cooling on top directed towards the glass tube. Glass Chimney could be in future.

    He has access to "The Feeding And Care Of Power Grid Tubes".

    .

  4. paws264

    paws264 Active Member

    Joined:
    Apr 6, 2005
    Messages:
    647
    Likes Received:
    4

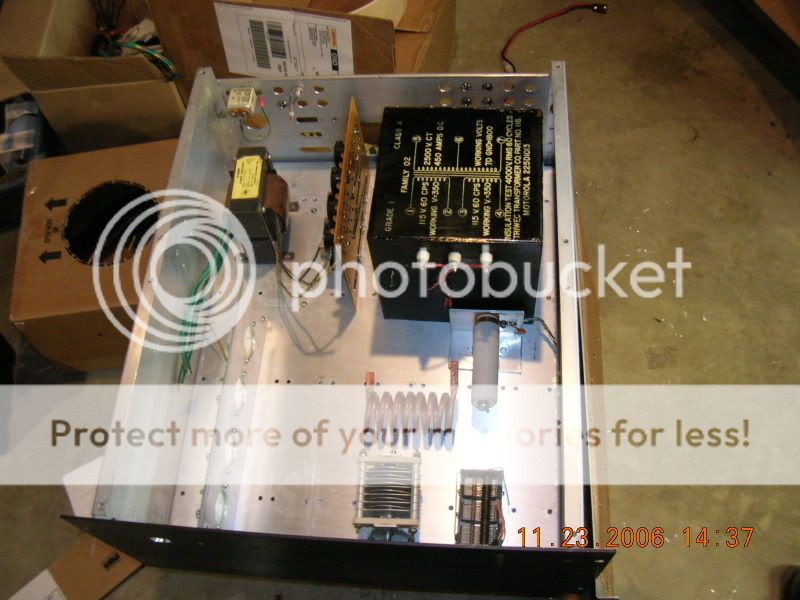

    B+ Supply transformer is 2500 VAC @450 ma CCS

    [​IMG]

    .

  5. Bionic Chicken

    Bionic Chicken Active Member

    Joined:
    Jun 6, 2008
    Messages:
    391
    Likes Received:
    26
    Speaking of the chimney, and I'm sure you have done or seen this done. Instead of shelling out $45 for a new chimney, you can use a Coleman lantern globe which sell for less than $10. You can also fabricate the clips without very much effort. Short pieces of spring steel work great!!! Anyway to save a dollar.(y)

  6. CDX-007

    CDX-007 Transducer Fanatic

    Joined:
    Jan 26, 2006
    Messages:
    706
    Likes Received:
    16
    The nice thing about a real chimney is the way it uses a curved shoulder in the top to direct the flow of air past the anode cap for better anode cooling.

    That is one perfect transformer.
    I have one from a laser supply, toroidal, and 1300w @ 2828v.

    I'm looking at a single 4-400C amp in as small a package as possible, and monobanded for 10m, of course!

    Was that coil wound on a 2" former?

  7. Lazybones1222

    Lazybones1222 W9WDX Amateur Radio Club Member

    Joined:
    Apr 6, 2005
    Messages:
    948
    Likes Received:
    18
    I would love to build something like that for 80 meters. What plans are being followed? Will it have a bandswitch or is it a "one bander"?

  8. linearone

    linearone King of NY

    Joined:
    Apr 2, 2005
    Messages:
    615
    Likes Received:
    7
    did this amp ever get completed?

  9. linearone

    linearone King of NY

    Joined:
    Apr 2, 2005
    Messages:
    615
    Likes Received:
    7
    breaka for an update?

  10. paws264

    paws264 Active Member

    Joined:
    Apr 6, 2005
    Messages:
    647
    Likes Received:
    4
    He runs hot and cold.....

    I've almost begged him to let me test / finish the RF Deck. Still waiting...

    .

  11. rockinredsrooster

    Joined:
    Apr 24, 2005
    Messages:
    18
    Likes Received:
    0
    Been smoozing the wife for some counter space......Greg it's in the same condition as photographed over a year ago.....I'll have to go hunting parts again because who knows where i put everything.
    Been tinkering with a lot with HiFi audio amps lately, winter is coming soon enough...

    Rooster

  12. rockinredsrooster

    Joined:
    Apr 24, 2005
    Messages:
    18
    Likes Received:
    0
    Paws, I've almost let you take it - you know me though, all over the place!

  13. rockinredsrooster

    Joined:
    Apr 24, 2005
    Messages:
    18
    Likes Received:
    0
    Paws, you just reminded me about the 4 transistor I built over a year ago, I've never key it up or even applied power - it's somewhere under my desk!
    I did get that Carver M500t audio amp figured out this week, I've gotta recap it yet. Just hope I don't loose it under my desk before getting new caps!

  14. ElectronTubesRule

    ElectronTubesRule Active Member

    Joined:
    Sep 6, 2011
    Messages:
    257
    Likes Received:
    15
    I like this thread because it is about doing instead of just buying something pre-made.

    I would not get too nit-picky. A lot of Amateurs want and expect too much in a homebrew project. I have seen it a lot and itis almost comical. They poke holes in everything and attack things but you never see them do anything themselves. Many of them want all kinds of things that a person in their basement is just not going to be able to do or have the desire to do.

    What really kills me is that some of the most popular amplifiers on Ebay built by or designed by the likes of Heathkit, Dentron,Drake insert name here would not measure up to most of the Amateur Worlds standards if you held them to the standards that people keep wanting to hold home-brew projects too then all of these other units like wise do not or can not measure up.

    In fact most if not all of the Heathkits do not use Chimneys just a little fan inside the case. Dentron did the same thing.Just saying not everything needs to be built like the Quadra System!
