Siltronics LA-550 " keying relay issues"

Danzik said:

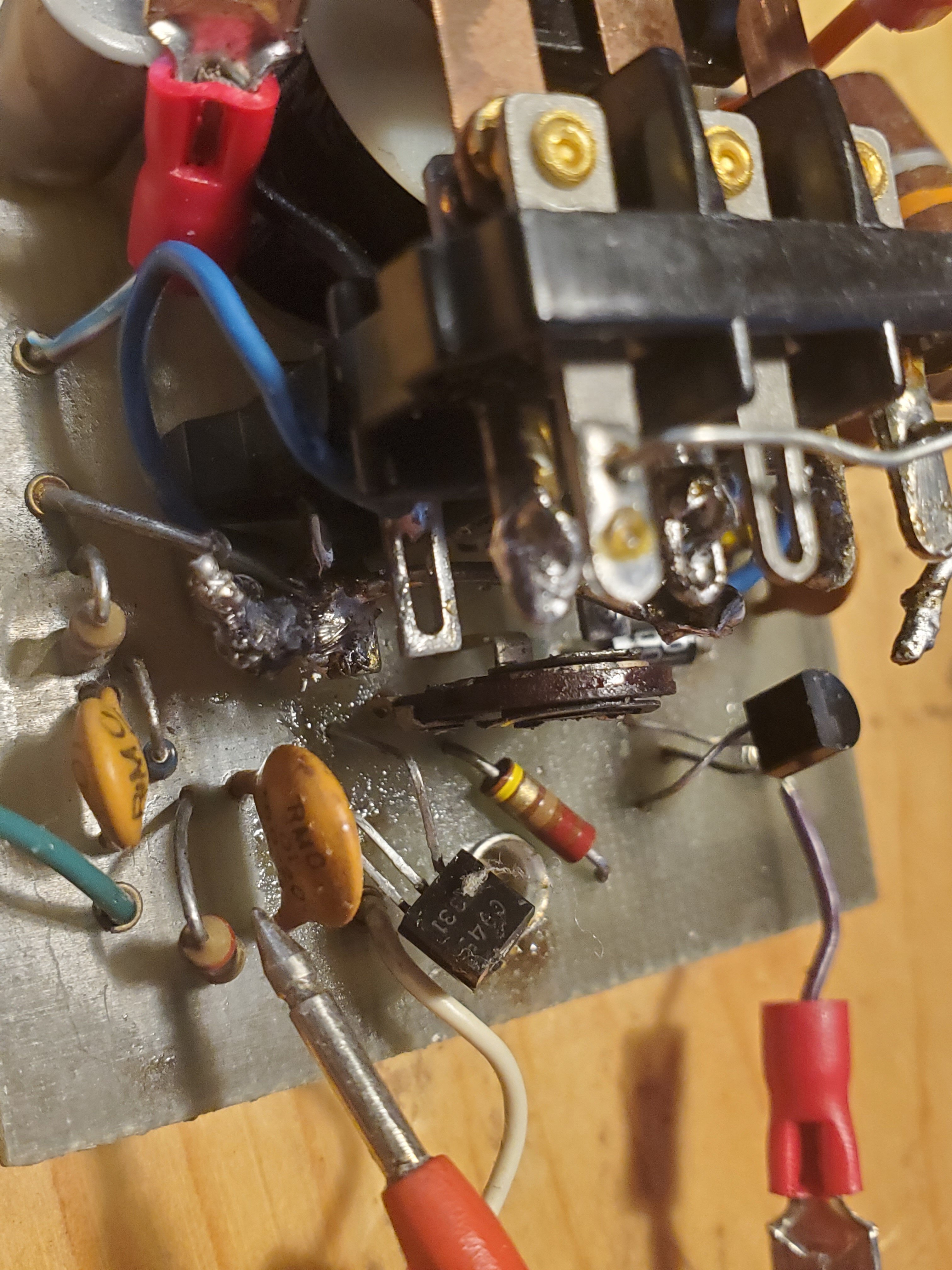

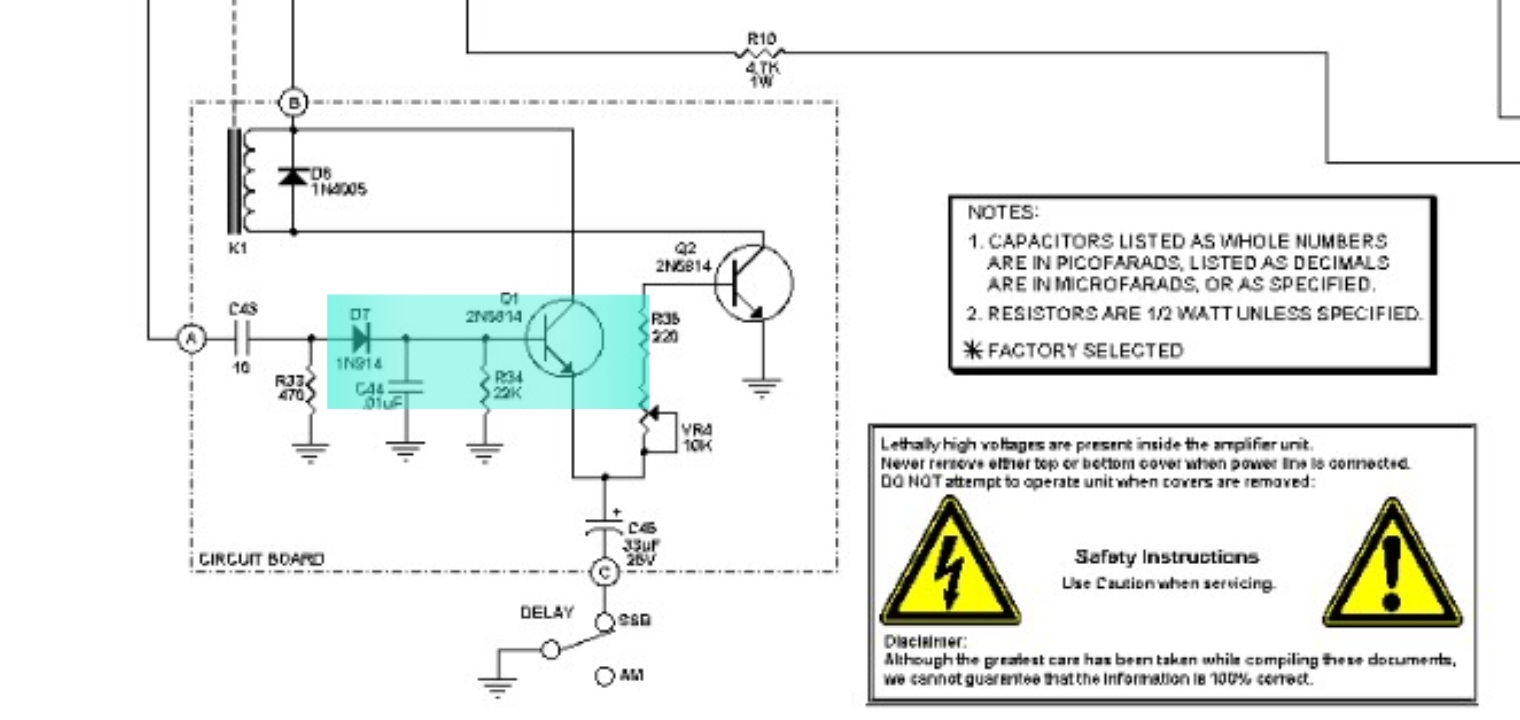

Hi, I don't know if I discovered anything big or not but these components look as if they are installed backwards, schematic show from the base terminal of that transistor a resistor next, then the capacitor but what I actually have is the transistor, a capacitor, then a resistor! Does this matter did someone work on this and put it in backwards? View attachment 61100View attachment 61101
Click to expand...
Nevermind, since they are all soldered together it shouldn't matter anyways I bet

SuperLid said:
I am still betting on the transistors.
Click to expand...
You were absolutely correct as it is now fixed that schematic earlier that had the cap and resistor backwards fooled me and I got the base and emitter backwards , I looked and looked
