XForce 1KW supply voltage.​

img_8426-jpeg.69495

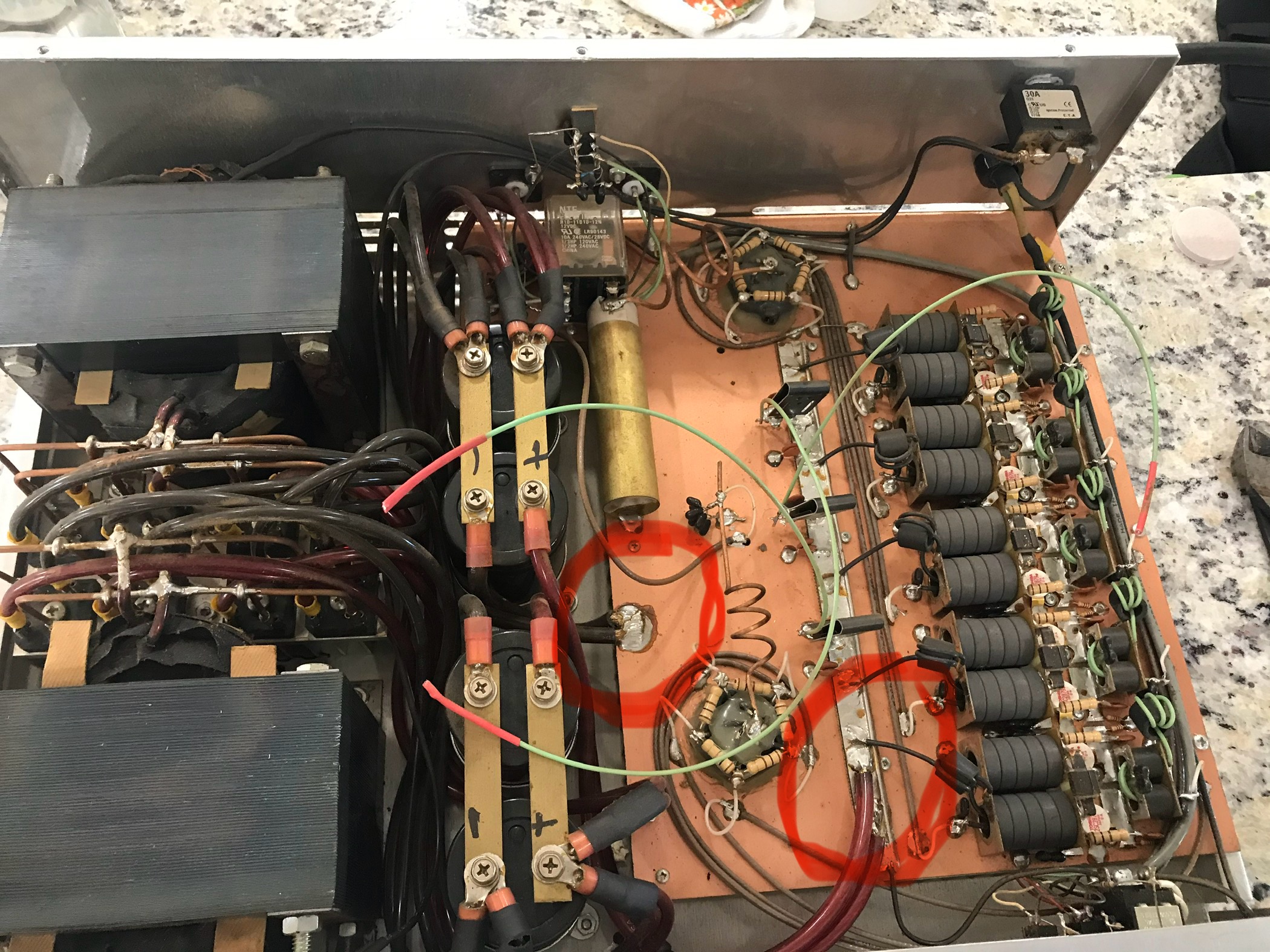

This is gonna be a dumb question but I’m very novice when it comes to amplifiers. Should this be around 13.8 VDC. At the points I circled? Feel free to add other members.


Copied from direct message to me...


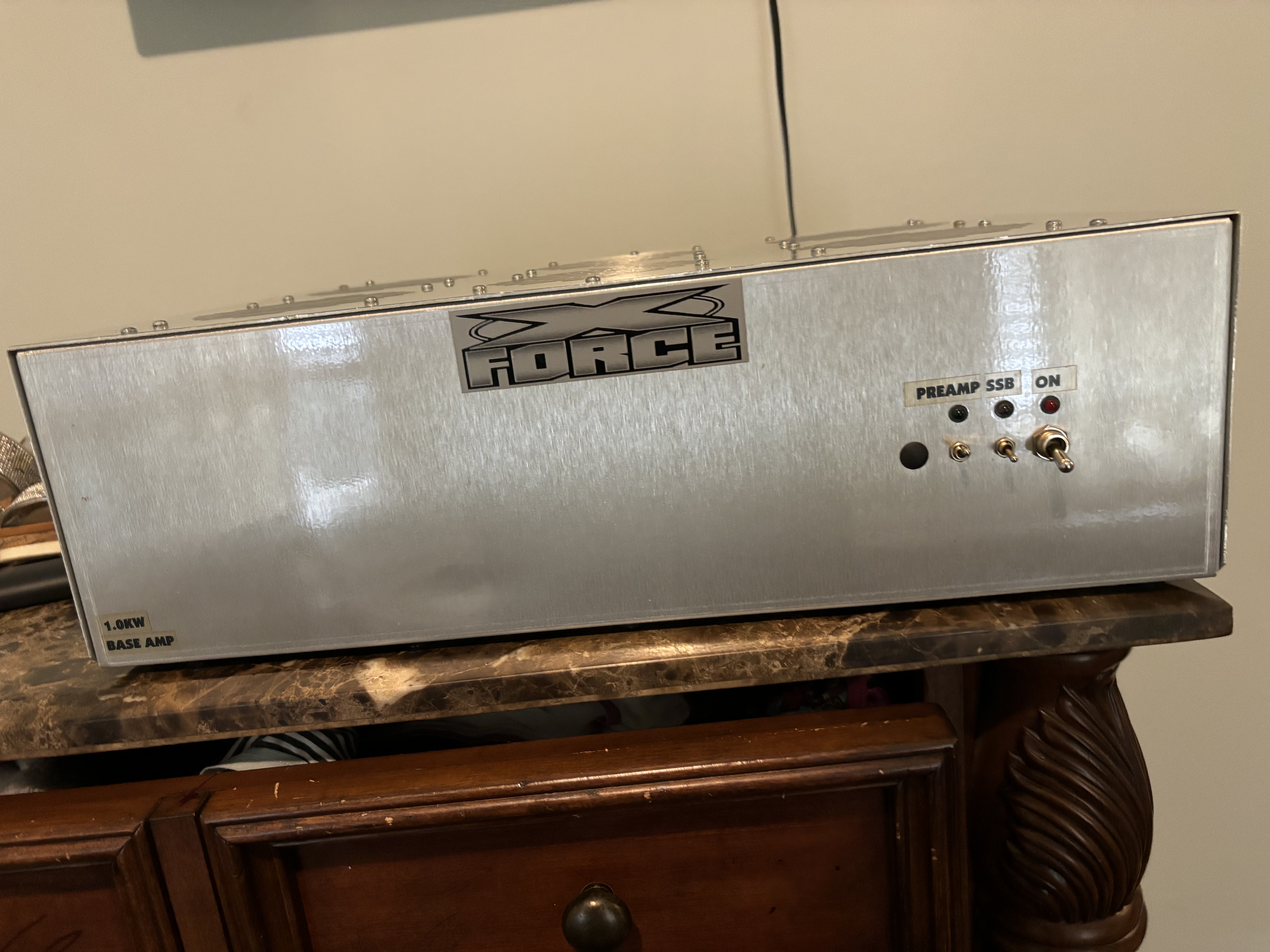

Hope attaching the photos clears the photos. The 3 transistors that turn the fans on smoked as soon as it powered on. Just need to figure out what power is supposed to be on the the main power bar. I think it’s set up like a mobile amplifier with a power supply added.
Thanks again.

Might be as high as 16 or 18 volts because it is an unregulated power supply. When keyed, the voltage should sag to 13 or 14 volts depending on the load. Is it wired for 120v or 240v? I don't think it got 120v to the main board, because it would have launched the big capacitors with the bus bars on them. Maybe it's wired 120v and you have it plugged into 240v?

By the way, what voltage do you see measuring at those points?

It is wired 110vac. I will have desolder the wires from the buss bar to test. I’m scared I’ll pop something else. Looks like it’s using two separate transformers on individual setup. I plan on removing the wires and testing the voltage on them later tonight. Just needed to know what I should be seeing.


XForce 1KW supply voltage.​

img_8426-jpeg.69495

This is gonna be a dumb question but I’m very novice when it comes to amplifiers. Should this be around 13.8 VDC. At the points I circled? Feel free to add other members.


Copied from direct message to me...
They used to float at 18-20 and drop to 14-16

I did continuity test across ground to buss bar while the wires were disconnected. Their common so I have a short somewhere. Going to start removing components one at a time until I find the short. Thanks for your advice.
