By pass a driver circuit palomar 600

BandidoP.R.

Active Member
Dec 12, 2018
3
0
31
44
73 , I want to hi drive my palomar 600 but its low drive.. I need how to bypass the driver circuit to convert to straig 4


Attachments

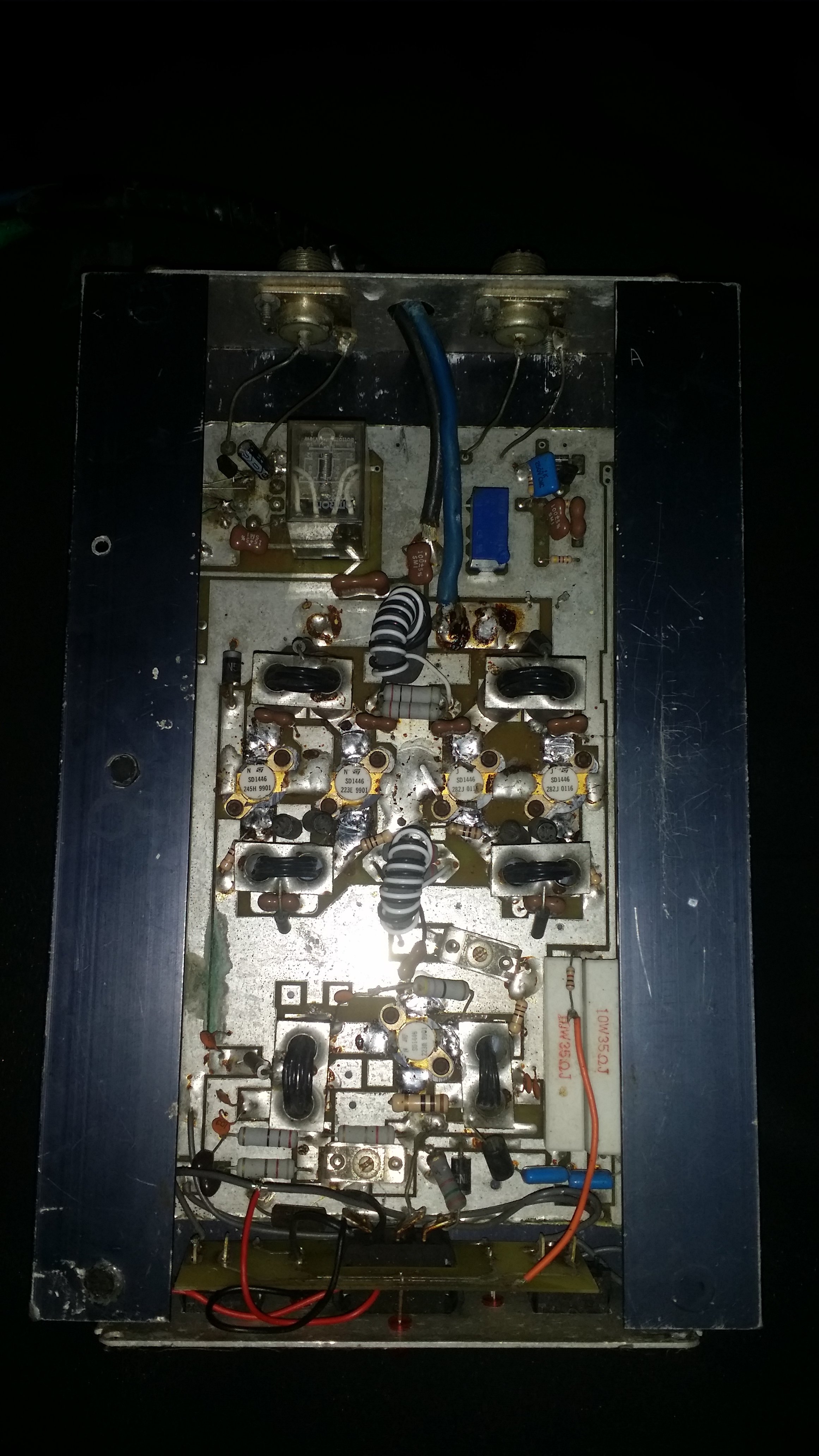

  • 20181222_021858.jpg
    1,011.4 KB · Views: 181

Normally this is a simple process however, most of the connections we need to get at in this amplifier are on the bottom of the circuit board and out of view.

They make a straight 4 pill version of that amp but it's still really not a true HD amp. That is case with many cb style amplifiers, they stamp HD and High Drive on there because they know it will sell better that way.

You will have to find someone that does good work on amplifiers. Once they dis-connect the driver stage they will have to add some padding (swamping resistors) to eat up some carrier and peak wattage. In the end I guess you could then call it an HD amp. It won't perform any better and will run hot. Is it really worth the trouble ? That's up to you, it's your amp.

it can be done, trace the circuit and lift the resistor that goes to the hi/med/low switch and then reroute the rf it to the input of the four final transistors, you will need to design/build an input tune circuit to get the impedance matched. small variable trimmer cap will work.
Any tech should be able to do it without lifting the board.
Keep in mind this does not make it a high drive, you still need to pad the input.
Think I gave a brief answer 14 hour shift at work and typing with half a brain here.
