Cactus Super J-Pole Project

Discussion in 'Amateur Radio Antennas' started by Peter Walker, Apr 7, 2011.

  1. Peter Walker

    Peter Walker W9WDX Amateur Radio Club Member

    Joined:
    Feb 23, 2011
    Messages:
    119
    Likes Received:
    0

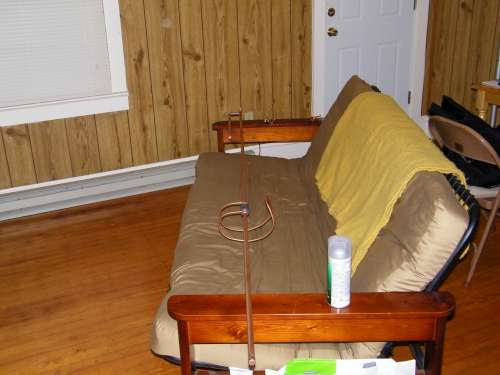

    I would like to submit the following as my contest entry. For now I have created a pdf file with notes and some instruction on what I did to make the Cactus Super J-Pole. As soon as I get it all completed and operating I will add more pictures. Below is two pictures of the main antenna ready for Clear Lacquer Finish and then Final Assembly.



    The Antenna is a Cactus Super J-Pole for use on 2 Meter and 70cm. I will post how it works once I get it operational in the next few days.

    The PDF can be downloaded here


    Attached Files:


  2. HomerBB

    HomerBB Sr. Member

    Joined:
    Jan 4, 2009
    Messages:
    3,785
    Likes Received:
    2,180
    It looks great. Get it in the air and let us know how it works out.

  3. ONAWHIM

    ONAWHIM Active Member

    Joined:
    Jan 12, 2011
    Messages:
    180
    Likes Received:
    41
    .

    Peter,
    I nominate you as the one with the most enthusiasm!

    .

  4. Captain Kilowatt

    Captain Kilowatt Professional Amateur
    Staff Member

    Joined:
    Apr 6, 2005
    Messages:
    16,625
    Likes Received:
    10,432
    The Super J-pole or extended J-pole or whatever the name is works fairly well. I built one several years ago using 3/4 inch copper for the bottom and 1/2 inch for the top 1/2 wave section. I was surprised it tuned so well. I could see a slight difference over a vertical 1/2 wave dipole so it does have some gain. Your project looks good but it will look better up in the air. (y)

  5. NorthStar

    NorthStar Administrator

    Joined:
    Mar 21, 2005
    Messages:
    1,369
    Likes Received:
    45
    Tried downloading the PDF but it just times out??

  6. 74IN

    74IN Well-Known Member

    Joined:
    Feb 17, 2003
    Messages:
    1,834
    Likes Received:
    65
  7. Kamikaze

    Kamikaze Active Member

    Joined:
    Dec 27, 2010
    Messages:
    318
    Likes Received:
    8
    Nice work!

  8. Moleculo

    Moleculo Administrator
    Staff Member

    Joined:
    Apr 14, 2002
    Messages:
    8,907
    Likes Received:
    1,079
    Looks good! I renamed the thread to help people find information about this antenna.
