Dave Made straight 4

Discussion in 'Amplifiers' started by TIN_CAN, Mar 19, 2021.

  1. TIN_CAN

    TIN_CAN Sr. Member

    Joined:
    Nov 23, 2011
    Messages:
    465
    Likes Received:
    586

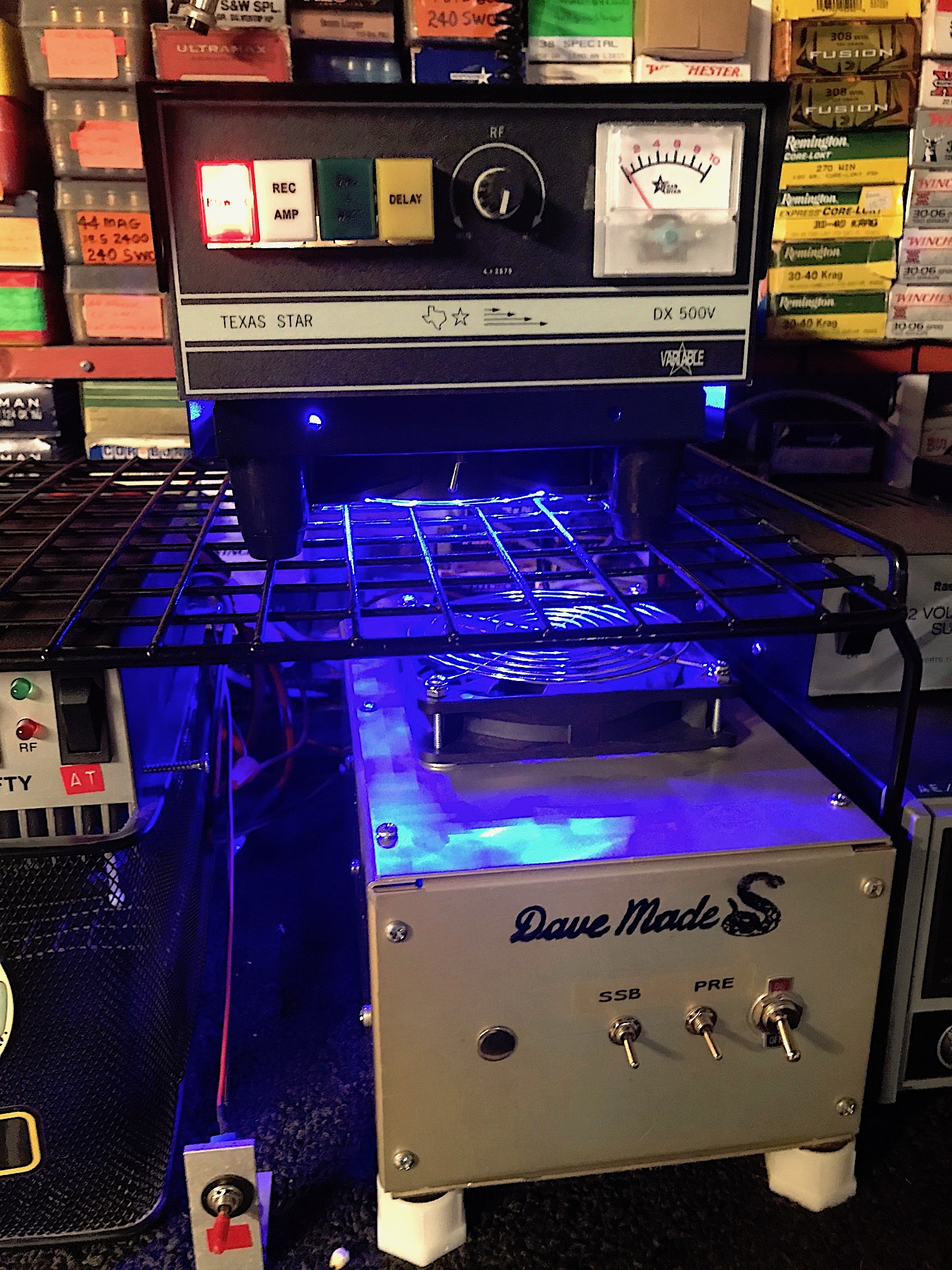

    I picked up a Dave Made 4 pill, looks to be an older one by looking at the front of it, in good physical condition with original Toshiba 2879's. But from what I have found online is that DM amps were class C only, but this looks to be set up for ssb? anyone confirm this. Even has a blue pimped out fan that is really quiet. Was planning to drive this with around 50W pep and run it in my f150.

    Cheers!

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG] [​IMG]



    Shadetree Mechanic likes this.

  2. 9C1Driver

    9C1Driver Sr. Member

    Joined:
    Aug 13, 2008
    Messages:
    3,531
    Likes Received:
    1,384
    It's probably still class C, they just added a SSB delay or someone did anyway. It will still sound rough on SSB.

    TIN_CAN likes this.
  3. DoctorAudio

    DoctorAudio Active Member

    Joined:
    Sep 11, 2009
    Messages:
    97
    Likes Received:
    146

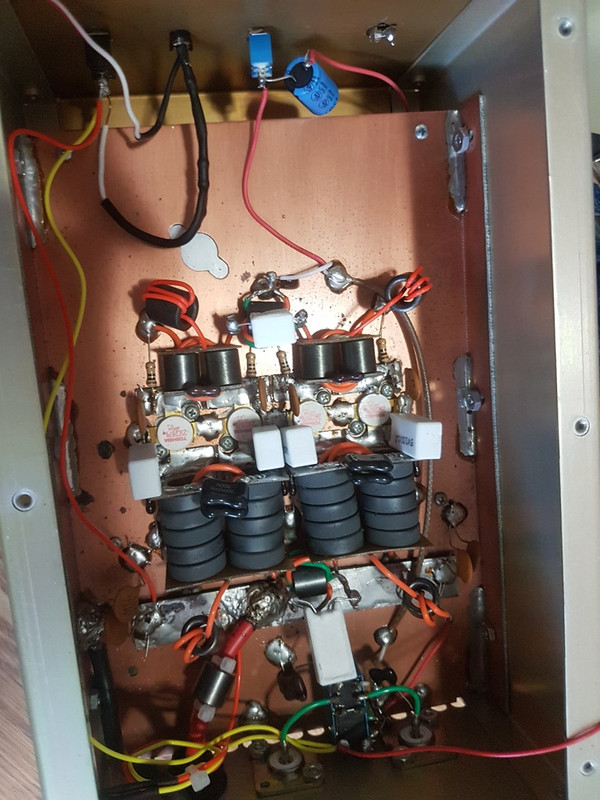

    Might want to take the wirewound resistors off of the splitter/combiner and feedback and replace them with metal film. Inductive resistors here are a no-no.
    It is still class C.

  4. TIN_CAN

    TIN_CAN Sr. Member

    Joined:
    Nov 23, 2011
    Messages:
    465
    Likes Received:
    586
    Thanks, just confirms what I thought ...that its still a class C amp.

  5. nomadradio

    nomadradio Analog Retentive

    Joined:
    Apr 3, 2005
    Messages:
    4,700
    Likes Received:
    6,216
    Consider that adding bias for sideband may also lead to stability trouble.

    Might, might not. But this amplifier has one design goal: max wattmeter reading.

    Stability is not high on the priority list.

    Then again, it you mod it for sideband bias and it gets squirrelly you can always unhook that stuff and put it back to class C.

    73

    AudioShockwav likes this.
  6. TIN_CAN

    TIN_CAN Sr. Member

    Joined:
    Nov 23, 2011
    Messages:
    465
    Likes Received:
    586
    Thanks Nomad I planned on using this with a ssb radio but if it sounds to much like crap on air it will go in the closet, I paid $250 Canadian, I guess I have 4 matching toshibas for back up for my palomar 6500R if they ever fail.

  7. S&W357

    S&W357 $upporting Member N.C. WDX-556

    Joined:
    Aug 30, 2018
    Messages:
    1,553
    Likes Received:
    3,899

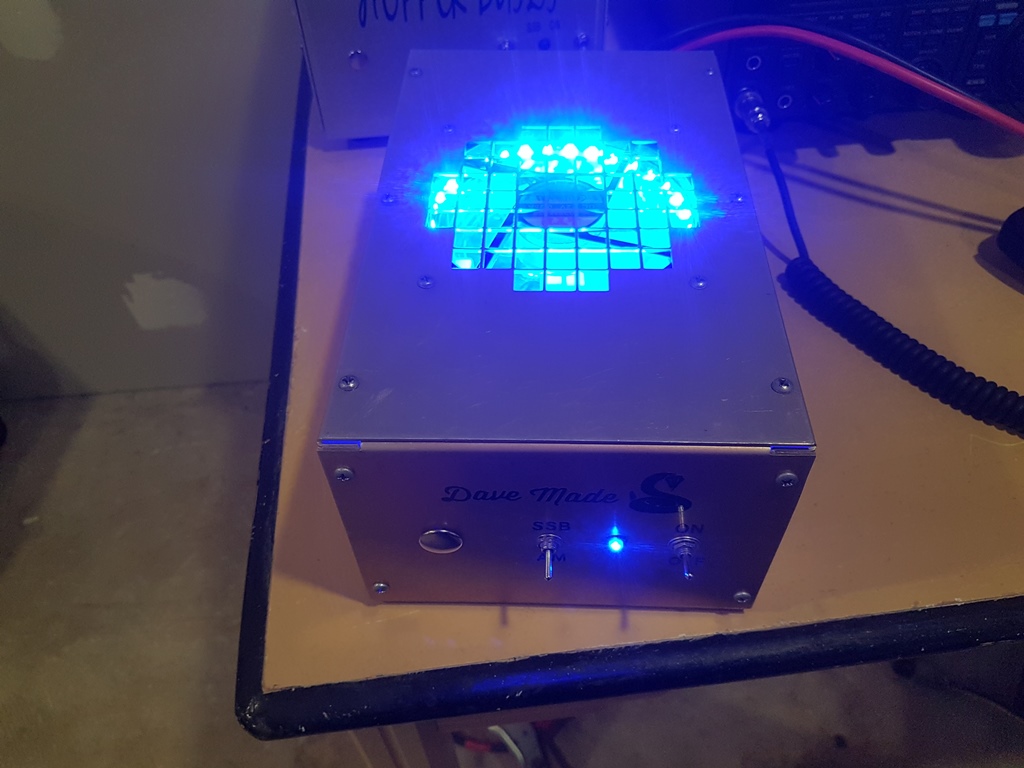

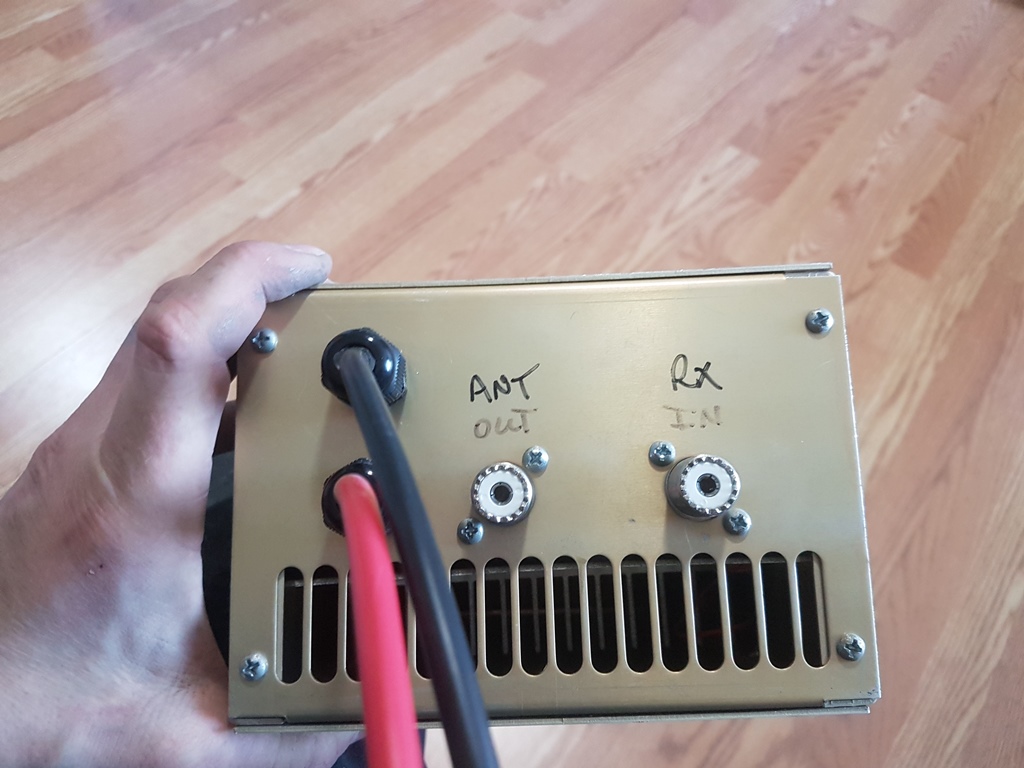

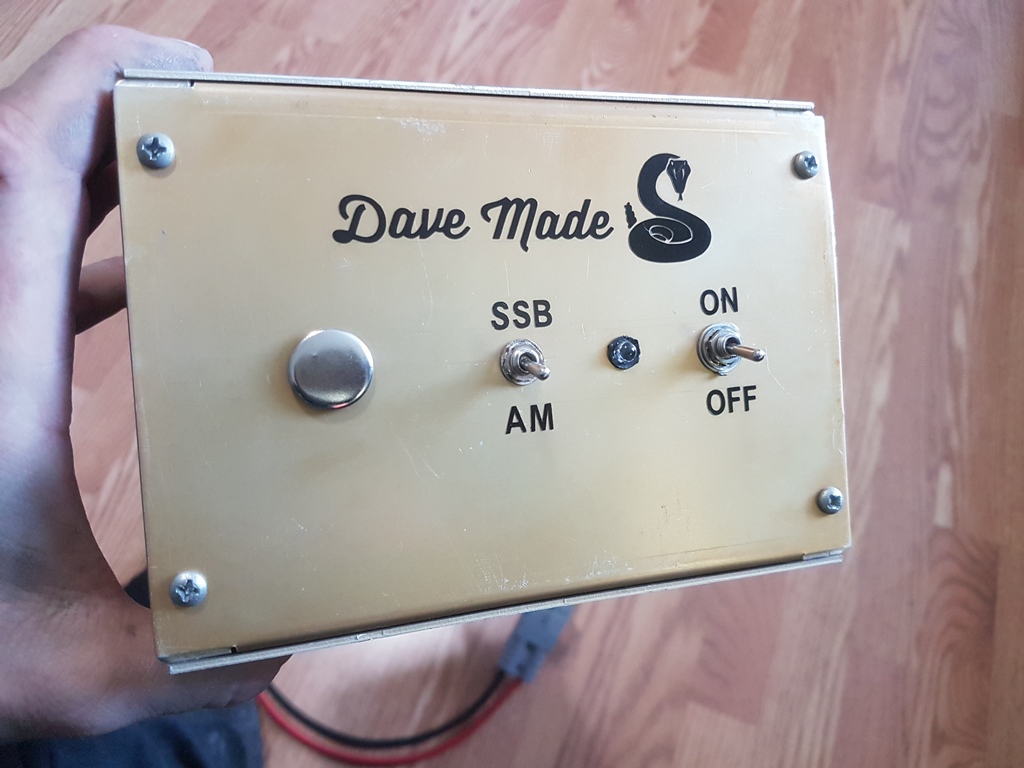

    I've got a somewhat similar Dave Made amp. This one has only two Toshiba SC2879 red dots but it is a base amp with an iron core transformer. I use it on SSB with a Anytone AT-6666. I get good reports on audio from both locals and on DX.

    Clean? I dunno. :barefoot:


  8. Shockwave

    Shockwave Sr. Member

    Joined:
    Sep 19, 2009
    Messages:
    3,736
    Likes Received:
    3,115
    This is important. Especially in the negative feedback circuit which, may not even be functioning at all with wire wound resistors. RF sees this as a choke, only with even more resistance due to the wire used. Instead of looking like 100 ohms, it could be 10 times higher at RF.

    Shadetree Mechanic likes this.
  9. TIN_CAN

    TIN_CAN Sr. Member

    Joined:
    Nov 23, 2011
    Messages:
    465
    Likes Received:
    586
    I heard you with that 2 pill sounded fine to me.

    Shadetree Mechanic and S&W357 like this.
  10. Shockwave

    Shockwave Sr. Member

    Joined:
    Sep 19, 2009
    Messages:
    3,736
    Likes Received:
    3,115
    The way things are going, soon the ammo in the background, may be the most valuable thing in the photo. That wasn't meant to take anything away from the amplifiers either.

  11. snippits75

    snippits75 Well-Known Member

    Joined:
    Nov 11, 2019
    Messages:
    310
    Likes Received:
    456
    You got that right!

    S&W357 likes this.
  12. lonestarbandit

    lonestarbandit 4-2-9 Central TX

    Joined:
    Dec 30, 2006
    Messages:
    315
    Likes Received:
    399
    LOL


    Attached Files:

    S&W357 likes this.
