Ever wonder what's inside those W2DU baluns?

Discussion in 'Amateur Radio Antennas' started by Captain Kilowatt, Aug 6, 2010.

  1. Captain Kilowatt

    Captain Kilowatt Professional Amateur
    Staff Member

    Joined:
    Apr 6, 2005
    Messages:
    15,005
    Likes Received:
    6,587

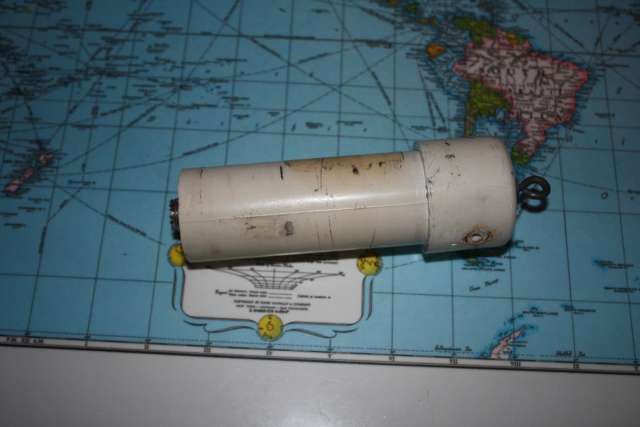

    Wonder no more. I had a 1:1 W2DU "beam balun" on my tribander that I just finished taking down the other day. The connection points were looking bad so I decided that since I was rebuilding the antenna to last another year why not do everything including the balun.I bought this balun probably about 18 years ago or so and have heard that some companies are cutting short making them and using ferrite beads inside that are less than ideal. I have also heard that some of these W2DU baluns use a ferrite core which is OK but prone to overload with high power. Being the curious person I am (OK nosey then) I took mine apart to see what it was made of. Much to my surprise and delight I found that I had one of the very good original W2DU baluns as originally designed by Walter Maxwell himself,W2DU.It is not a cheap knock-off that is fairley common these days. It is a 1:1 air core balun wound with 14 gauge wire for high power handling without saturation of the core as will happen with a ferrite core. The first picture is of the unopened balun minus the attachment points to the antenna.You can see where the antenna connection points are on the side. The connection on the top is simply to hang the balun from something and is not connected to anything inside. I should note that this balun is used on a balanced antenna like a dipole or on some antennas that have a balanced feed like my A3 tribander that has a split driven element.




    [​IMG]

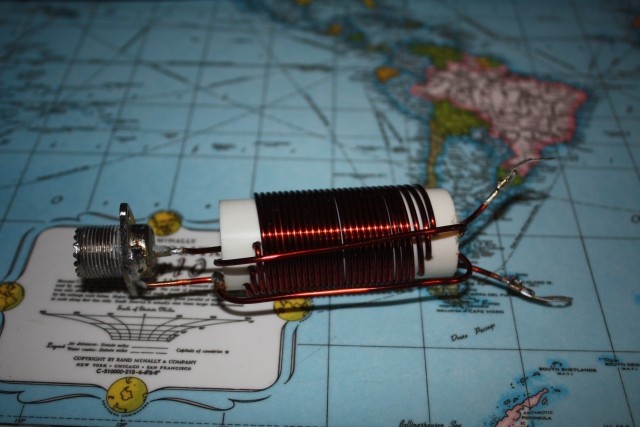

    The second picture is of the insides of the 1:1 balun. Nicely made and still looking good after almost 20 years outdoors. The coax connects to the left side and the balanced output goes to the connections on the right.


    [​IMG]

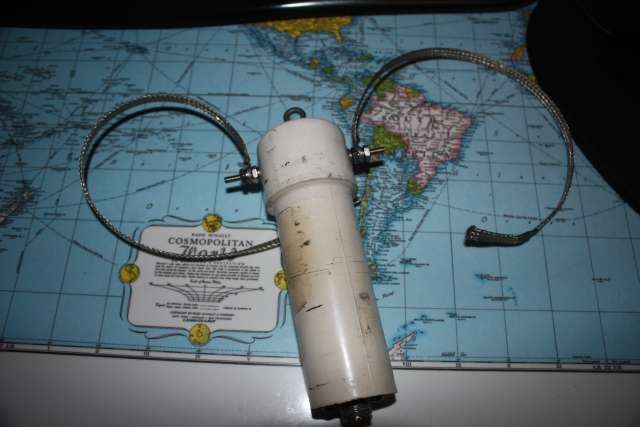

    Lastly is the rebuild balun with new stainless hardware and tinned copper braid ready for attachment to the antenna. I left the leads long and will trim to length when the antenna is put up. I will install another set of ring terminals and use stainless hardware to attach it to the driver element.


    [​IMG]



    #1 Captain Kilowatt, Aug 6, 2010
    Last edited: Jul 29, 2018
    unit_399, Old_Crow and PA770 like this.

  2. N0NB

    N0NB Active Member

    Joined:
    Oct 3, 2010
    Messages:
    252
    Likes Received:
    76
    Bringing this up from the deep thanks to Google. :whistle:

    CK, the second picture is apparently no longer available as it comes up with the image not found icon. Do you still have it?

  3. seedkey

    seedkey Active Member

    Joined:
    Aug 22, 2006
    Messages:
    136
    Likes Received:
    6
    Yes please share the second picture

  4. nomadradio

    nomadradio Analog Retentive

    Joined:
    Apr 3, 2005
    Messages:
    1,863
    Likes Received:
    1,281
  5. Captain Kilowatt

    Captain Kilowatt Professional Amateur
    Staff Member

    Joined:
    Apr 6, 2005
    Messages:
    15,005
    Likes Received:
    6,587

    OK I had to do some digging but I found it. This is the insides of the W2DU "BEAM BALUN" I bought MANY years ago. It was used on my tribander and worked great. Apparently the design is different as it is an air-core balun so it is not prone to saturating at high power like a ferrite core balun is and it is not simply a choke but rather a TRUE balun. Unbalanced input on the left and balanced connections to the antenna on the right. I edited the old post above to show it there as well.


    N0NB, Dmans and Shadetree Mechanic like this.
  6. nomadradio

    nomadradio Analog Retentive

    Joined:
    Apr 3, 2005
    Messages:
    1,863
    Likes Received:
    1,281
    That's the one-to-one design. Has three separate windings.

    Odd fact: If one of these has only two windings, it's a four-to-one balun.

    Takes three windings to get the one-to-one impedance ratio.

    Sounds backwards, but there it is.

    73

  7. Handy Andy

    Handy Andy Do Your Research First, Then Decide...

    Joined:
    Apr 23, 2018
    Messages:
    1,156
    Likes Received:
    809
    So if I'm doing this right, I count 24 _turns, which that is 8 winds of 3 wires into coils - but where are or where is - the WYE that ties this together - origin?

  8. nomadradio

    nomadradio Analog Retentive

    Joined:
    Apr 3, 2005
    Messages:
    1,863
    Likes Received:
    1,281
    Explaining how magnetic components work is not my strong suit.

    But the link above has the clearest explanation I have seen so far.

    73

  9. Captain Kilowatt

    Captain Kilowatt Professional Amateur
    Staff Member

    Joined:
    Apr 6, 2005
    Messages:
    15,005
    Likes Received:
    6,587

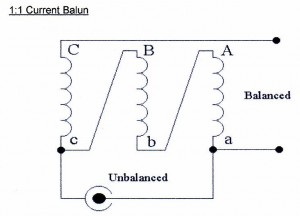

    Here is the winding connections.


    Shadetree Mechanic likes this.
  10. Handy Andy

    Handy Andy Do Your Research First, Then Decide...

    Joined:
    Apr 23, 2018
    Messages:
    1,156
    Likes Received:
    809
    Thanks! So the interconnections, are not based necessarily on a WYE configuration, nor of a Trifilar re not a top to bottom, bottom to top - top to bottom - your 3-winds.

    So the Capital letters of the above, signify the Top of the winds - presuming closer to the photos reconstruction - they are at the Balanced Lead end - where the ring lugs are - that is the TOP of the winds. A B and C.

    The Bottom - is on the SO-239 end - and a (Center) and c (Coax Shield) - and is considered "Unbalanced"

    They're tied as a series, not paralleled (Their winds are) - The Unbalanced is ACROSS the bottom winds - a to c - while C and a - are the balanced end - gotcha!

    Thx!
    (Why would they want to make this harder than it is? Referring to the "copycatters".)

    Nicely done BTW - thanks a bunch - and the "Navigation Map" makes a good background for this project.

    :+> Andy <+:

  11. N0NB

    N0NB Active Member

    Joined:
    Oct 3, 2010
    Messages:
    252
    Likes Received:
    76
    Thanks for the pic!

    Hmmm, if it is a "W2DU" balun, I would have expected a string of ferrite beads over Teflon coax as that is the only configuration Walt ever really promoted that I'm aware of. Unadilla also sells "W2AU" baluns that IIRC are the conventional transformer type of blauns.

    From what I've seen, "W2DU" baluns encased in PVC are characterized by being much longer than their transformer counterparts.

    I have a Van Gordon balun that is on the 40/80 fan dipole we use for Field Day that is of the transformer type that works well.

    I just received three of the W2DU balun kits from the Wireman that include fifty #73 beads, a 16" length of RG-303 cable, and a copy of the March 1983 article by Walt describing the choke balun.

  12. N0NB

    N0NB Active Member

    Joined:
    Oct 3, 2010
    Messages:
    252
    Likes Received:
    76
    Thanks for that!

    I can see the air coil being an outstanding performer that doesn't have the possibility of the ferrite core saturating or heating.

  13. The DB

    The DB Sr. Member

    Joined:
    Aug 14, 2011
    Messages:
    1,701
    Likes Received:
    792
    Looks like a Ruthroff balun to me, and that is definitely a voltage balun for those who care. That being said, that is the first air core Ruthroff balun I recall seeing as people typically use ferrite cores for these baluns.

    For his W2DU "baluns", Maxwell specifically used ferrite beads over RG-303 coax, although you can get the same effect with putting ferrite beads on other types of coax as well.


    The DB

  14. N0NB

    N0NB Active Member

    Joined:
    Oct 3, 2010
    Messages:
    252
    Likes Received:
    76
    RG-142 many be a tight fit with only 0.002" clearance between the spec of the outer jacket and the ID of the mix 73 beads. I suspect that is why Walt chose RG-303 along with it being PTFE and able to handle nominal power ratings. IIRC, at the time he wrote the article, Part 97 limited amateurs to 1000 Watts DC input that was later modified to 1500 Watts PEP output.

    For a real high power choke balun, RG-393 may be an interesting choice. Back in the '90s when I lived in Enid, OK one of the members had a 1000 foot reel of '393 gotten through MARS. We didn't really know what we had! I still have some short lengths of it but wish I'd have snagged about 100 feet of the stuff before I left.

  15. kopcicle

    kopcicle Well-Known Member

    Joined:
    Feb 17, 2016
    Messages:
    386
    Likes Received:
    316
    Nope :) have a couple. be interesting to see an inferior example.
