High Voltage

Discussion in 'Announcements & Open Forum' started by kopcicle, Dec 8, 2020.

  1. kopcicle

    kopcicle Sr. Member

    Joined:
    Feb 17, 2016
    Messages:
    1,941
    Likes Received:
    2,966





  2. kopcicle

    kopcicle Sr. Member

    Joined:
    Feb 17, 2016
    Messages:
    1,941
    Likes Received:
    2,966

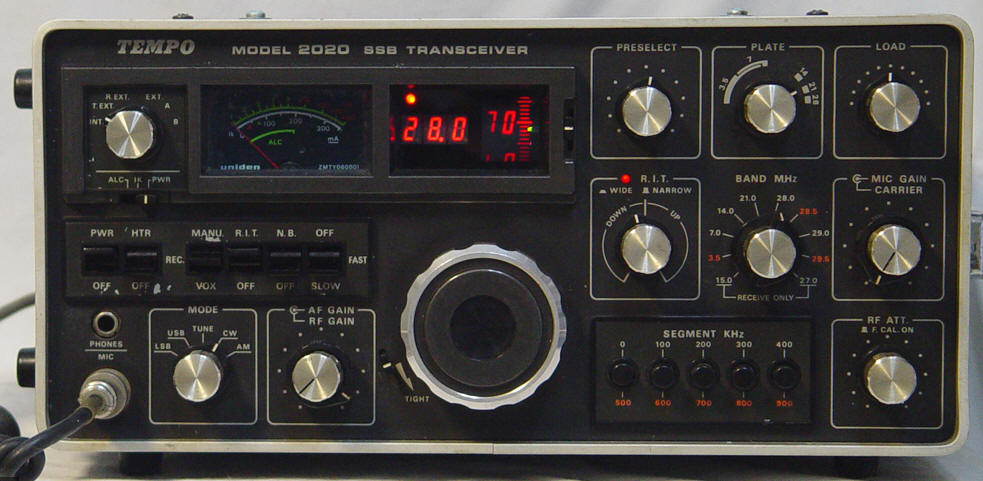

    and on a completely related note
    "Do the name Ruby Begonia strike a familiar note"?

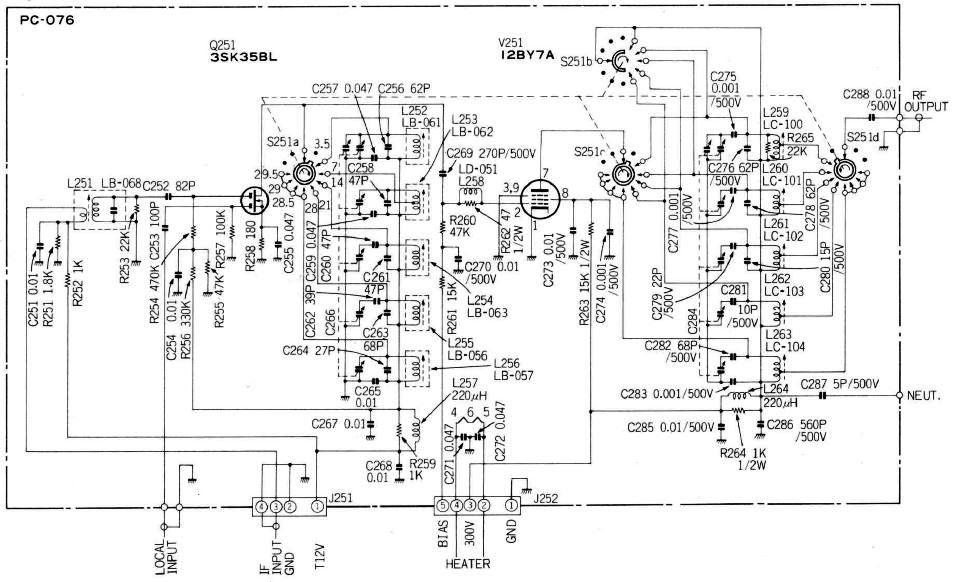

    PC-076 Transmitter Mixer and Driver.JPG
    So a brief explanation is in order. Operating the radio one afternoon there was a comment from a local on 10m "what happened to ya"?
    Turning to the radio and external watt meter I saw a jump on PTT then a fall to nothing. One more attempt to transmit and I heard a soft near imperceptible "phhhhhzzzt". Trying again and looking through the top cover I saw a brief arc on key up. Having been a welder most of my life the arc was very familiar but did not belong in my radio. Further inspection revealed the damage.

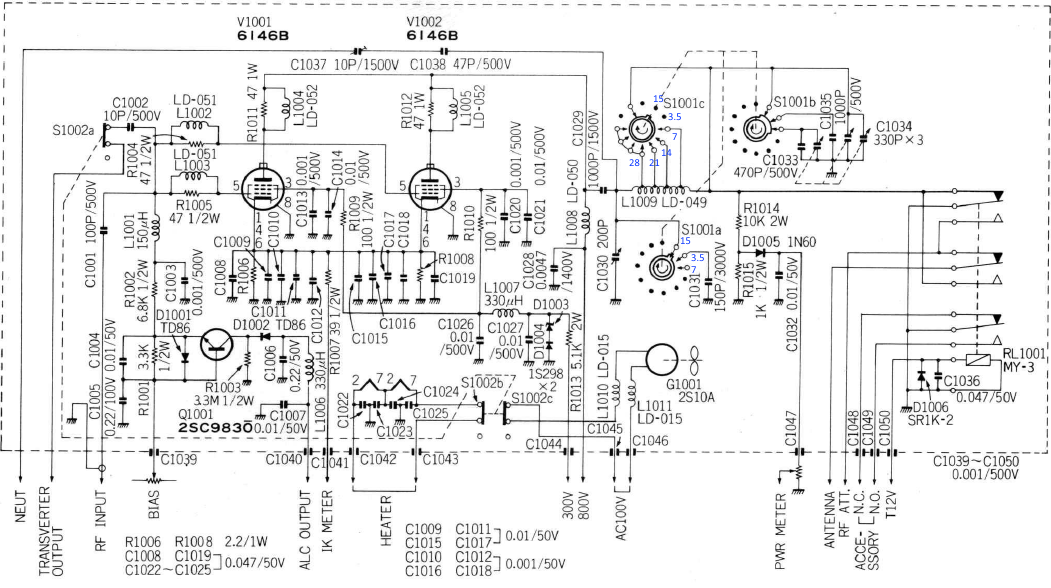

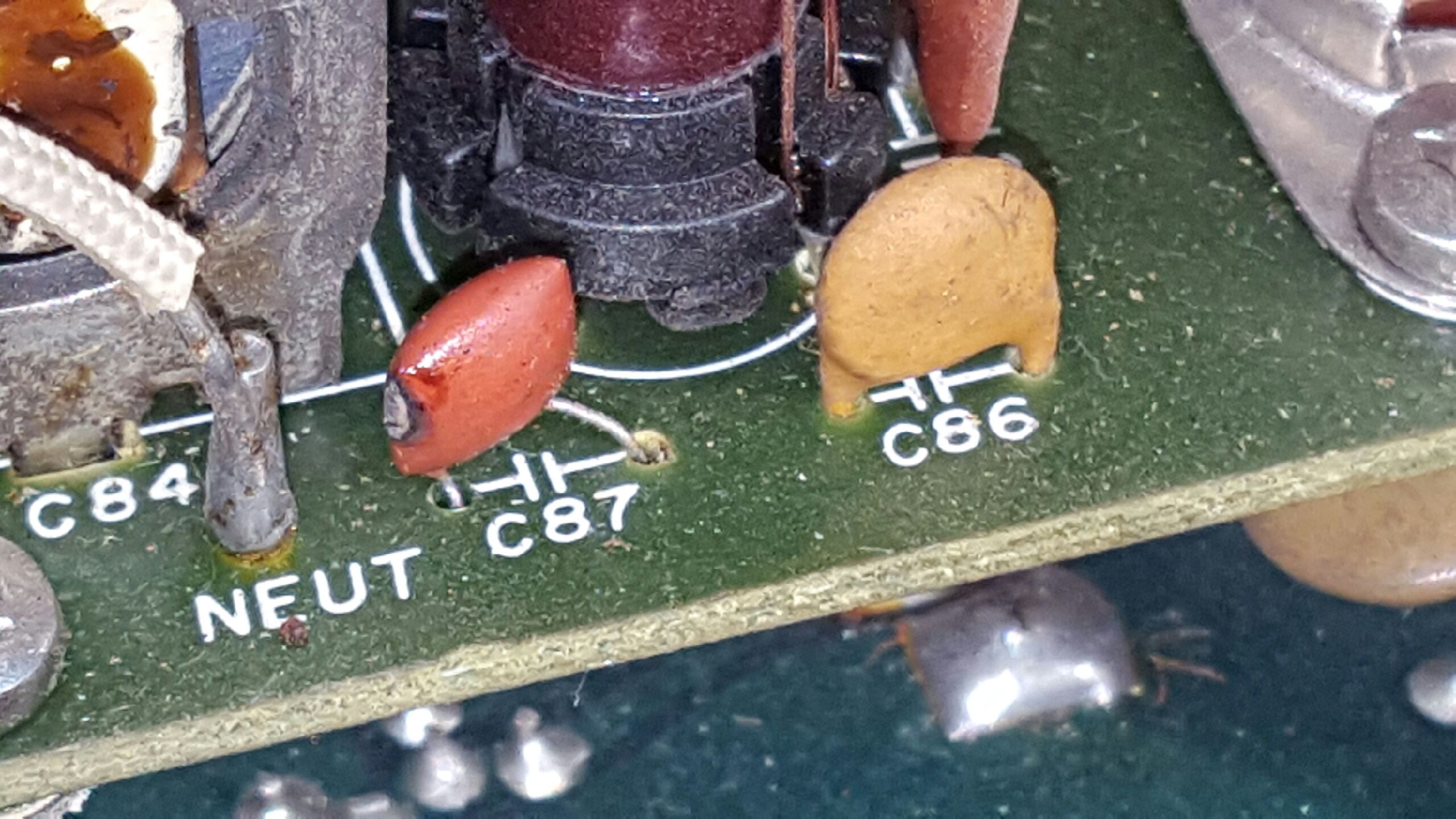

    C(2)87 shown above with a wart on it and on the schematic as C287 is inline with the neutralization wire from the PA board.
    It's something we all see from time to time, the upstream leg of C287 developed an insulating ring of shmooze around the upstream leg and the subsequent open caused the HV to jump across the air gap to the capacitor.

    Fortunate that this is at the exposed edge of the board and only a small amount soldering gymnastics were required to replace the part.


    Attached Files:

    Slowmover, tecnicoloco, TM86 and 2 others like this.
  3. DoctorAudio

    DoctorAudio Active Member

    Joined:
    Sep 11, 2009
    Messages:
    71
    Likes Received:
    90
    Slowmover likes this.
  4. nomadradio

    nomadradio Analog Retentive

    Joined:
    Apr 3, 2005
    Messages:
    4,094
    Likes Received:
    5,038
    Hmmmm. 3 capacitors in series. A 47pf, 10pf variable and the 5 pf fixed.

    The way I remember it, AC and DC voltage are divided between series capacitors in a proportion inverse to capacitance. Of those 3 capacitors the 5pf will get more RF and DC voltage both across it than the other two. Does suggest that scrimping on C87's breakdown-voltage rating could be the whole root of the failure.

    73

    Slowmover, kopcicle and tecnicoloco like this.
  5. TIN_CAN

    TIN_CAN Well-Known Member

    Joined:
    Nov 23, 2011
    Messages:
    406
    Likes Received:
    481
    Shadetree Mechanic likes this.
  6. Slowmover

    Slowmover Elmer

    Joined:
    Feb 17, 2015
    Messages:
    3,889
    Likes Received:
    5,763
    “High Voltage”. “Sufficient Amperage”

    Are those the secret password challenge answers to the boys-only Raccoon Roaster Club

    (Man, I’m never gonna stop laughing at that one).

  7. nomadradio

    nomadradio Analog Retentive

    Joined:
    Apr 3, 2005
    Messages:
    4,094
    Likes Received:
    5,038
    My latest favorite HV hijinks vid.



    73

    Shadetree Mechanic and Slowmover like this.
