Need Help Identifying Plugs On An ANTENNA ROTOR

Discussion in 'Home Brew' started by Ez2cDave, Jul 27, 2018.

  1. Captain Kilowatt

    Captain Kilowatt Professional Amateur
    Staff Member

    Joined:
    Apr 6, 2005
    Messages:
    16,513
    Likes Received:
    10,115

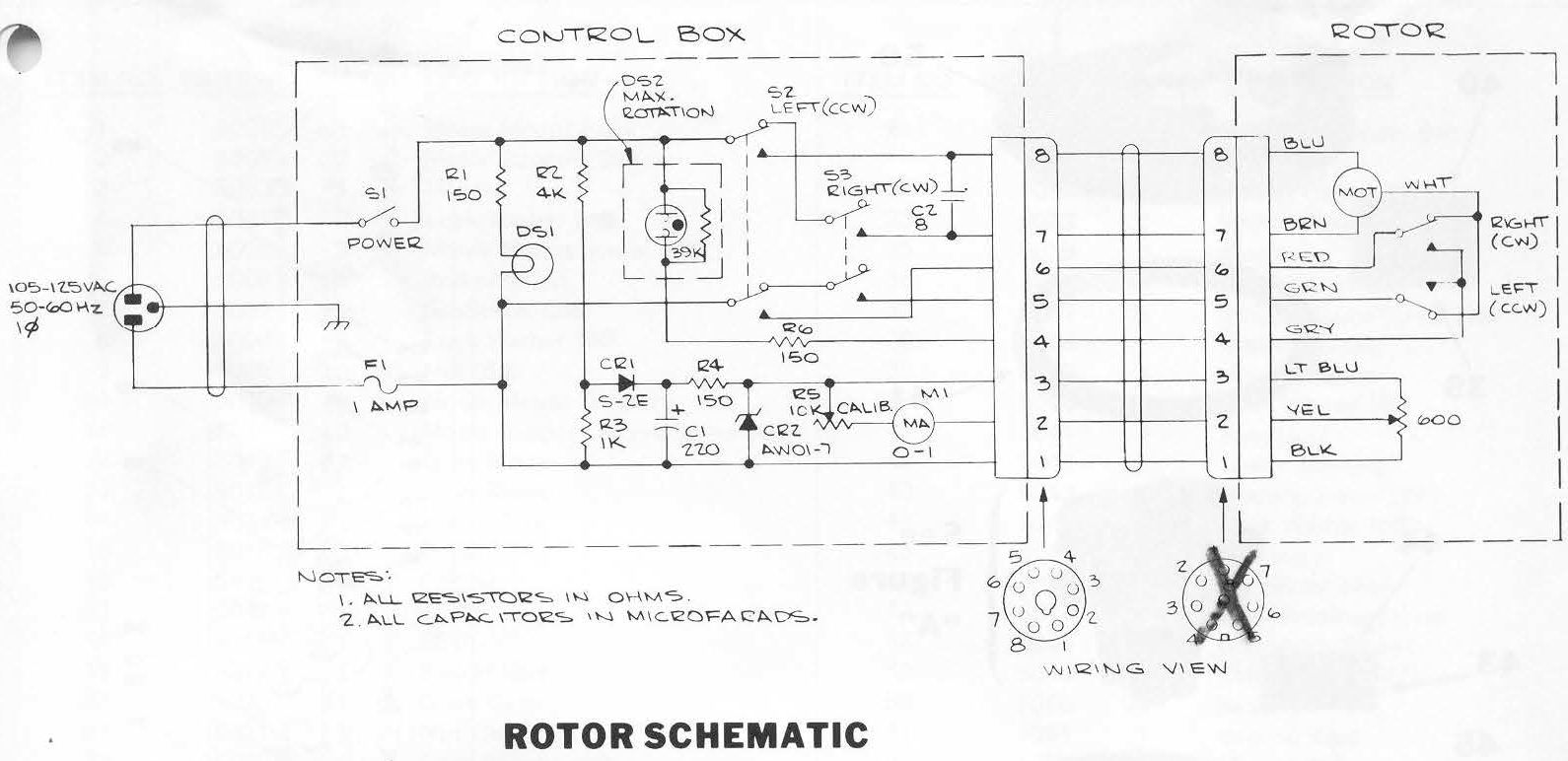

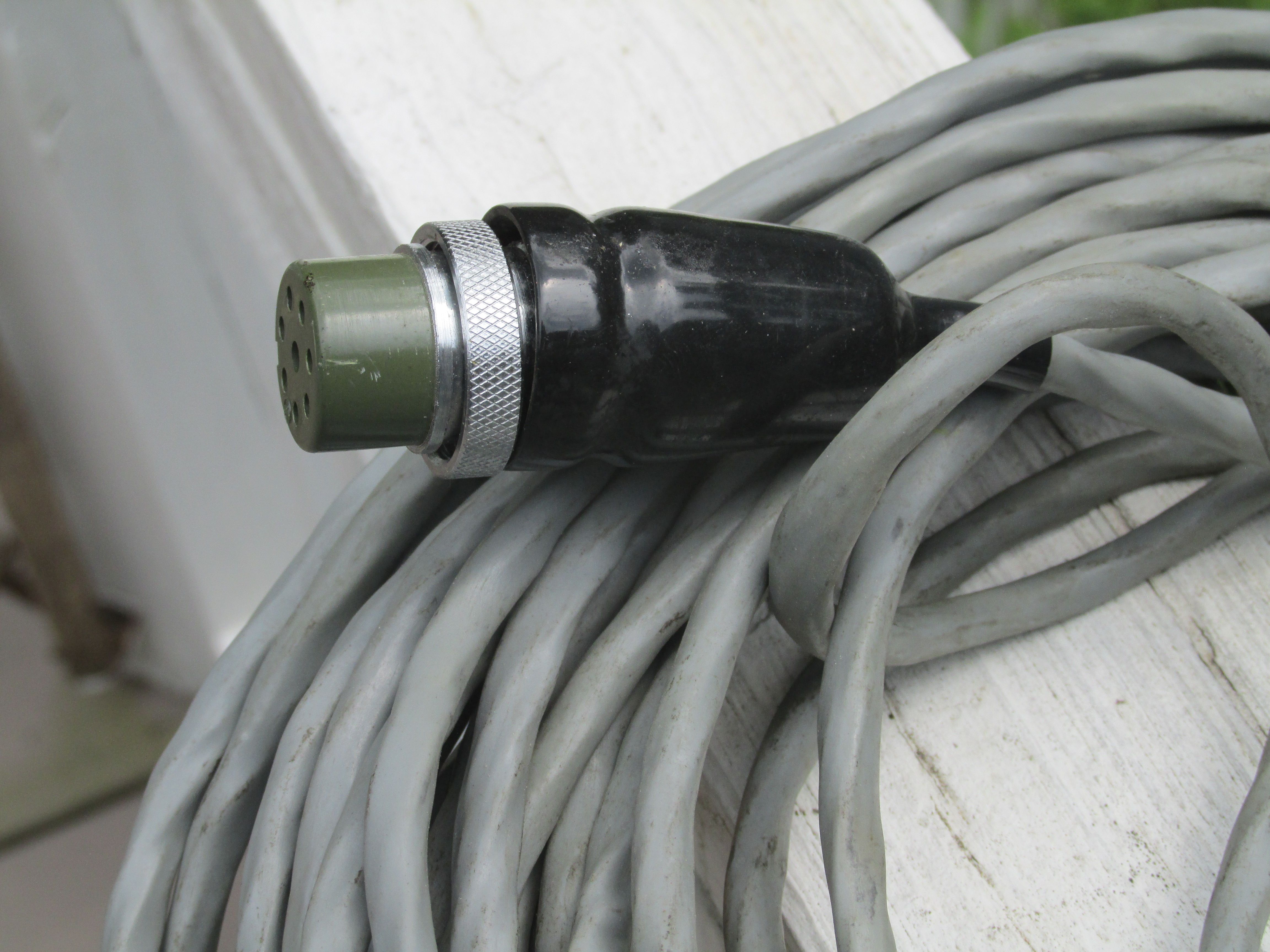

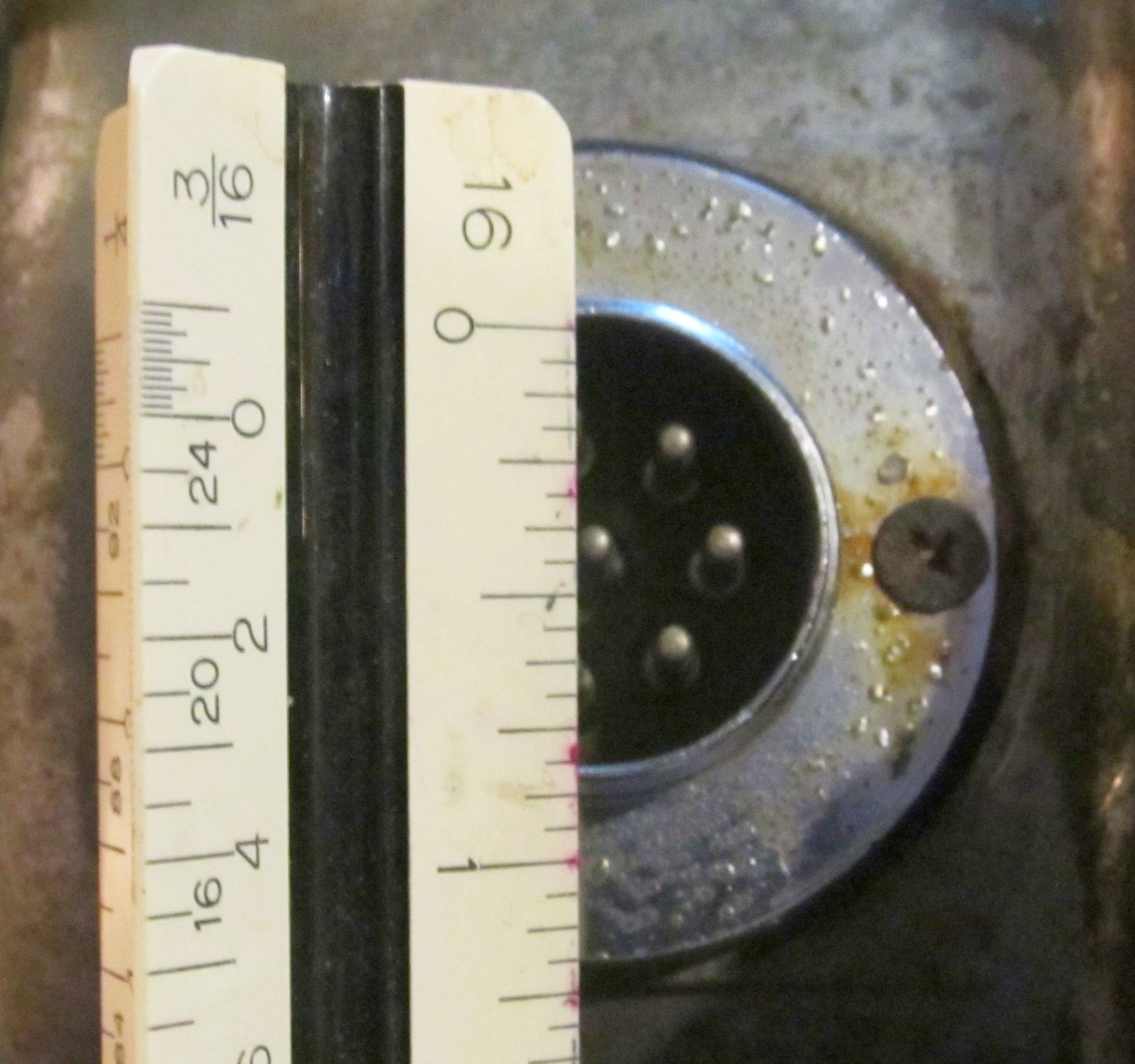

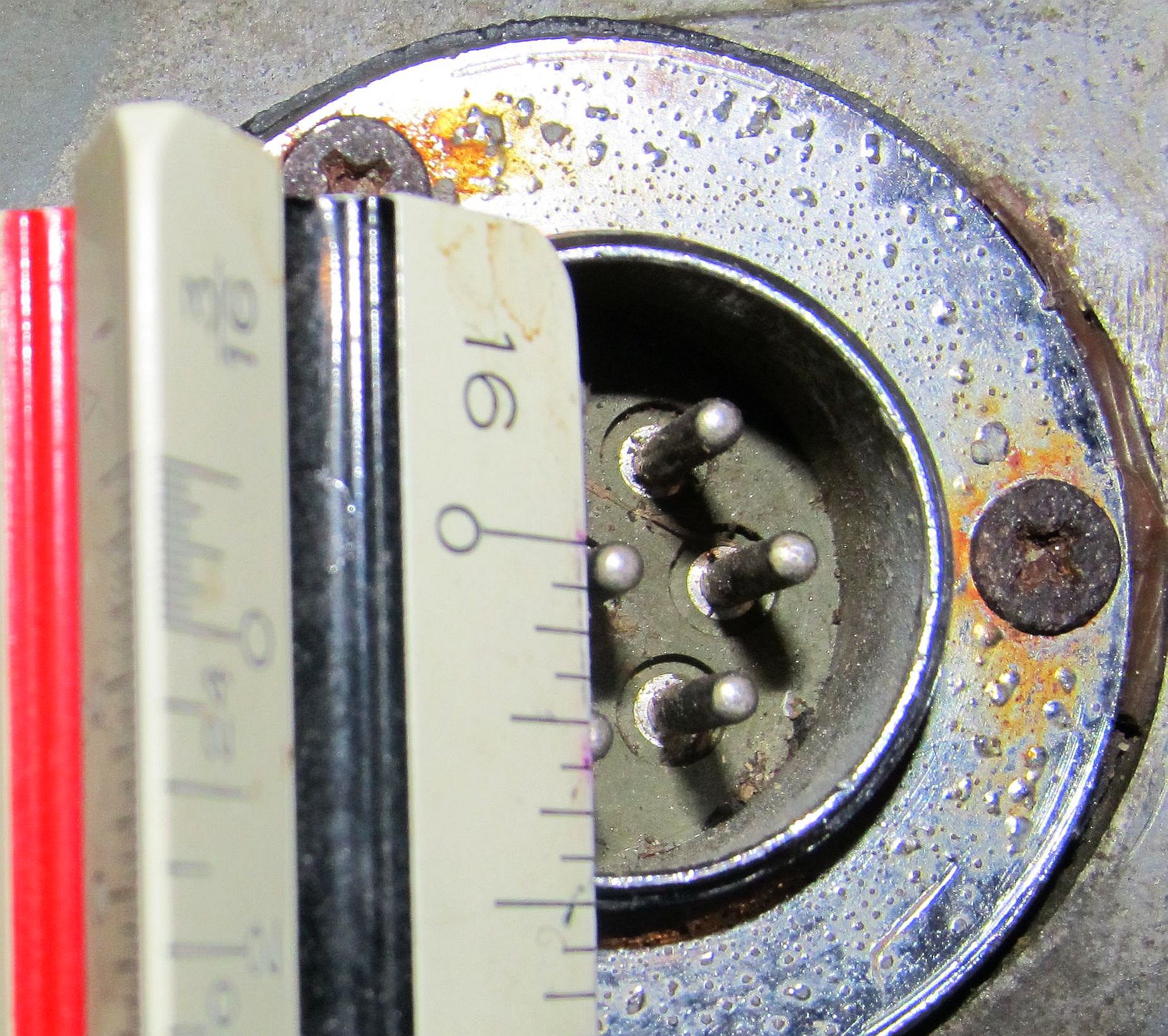

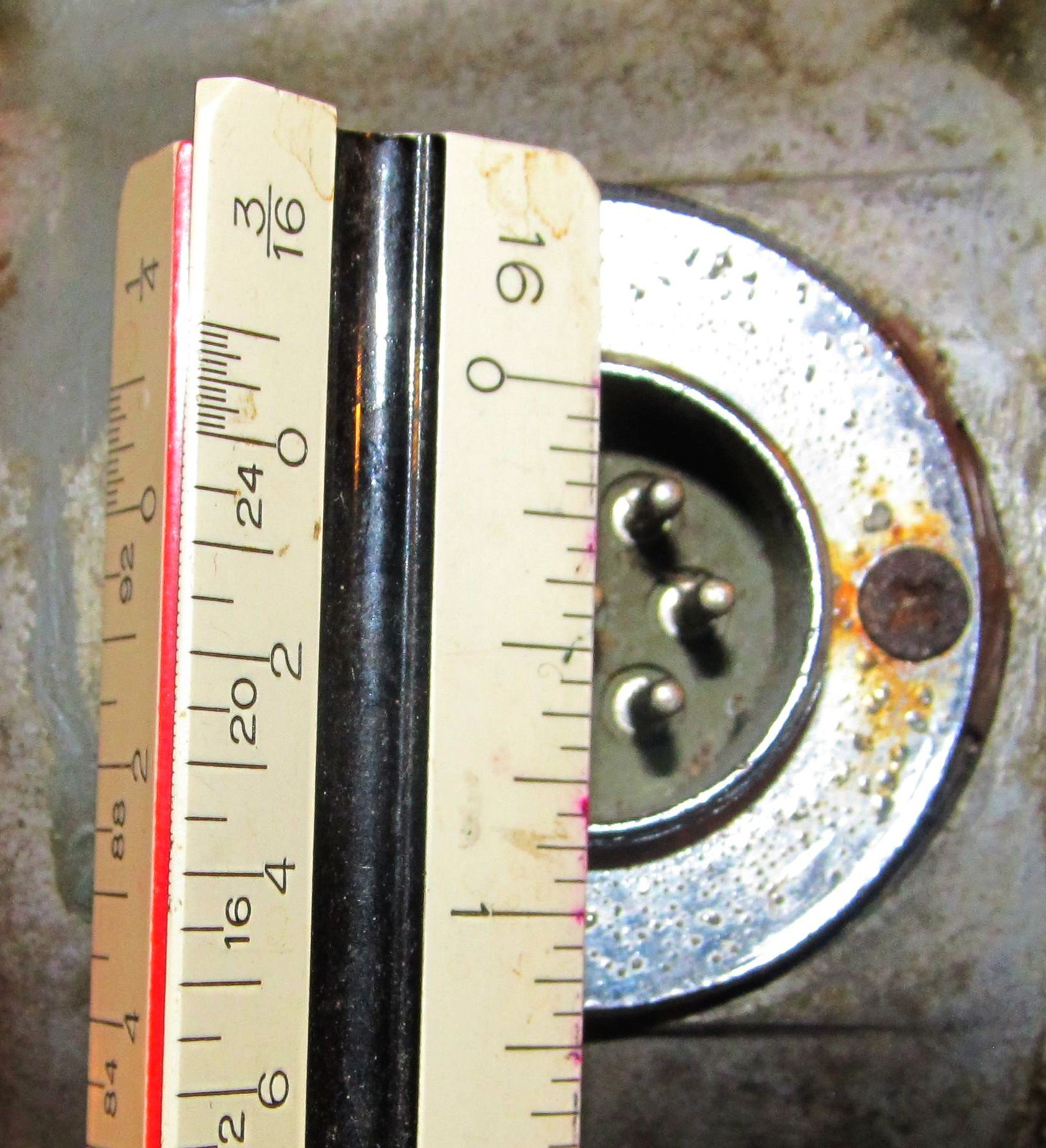

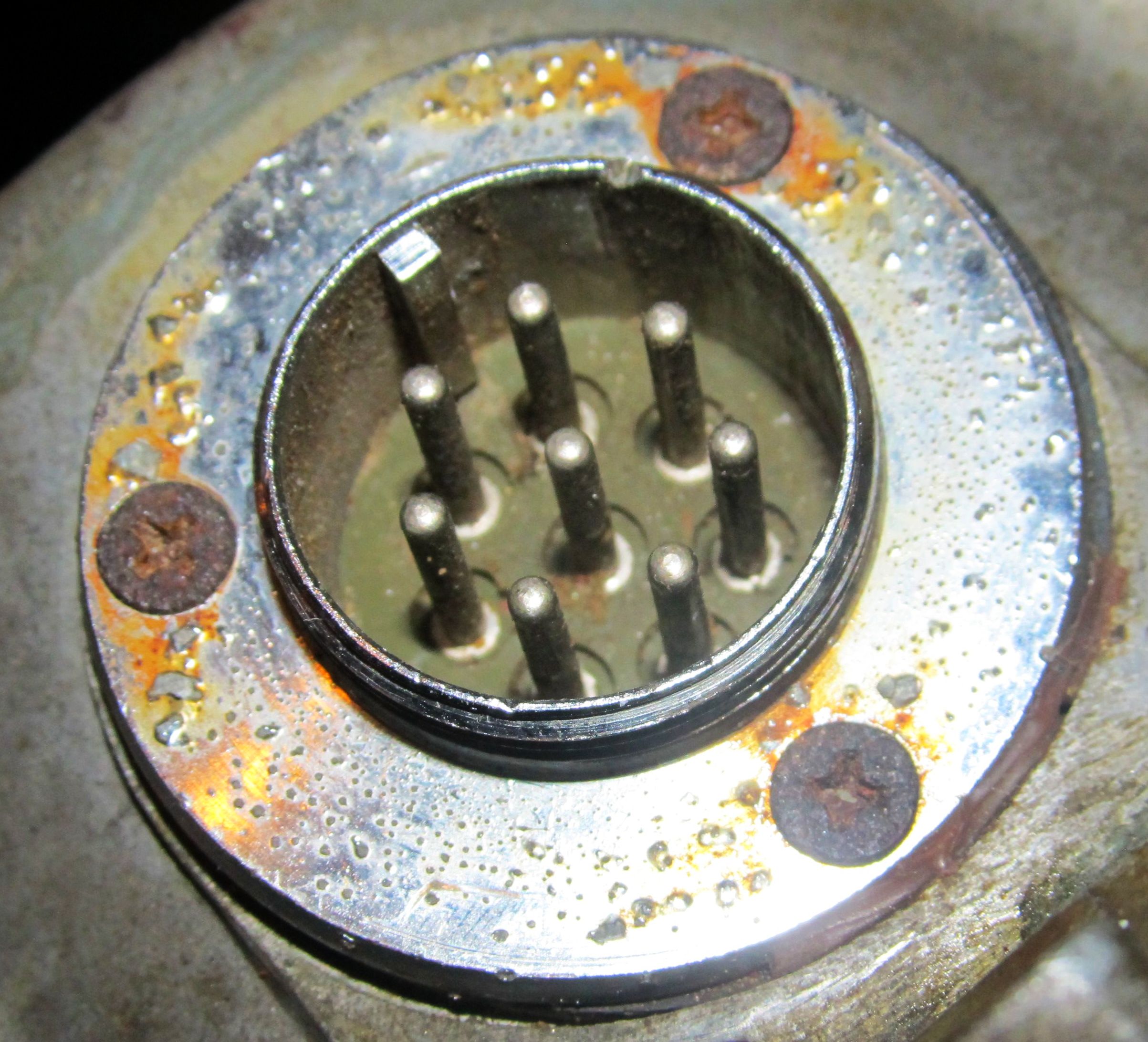

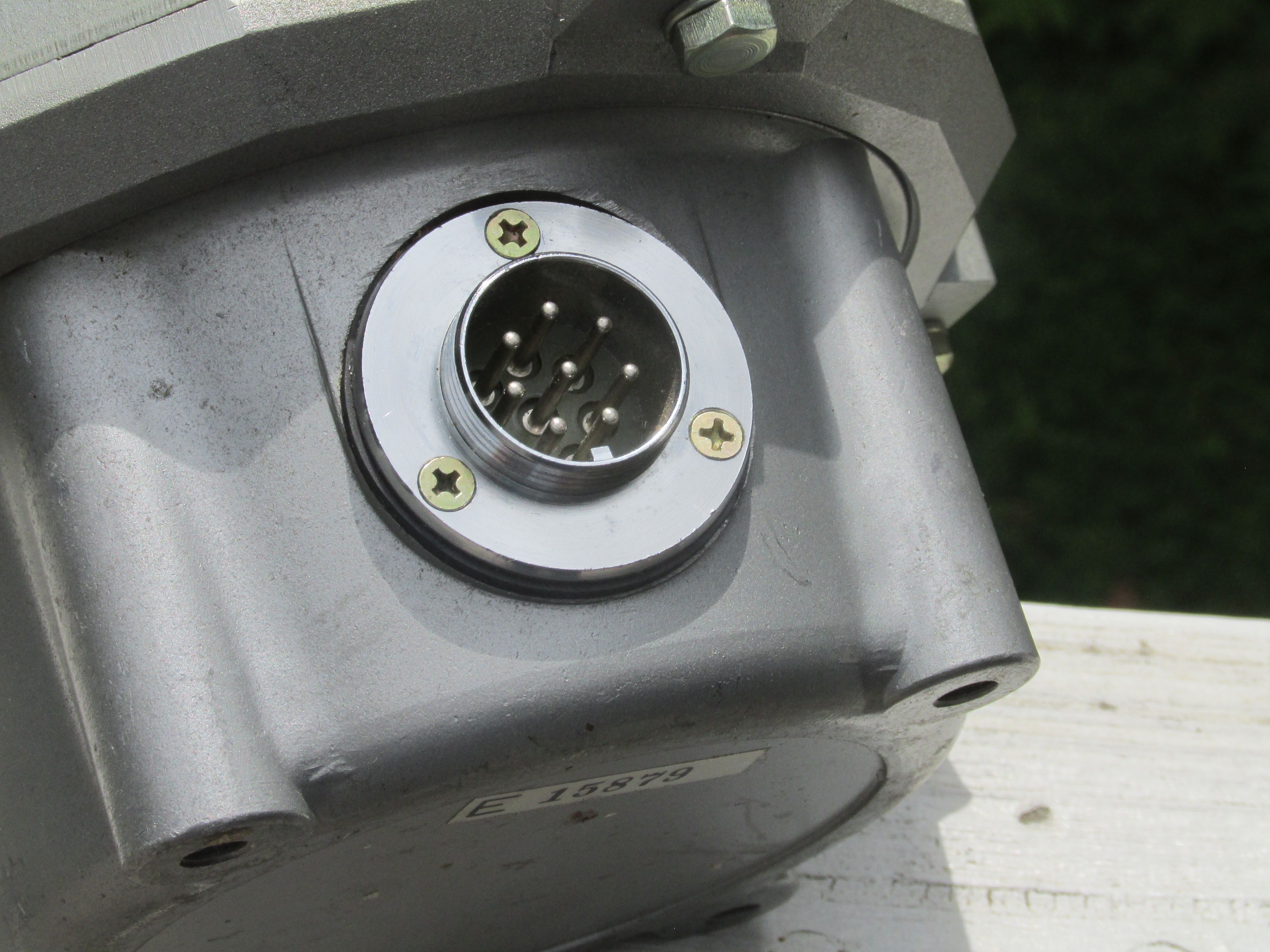

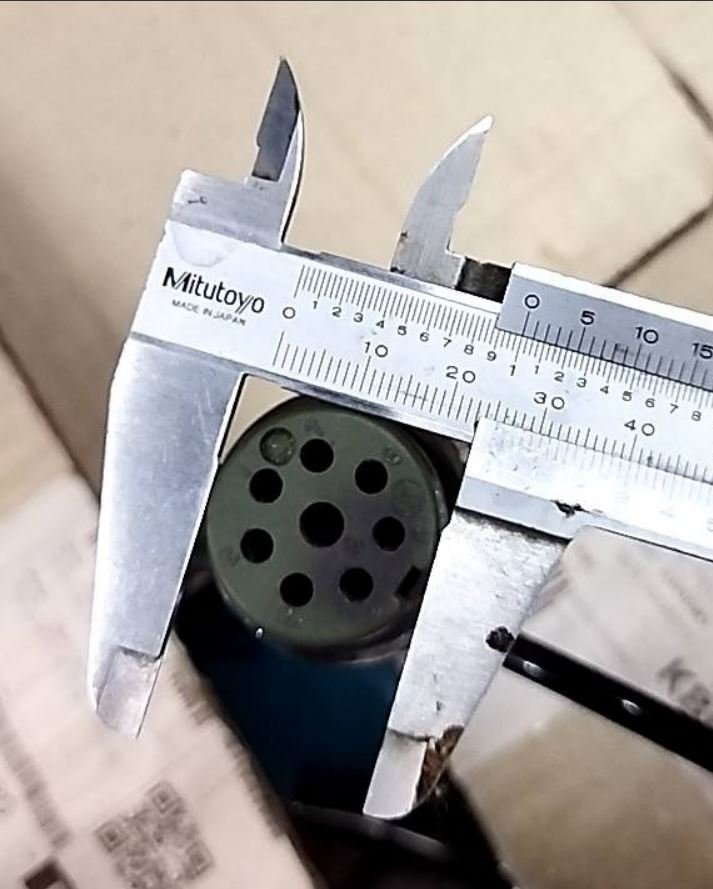

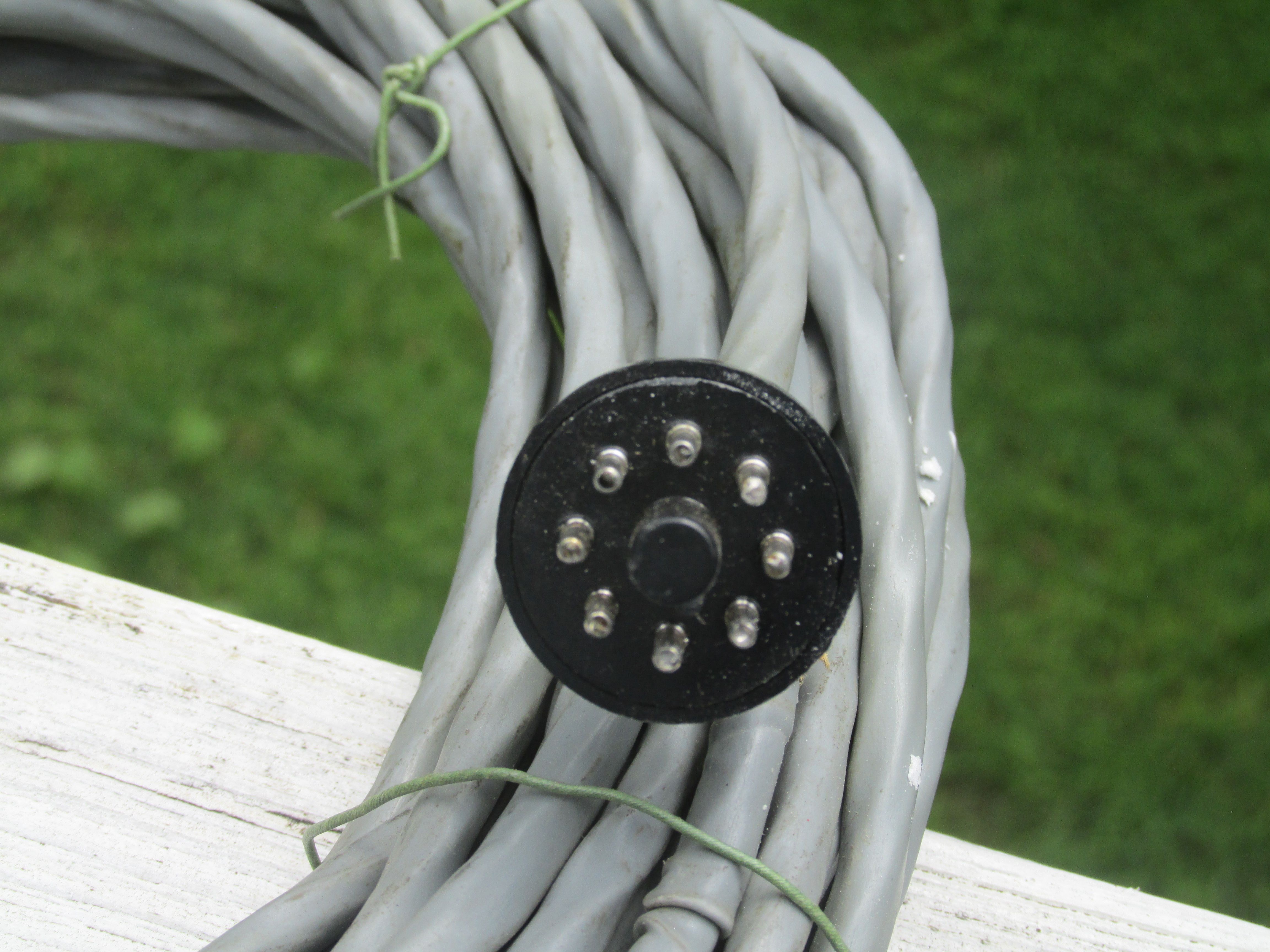

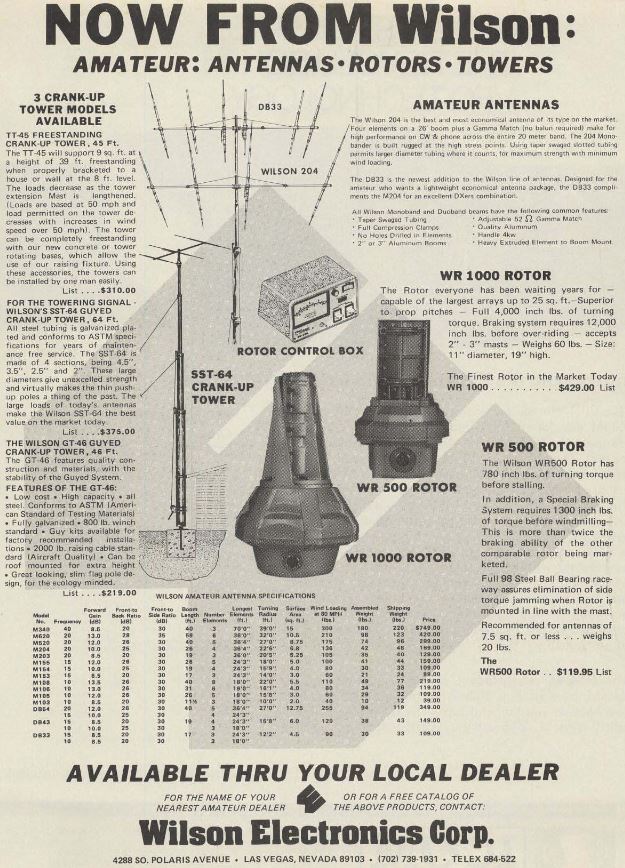

    Well I just measured the jack on my Yaesu G-2800DXA rotator I have in the basement and it is NOT the same size. Yours measures 13/16 of an inch and mine is only 5/8 inch. Also mine has four key ways in it to ensure proper alignment when inserting the plug. The pin arrangement looks the same however. Also take note that the rotator housing on both yours and mine is flattened where the connector is mounted. A normal flat based bulkhead or panel mount connector will work perfectly. No need for shims etc as the surface is flat and not curved.



    Dmans likes this.

  2. Shadetree Mechanic

    Shadetree Mechanic 808 On The North Side of Dover

    Joined:
    Oct 23, 2017
    Messages:
    4,145
    Likes Received:
    6,037

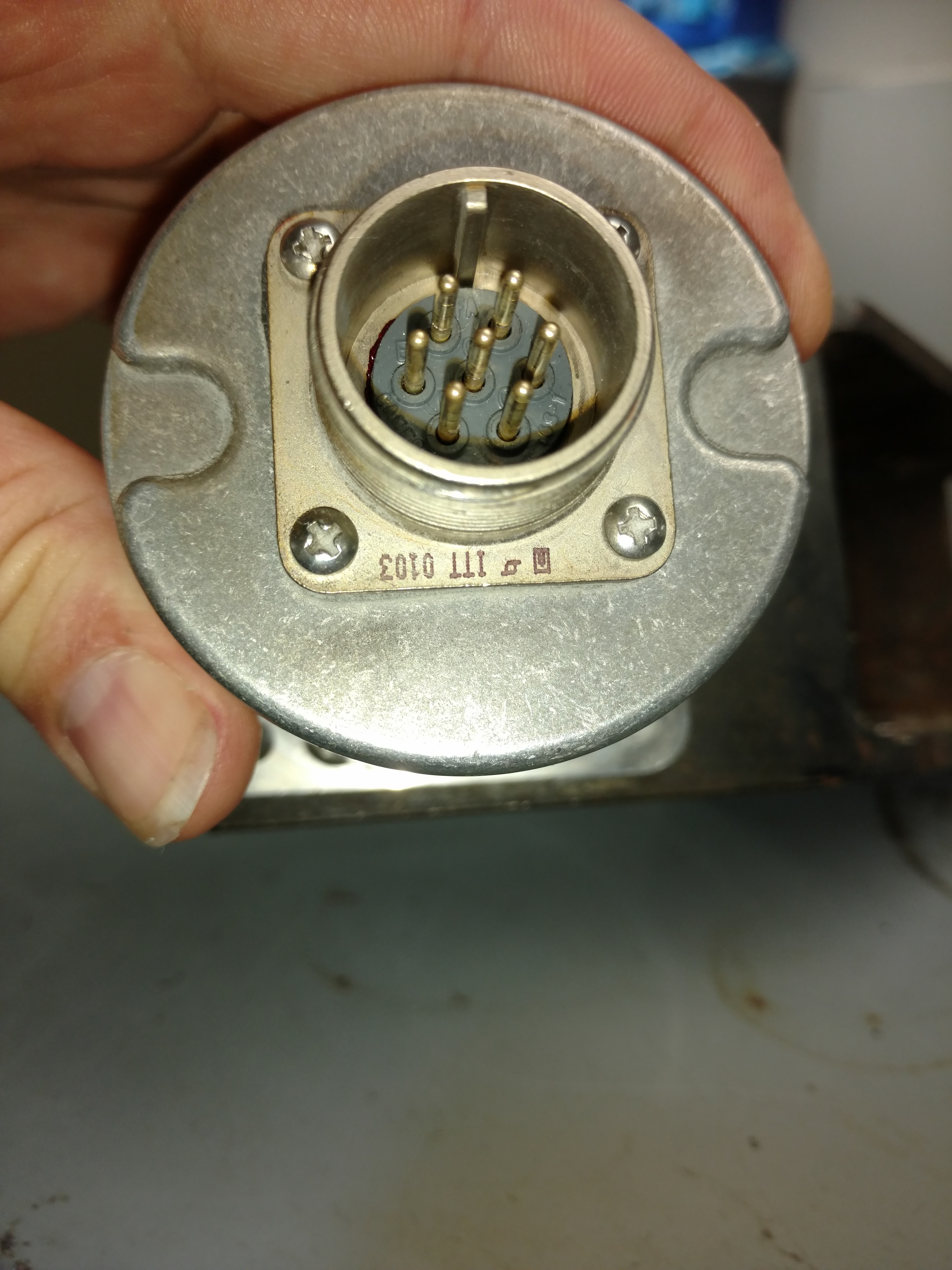

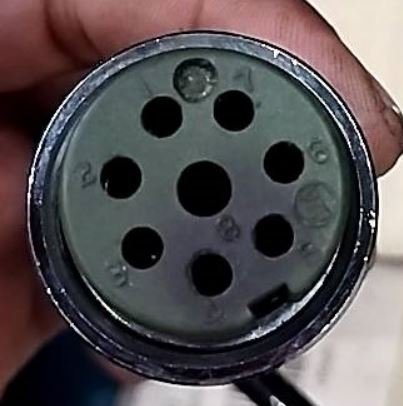

    IMG_20180801_124813625.jpg IMG_20180801_124820429.jpg IMG_20180801_124843329.jpg

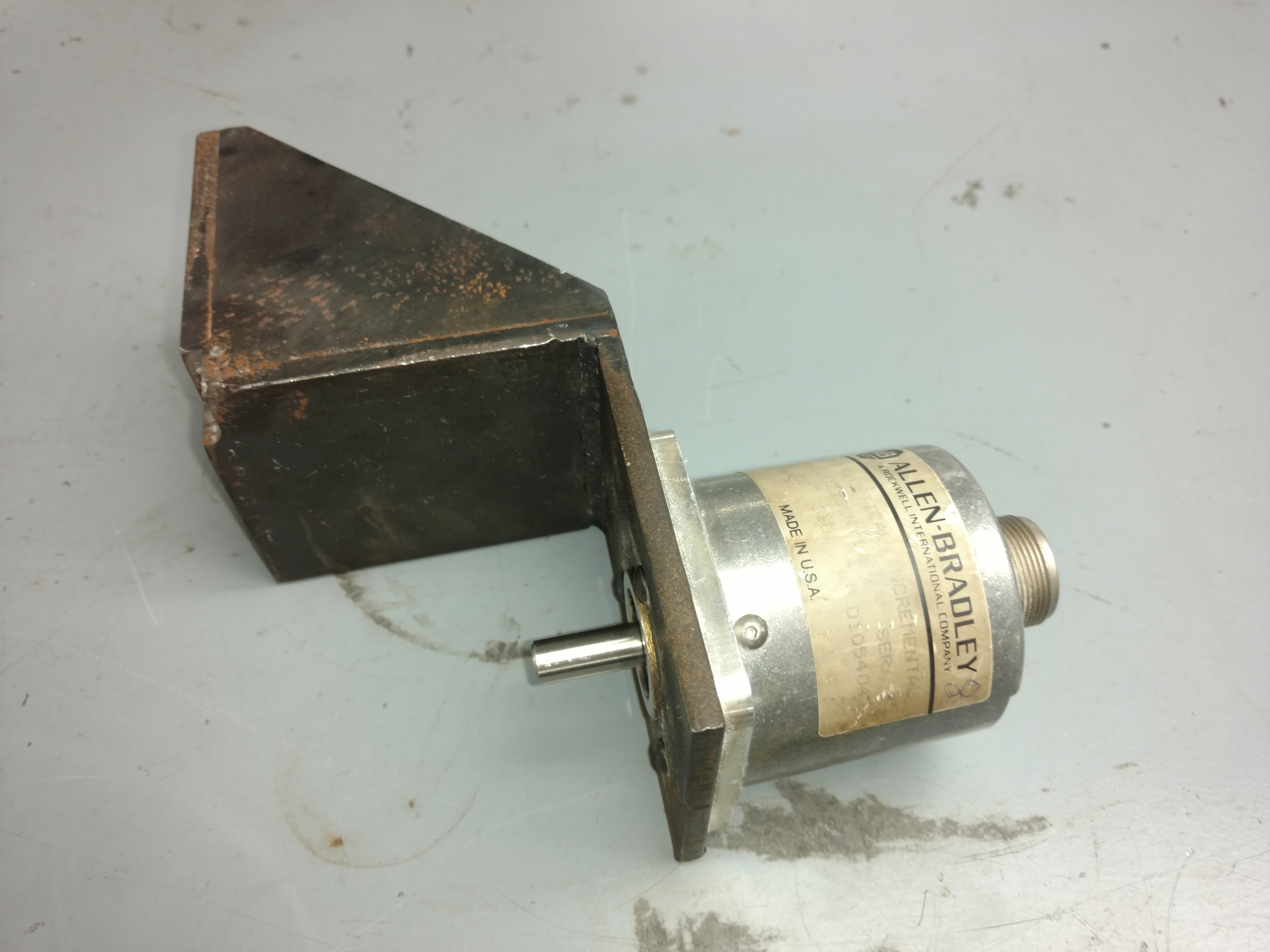

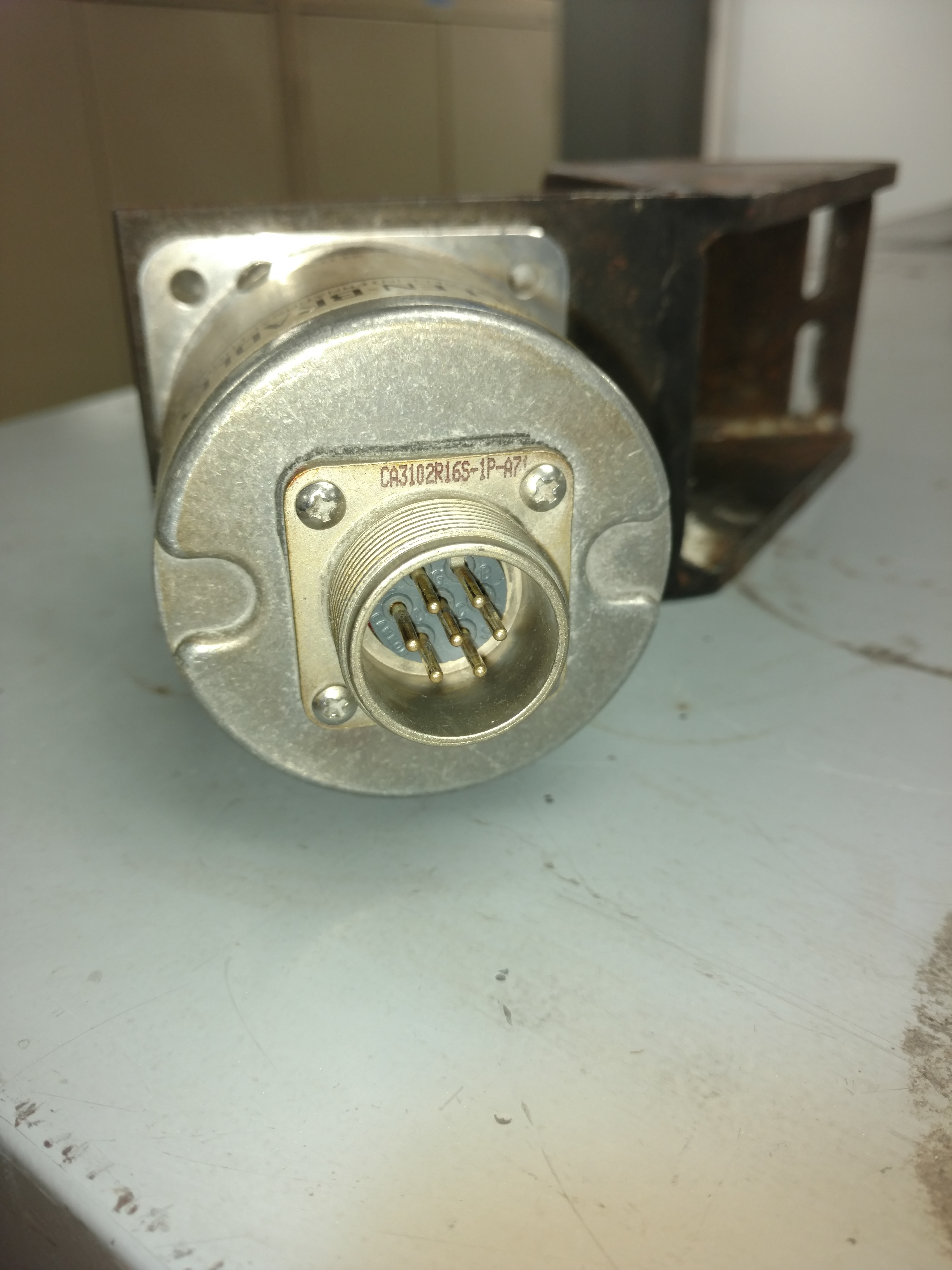

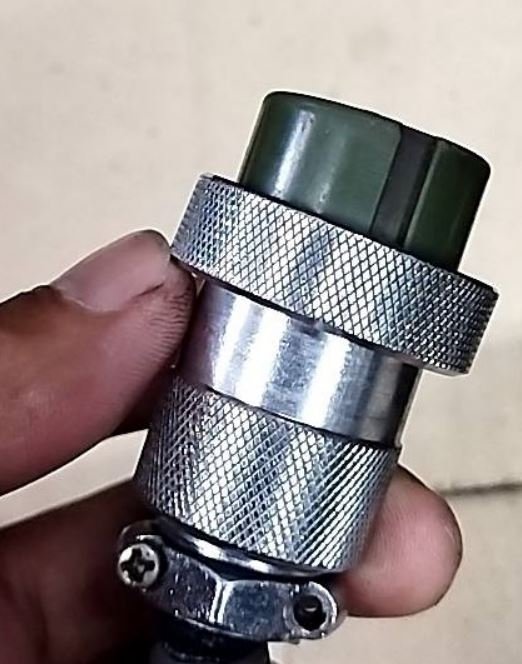

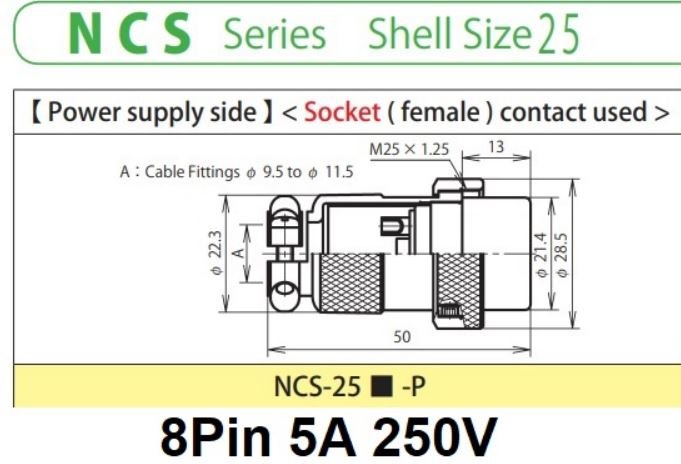

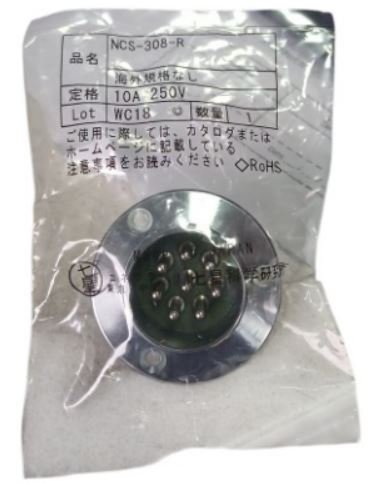

    Looks like a standard encoder plug used in industrial automation. I believe it is made by Amphenol but I don't know if the numbers on it mean anything. Should be able to get it from Digikey. I will dig for a part number. Looks like the threaded part on this one is longer, might have to modify the ring.
    Chris
