Need Help Identifying Plugs On An ANTENNA ROTOR

Discussion in 'Home Brew' started by Ez2cDave, Jul 27, 2018.

  1. Ez2cDave

    Ez2cDave Member

    Joined:
    Nov 22, 2012
    Messages:
    44
    Likes Received:
    12

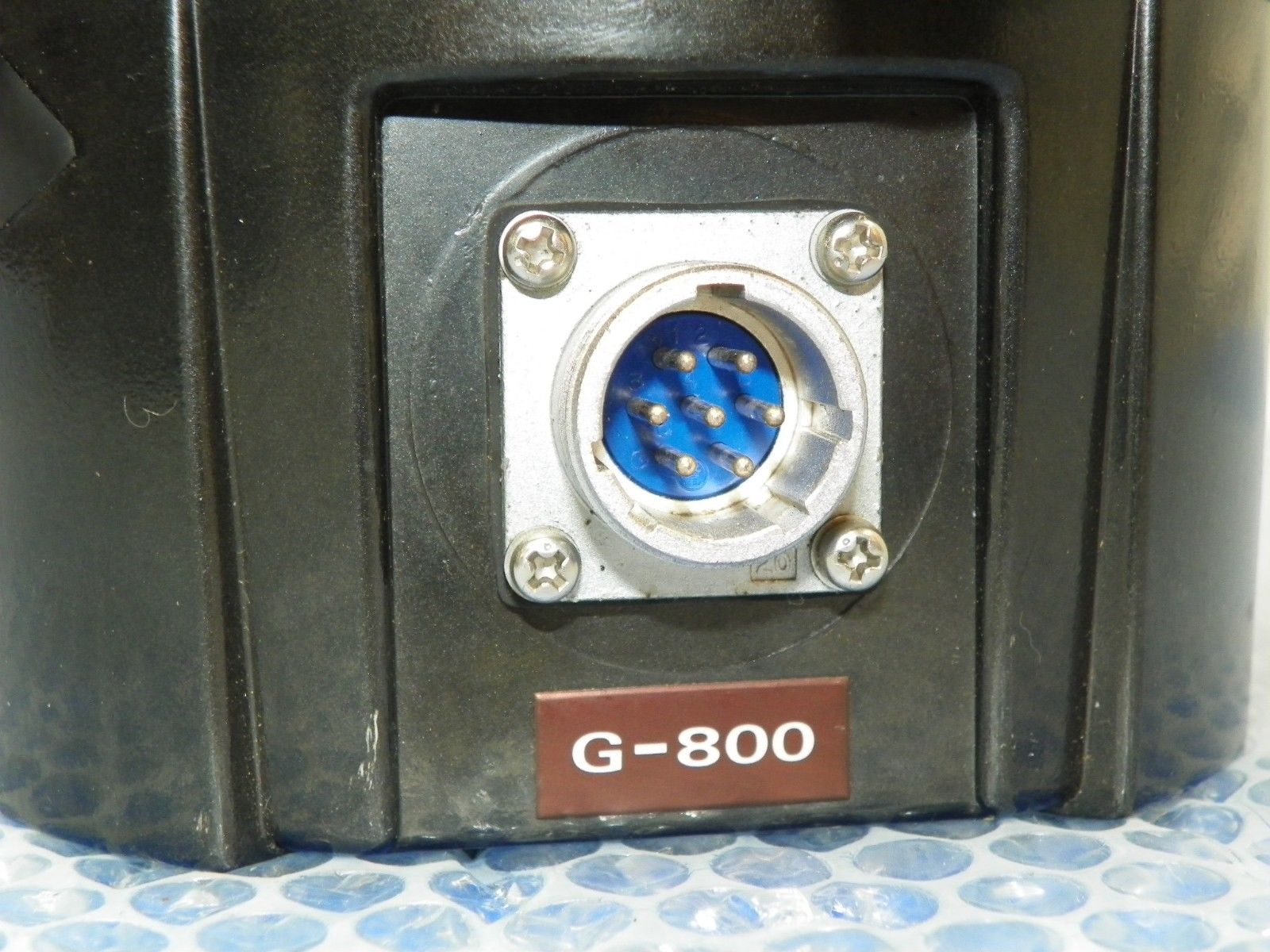

    More related items . . . Note that the Yaesu plug is only 7 pins, not 8, as required for the WR-500.

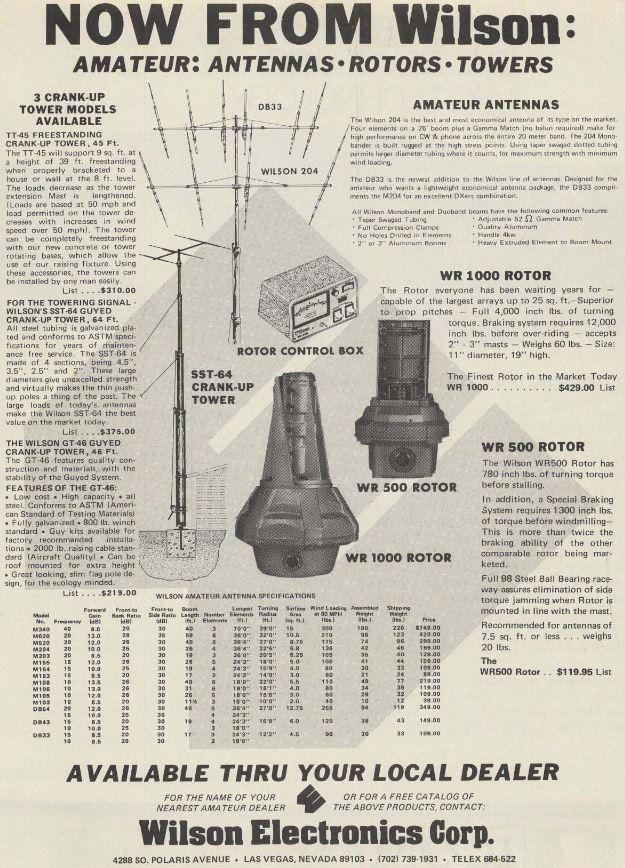

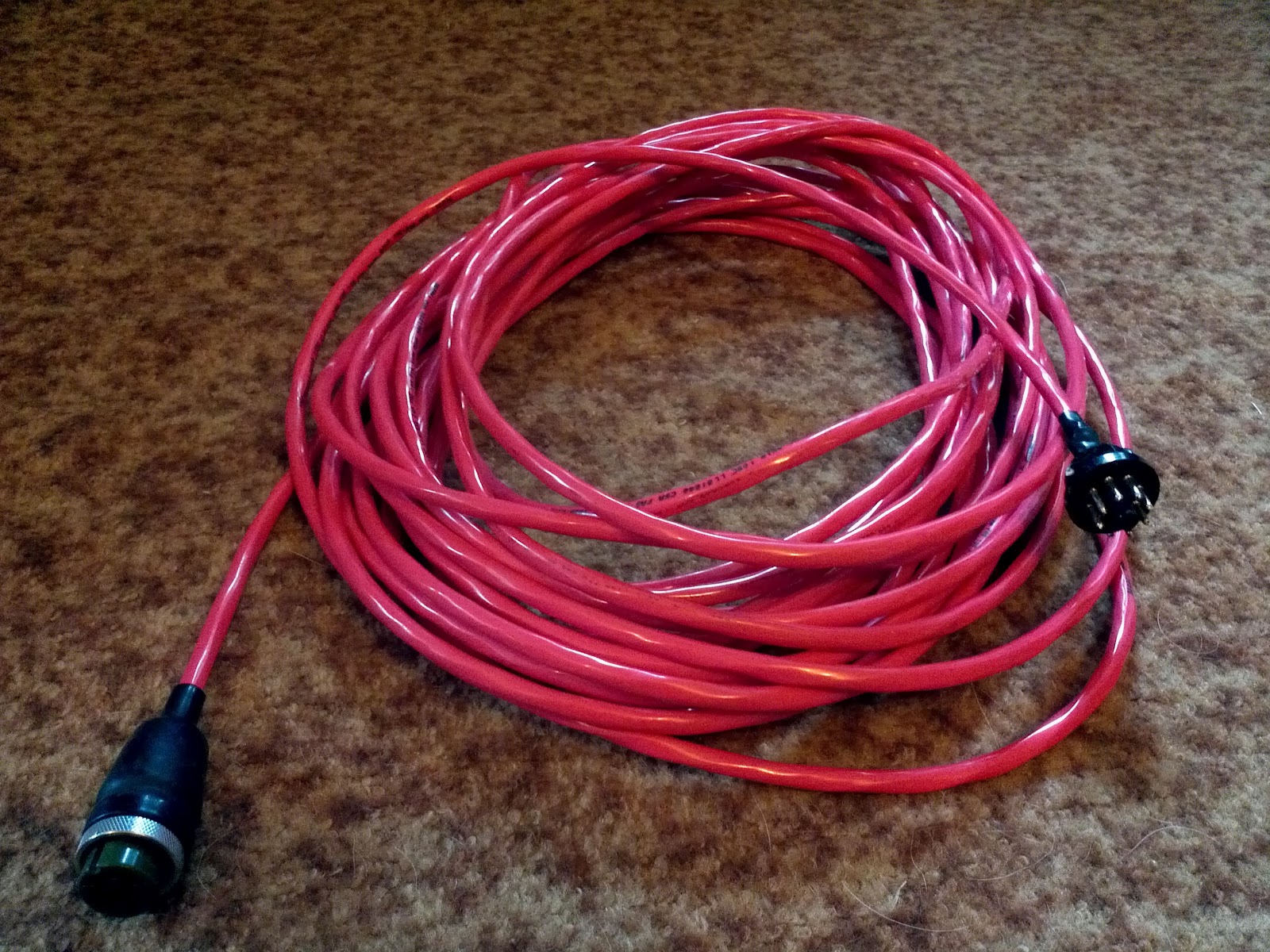

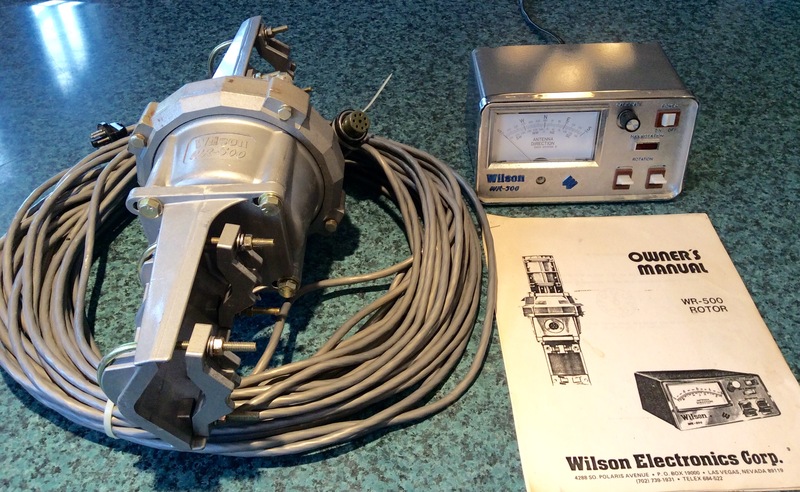

    WILSON WR-500 ADVERTISEMENT - 1.JPG 515693.jpg IMG_20120630_075926.jpg YAESU G-800 ROTOR - 7.jpg



    #16 Ez2cDave, Jul 31, 2018
    Last edited: Jul 31, 2018

  2. Dmans

    Dmans Sr. Member

    Joined:
    Jan 22, 2017
    Messages:
    1,068
    Likes Received:
    1,155
    Ez2cDave,
    That is a bummer.(n)
    Interesting advertising you have dug up. I remember "lusting" after one of these Wilson Crank up towers in the late 70's. Seems it was awful expensive then-not so much now!

    73's
    David

  3. Ez2cDave

    Ez2cDave Member

    Joined:
    Nov 22, 2012
    Messages:
    44
    Likes Received:
    12
    Oh, yes . . . "Basic" disassembly is definitely in the plans ( NOT the Gear Train ) !

    The exploded drawing in the manual gives a "hint" to what lies within. I'll definitely open it up in an "inverted" position, to avoid chasing 98 Ball-Bearings all over the place !

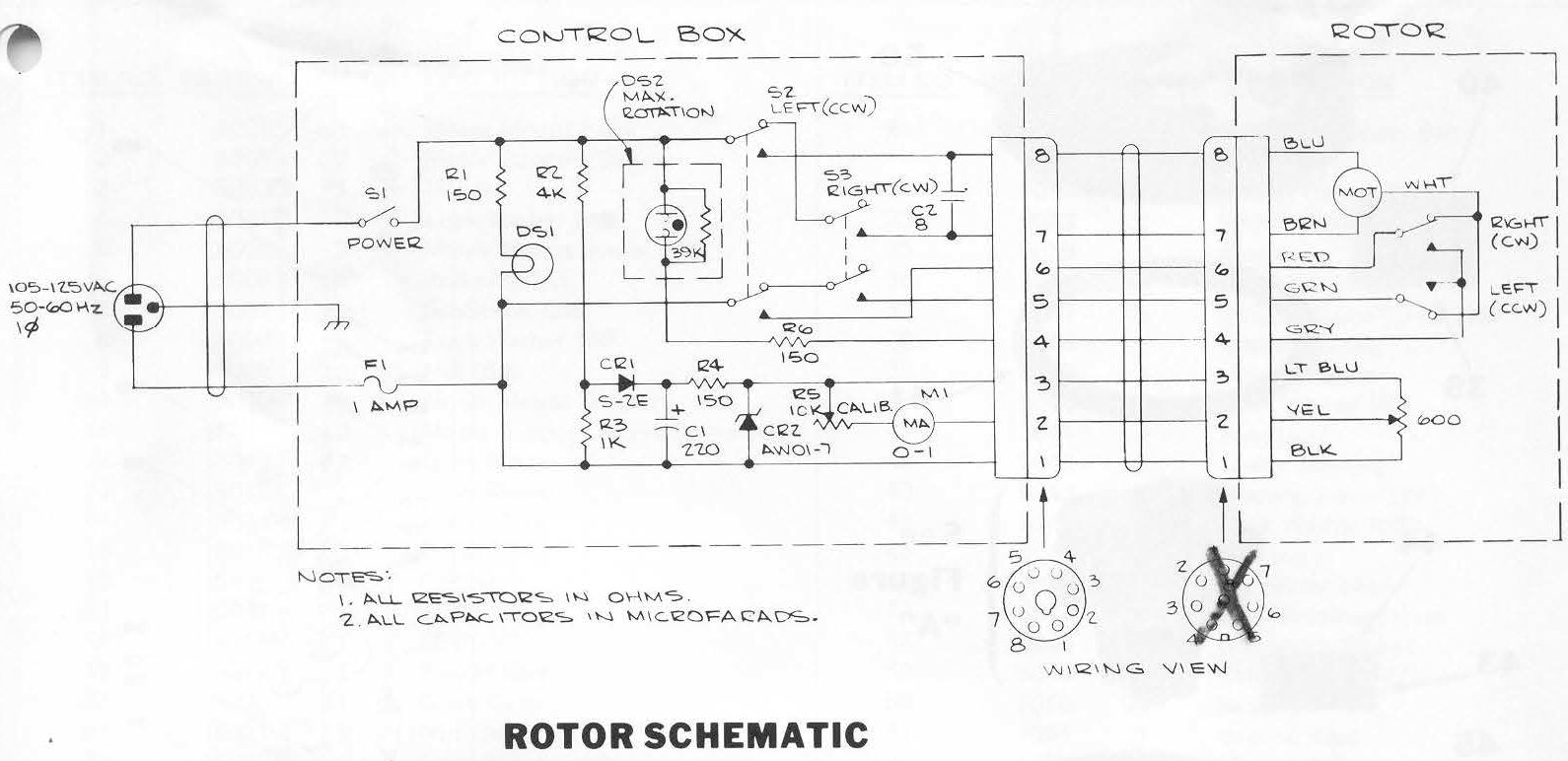

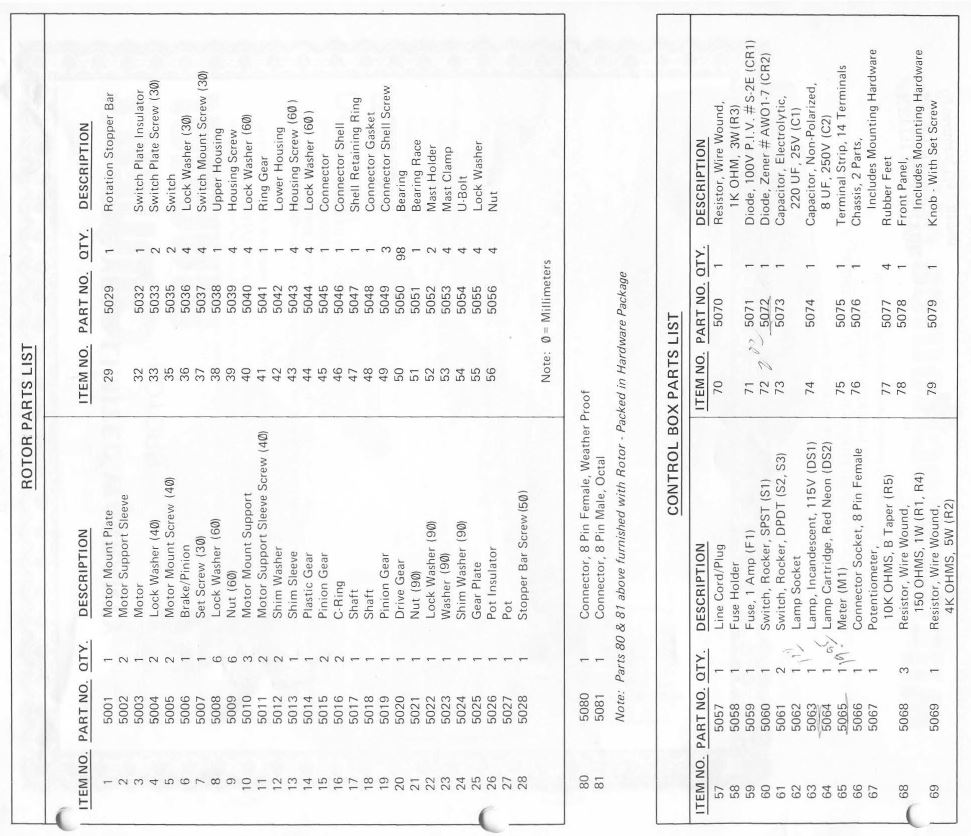

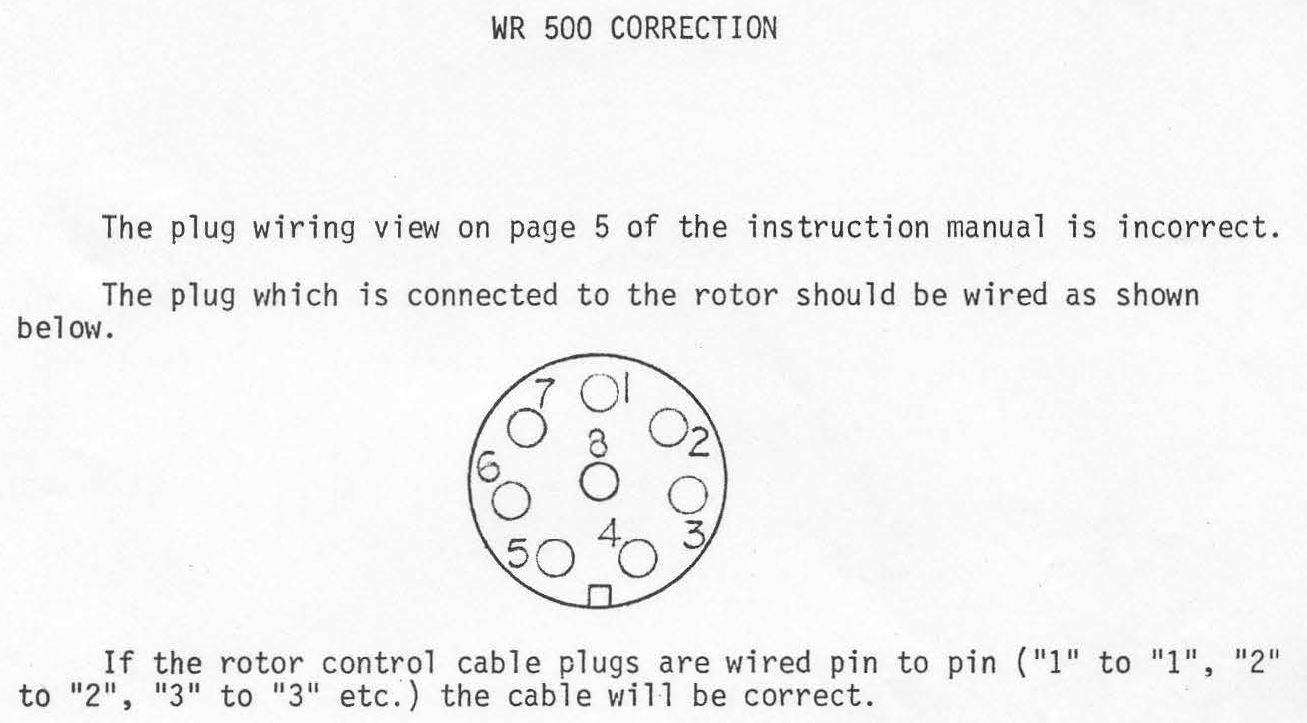

    WILSON WR-500 EXPLODED VIEW.JPG WILSON WR-500 SCHEMATIC.JPG WILSON WR-500 WIRING CORRECTION.JPG WILSON WR-500 PARTS LIST.JPG

  4. Captain Kilowatt

    Captain Kilowatt Professional Amateur
    Staff Member

    Joined:
    Apr 6, 2005
    Messages:
    16,513
    Likes Received:
    10,115
    Set it inside a cardboard box when you take it apart. That keeps all the bearings from running away and leaving little grease tracks across the floor.

    Dmans likes this.
  5. Dmans

    Dmans Sr. Member

    Joined:
    Jan 22, 2017
    Messages:
    1,068
    Likes Received:
    1,155
    Ez2cDave,
    I was thinking something like this. I searched Google for AMP circular connectors. Not sure if this an AMP brand but AMP does make weather proof connectors.

    https://www.digikey.com/products/en?mpart=206705-1&v=17


    73's
    David

  6. Ez2cDave

    Ez2cDave Member

    Joined:
    Nov 22, 2012
    Messages:
    44
    Likes Received:
    12
    That's a great idea . . . Thanks !

  7. Ez2cDave

    Ez2cDave Member

    Joined:
    Nov 22, 2012
    Messages:
    44
    Likes Received:
    12
    If that's the only alternative, I'd have to figure out how to get it to both mount and seal on a curved surface.

    Got my fingers crossed !

  8. Captain Kilowatt

    Captain Kilowatt Professional Amateur
    Staff Member

    Joined:
    Apr 6, 2005
    Messages:
    16,513
    Likes Received:
    10,115
    I have taken several rotators apart and do this all the time. I just cut the sides down to a couple inches so they don't get in the way yet still keep the bearings contained.

  9. Dmans

    Dmans Sr. Member

    Joined:
    Jan 22, 2017
    Messages:
    1,068
    Likes Received:
    1,155
    Ez2cDave,
    I believe there are many different types available. They are not all equipped with a flange mount.
    I have seen some that are like a "bulkhead" type mount that could be sealed with a flat fiber washer/ O ring or similar.
    It looks like the mount ring (with the screws) on your rotor may be on a flat surface. There appears to be a machined "step" in the housing that the chrome ring sits in.

    Another possibility would be to remove the current plug, fabricate a small curved plate that will fit what you removed and install a short 12" pigtail through your replacement plate using a grommet with a cable mounted plug. Shouldn't be too hard to weather proof that set up.

    73's
    David

    Shadetree Mechanic likes this.
  10. Ez2cDave

    Ez2cDave Member

    Joined:
    Nov 22, 2012
    Messages:
    44
    Likes Received:
    12
    That makes a lot of sense . . . The good news is that if any bearings are messed up or missing, they should be a "standard" size and fairly easy to find, if necessary.

    The one internal part that worries me ( other than the Gear Train ) is the potentiometer that operates the "direction needle" on the meter. Hopefully, they are still available, if the original one has crapped out.

  11. Ez2cDave

    Ez2cDave Member

    Joined:
    Nov 22, 2012
    Messages:
    44
    Likes Received:
    12
    Some good ideas there . . . I dread screwing things up on this !

  12. Dmans

    Dmans Sr. Member

    Joined:
    Jan 22, 2017
    Messages:
    1,068
    Likes Received:
    1,155
    Ez2cDave,
    Take your time, think it through, think it through, think it through, measure 5 times, cut once and trial fit everything. Take lots of before pictures.

    I am thinking the pigtail thing may be the best option. Require less clearance inside the housing. Leaving the pigtail long enough to secure it well to the tower or mast...............

    I'm thinking this through a lot myself.............

    73's
    David

  13. nomadradio

    nomadradio Analog Retentive

    Joined:
    Apr 3, 2005
    Messages:
    4,447
    Likes Received:
    5,632
    Just choose a connector that will be as waterproof as the original.

    73

  14. Ez2cDave

    Ez2cDave Member

    Joined:
    Nov 22, 2012
    Messages:
    44
    Likes Received:
    12

    Great advice . . . Slow & methodical is the ticket !

  15. Ez2cDave

    Ez2cDave Member

    Joined:
    Nov 22, 2012
    Messages:
    44
    Likes Received:
    12
    From what I understand, the original plug was only "waterproof" because it had a rubber "boot" that was pulled up over it after it was screwed in place . . . I might be wrong about that, however.
