Portable power and radio kit - home build?

Bow

Bastard Modulation Engineering
Aug 13, 2008
311
307
73
SouthWest AZ
reverendbow.wordpress.com

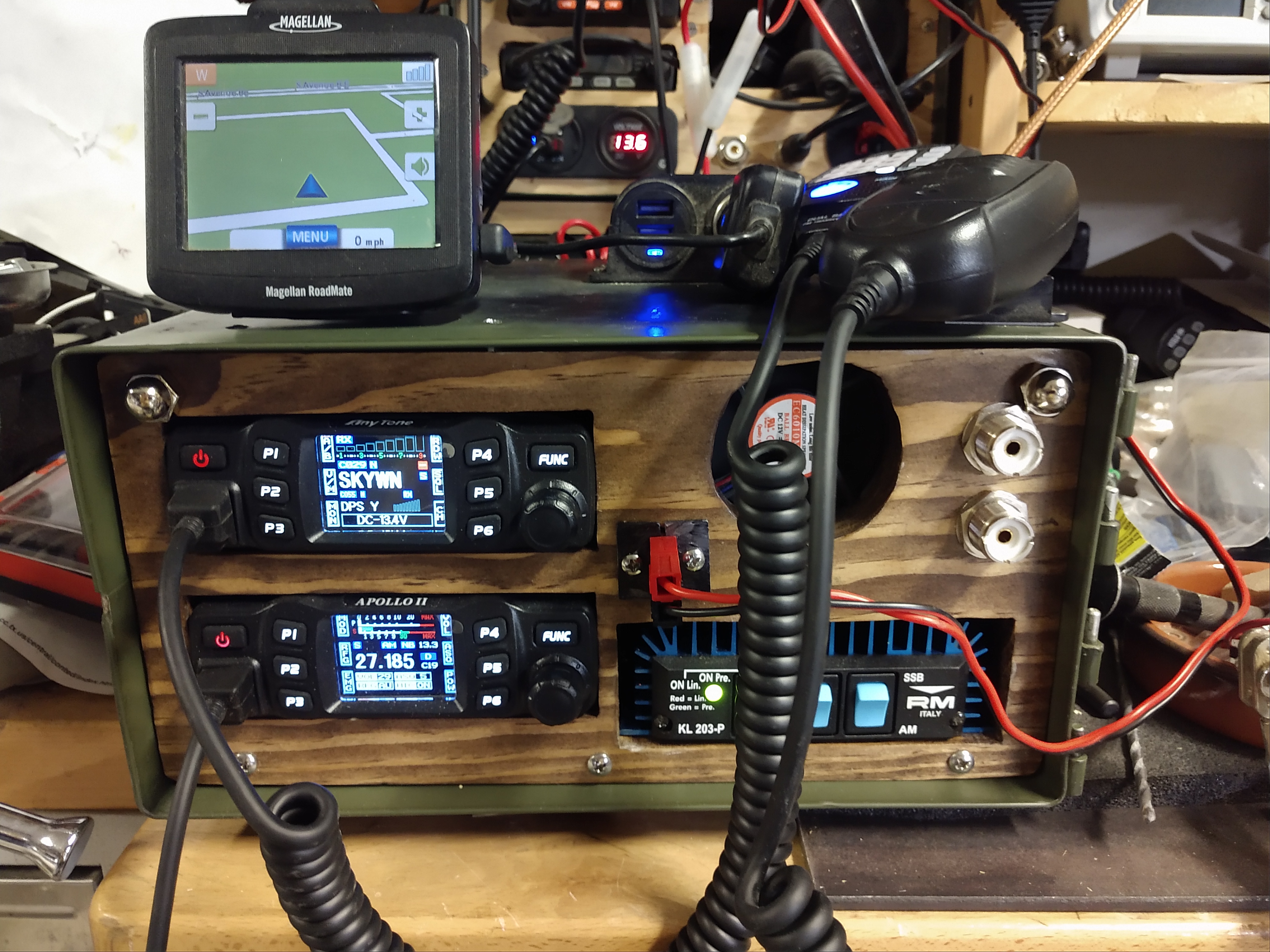

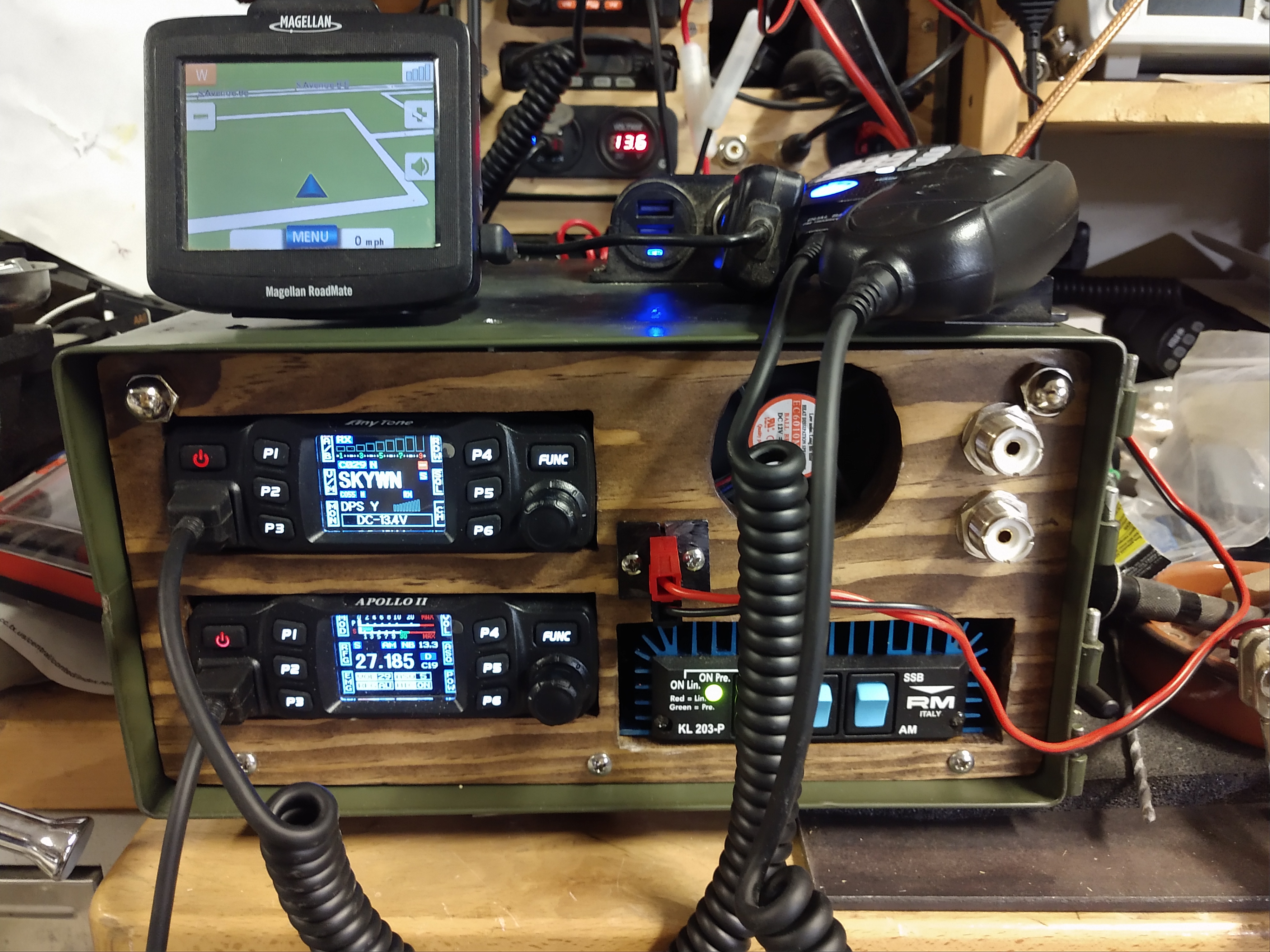

is that a 50 cal box?
It is actually a "Aircraft Flare Can" same width/height as a 50 cal can, but about 3" deeper

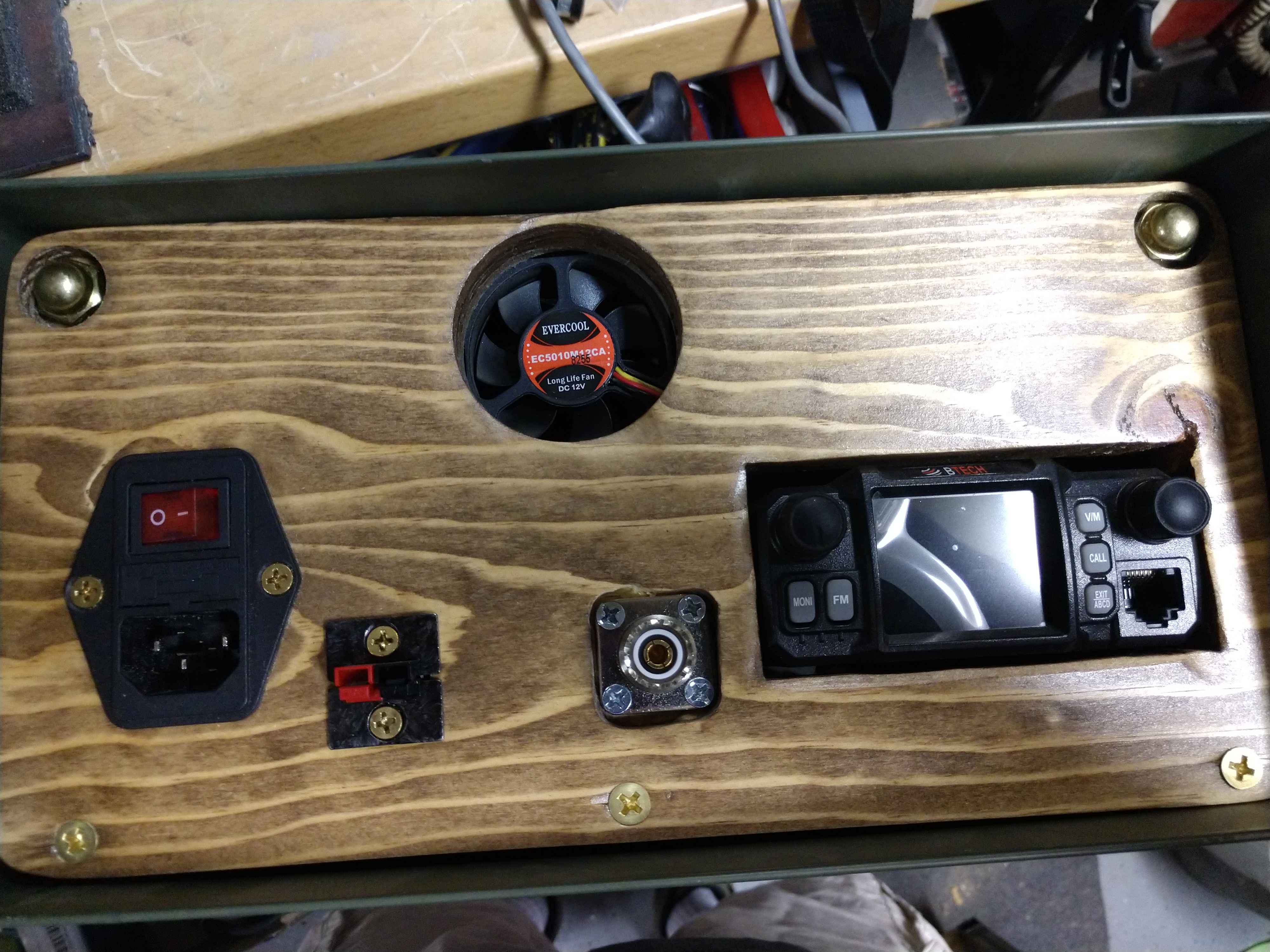

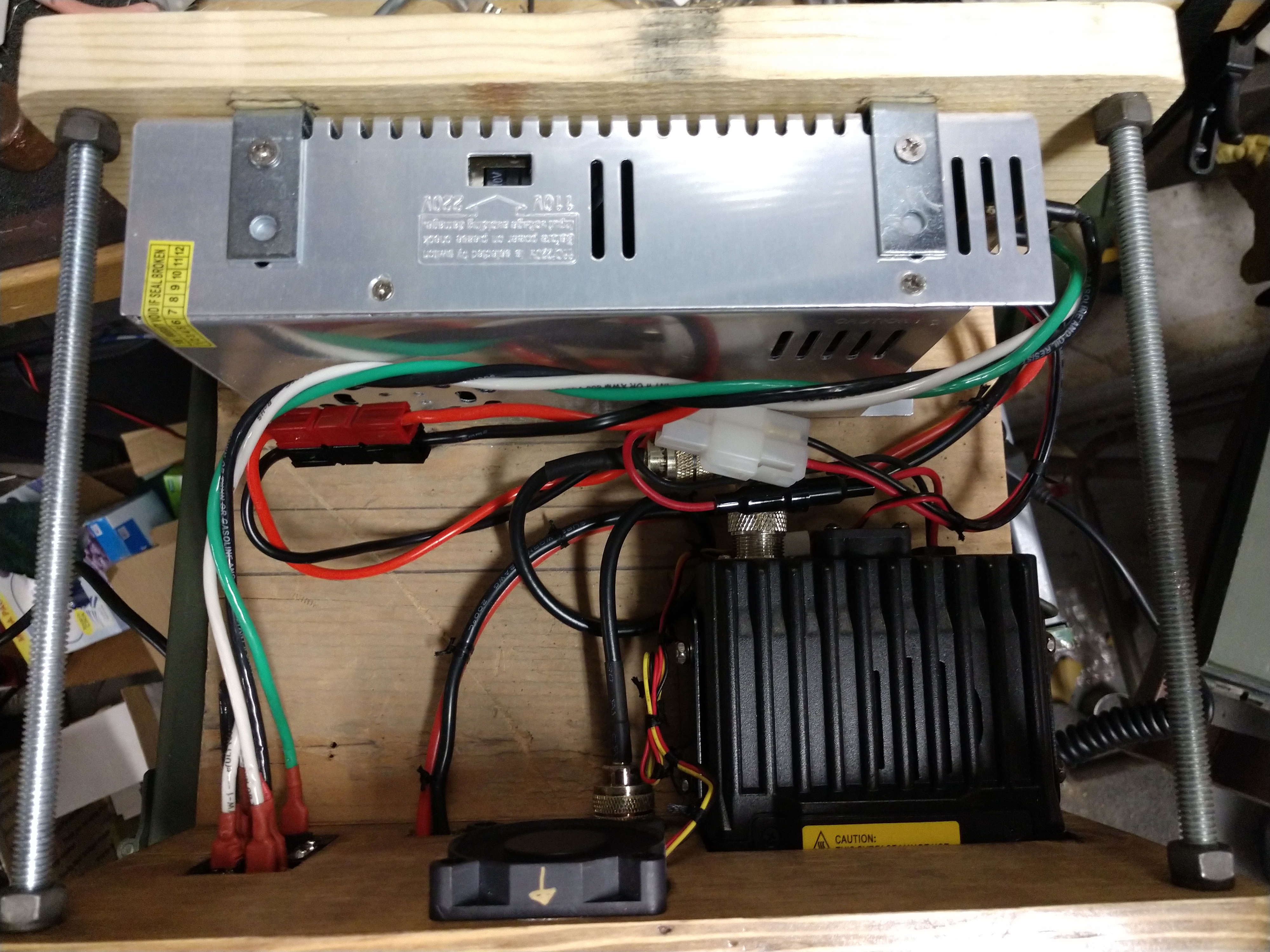

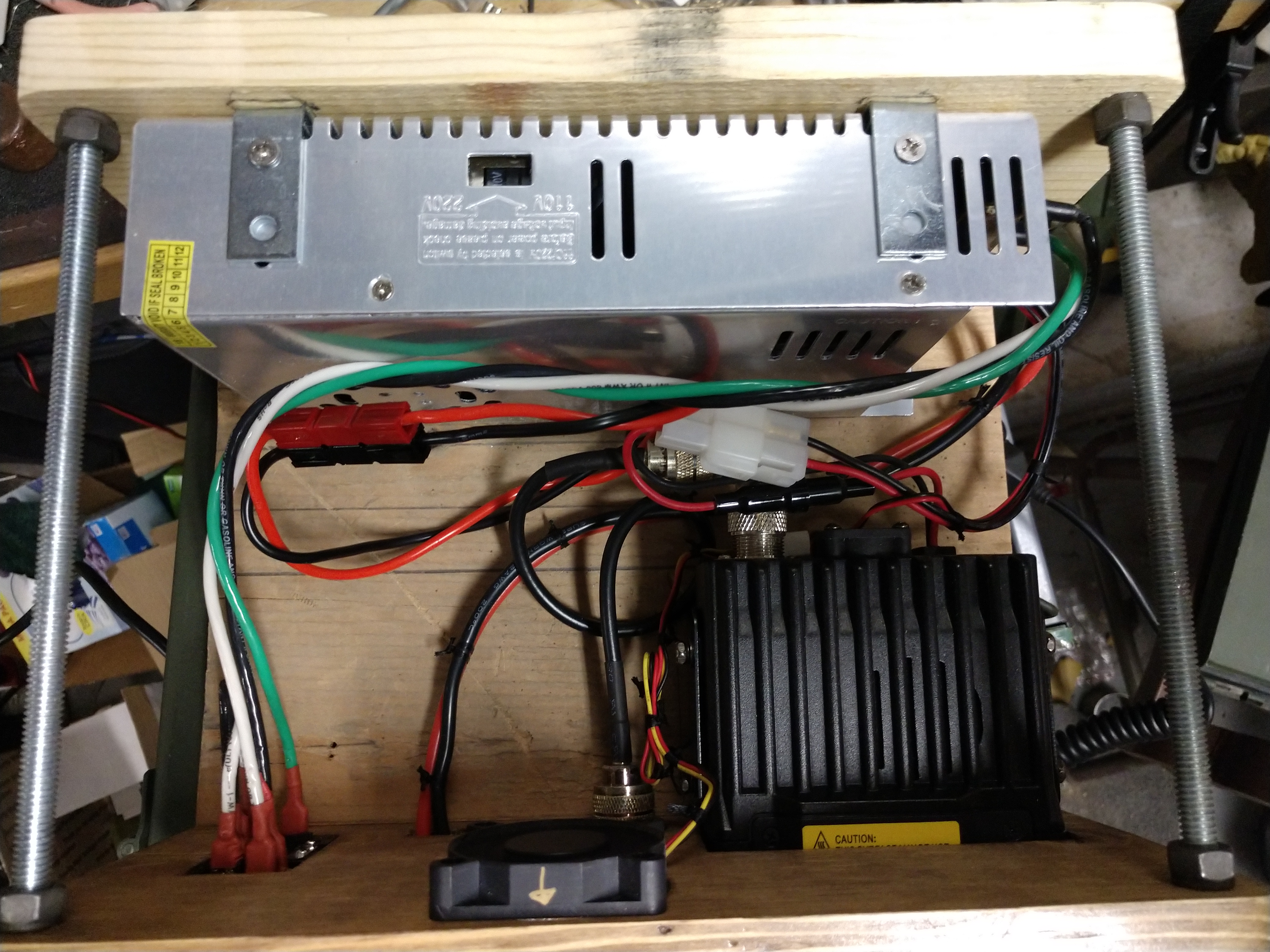

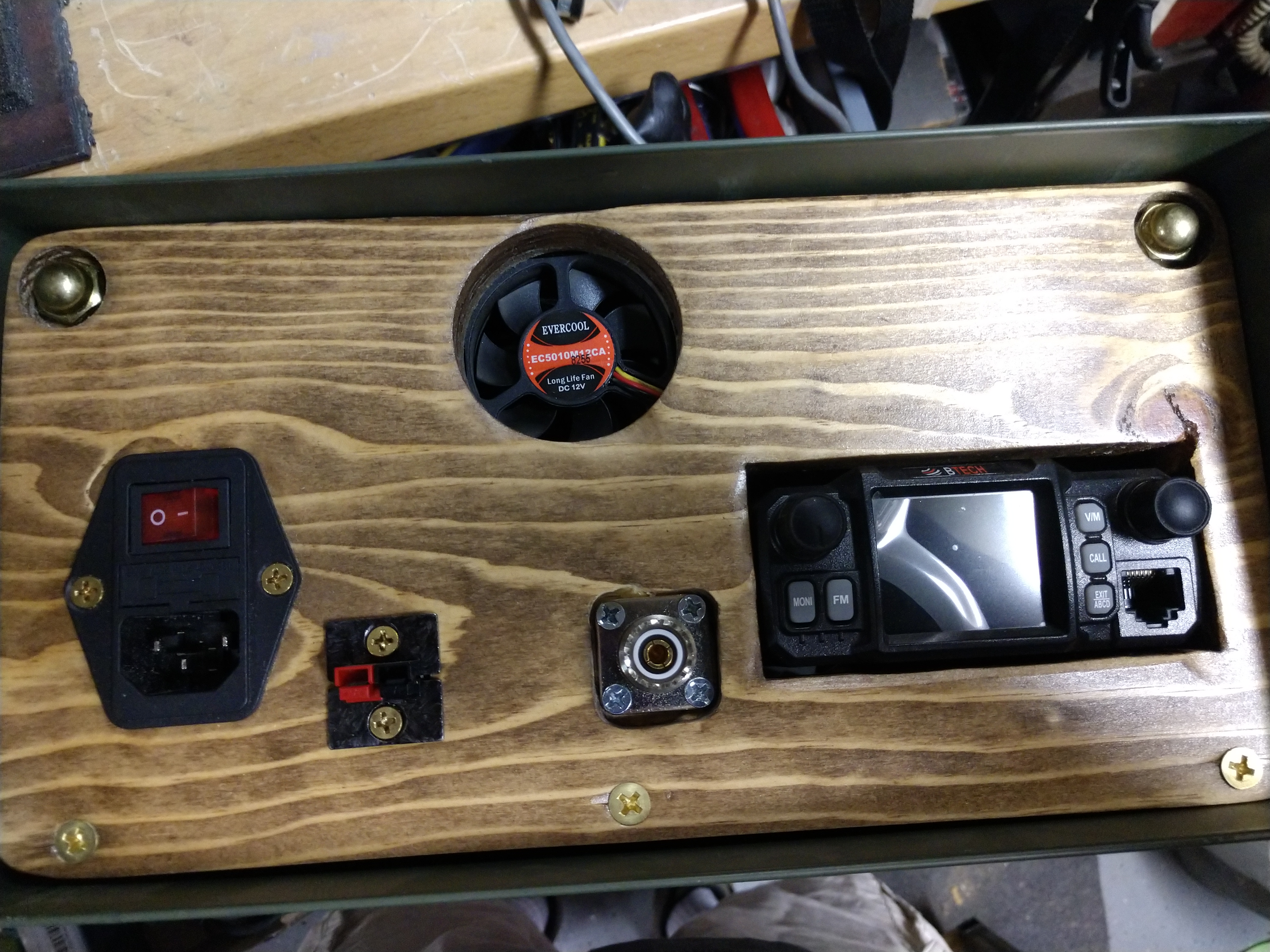

For reference, this is the same size can with B-Tech 25x4 and a 12v/30a power supply



Littlears

Member
Aug 16, 2020
43
58
18
43
s6E9Ylb
Ugh ohhhhh. Look what arrived today :)

That’s a 20mm M548 large ammo can (at least as per the eBay listing).

more to come


Attachments

  • 1A96321D-F64C-4504-BED6-6006EFC12E1A.jpeg
    1.6 MB · Views: 142
  • Like
Reactions: Holydvr

Littlears

Member
Aug 16, 2020
43
58
18
43

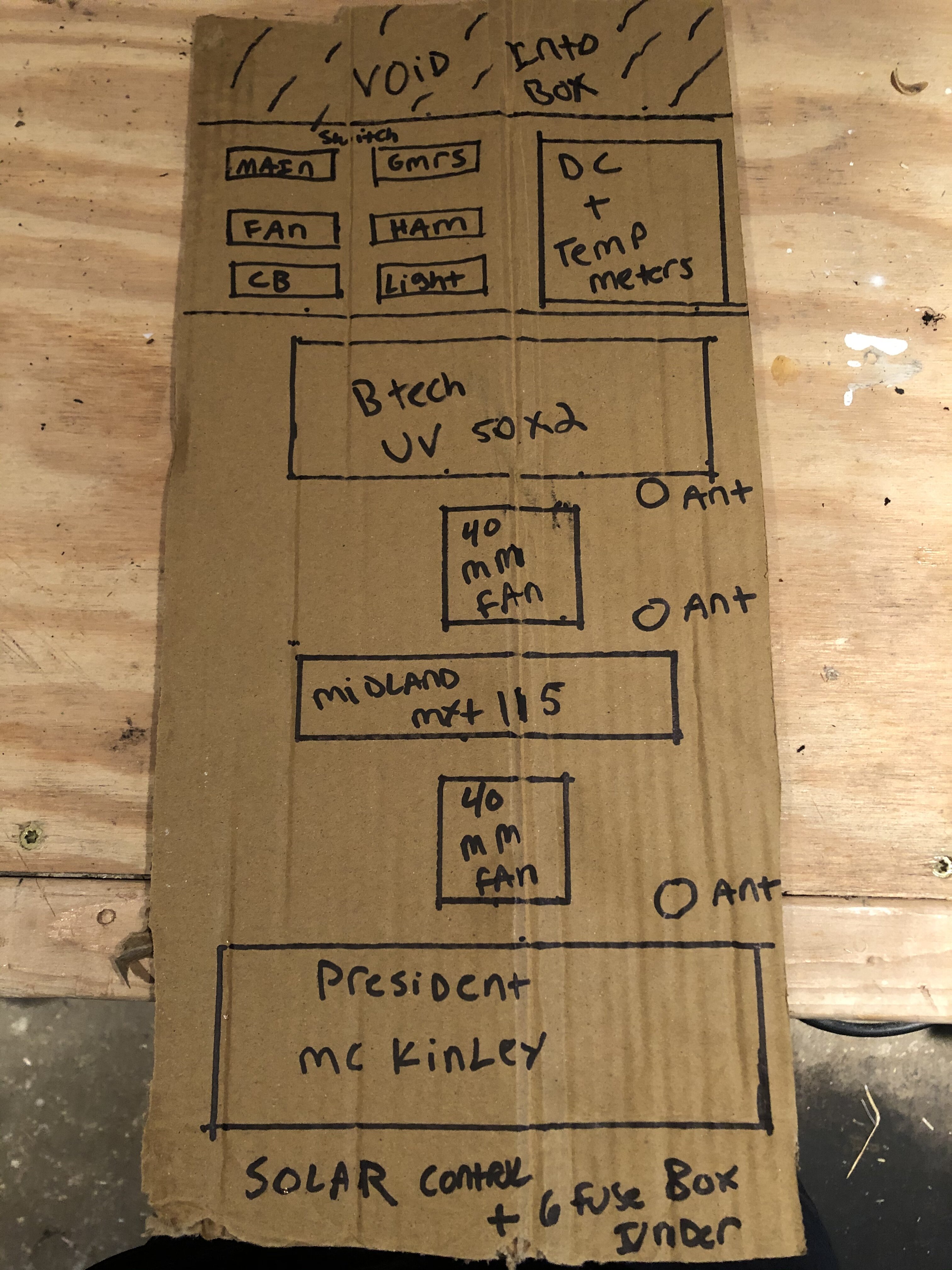

I’ve been playing around with box layout and was wondering if I could get your feedback on this version?

Any products you think which are unnecessary or redundant? or perhaps there’s a better version of a product I should use? How about Air flow design? Power vs rf separation?

thanks!


Attachments

  • 4E4D1F5F-31F4-41DB-AA48-78D2C2C06586.jpeg
    1.6 MB · Views: 155
  • Like
Reactions: Bow

Bow

Bastard Modulation Engineering
Aug 13, 2008
311
307
73
SouthWest AZ
reverendbow.wordpress.com
I’ve been playing around with box layout and was wondering if I could get your feedback on this version?

Any products you think which are unnecessary or redundant? or perhaps there’s a better version of a product I should use? How about Air flow design? Power vs rf separation?

thanks!


Just my input, if you haven't already built it..

I would put the "Void" (air intake) at the bottom, fan at the top... Heat raises....

and you only need 1 fan.... it will move the air out of that box very well

Since you are not running a lot of RF power, I would worry too much about Power/RF interaction

The Midland is redundant... the UV-50X will cover 70cm Ham/GRMS/FRS/2M Ham/MURS freqs... is in legal? no... will anyone know? no


Littlears

Member
Aug 16, 2020
43
58
18
43

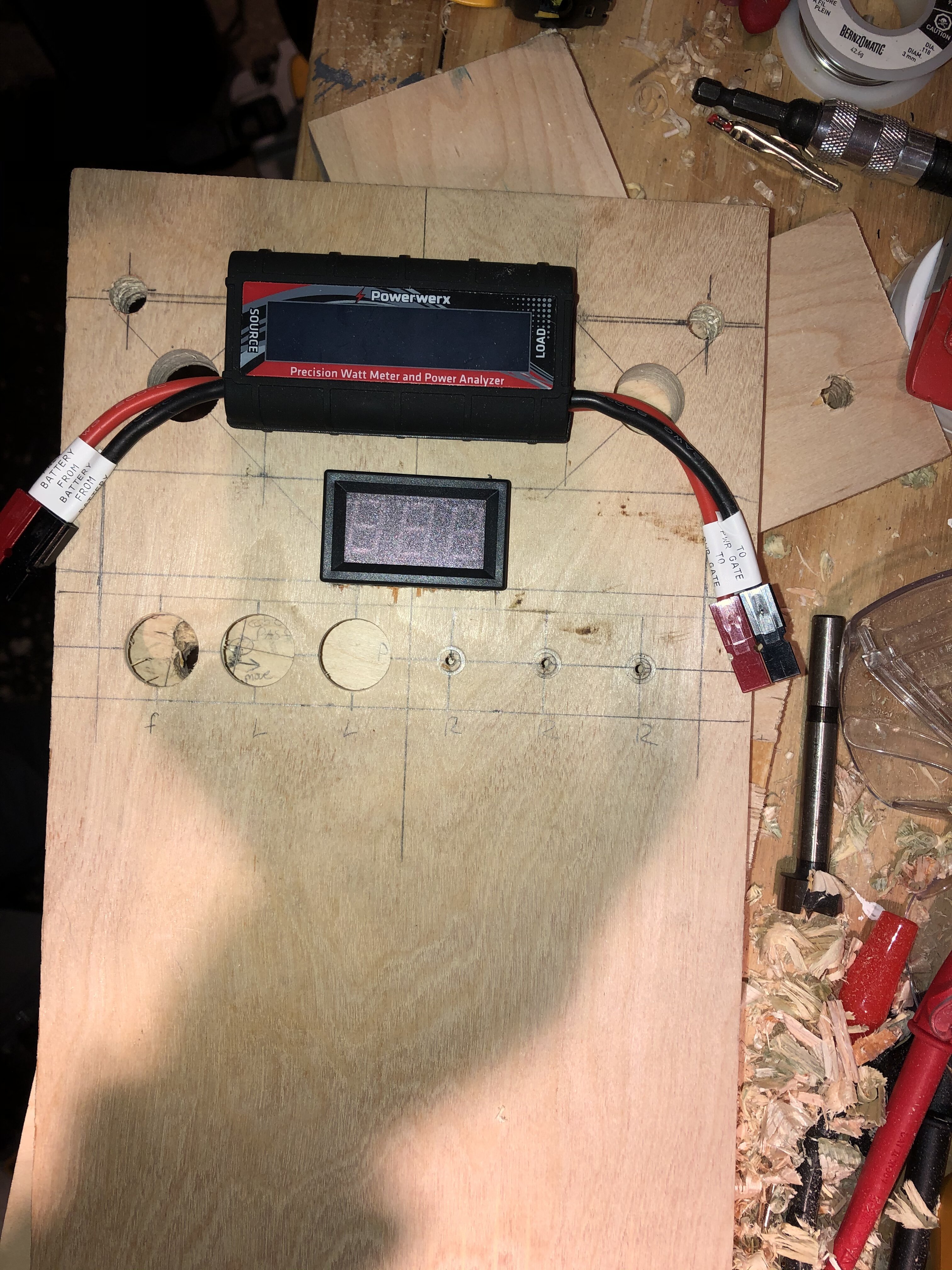

Here are some progress pics. Radio cut outs will come post Santa day, and wiring will finish just after.


Attachments

  • 0C15658D-6D59-4552-A048-A813177D16A7.jpeg
    2.9 MB · Views: 163
  • 5E69EADB-7555-48E8-BAF6-F6F6BDBF7F79.jpeg
    2 MB · Views: 158

peter27_socal

New Member
Aug 4, 2022
2
2
3
40
Has anyone built a home brew radio/ battery / solar charge / dc power supply case?

I’m thinking of building a radio in ammo can type setup but could use some help with products / design “gotchas” to get started

any lessons learned you all have would be good to hear!
i built a solar generator back in 2007.
it worked pretty good, and ran it entirely on 12v..

:)

all parts minus the charge controller were had from a local kragen auto parts.

the charge controller was bought from one "silicon solar" out of florida.

all in all the build was around 350$.
