Tram D201 40yr/100 Mile Restoration Done Right

Discussion in 'General CB Services Discussion' started by Wildcat444, Sep 29, 2020.

  1. Wildcat444

    Wildcat444 Yea, that's right.

    Joined:
    Oct 16, 2009
    Messages:
    5
    Likes Received:
    3
    Hi, I am restoring an old Tram D201 (23 ch with PC boards from late 1976) that I picked up, and want to do it right. I have scoured internet forums and sites, posted questions, and found it quite a task to gather what is needed to tackle this, but I am having fun!

    RESISTORS & CAPACITORS:
    -----------------------
    * As suggested, I will start by replacing all high wattage resistors, and upgrading the 1w to 2, the 2w to 3, the 3w to 4, the 7w to 10, and the 15w (all I could find were two 10w to either put in series or parallel depending on the value used) for a total of 20w.

    * I will also start with replacing all electrolytics and the two line filter caps. I am confident in my selection of 50uf and 100uf 500v caps to replace the multi-section caps. I am also confident in my selection of two .0047uF X1Y2 safety caps from line to ground, and a .1uF X2 rated cap across the lines.

    But what about the rest of the electrolytic caps... what voltages should the 16v, 150v, 250v, etc. be increased to if any? Should any of the capacitance values be changed? How about the wattage of the hi wattage resistors... is increasing to the next higher wattage enough for all positions?



    Thanks!!

    guitar_199 and Tokin like this.

  2. tramd

    tramd Active Member

    Joined:
    Jul 17, 2009
    Messages:
    33
    Likes Received:
    33
    Here is a list. This is from 2600 about 15 years ago. I hope he doesn't mind me posting this. I blacked out some of my scribbling. It's for the 40 channel model but 95% will pertain to the 23 channel.


    Attached Files:

  3. tramd

    tramd Active Member

    Joined:
    Jul 17, 2009
    Messages:
    33
    Likes Received:
    33
    Here is another copy of the same that may be easier to read.


    Attached Files:

  4. Wildcat444

    Wildcat444 Yea, that's right.

    Joined:
    Oct 16, 2009
    Messages:
    5
    Likes Received:
    3
    Wow Tramd, this is an excellent list... very helpful. Thank you!

    Next, I am ready to order replacement electrolytic capacitors... so I am wondering what voltages of radial and axial electrolytic capacitors (aside from the multi-section which I already have sorted out) that those experienced in these restorations are using? Is it recommended to upgrade for example, the 1uf from 50v to 450v or is that overkill? I seem to have problems finding some of these values in high voltages or that will physically fit from Mouser.

  5. tramd

    tramd Active Member

    Joined:
    Jul 17, 2009
    Messages:
    33
    Likes Received:
    33
    You can find the info in the parts section of the manual in case they may not be the original caps. There is no reason to use caps of extreme voltage value in circuits that are never going to see that kind of voltage. Most circuits in a radio do not run at the B+ voltage otherwise they would all have to be rated at 450v. 500v ones for the multi section can caps and 450v for C625 on the BA board to make the fuse do it's job are good to use. The 50v value for the 1uf is the most common voltage you will see for that particular cap but most others will have different voltages available. It doesn't hurt to use a slightly higher voltage cap such as a 25v in place of a 16v but don't get carried away. Remember the radio has run this way just fine all these years with the stock values. It's just time to replace them. Kinda like replacing spark plugs in your car. They just wore out.

  6. nomadradio

    nomadradio Analog Retentive

    Joined:
    Apr 3, 2005
    Messages:
    3,863
    Likes Received:
    4,625
    The two-section 100uf 500-Volt filter is available from Parts Express.

    https://www.parts-express.com/parts...trolytic-multi-section-can-capacitor--020-608

    Needs a mount clamp.

    https://www.parts-express.com/139-m...high-voltage-electrolytic-capacitors--020-615

    Good news is that the hole spacing to mount the clamp matches the rivets in the old metal saddle that holds the old twist-lock filter. You'll have to drill out the rivets, and provide a ground lug under one of the two screws that mount the new clamp.

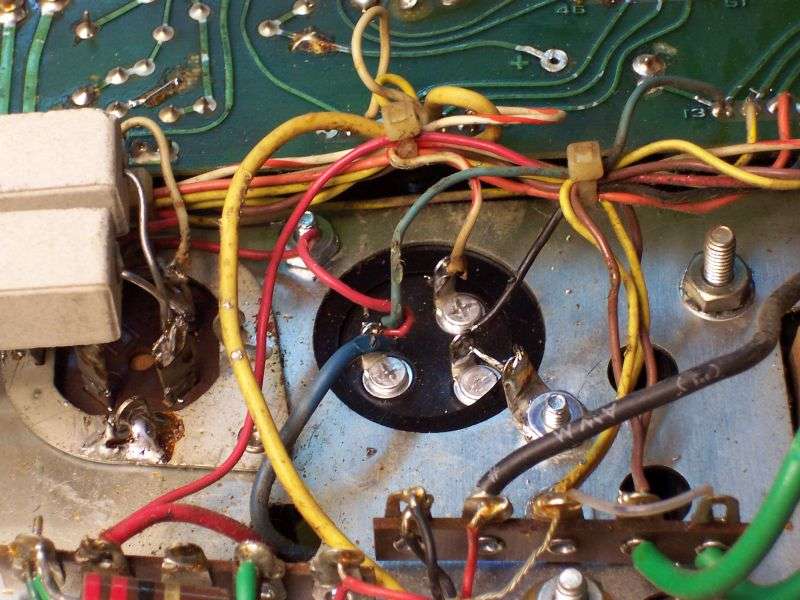

    Here's what it looks like done this way.

    [​IMG]

    73

    TM86 and Jay Mojave like this.
